NSN 5985-01-526-9980 235034, 23-50-34, 01-526-9980
Product Details | FIXED ATTENUATOR
5985-01-526-9980 A device for reducing the strength of an alternating current signal by a fixed or predetermined amount, without causing appreciable signal distortion, by maintaining correct impedance match.
Part Alternates: 235034, 23-50-34, 5985-01-526-9980, 01-526-9980, 5985015269980, 015269980
Electrical and Electronic Equipment Components | Antennas, Waveguides, and Related Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 13 JAN 2005 | 01-526-9980 | 14224 ( ATTENUATOR, FIXED ) |
Drawings & Photos | NSN 5985-01-526-9980
Cross Reference | NSN 5985-01-526-9980
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 23-50-34 | 93459 | AEROFLEX / WEINSCHEL, INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5985-01-526-9980
Technical Data | NSN 5985-01-526-9980
| Characteristic | Specifications |
|---|---|
| APPLICATION DESIGN | WAVEGUIDE |
| RF SIGNAL ATTENUATION IN DECIBELS | 20.0 |
| OPERATING TEMP RANGE | -55.0 TO 125.0 DEG CELSIUS |

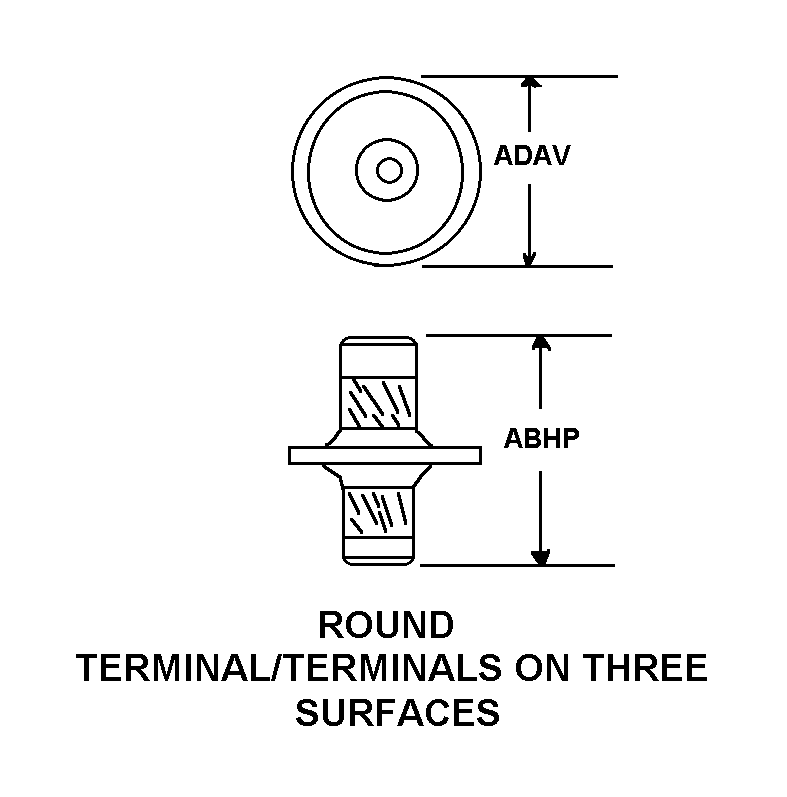

| BODY STYLE | 25B ROUND TERMINAL/TERMINALS ON THREE SURFACES |
| OVERALL LENGTH | 25.900 INCHES NOMINAL |
| OVERALL DIAMETER | 38.800 INCHES NOMINAL |
| BODY MATERIAL | ALUMINUM |
| TERMINAL TYPE AND QUANTITY | 1 SURFACE CONTACT |
| SPECIAL FEATURES | PRECISION INJECTION MOLDED CONNECTOR DIELECTRIC |
Restrictions/Controls & Freight Information | NSN 5985-01-526-9980
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
