NSN 5985-01-562-0409 SAF5350C, SAF5350-C, 01-562-0409
Product Details | ANTENNA
5985-01-562-0409 An item consisting of a conductor or a system of conductors specifically designed to radiate and/or receive electromagnetic waves in free space. May include beam-forming devices, drive motors, synchros, radome, and associated mechanical structure.
Part Alternates: SAF5350C, SAF5350-C, 5985-01-562-0409, 01-562-0409, 5985015620409, 015620409
Electrical and Electronic Equipment Components | Antennas, Waveguides, and Related Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 26 MAR 2008 | 01-562-0409 | 00749 ( ANTENNA ) |
Drawings & Photos | NSN 5985-01-562-0409
Demand History | NSN 5985-01-562-0409
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| SAF5350-C | 2019-06-168 | 1 | DIBBS |
| SAF5350C | 2015-02-47 | 24 | United States |
| 5985-01-562-0409 | 2014-09-246 | 1 | DIBBS |
| 5985-01-562-0409 | 2013-11-326 | 3 | United States |
| SAF5350C | 2013-05-149 | 2 | United States |
| SAF5350C | 2013-05-144 | 2 | United States |
| SAF5350C | 2012-12-353 | 1 | United States |
| SAF5350C | 2012-11-334 | 2 | United States |
| SAF5350C | 2012-06-180 | 16 | United States |
| SAF5350C | 2012-06-166 | 4 | United States |
| 5985-01-562-0409 | 2011-07-187 | 36 | United States |
| 5985-01-562-0409 | 2011-04-103 | 1 | United States |
| 5985-01-562-0409 | 2010-02-39 | 25 | US |
| 5985-01-562-0409 | 2010-01-13 | 300 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5985-01-562-0409
Related Products | NSN 5985-01-562-0409
Technical Data | NSN 5985-01-562-0409
| Characteristic | Specifications |
|---|---|
| DESIGN TYPE | HELIX SINGLE ANTENNA ELEMENT |
| FREQUENCY RATING | 1616.000 MEGAHERTZ MINIMUM AND 1626.500 MEGAHERTZ MAXIMUM SINGLE ANTENNA ELEMENT |
| TERMINAL TYPE | RECEPTACLE, COAXIAL SINGLE ANTENNA ELEMENT |
| MOUNTING METHOD | FLANGE |
| MOUNTING HOLE QUANTITY | 3 |
| III END ITEM IDENTIFICATION | AN/TMQ-53 METEOROLOGICAL SYSTEM |

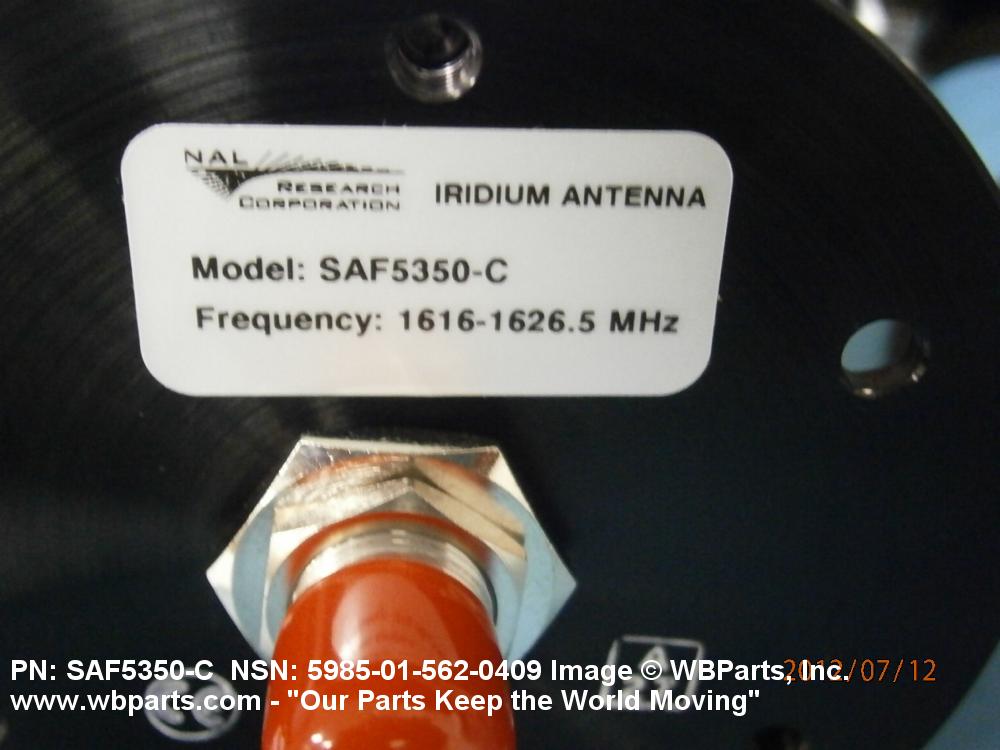

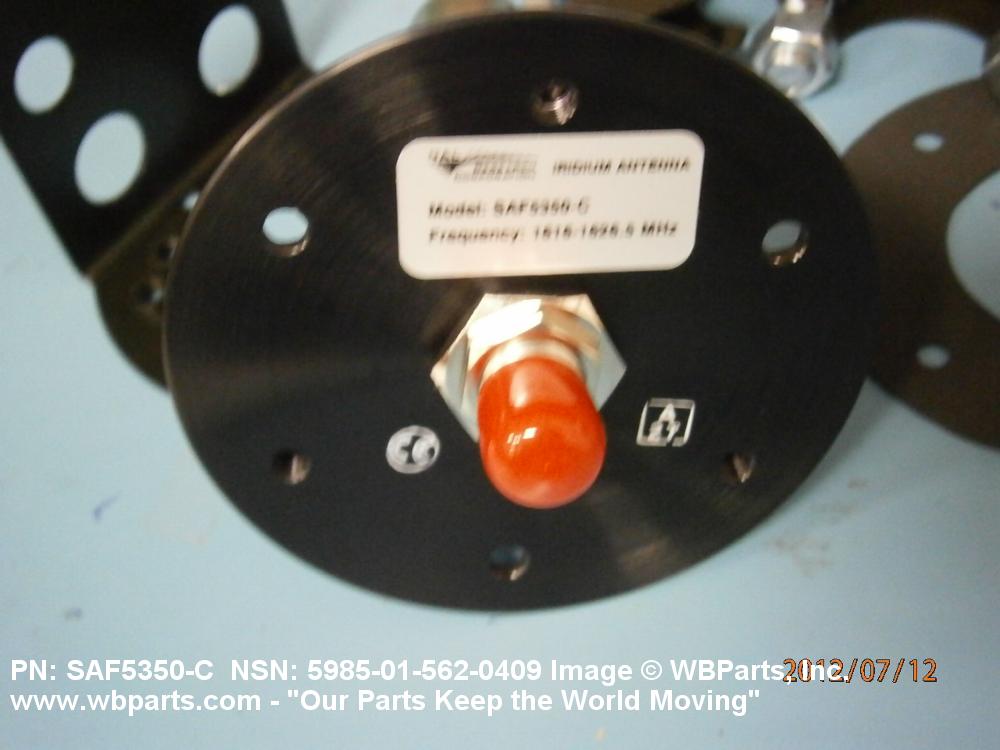

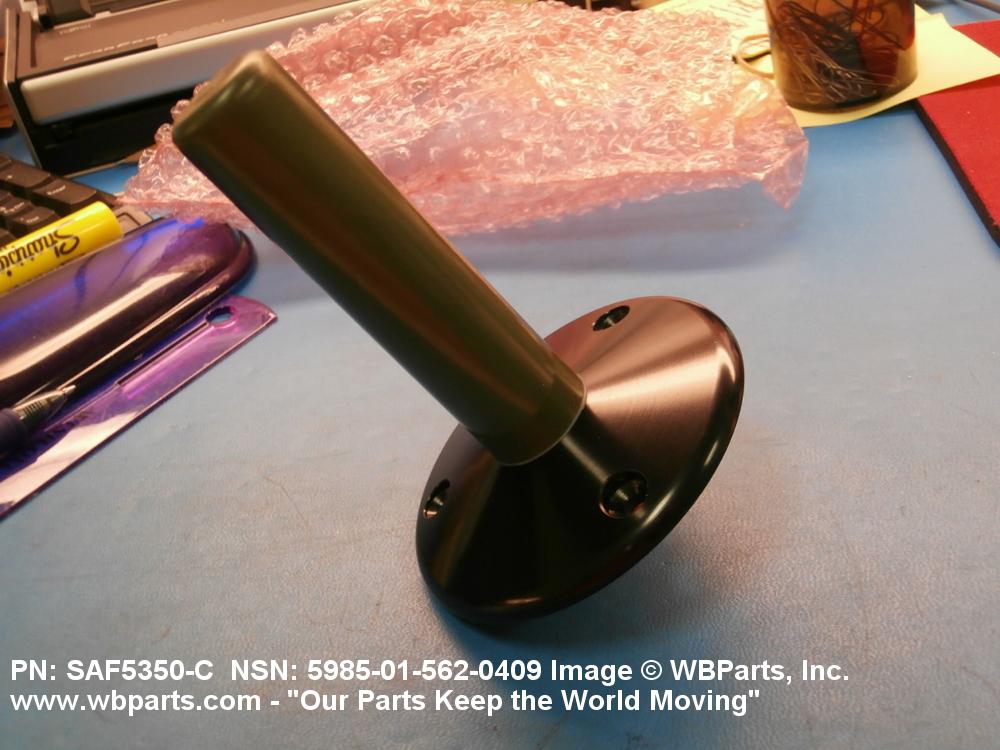

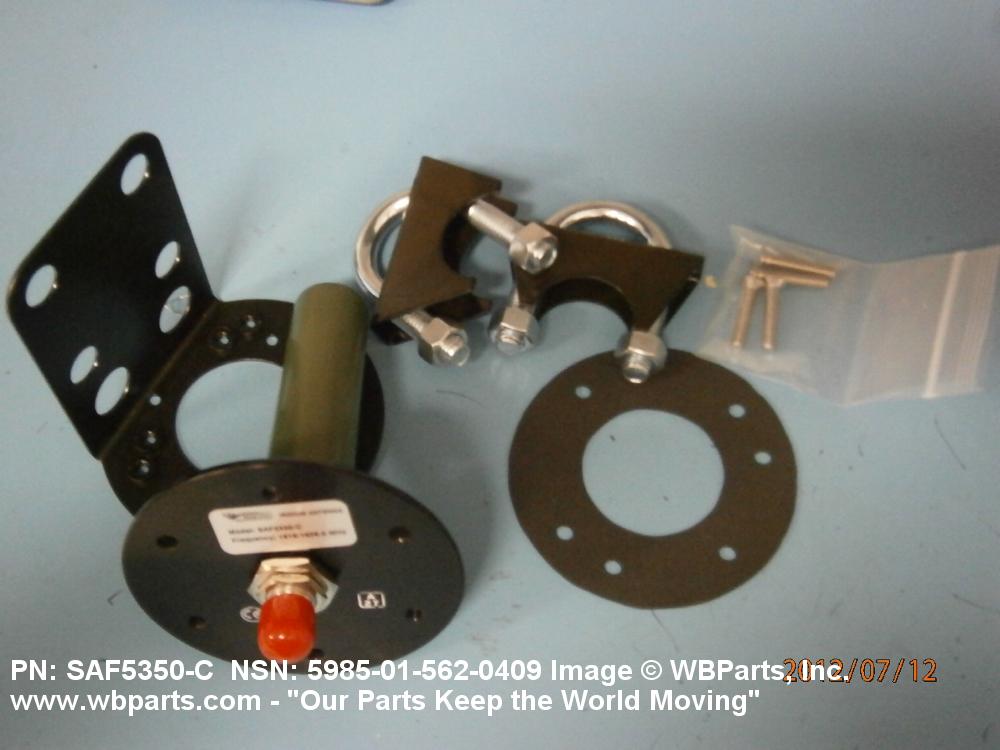

| III FUNCTIONAL DESCRIPTION | PASSIVE QUAD HELIX L-BAND ANTENNA USED WITH A3LA AND 9601 SATELLITE MODEMS FOR THE IRIDIUM NETWORK |
| III REFERENCE DATA AND LITERATURE | TO 31M1-2TMQ53-1 |
| PART NAME ASSIGNED BY CONTROLLING AGENCY | IRIDIUM ANTENNA |
| MANUFACTURERS CODE | 072E5 |
| DESIGN CONTROL REFERENCE | SAF5350-C |
Restrictions/Controls & Freight Information | NSN 5985-01-562-0409
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 060560 | AERIALS/ANTENNAE O/T TV |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | TK | HQ AFMC/GLSC 401 SCM/GUMB Wright-Patterson AFB, OH 45433-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
