NSN 5985-01-641-0100 C137060FG, C137-060FG , 01-641-0100
Product Details | WAVEGUIDE ADAPTER
5985-01-641-0100 An item designed to establish the necessary accommodations to connect a waveguide to a coaxial line, or to connect two or more terminated waveguides whose physical design does not normally allow connection.
Part Alternates: C137060FG, C137-060FG , 5985-01-641-0100, 01-641-0100, 5985016410100, 016410100
Electrical and Electronic Equipment Components | Antennas, Waveguides, and Related Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 2015007 | 01-641-0100 | 00186 ( ADAPTER, WAVEGUIDE ) |

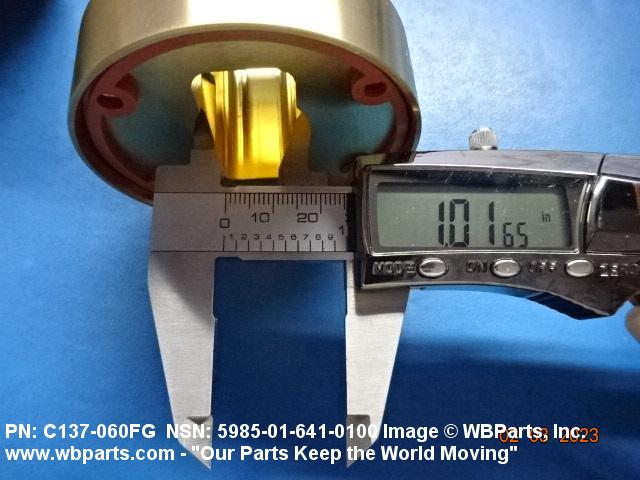

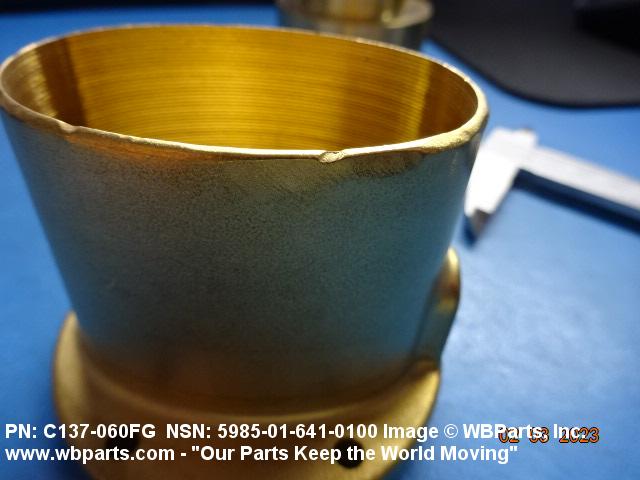

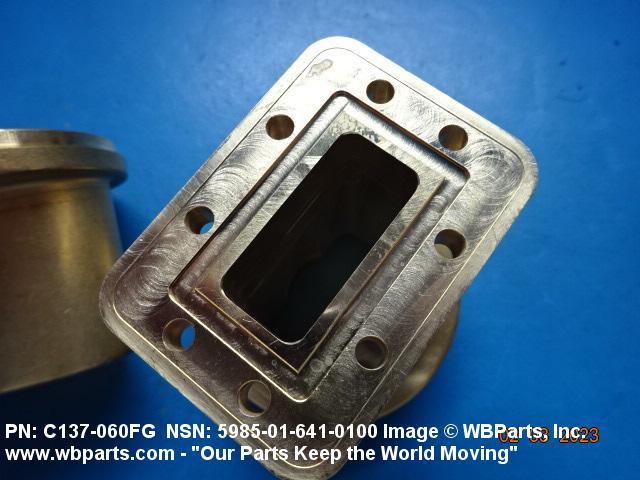

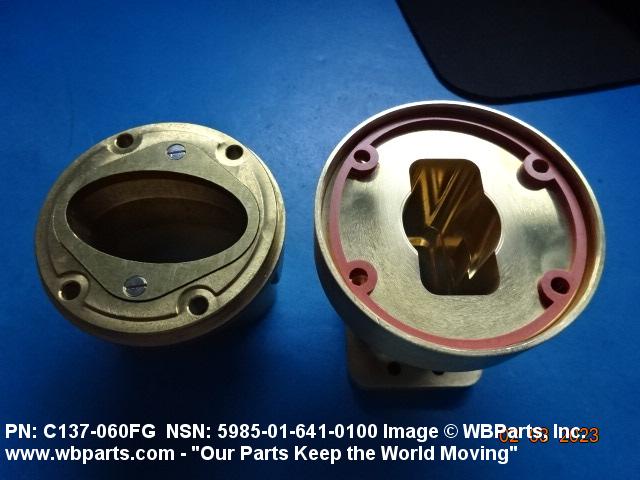

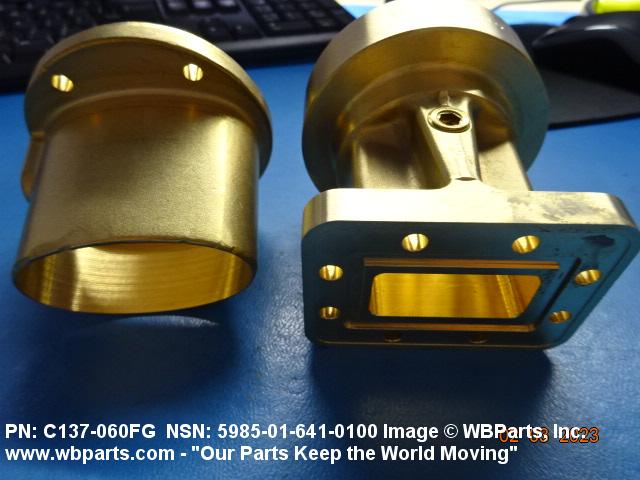

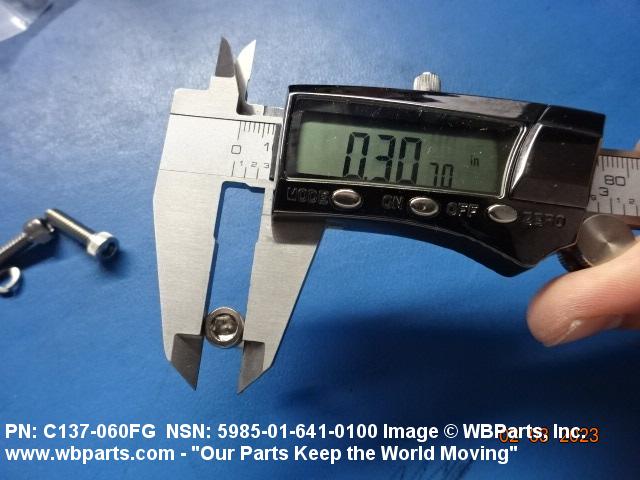

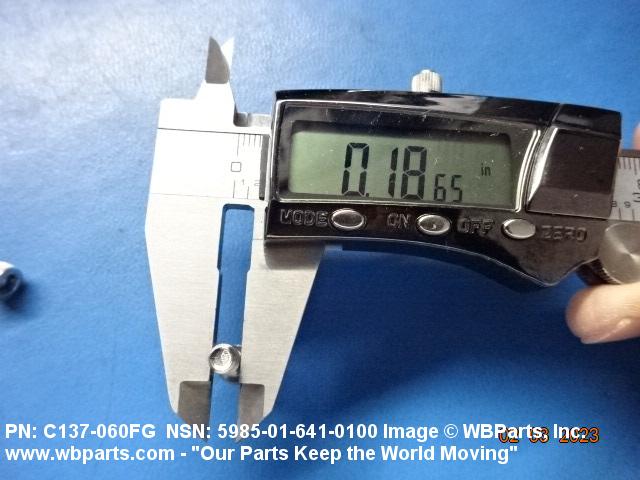

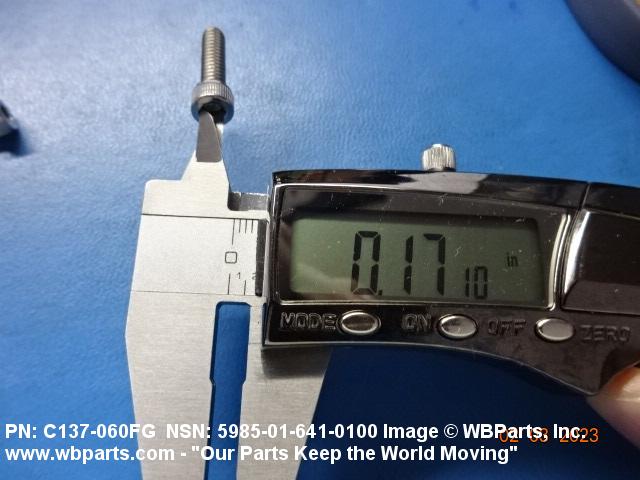

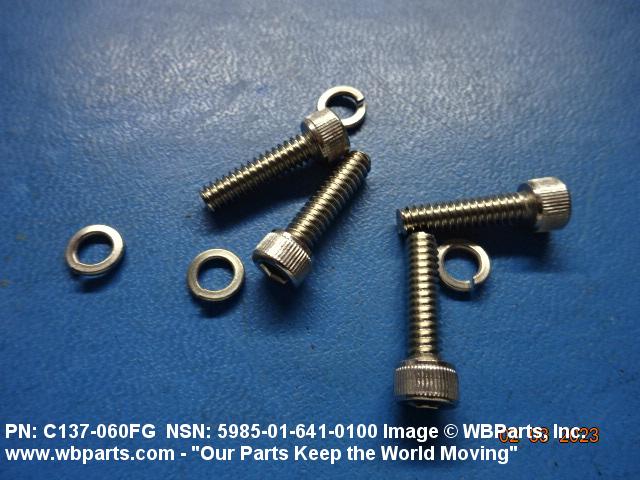

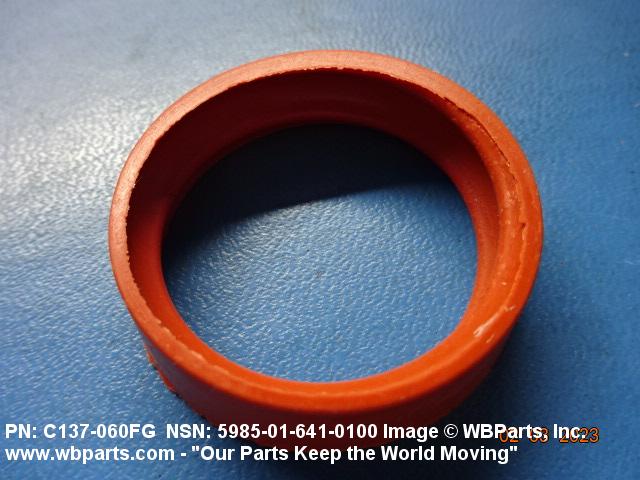

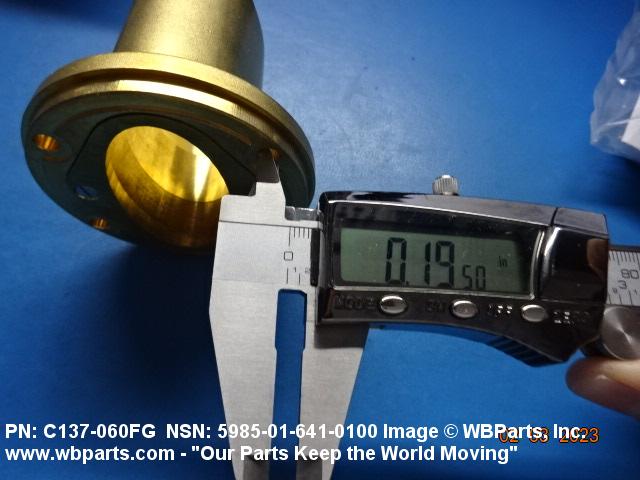

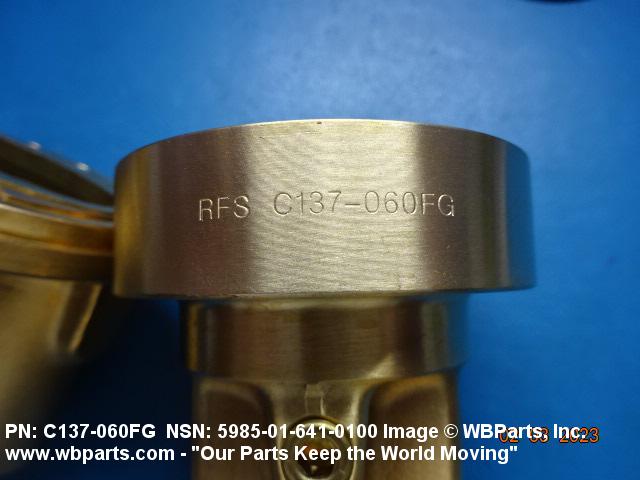

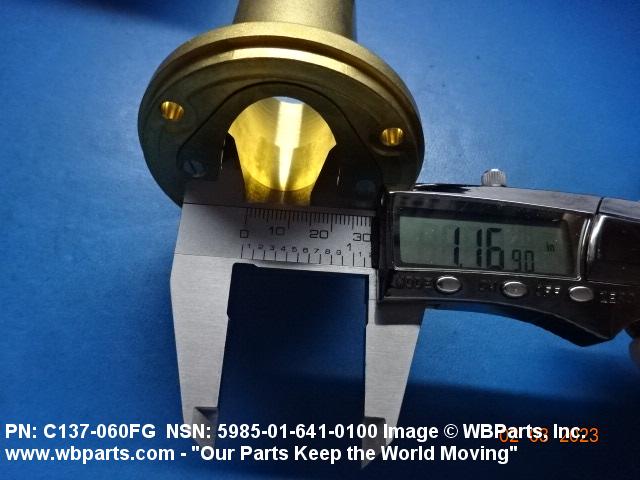

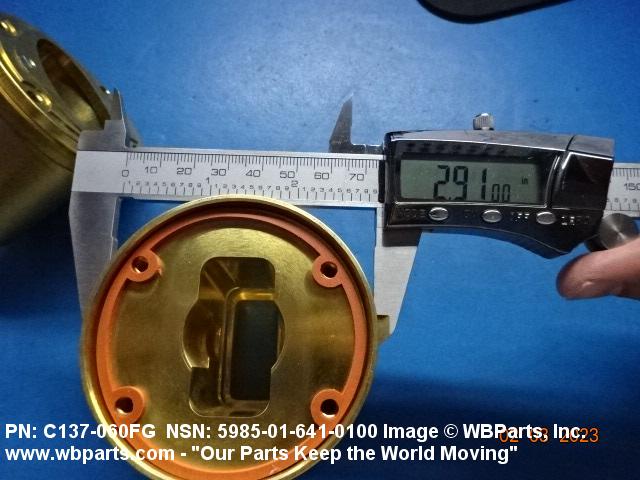

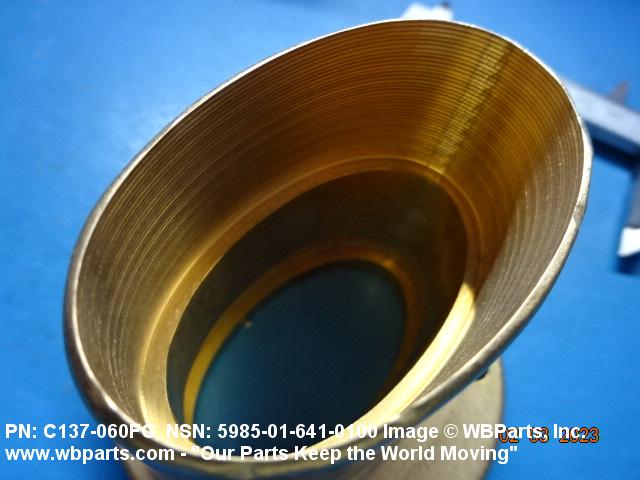

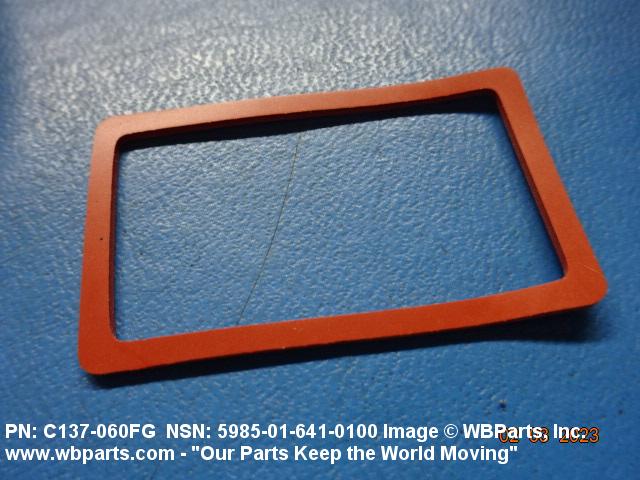

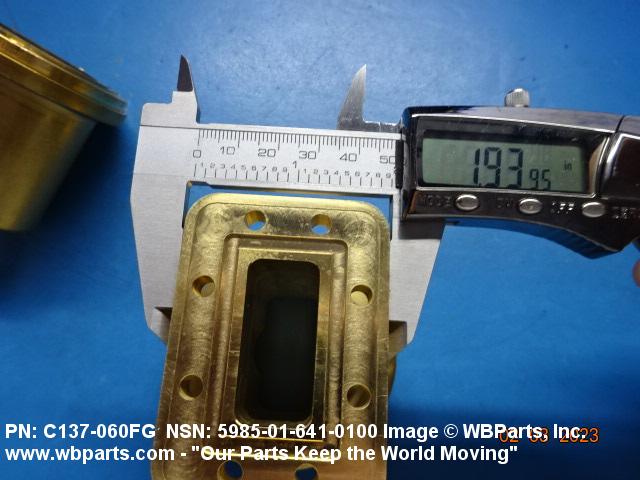

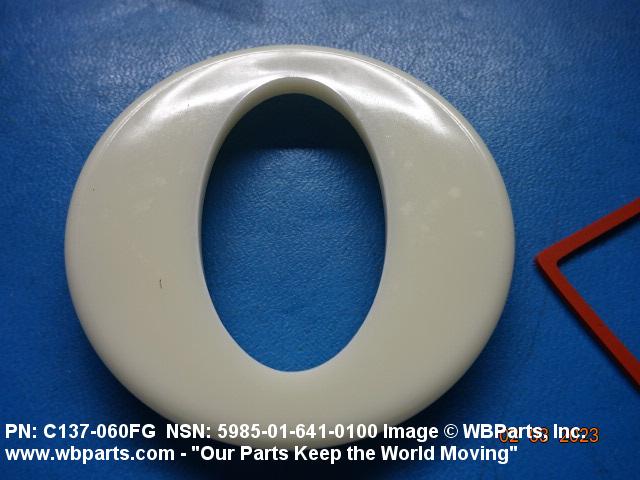

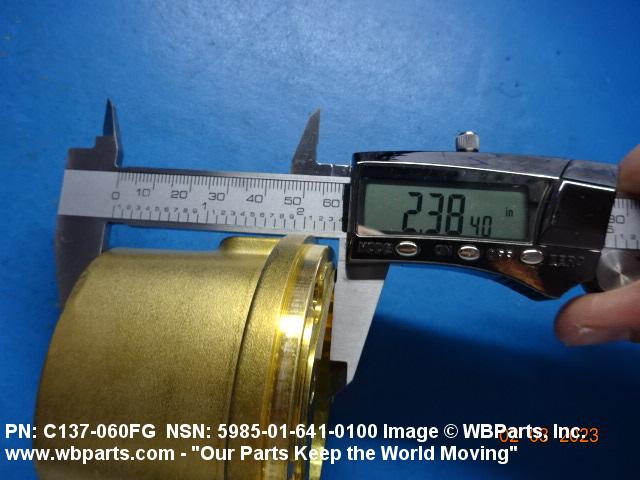

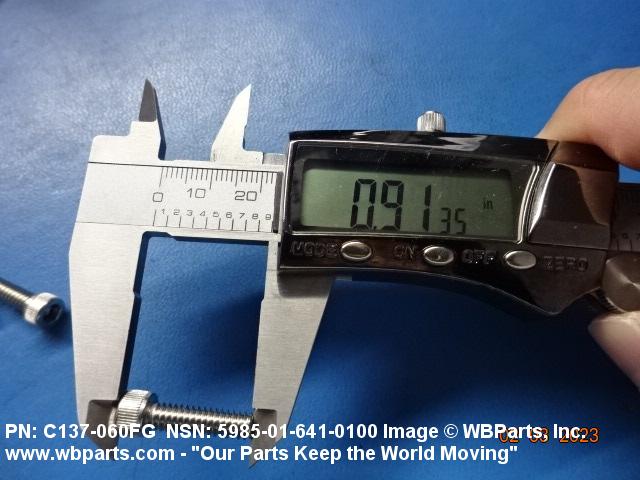

Drawings & Photos | NSN 5985-01-641-0100
Demand History | NSN 5985-01-641-0100
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5985-01-641-0100 | 2023-01-18 | 2 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5985-01-641-0100
Technical Data | NSN 5985-01-641-0100
| Characteristic | Specifications |
|---|---|
| III STYLE DESIGNATOR | WAVEGUIDE TO COAXIAL |
| CROSS-SECTIONAL SHAPE STYLE | INTERNAL, RECTANGULAR EXTERNAL, RECTANGULAR |
| WAVEGUIDE OUTSIDE WIDTH | 1.000 INCHES NOMINAL |
| TUBING WALL CONSTRUCTION STYLE | SEAMLESS SINGLE TUBING SEGMENT |
| MATERIAL | ALUMINUM ALLOY 6061 SINGLE TUBING SEGMENT AND FLANGE |
| FLANGE QUANTITY | 2 |
| FLANGE STYLE | CONTACT TYPE ALL FLANGES |
| FLANGE OUTSIDE HEIGHT | 0.650 INCHES NOMINAL SINGLE FLANGE |
| FLANGE CONNECTING FACILITY AND QUANTITY | 2 THREADED HOLE ALL FLANGES SINGLE CONNECTION FACILITY |
Restrictions/Controls & Freight Information | NSN 5985-01-641-0100
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | D | Munitions List Item or Commerce Control List Item. Demilitarization required. Total destruction of the item and components so as to preclude restoration or repair to a usable condition by melting, cutting, tearing, scratching, crushing, breaking, punching, neutralizing, etc. (As an alternate, burial or deep water dumping may be used when coordinated with the DoD Demilitarization Program Office.) |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
