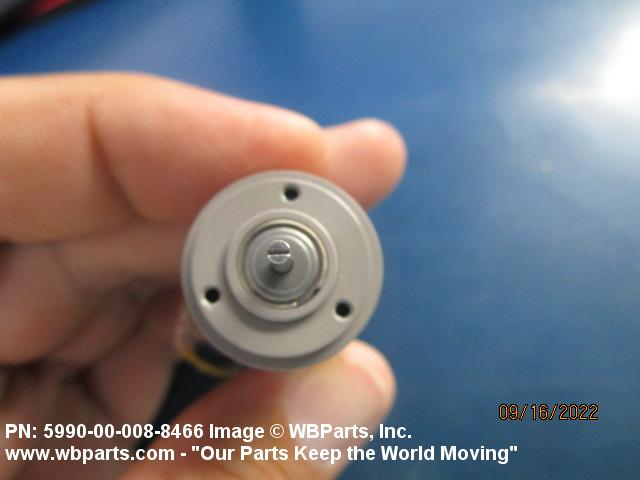

Product Details | TRANSMITTER SYNCHRO
5990-00-008-8466 A synchro consisting of a stator and rotor inductively coupled. The electrical output of the stator into a receiver synchro, a control transformer or differential synchro is dependent upon the position of its rotor. Does not include variable resistors, goniometers, variable transformers, or items with dials.
Part Alternates: CGH10AS5B718, EAS306, 5990-00-008-8466, 00-008-8466, 5990000088466, 000088466
Electrical and Electronic Equipment Components | Synchros and Resolvers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 23 JUL 1972 | 00-008-8466 | 02073 ( SYNCHRO, TRANSMITTER ) |
Drawings & Photos | NSN 5990-00-008-8466
Demand History | NSN 5990-00-008-8466
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5990-00-008-8466 | 2022-09-244 | 1 | United States |
| 5990-00-008-8466 | 2014-01-08 | 18 | DIBBS |
| 5990-00-008-8466 | 2013-12-356 | 18 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5990-00-008-8466
Related Products | NSN 5990-00-008-8466
Technical Data | NSN 5990-00-008-8466
| Characteristic | Specifications |
|---|---|
| BODY SIZE | 10 |
| ROTOR INPUT VOLTAGE RATING IN VOLTS | 26.0 NOMINAL |
| ROTOR INPUT CURRENT RATING | 49.0 MILLIAMPERES MAXIMUM |
| ROTOR INPUT ELECTRICAL POWER RATING | 328.0 MILLIWATTS NOMINAL |
| FREQUENCY IN HERTZ | 400.0 NOMINAL |
| ZRO RESISTANCE IN OHMS | 162.20 MINIMUM AND 220.80 MAXIMUM |
| PLUS J ZRO REACTANCE IN OHMS | 525.75 MINIMUM AND 664.25 MAXIMUM |
| ZSO RESISTANCE IN OHMS | 34.00 MINIMUM AND 46.00 MAXIMUM |
| PLUS J ZSO REACTANCE IN OHMS | 89.25 MINIMUM AND 120.75 MAXIMUM |
| ROTOR DC RESISTANCE IN OHMS | 134.00 MINIMUM AND 186.00 MAXIMUM |
| STATOR DC RESISTANCE IN OHMS | 36.00 MINIMUM AND 54.00 MAXIMUM |
| TRANSFORMATION RATIO | 0.454 ROTOR TO STATOR NOMINAL |
| PHASE SHIFT ANGLE IN DEG | 15.000 INPUT TO OUTPUT NOMINAL |
| MAXIMUM TOTAL NULL VOLTAGE OUTPUT IN MILLIVOLTS PER VOLT | 40.00 |
| ELECTRICAL ERROR ANGULAR RANGE IN MINUTES | -7.0 TO 7.0 |
| BODY STYLE | A3 STANDARD ROUND C |
| SHOULDER DIAMETER | 0.8113 INCHES MINIMUM AND 0.8123 INCHES MAXIMUM |
| PILOT DIAMETER | 0.4995 INCHES MINIMUM AND 0.5000 INCHES MAXIMUM |
| OVERALL LENGTH | 1.6010 INCHES MINIMUM AND 1.6310 INCHES MAXIMUM |
| FLANGE DIAMETER | 0.9360 INCHES MINIMUM AND 0.9370 INCHES MAXIMUM |
| FLANGE THICKNESS | 0.0620 INCHES NOMINAL |
| UNDERCUT DIAMETER | 0.9320 INCHES MINIMUM AND 0.9420 INCHES MAXIMUM |
| UNDERCUT WIDTH | 0.0620 INCHES NOMINAL |
| PILOT LENGTH | 0.0330 INCHES MINIMUM AND 0.0430 INCHES MAXIMUM |
| SHOULDER LENGTH | 0.0570 INCHES MINIMUM AND 0.0670 INCHES MAXIMUM |
| MOUNTING SURFACE TO TERMINAL END DISTANCE | 1.2410 INCHES MAXIMUM |
| SHAFT TYPE | ROUND, SLOTTED SINGLE SHAFT |
| SHAFT DIAMETER | 0.0895 INCHES MINIMUM AND 0.0900 INCHES MAXIMUM SINGLE SHAFT |
| SHAFT LENGTH | 0.3600 INCHES MINIMUM AND 0.3900 INCHES MAXIMUM SINGLE SHAFT |
| SHAFT SLOT DEPTH | 0.0250 INCHES MINIMUM AND 0.0350 INCHES MAXIMUM SINGLE SHAFT |
| SHAFT SLOT WIDTH | 0.0150 INCHES MINIMUM AND 0.0200 INCHES MAXIMUM SINGLE SHAFT |

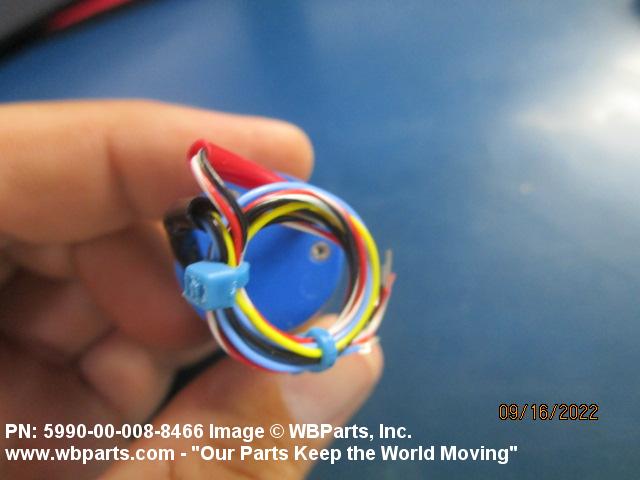

| TERMINAL TYPE AND QUANTITY | 5 WIRE LEAD |
| TERMINAL LOCATION | REAR |
| BODY MATERIAL | STEEL, STAINLESS |
