NSN 5990-00-267-9956 AY169B1, 15CT0112E, 15CT-0112-E
Product Details | CONTROL TRANSFORMER SYNCHRO

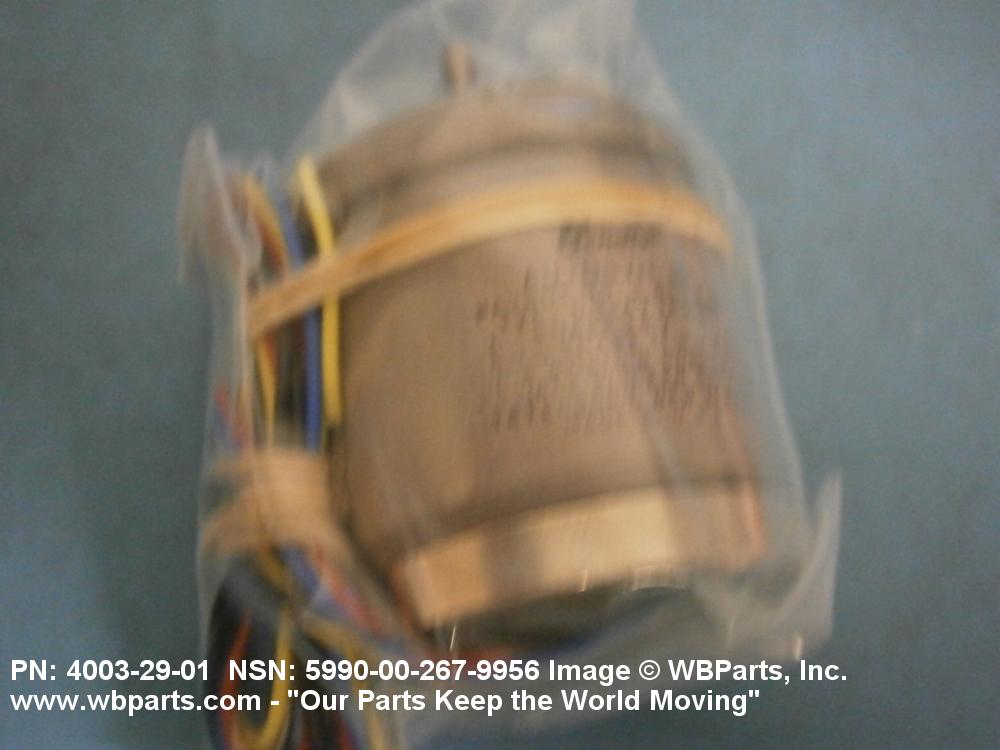

5990-00-267-9956 A synchro consisting of a stator and rotor inductively coupled. The electrical output of the rotor is dependent upon both the position of the rotor and the electrical input to the stator from a transmitter synchro or a differential synchro. Does not include variable resistors, goniometers, or variable transformers.
Part Alternates: AY169B1, 15CT0112E, 15CT-0112-E, 40032901, 4003-29-01, 6624261, 662426-1, 5990-00-267-9956, 00-267-9956, 5990002679956, 002679956
Electrical and Electronic Equipment Components | Synchros and Resolvers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 11 JAN 1968 | 00-267-9956 | 15289 ( SYNCHRO, CONTROL TRANSFORMER ) |
Drawings & Photos | NSN 5990-00-267-9956
Demand History | NSN 5990-00-267-9956
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5990-00-267-9956 | 2011-10-286 | 1 | Bermuda |
| 5990-00-267-9956 | 2011-10-286 | 1 | Bermuda |
| 5990-00-267-9956 | 2010-08-230 | 1 | BM |
Cross Reference | NSN 5990-00-267-9956
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5990-00-267-9956
Related Products | NSN 5990-00-267-9956
Technical Data | NSN 5990-00-267-9956
| Characteristic | Specifications |
|---|---|
| BODY SIZE | 15 |
| STATOR INPUT VOLTAGE RATING IN VOLTS | 26.0 NOMINAL |
| STATOR INPUT CURRENT RATING | 78.0 MILLIAMPERES NOMINAL |
| STATOR INPUT ELECTRICAL POWER RATING | ANY ACCEPTABLE |
| FREQUENCY IN HERTZ | 400.0 NOMINAL |
| ROTOR DC RESISTANCE IN OHMS | 42.00 NOMINAL |
| STATOR DC RESISTANCE IN OHMS | 10.80 NOMINAL |
| ELECTRICAL ERROR ANGULAR RANGE IN MINUTES | -10.0 TO 10.0 |
| BODY STYLE | A2 STANDARD ROUND B |
| SHOULDER DIAMETER | 1.3115 INCHES MINIMUM AND 1.3120 INCHES MAXIMUM |
| PILOT DIAMETER | 0.4995 INCHES MINIMUM AND 0.5000 INCHES MAXIMUM |
| OVERALL LENGTH | 2.1310 INCHES NOMINAL |
| FLANGE DIAMETER | 1.4360 INCHES MINIMUM AND 1.4370 INCHES MAXIMUM |
| FLANGE THICKNESS | 0.0930 INCHES NOMINAL |
| UNDERCUT WIDTH | 0.0780 INCHES NOMINAL |
| PILOT LENGTH | 0.0400 INCHES NOMINAL |
| SHOULDER LENGTH | 0.1320 INCHES NOMINAL |
| MOUNTING SURFACE TO TERMINAL END DISTANCE | 1.4590 INCHES NOMINAL |
| ALIGNMENT HOLE DEPTH | 0.1250 INCHES NOMINAL |
| ALIGNMENT HOLE BOLT CIRCLE DIAMETER | 0.6750 INCHES NOMINAL |
| ALIGNMENT HOLE QUANTITY | 4 |
| SHAFT TYPE | ROUND, SLOTTED SINGLE SHAFT |
| SHAFT DIAMETER | 0.1995 INCHES MINIMUM AND 0.1200 INCHES MAXIMUM SINGLE SHAFT |
| SHAFT LENGTH | 0.5400 INCHES NOMINAL SINGLE SHAFT |
| SHAFT SLOT DEPTH | 0.0310 INCHES NOMINAL SINGLE SHAFT |
| SHAFT SLOT WIDTH | 0.0310 INCHES NOMINAL SINGLE SHAFT |
| TERMINAL TYPE AND QUANTITY | 5 WIRE LEAD |
| TERMINAL LOCATION | REAR |
| BODY MATERIAL | STEEL, STAINLESS |
