NSN 5990-00-444-6987 M20708/1-02E, M20708/1D-002, M207081002
Product Details | CONTROL TRANSFORMER SYNCHRO
5990-00-444-6987 A synchro consisting of a stator and rotor inductively coupled. The electrical output of the rotor is dependent upon both the position of the rotor and the electrical input to the stator from a transmitter synchro or a differential synchro. Does not include variable resistors, goniometers, or variable transformers.
Part Alternates: M20708/1-02E, M20708/1D-002, M207081002, M20708-1-002, M20708102E, M207081D002, MILC207081, MILC20708-1, 11CT4E, 5990-00-444-6987, 00-444-6987, 5990004446987, 004446987
Electrical and Electronic Equipment Components | Synchros and Resolvers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 23 MAY 1974 | 00-444-6987 | 15289 ( SYNCHRO, CONTROL TRANSFORMER ) |

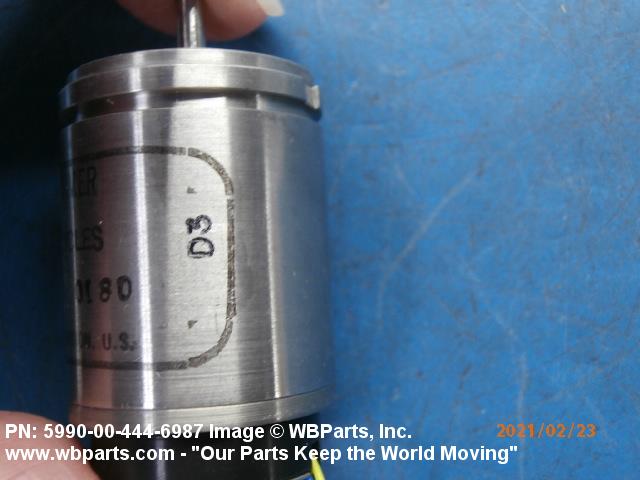

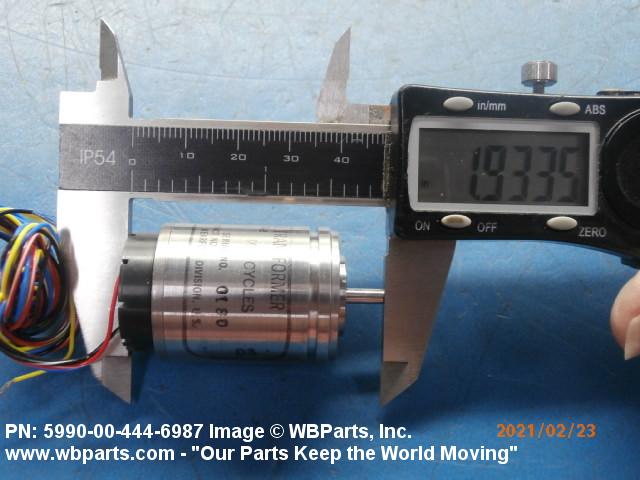

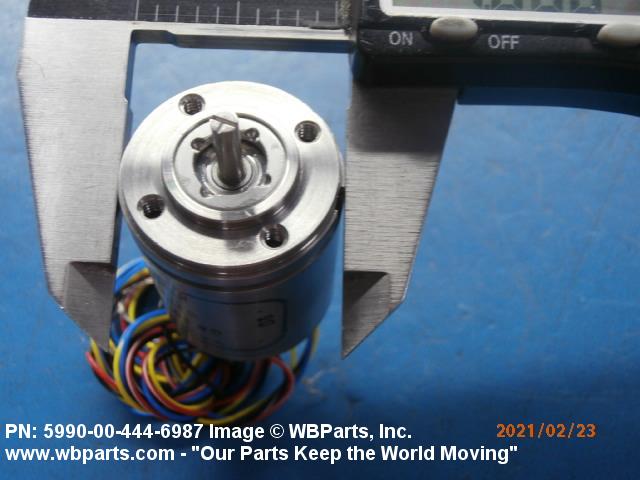

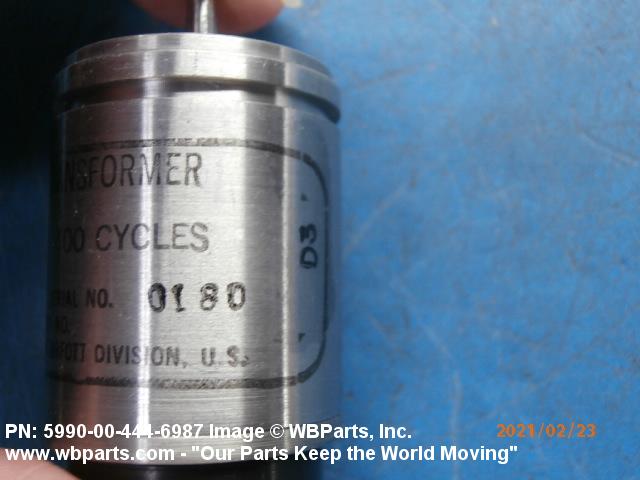

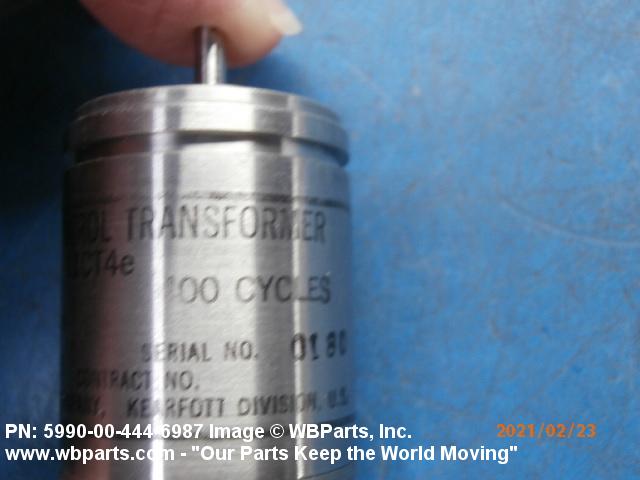

Drawings & Photos | NSN 5990-00-444-6987
Demand History | NSN 5990-00-444-6987
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5990-00-444-6987 | 2024-05-122 | 100 | US |
| 5990-00-444-6987 | 2024-05-122 | 100 | US |
| 5990-00-444-6987 | 2021-01-11 | 1 | United States |
| 5990-00-444-6987 | 2020-09-268 | 2 | DIBBS |
| 5990-00-444-6987 | 2020-09-257 | 2 | DIBBS |
| 5990-00-444-6987 | 2016-08-238 | 2 | DIBBS |
| 11CT4E | 2007-09-258 | 5 | Italy |
Cross Reference | NSN 5990-00-444-6987
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 11CT4E | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| M20708-1-002 | 80223 | UNITED TRANSFORMER CORP SUB OF OPT INDUSTRIES INC |
| M20708-1-002 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| M20708/1-02E | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| M20708/1D-002 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MILC20708-1 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5990-00-444-6987
Related Products | NSN 5990-00-444-6987
Technical Data | NSN 5990-00-444-6987
| Characteristic | Specifications |
|---|---|
| BODY SIZE | 11 |
| STATOR INPUT VOLTAGE RATING IN VOLTS | 90.0 NOMINAL |
| STATOR INPUT CURRENT RATING | 18.0 MILLIAMPERES NOMINAL |
| STATOR INPUT ELECTRICAL POWER RATING | 20.0 WATTS NOMINAL |
| FREQUENCY IN HERTZ | 400.0 NOMINAL |
| ZSO IMPEDANCE MAGNITUDE IN OHMS | 4350.00 MINIMUM AND 5700.00 MAXIMUM |
| ZSO IMPEDANCE ANGLE IN DEG | 77.30 MINIMUM AND 83.50 MAXIMUM |
| ZRS IMPEDANCE MAGNITUDE IN OHMS | 585.00 MINIMUM AND 700.00 MAXIMUM |
| ZRS IMPEDANCE ANGLE IN DEG | 22.00 MINIMUM AND 32.00 MAXIMUM |
| TRANSFORMATION RATIO | 0.735 ROTOR TO STATOR NOMINAL |
| PHASE SHIFT ANGLE IN DEG | 5.000 INPUT TO OUTPUT NOMINAL |
| MAXIMUM TEMP RISE | 10.0 DEG CELSIUS |
| MAXIMUM FUNDAMENTAL NULL VOLTAGE IN MILLIVOLTS PER VOLT | 32.00 OUTPUT |
| MAXIMUM TOTAL NULL VOLTAGE OUTPUT IN MILLIVOLTS PER VOLT | 60.00 |
| ELECTRICAL ERROR ANGULAR RANGE IN MINUTES | -7.0 TO 7.0 |
| BODY STYLE | A3 STANDARD ROUND C |

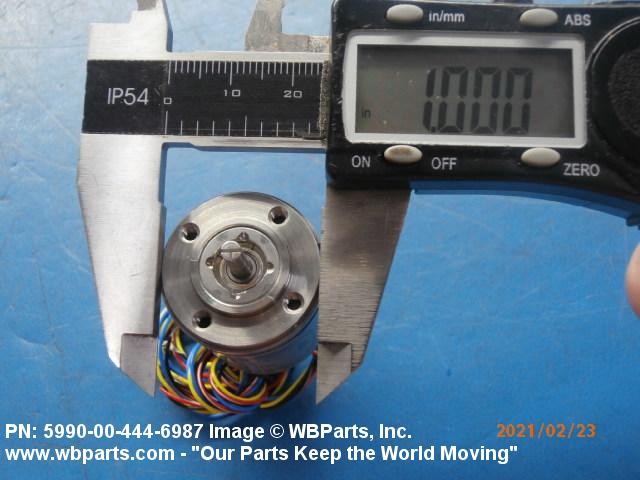

| SHOULDER DIAMETER | 0.0995 INCHES MINIMUM AND 1.0000 INCHES MAXIMUM |

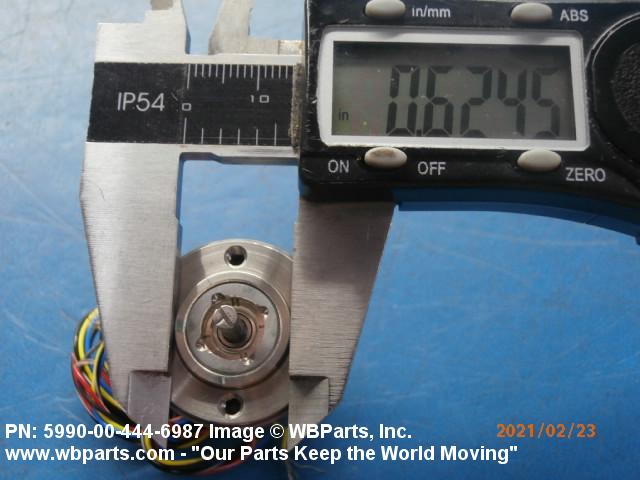

| PILOT DIAMETER | 0.6245 INCHES MINIMUM AND 0.6250 INCHES MAXIMUM |
| OVERALL LENGTH | 2.2240 INCHES NOMINAL |
| FLANGE DIAMETER | 1.0615 INCHES MINIMUM AND 1.0620 INCHES MAXIMUM |

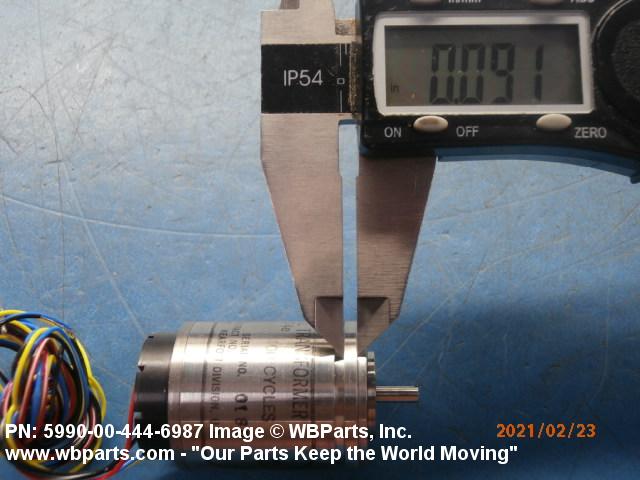

| FLANGE THICKNESS | 0.0930 INCHES NOMINAL |
| UNDERCUT DIAMETER | 0.9750 INCHES NOMINAL |

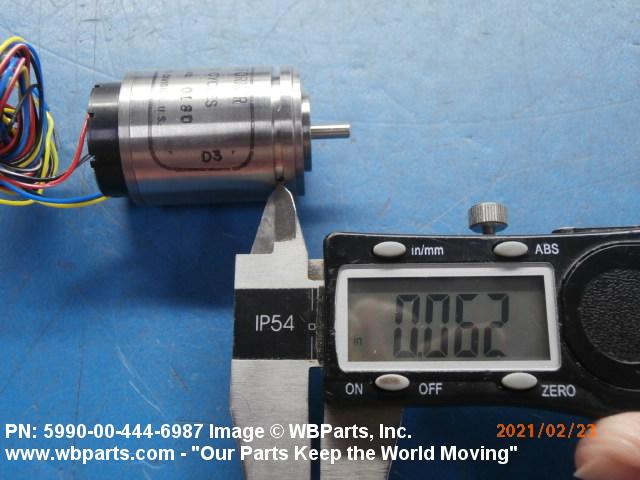

| UNDERCUT WIDTH | 0.0620 INCHES NOMINAL |
| PILOT LENGTH | 0.0620 INCHES NOMINAL |
| SHOULDER LENGTH | 0.0620 INCHES NOMINAL |
| MOUNTING SURFACE TO TERMINAL END DISTANCE | 1.8010 INCHES MAXIMUM |
| ALIGNMENT HOLE DEPTH | 0.1120 INCHES NOMINAL |
| ALIGNMENT HOLE BOLT CIRCLE DIAMETER | 0.8120 INCHES NOMINAL |
| ALIGNMENT HOLE QUANTITY | 4 |
| SHAFT TYPE | ROUND, SLOTTED SINGLE SHAFT |

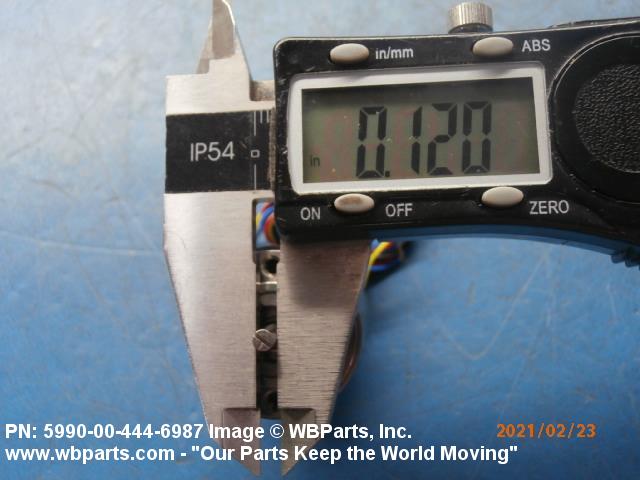

| SHAFT DIAMETER | 0.1195 INCHES MINIMUM AND 0.1200 INCHES MAXIMUM SINGLE SHAFT |
| SHAFT LENGTH | 0.3680 INCHES NOMINAL SINGLE SHAFT |
| SHAFT SLOT DEPTH | 0.0250 INCHES NOMINAL SINGLE SHAFT |
| SHAFT SLOT WIDTH | 0.0200 INCHES NOMINAL SINGLE SHAFT |

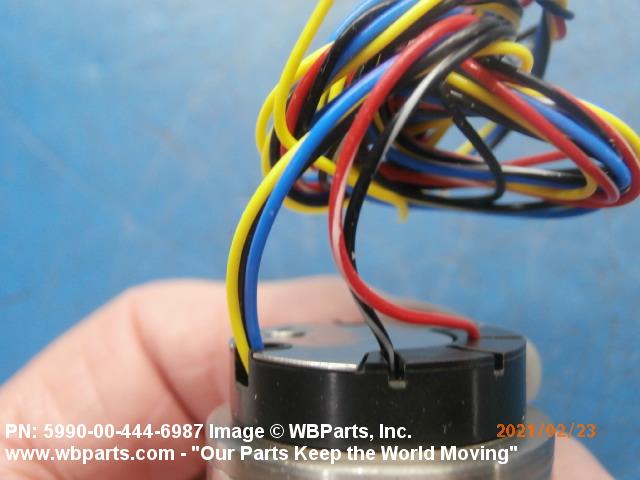

| TERMINAL TYPE AND QUANTITY | 5 WIRE LEAD |
| TERMINAL LOCATION | REAR |
| BODY MATERIAL | STEEL, CORROSION RESISTING |
| TEST DATA DOCUMENT | 81349-MIL-S-20708 SPECIFICATION |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MILC20708-1 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M20708/1-02E |
Restrictions/Controls & Freight Information | NSN 5990-00-444-6987
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061700 | ELEC APPLIANCES/INSTRUMENTS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
