NSN 5990-00-477-1362 M20708/2-04E, M20708204E, AS20708/2
Product Details | TRANSMITTER SYNCHRO

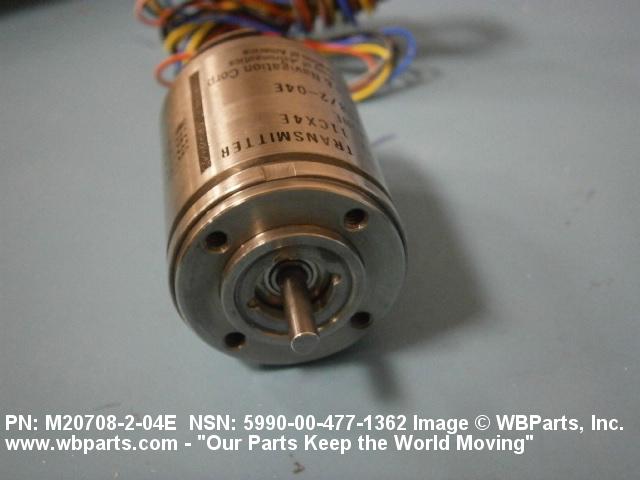

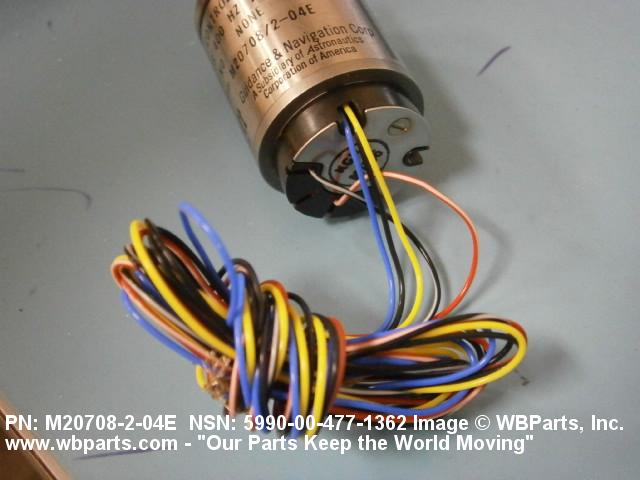

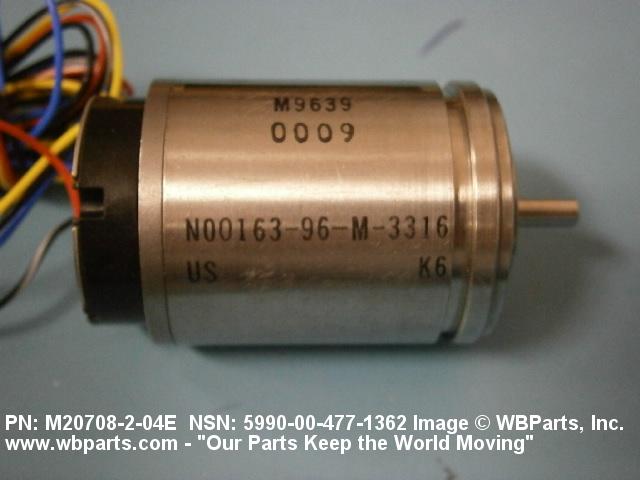

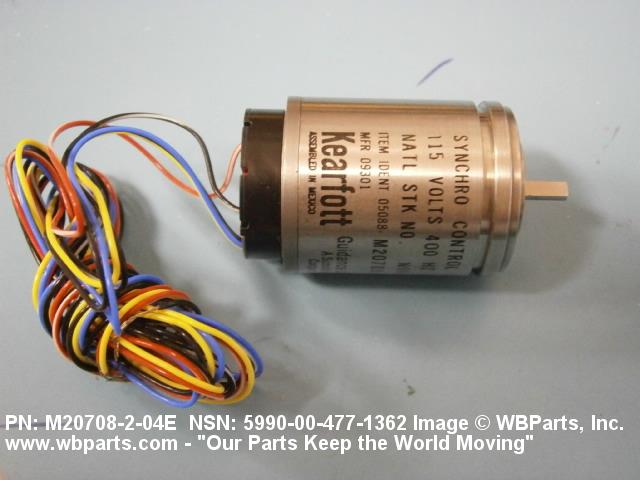

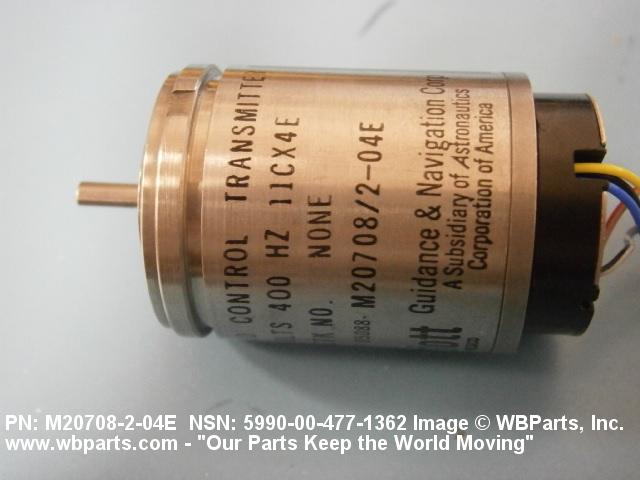

5990-00-477-1362 A synchro consisting of a stator and rotor inductively coupled. The electrical output of the stator into a receiver synchro, a control transformer or differential synchro is dependent upon the position of its rotor. Does not include variable resistors, goniometers, variable transformers, or items with dials.
