NSN 5990-00-677-6496 MIL-S-20708/53, MILS2070853, 23CT6C
Product Details | CONTROL TRANSFORMER SYNCHRO
5990-00-677-6496 A synchro consisting of a stator and rotor inductively coupled. The electrical output of the rotor is dependent upon both the position of the rotor and the electrical input to the stator from a transmitter synchro or a differential synchro. Does not include variable resistors, goniometers, or variable transformers.
Part Alternates: MIL-S-20708/53, MILS2070853, 23CT6C, 5990-00-677-6496, 00-677-6496, 5990006776496, 006776496
Electrical and Electronic Equipment Components | Synchros and Resolvers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 21 JAN 1978 | 00-677-6496 | 15289 ( SYNCHRO, CONTROL TRANSFORMER ) |

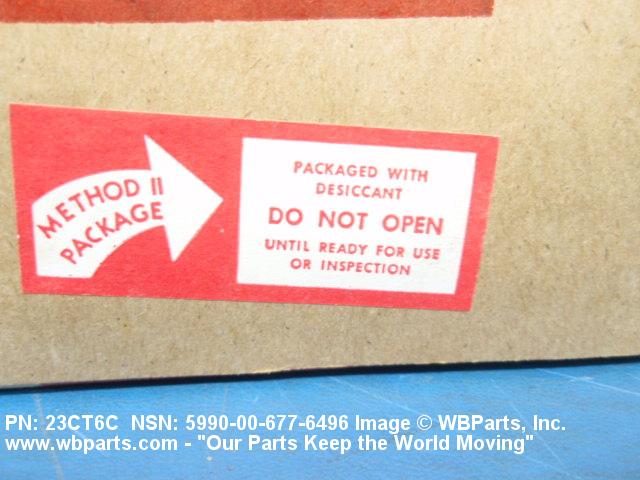

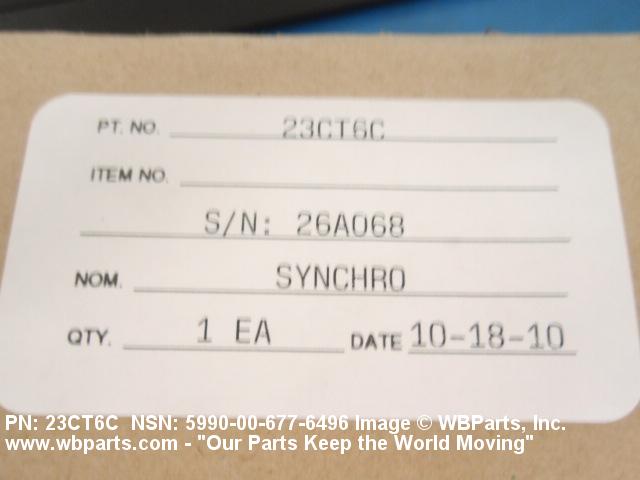

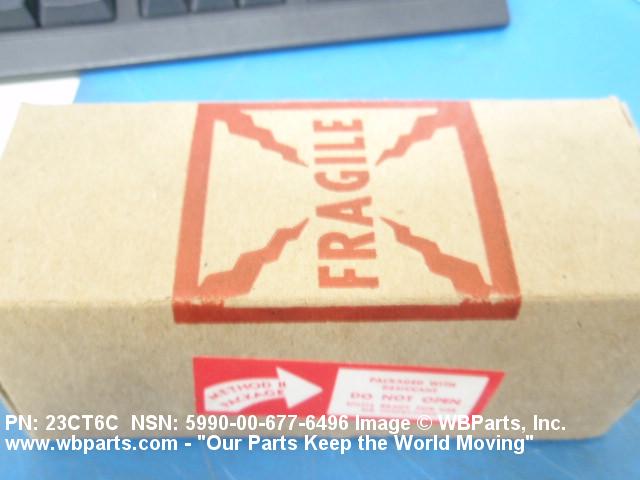

Drawings & Photos | NSN 5990-00-677-6496
Demand History | NSN 5990-00-677-6496
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 23CT6C | 2014-01-27 | 1 | US |
| 5990-00-677-6496 | 2011-04-114 | 1 | NL |
| 5990-00-677-6496 | 2011-04-105 | 2 | LT |
| 23CT6C | 2011-01-31 | 3 | CA |
| 5990-00-677-6496 | 2009-10-301 | 2 | BG |
| 5990-00-677-6496 | 2009-10-281 | 3 | BG |
Cross Reference | NSN 5990-00-677-6496
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5990-00-677-6496
Technical Data | NSN 5990-00-677-6496
| Characteristic | Specifications |
|---|---|
| BODY SIZE | 23 |
| STATOR INPUT VOLTAGE RATING IN VOLTS | 90.0 NOMINAL |
| STATOR INPUT CURRENT RATING | 20.0 MILLIAMPERES NOMINAL |
| STATOR INPUT ELECTRICAL POWER RATING | 450.0 MILLIWATTS NOMINAL |
| FREQUENCY IN HERTZ | 60.0 NOMINAL |
| ZSO IMPEDANCE MAGNITUDE IN OHMS | 4200.00 MINIMUM AND 5100.00 MAXIMUM |
| ZSO IMPEDANCE ANGLE IN DEG | 70.00 MINIMUM AND 76.00 MAXIMUM |
| ZRS IMPEDANCE MAGNITUDE IN OHMS | 1350.00 MINIMUM AND 1650.00 MAXIMUM |
| ZRS IMPEDANCE ANGLE IN DEG | 14.00 MINIMUM AND 20.00 MAXIMUM |
| TRANSFORMATION RATIO | 0.735 ROTOR TO STATOR NOMINAL |
| PHASE SHIFT ANGLE IN DEG | 14.000 INPUT TO OUTPUT NOMINAL |
| MAXIMUM TEMP RISE | 10.0 DEG CELSIUS |
| ELECTRICAL ERROR ANGULAR RANGE IN MINUTES | -6.0 TO 6.0 |
| TORQUE GRADIENT PER ANGULAR DEG | 0.2 MILLIMETER-MILLIGRAMS NOMINAL |
| BODY STYLE | A4 STANDARD ROUND D |
| SHOULDER DIAMETER | 1.9900 INCHES NOMINAL |
| PILOT DIAMETER | 0.6000 INCHES NOMINAL |
| SECOND SHOULDER DIAMETER | 1.9995 INCHES NOMINAL |
| SECOND SHOULDER LENGTH | 0.1700 INCHES NOMINAL |
| OVERALL LENGTH | 4.2990 INCHES NOMINAL |
| FLANGE DIAMETER | 2.2500 INCHES NOMINAL |
| FLANGE THICKNESS | 2.5000 INCHES NOMINAL |
| PILOT LENGTH | 0.0430 INCHES NOMINAL |
| SHOULDER LENGTH | 0.2500 INCHES NOMINAL |
| SHAFT TYPE | SPLINE W/THREADS SINGLE SHAFT |
| SHAFT DIAMETER | 2.2500 INCHES NOMINAL SINGLE SHAFT |
| SHAFT LENGTH | 0.6760 INCHES NOMINAL SINGLE SHAFT |
| SHAFT THREAD LENGTH | 0.3100 INCHES NOMINAL SINGLE SHAFT |
| SPLINE TOOTH QUANTITY | 21 SINGLE SHAFT |
| SPLINE TOOTH DIAMETRAL PITCH | 96 SINGLE SHAFT |
| SHAFT THREAD SERIES DESIGNATOR | UNF SINGLE SHAFT |
| SHAFT NOMINAL THREAD SIZE | 0.250 INCHES SINGLE SHAFT |
| SHAFT THREAD CLASS | 2A SINGLE SHAFT |
| SHAFT THREAD DIRECTION | RIGHT-HAND SINGLE SHAFT |
| TERMINAL TYPE AND QUANTITY | 5 SCREW |
| TERMINAL LOCATION | REAR |
| BODY MATERIAL | ANY ACCEPTABLE |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-S-20708/53 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | 23CT6C |
Restrictions/Controls & Freight Information | NSN 5990-00-677-6496
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 062120 | GENERATORS/MOTORS/PARTS NOI |
| Less than car load rating | Q | 70 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 590 | unknown |
| Originating Activity Code | 98 | DLIS-LFF Battle Creek, MI 49037-3084 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
