NSN 5990-00-840-6571 CU06360019, SKH16A2, SKH-16-A-2

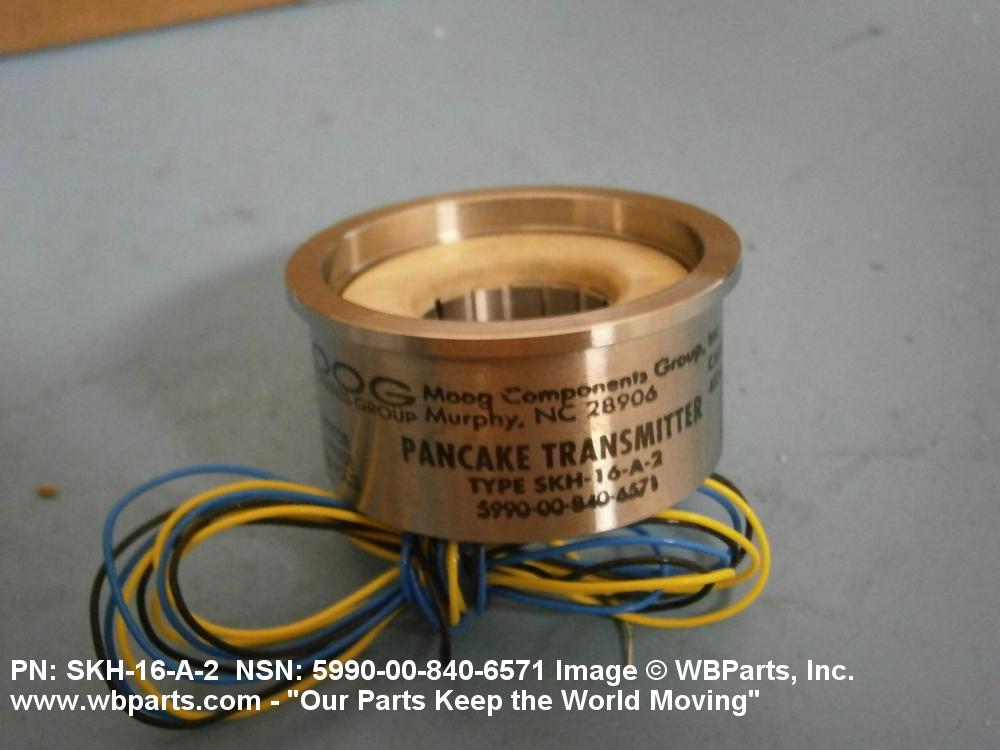

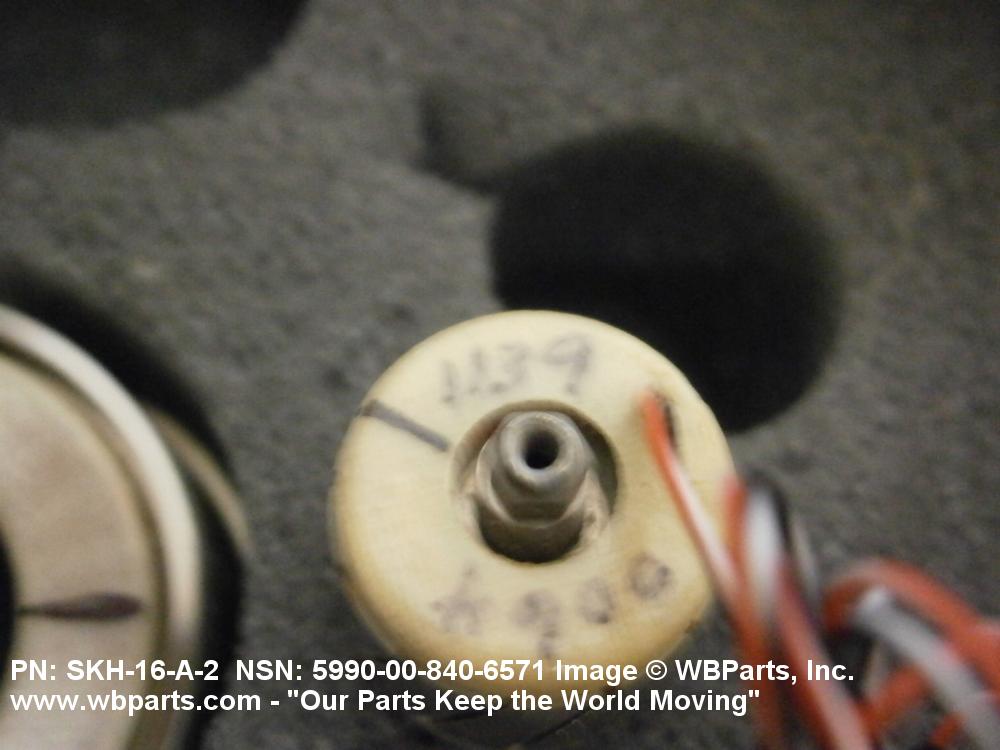

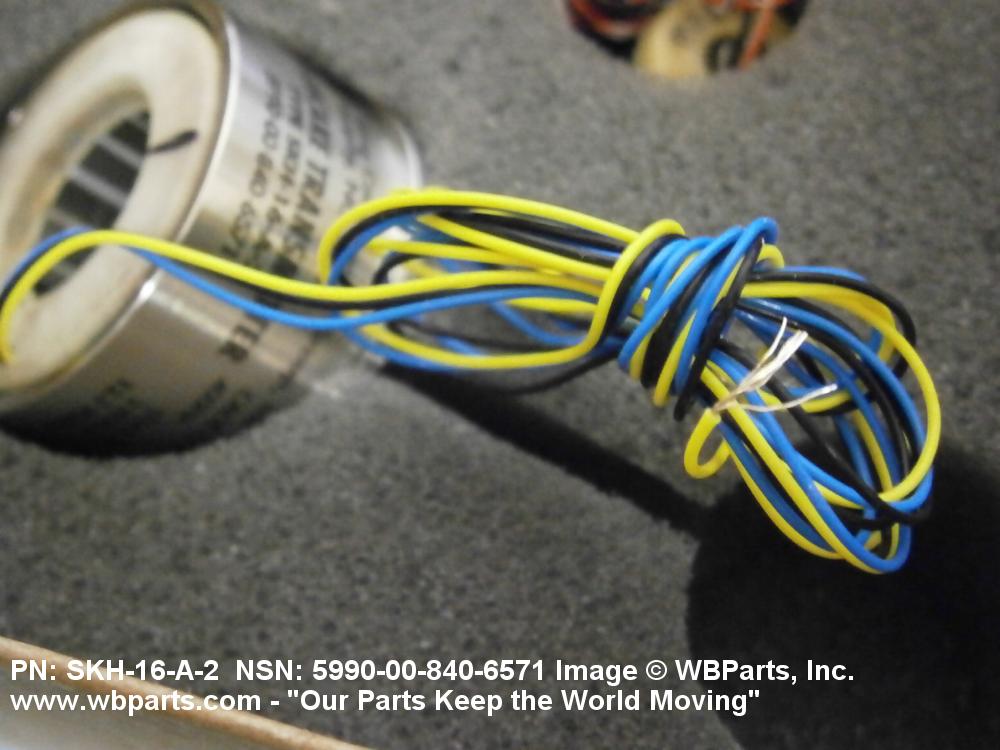

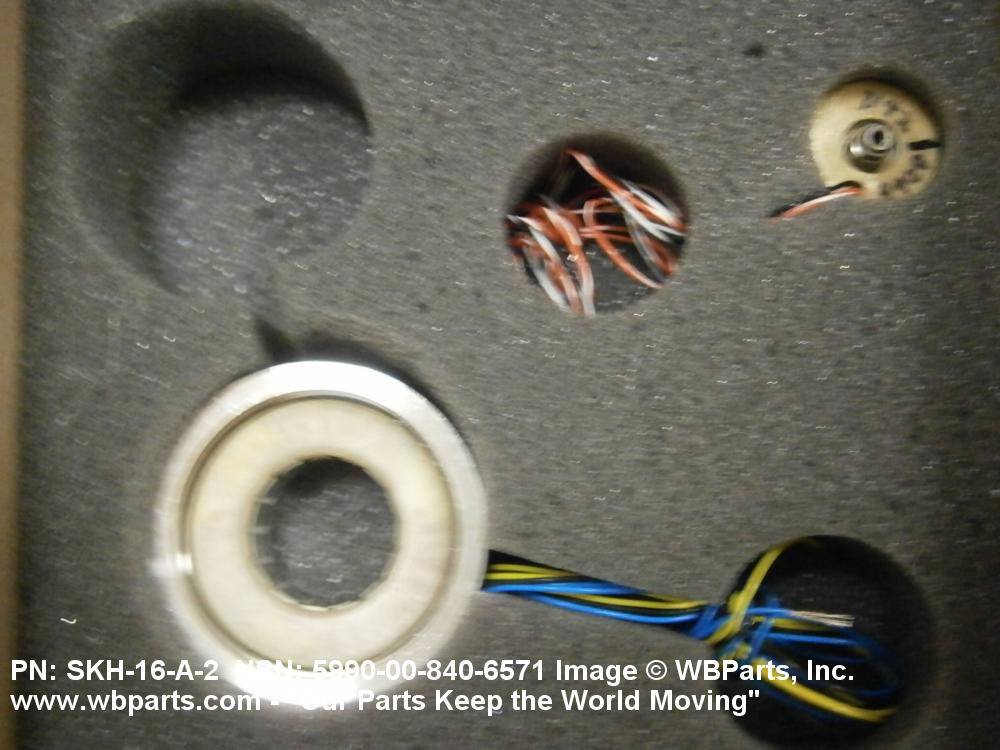

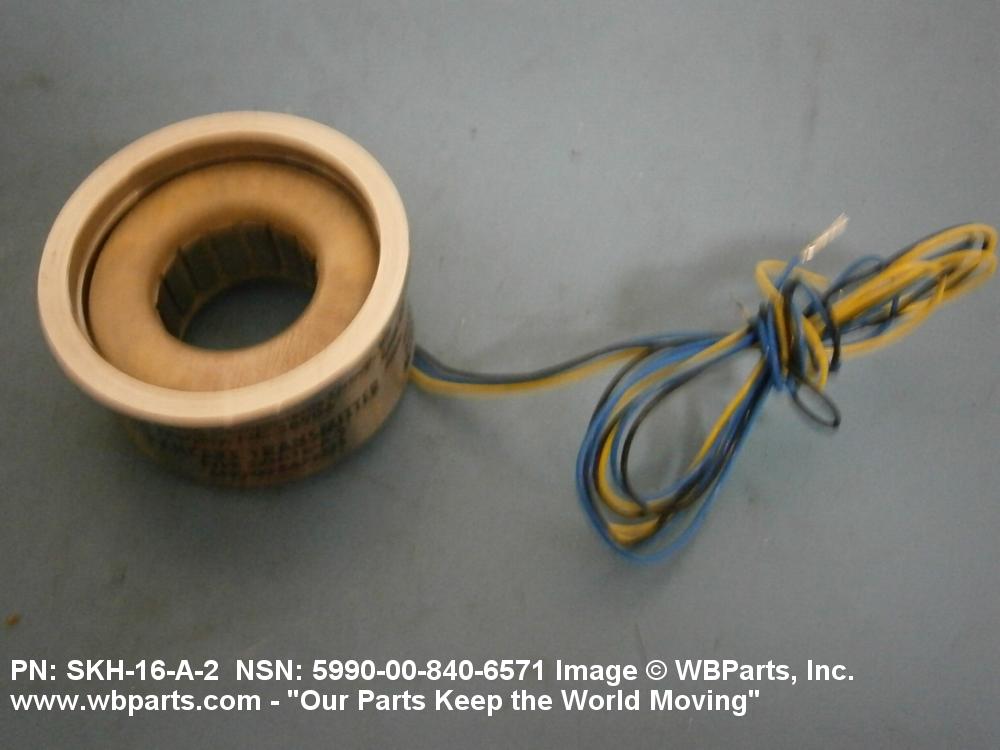

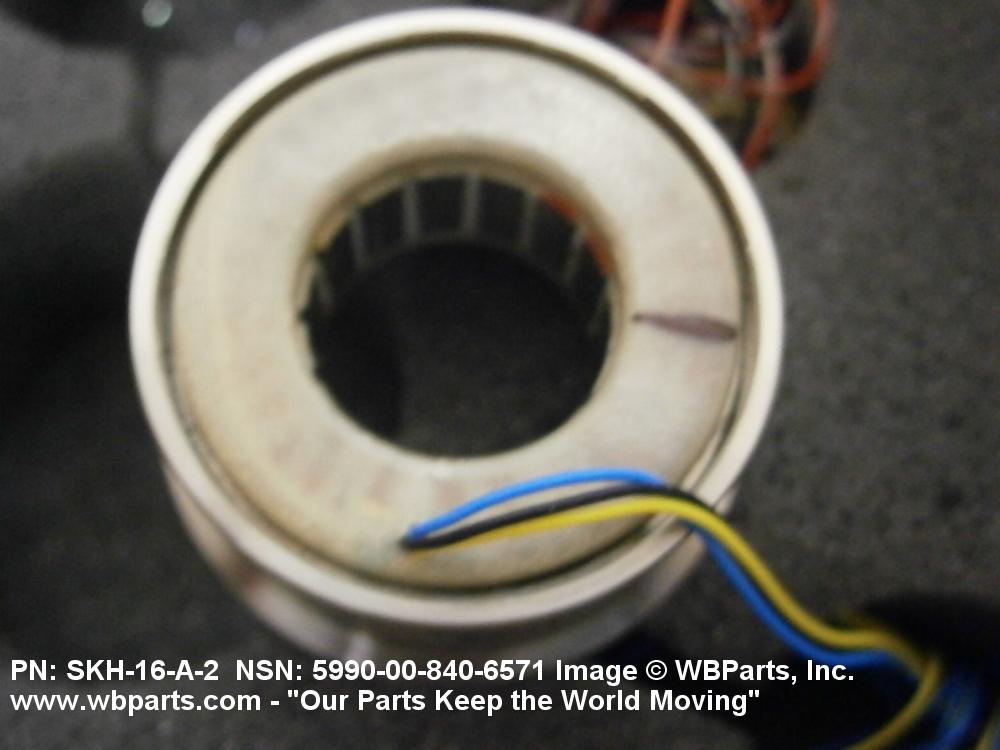

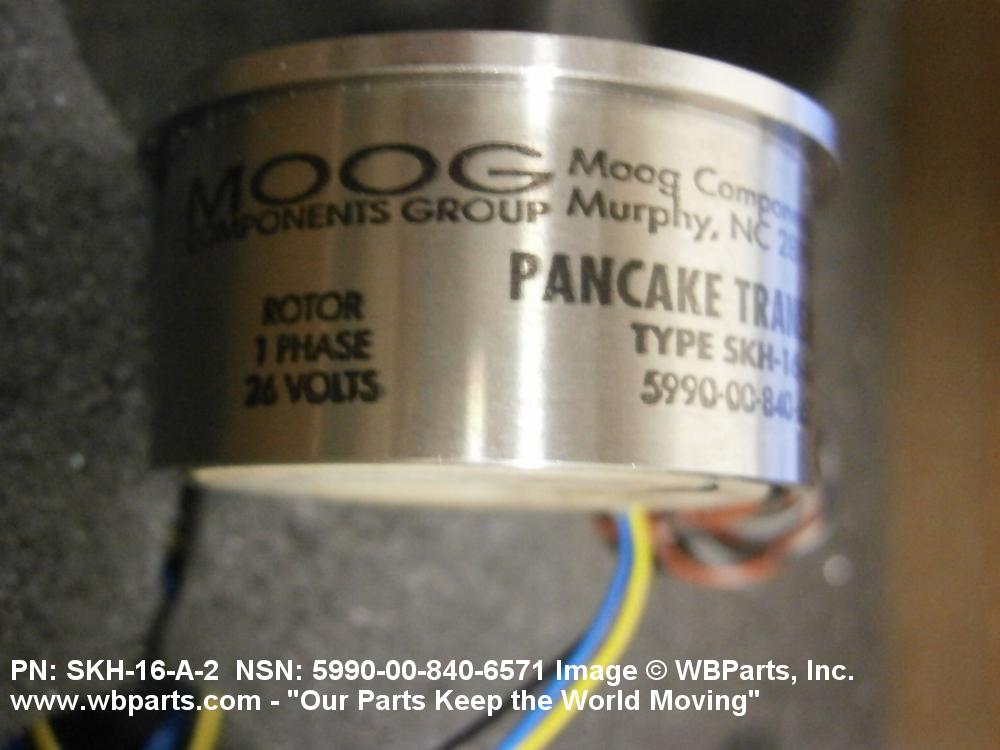

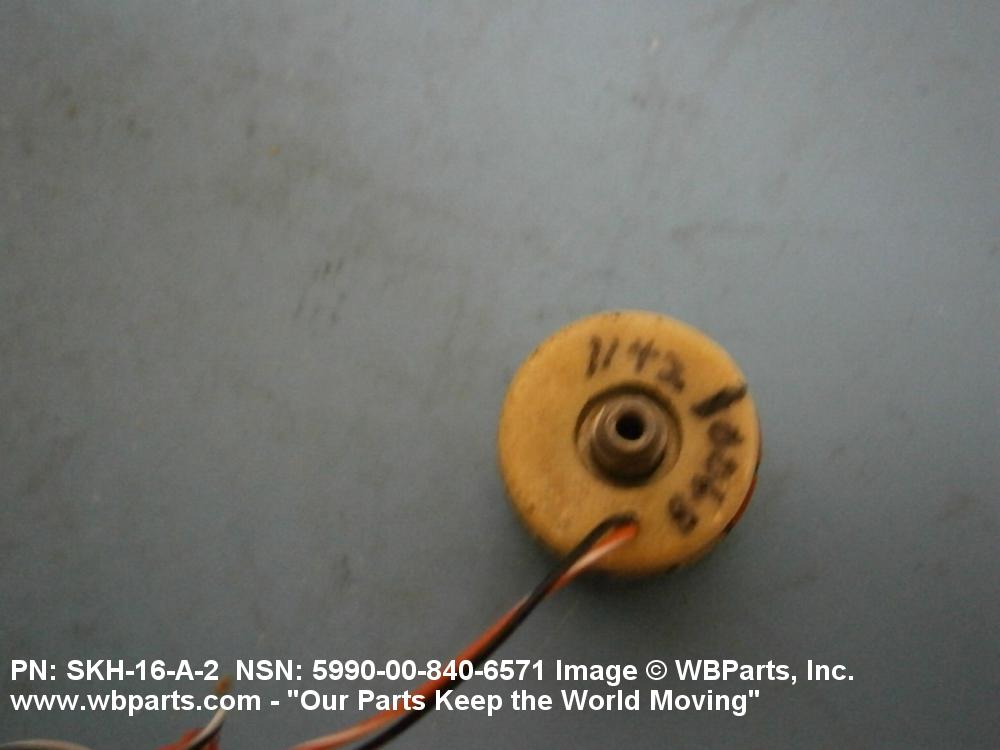

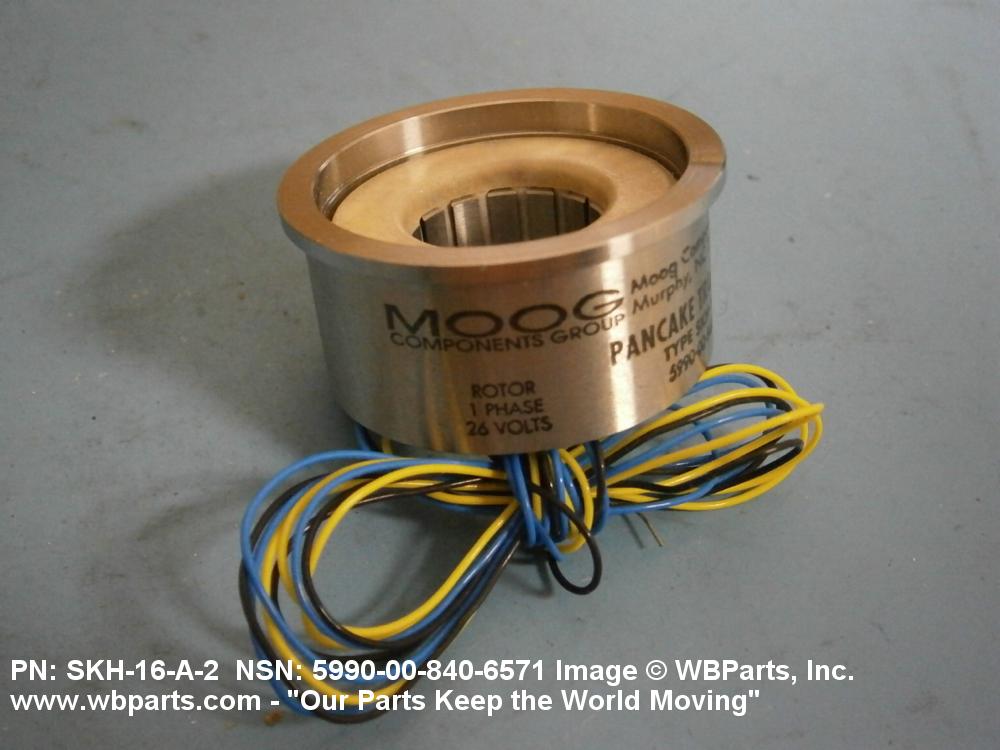

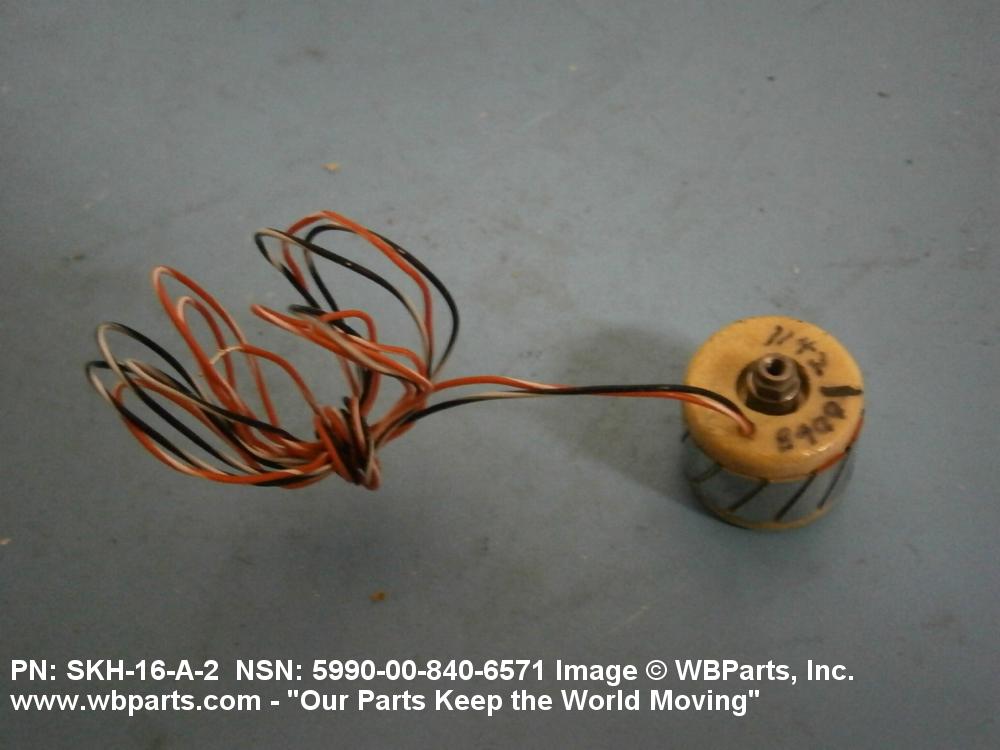

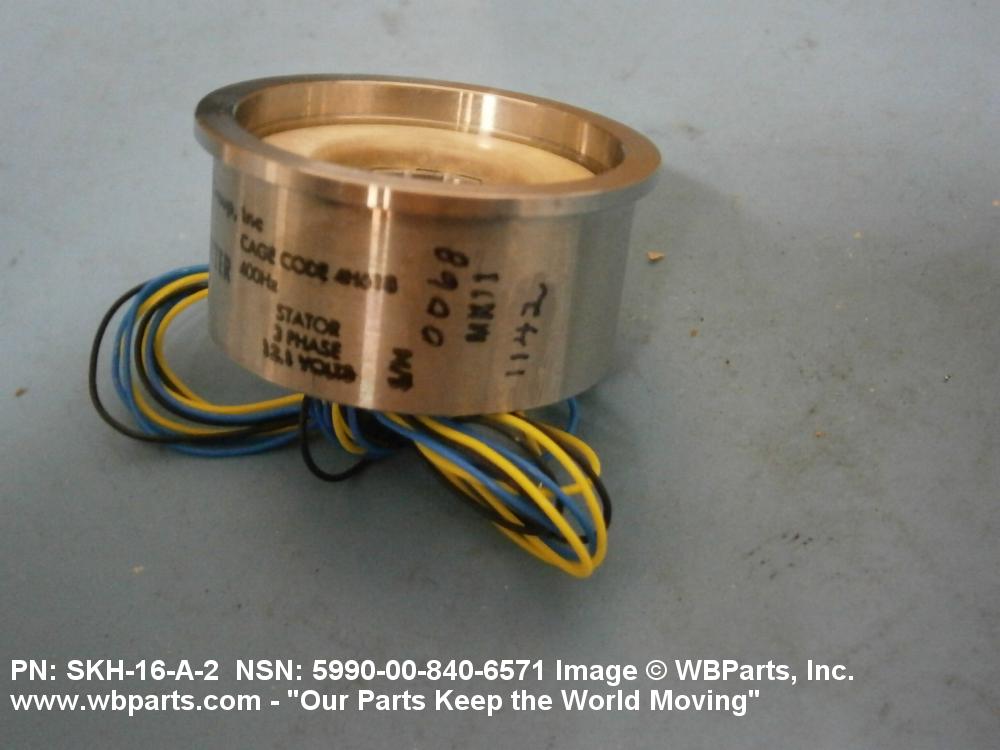

Product Details | TRANSMITTER SYNCHRO
5990-00-840-6571 A synchro consisting of a stator and rotor inductively coupled. The electrical output of the stator into a receiver synchro, a control transformer or differential synchro is dependent upon the position of its rotor. Does not include variable resistors, goniometers, variable transformers, or items with dials.
Part Alternates: CU06360019, SKH16A2, SKH-16-A-2, 926C388, 926C388P1, 5990-00-840-6571, 00-840-6571, 5990008406571, 008406571
Electrical and Electronic Equipment Components | Synchros and Resolvers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 19 DEC 1966 | 00-840-6571 | 02073 ( SYNCHRO, TRANSMITTER ) |

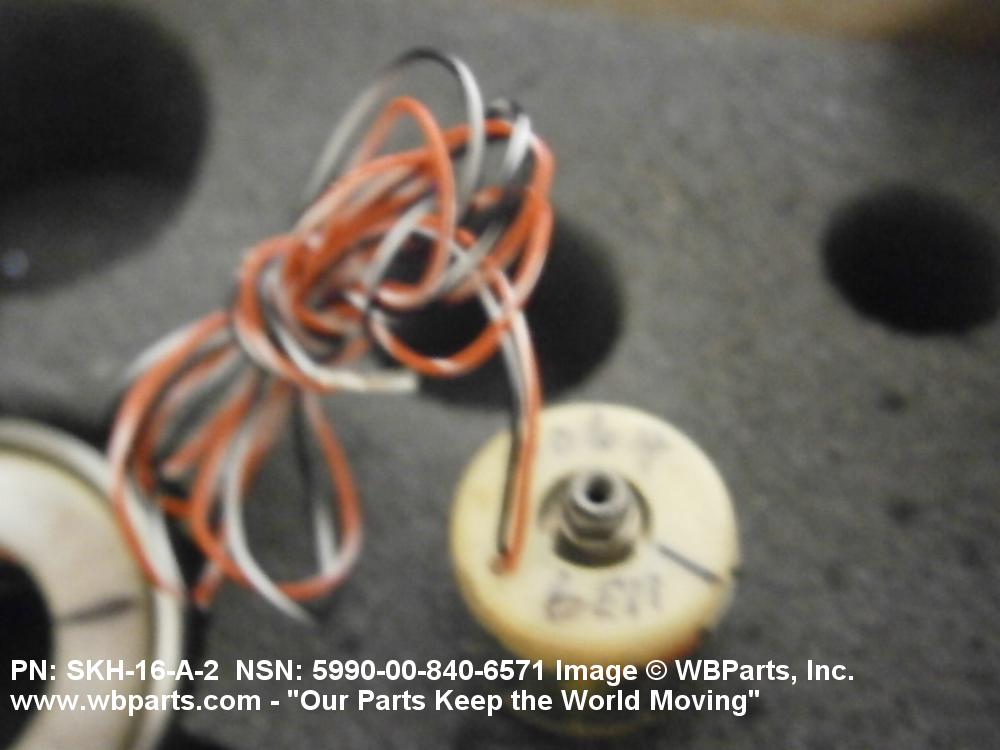

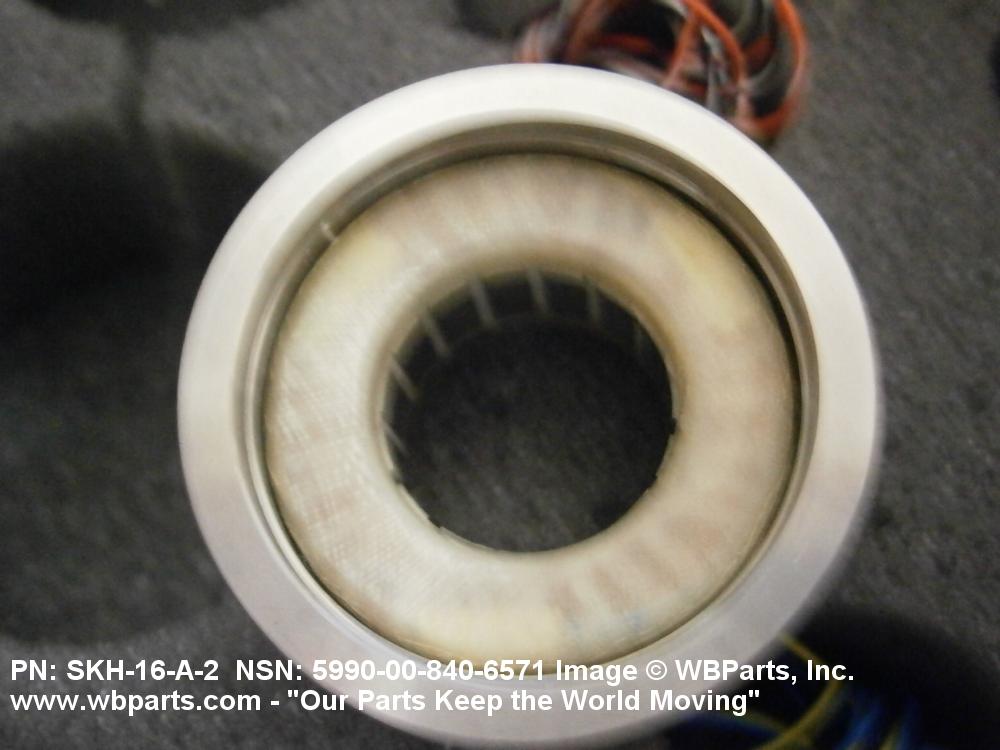

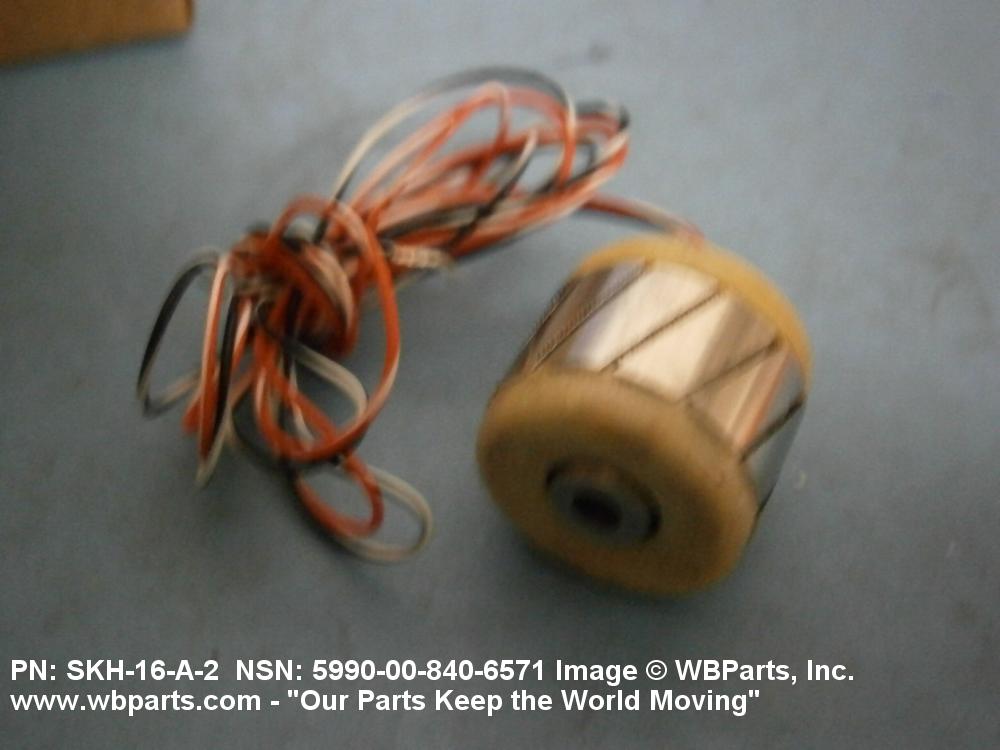

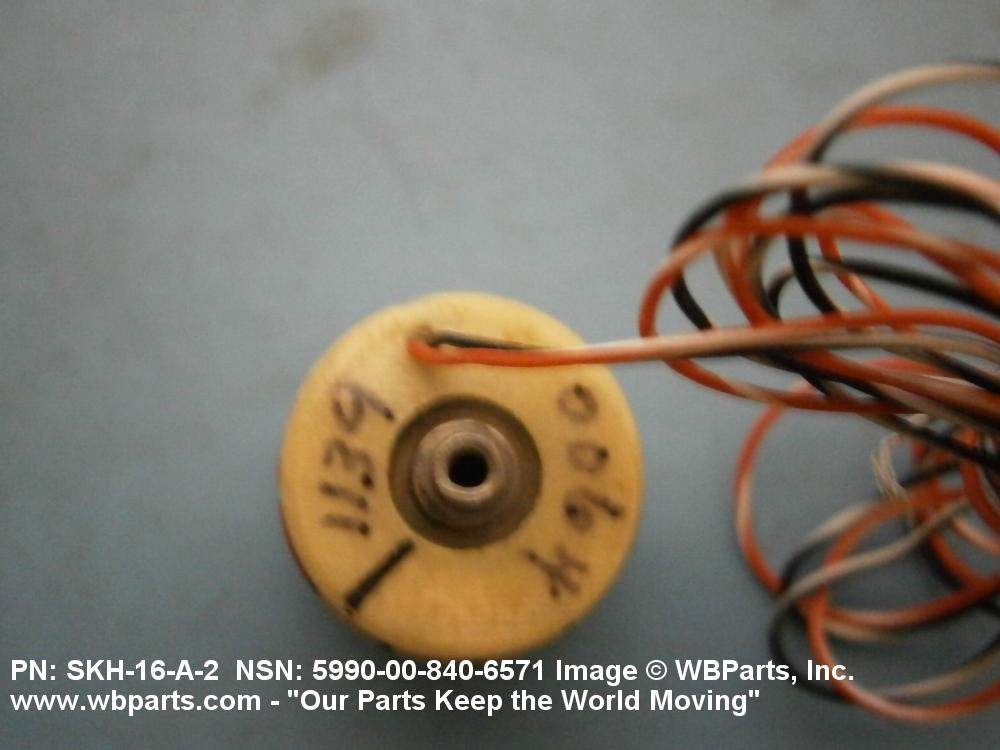

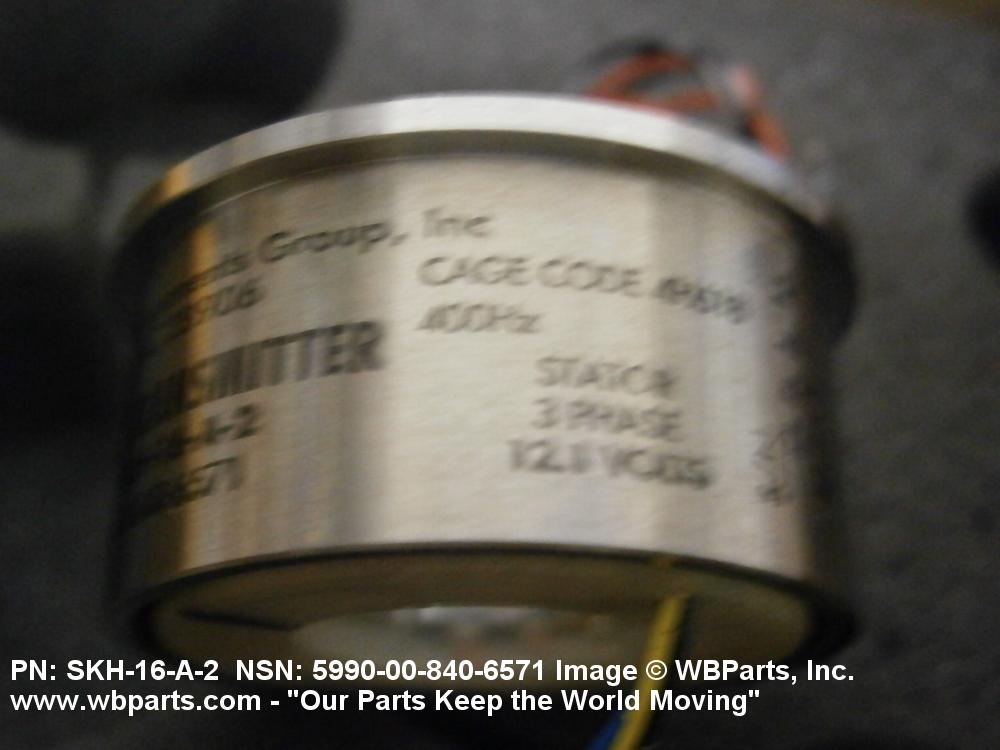

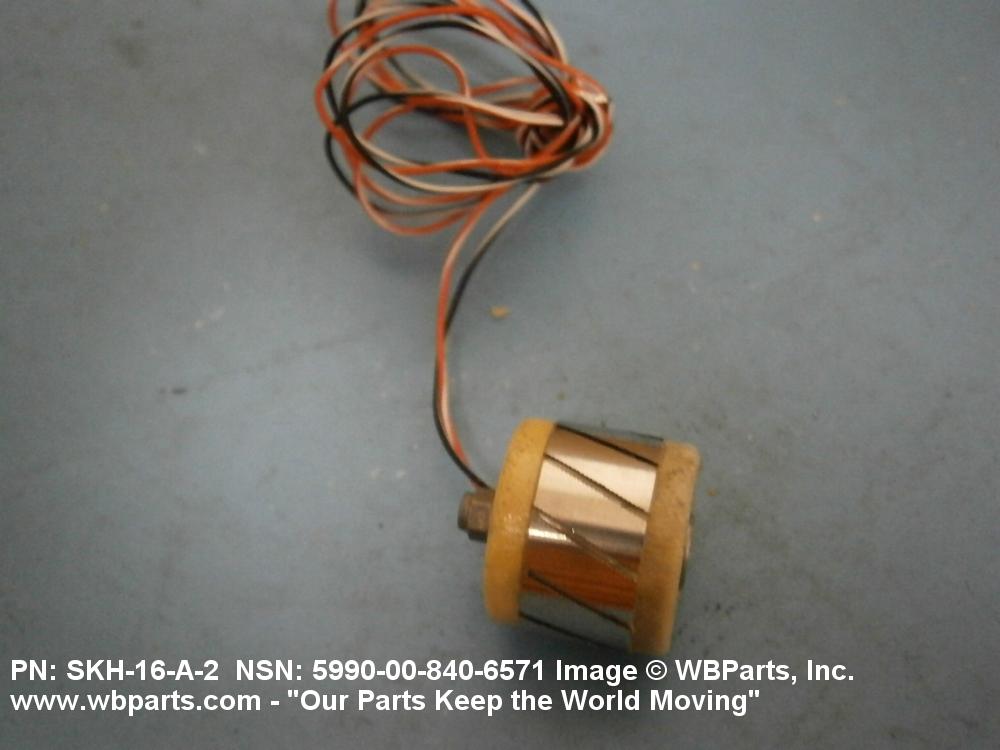

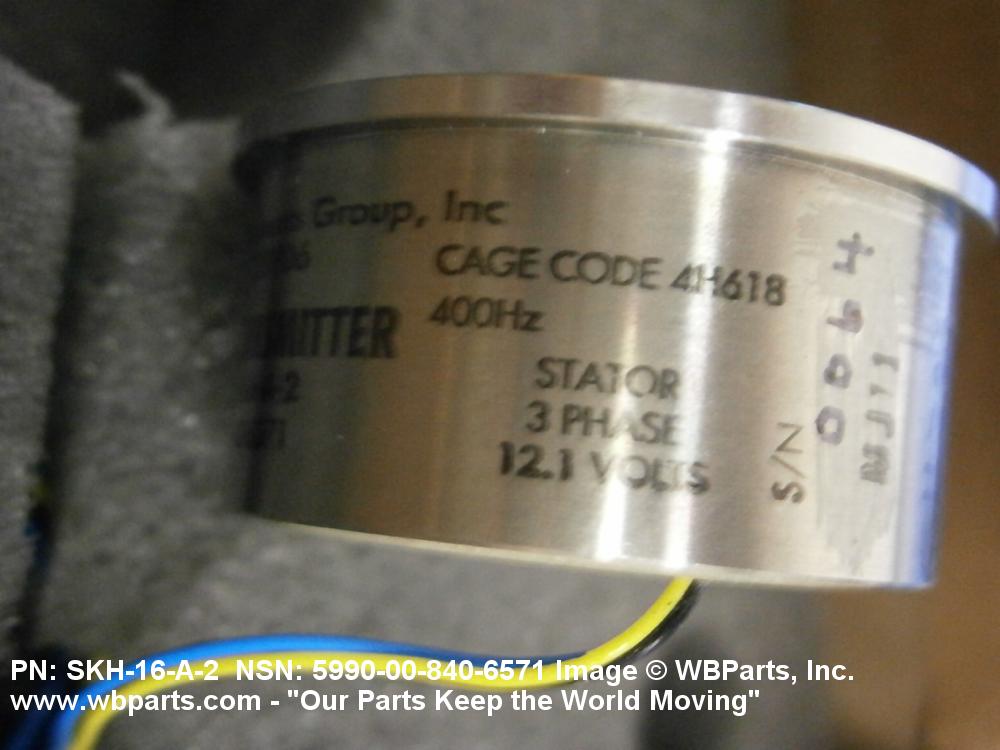

Drawings & Photos | NSN 5990-00-840-6571
Demand History | NSN 5990-00-840-6571
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5990-00-840-6571 | 2015-05-121 | 3 | Korea |
| 5990-00-840-6571 | 2015-04-106 | 3 | Korea |
| 5990-00-840-6571 | 2014-07-212 | 3 | MANUAL |
| 5990-00-840-6571 | 2014-06-175 | 5 | DIBBS |
| 5990-00-840-6571 | 2014-06-162 | 5 | DIBBS |
| 5990-00-840-6571 | 2014-04-97 | 2 | Korea |
| 5990-00-840-6571 | 2014-02-49 | 3 | Korea |
| 5990-00-840-6571 | 2014-01-02 | 3 | MANUAL |
| 926C388P1 | 2014-01-02 | 3 | Korea |
| 5990-00-840-6571 | 2013-09-254 | 5 | MANUAL |
| 5990-00-840-6571 | 2013-01-16 | 2 | MANUAL |
| 5990-00-840-6571 | 2012-10-292 | 2 | MANUAL |
| 926C388P1 | 2012-10-292 | 2 | Korea |
| 5990-00-840-6571 | 2012-07-206 | 1 | KR |
| 926C388P1 | 2012-07-206 | 1 | KR |
| 926C388P1 | 2012-04-93 | 5 | Korea |
| 926C388P1 | 2012-01-15 | 1 | KR |
| 5990-00-840-6571 | 2011-09-252 | 5 | MANUAL |
| 926C388P1 | 2011-09-252 | 5 | Korea |
| 926C388P1 | 2011-07-187 | 5 | US |
| 5990-00-840-6571 | 2011-07-187 | 5 | Korea |
| 926C388P1 | 2007-08-222 | 1 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5990-00-840-6571
Related Products | NSN 5990-00-840-6571
Technical Data | NSN 5990-00-840-6571
| Characteristic | Specifications |
|---|---|
| BODY SIZE | 16 |
| ROTOR INPUT VOLTAGE RATING IN VOLTS | 26.0 NOMINAL |
| FREQUENCY IN HERTZ | 400.0 NOMINAL |
| PHASE SHIFT ANGLE IN DEG | 12.500 INPUT TO OUTPUT NOMINAL |
| MAXIMUM TOTAL NULL VOLTAGE OUTPUT IN MILLIVOLTS PER VOLT | 20.00 |
| ELECTRICAL ERROR ANGULAR RANGE IN MINUTES | -3.0 TO 3.0 |
| BODY STYLE | A14 PICK-OFF B |
| OVERALL LENGTH | 0.8900 INCHES MAXIMUM |
| FLANGE DIAMETER | 1.5620 INCHES MINIMUM AND 1.5624 INCHES MAXIMUM |
| BODY DIAMETER | 1.4300 INCHES MINIMUM AND 1.4350 INCHES MAXIMUM |
| SHAFT TYPE | ROUND, THREADED SINGLE SHAFT |
| SHAFT DIAMETER | 0.1230 INCHES MINIMUM AND 0.1232 INCHES MAXIMUM SINGLE SHAFT |
| SHAFT LENGTH | 0.1100 INCHES MAXIMUM SINGLE SHAFT |
| SHAFT THREAD SERIES DESIGNATOR | UNC SINGLE SHAFT |
| SHAFT NOMINAL THREAD SIZE | 0.086 INCHES SINGLE SHAFT |
| SHAFT THREAD CLASS | 2B SINGLE SHAFT |
| SHAFT THREAD DIRECTION | RIGHT-HAND SINGLE SHAFT |
| TERMINAL TYPE AND QUANTITY | 5 WIRE LEAD |
| TERMINAL LOCATION | FRONT |
| BODY MATERIAL | STEEL, STAINLESS |
| MANUFACTURERS CODE | 89954 |
| MFR SOURCE CONTROLLING REFERENCE | 926C388 |
