NSN 5990-00-914-1163 CM01014207, 64A7A4, 00-914-1163
Product Details | TRANSMITTER SYNCHRO
5990-00-914-1163 A synchro consisting of a stator and rotor inductively coupled. The electrical output of the stator into a receiver synchro, a control transformer or differential synchro is dependent upon the position of its rotor. Does not include variable resistors, goniometers, variable transformers, or items with dials.
Part Alternates: CM01014207, 64A7A4, 5990-00-914-1163, 00-914-1163, 5990009141163, 009141163
Electrical and Electronic Equipment Components | Synchros and Resolvers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1960 | 00-914-1163 | 02073 ( SYNCHRO, TRANSMITTER ) |
Drawings & Photos | NSN 5990-00-914-1163
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5990-00-914-1163
Related Products | NSN 5990-00-914-1163
Technical Data | NSN 5990-00-914-1163
| Characteristic | Specifications |
|---|---|
| BODY SIZE | 8 |
| ROTOR INPUT VOLTAGE RATING IN VOLTS | 115.0 NOMINAL |
| ROTOR INPUT CURRENT RATING | 29.0 MILLIAMPERES NOMINAL |
| ROTOR INPUT ELECTRICAL POWER RATING | 800.0 MILLIWATTS NOMINAL |
| FREQUENCY IN HERTZ | 400.0 NOMINAL |
| ZRO RESISTANCE IN OHMS | 950.00 NOMINAL |
| PLUS J ZRO REACTANCE IN OHMS | 3850.00 NOMINAL |
| ZSO RESISTANCE IN OHMS | 10.00 NOMINAL |
| PLUS J ZSO REACTANCE IN OHMS | 36.00 NOMINAL |
| ZRS RESISTANCE IN OHMS | 1550.00 NOMINAL |
| PLUS J ZRS REACTANCE IN OHMS | 420.00 NOMINAL |
| ROTOR DC RESISTANCE IN OHMS | 700.00 NOMINAL |
| STATOR DC RESISTANCE IN OHMS | 10.40 NOMINAL |
| TRANSFORMATION RATIO | 0.1025 STATOR TO ROTOR NOMINAL |
| PHASE SHIFT ANGLE IN DEG | 11.000 INPUT TO OUTPUT MAXIMUM |
| MAXIMUM TEMP RISE | 30.0 DEG CELSIUS |
| MAXIMUM FUNDAMENTAL NULL VOLTAGE IN MILLIVOLTS PER VOLT | 50.00 OUTPUT |
| MAXIMUM TOTAL NULL VOLTAGE OUTPUT IN MILLIVOLTS PER VOLT | 75.00 |
| ELECTRICAL ERROR ANGULAR RANGE IN MINUTES | -7.0 TO 7.0 |
| ACTUATOR FRICTION TORQUE AT MINUS 55 DEG CELSIUS | 15.0 CENTIMETER-GRAMS MAXIMUM |
| ACTUATOR FRICTION TORQUE AT PLUS 25 DEG CELSIUS | 4.0 CENTIMETER-GRAMS MAXIMUM |
| BODY STYLE | A1 STANDARD ROUND A |
| PILOT DIAMETER | 0.5000 INCHES MAXIMUM |
| OVERALL LENGTH | 1.6300 INCHES MAXIMUM |
| FLANGE DIAMETER | 0.7500 INCHES MAXIMUM |
| FLANGE THICKNESS | 0.0620 INCHES NOMINAL |
| UNDERCUT DIAMETER | 0.6910 INCHES MAXIMUM |
| UNDERCUT WIDTH | 0.0620 INCHES NOMINAL |
| PILOT LENGTH | 0.0400 INCHES NOMINAL |
| MOUNTING SURFACE TO TERMINAL END DISTANCE | 1.2400 INCHES MAXIMUM |
| SHAFT TYPE | ROUND, SLOTTED SINGLE SHAFT |
| SHAFT DIAMETER | 0.0900 INCHES MAXIMUM SINGLE SHAFT |
| SHAFT LENGTH | 0.3350 INCHES NOMINAL SINGLE SHAFT |
| SHAFT SLOT DEPTH | 0.0250 INCHES NOMINAL SINGLE SHAFT |
| SHAFT SLOT WIDTH | 0.0300 INCHES NOMINAL SINGLE SHAFT |
| TERMINAL TYPE AND QUANTITY | 5 WIRE LEAD |
| TERMINAL LOCATION | REAR |
| BODY MATERIAL | STEEL, STAINLESS |
| III SHAFT MAXIMUM RADIAL PLAY | 0.0008 INCHES |
| III SHAFT RADIAL PLAY TEST POINT | 0.125 INCHES MAXIMUM |
| III SHAFT RADIAL PLAY DETERMINING WEIGHT | 4.0 OUNCES |
| III SHAFT END PLAY | 0.0015 INCHES MAXIMUM |
| III SHAFT END PLAY DETERMINING WEIGHT | 8.0 OUNCES |
| III SHAFT MAXIMUM RUNOUT | 0.0010 INCHES |

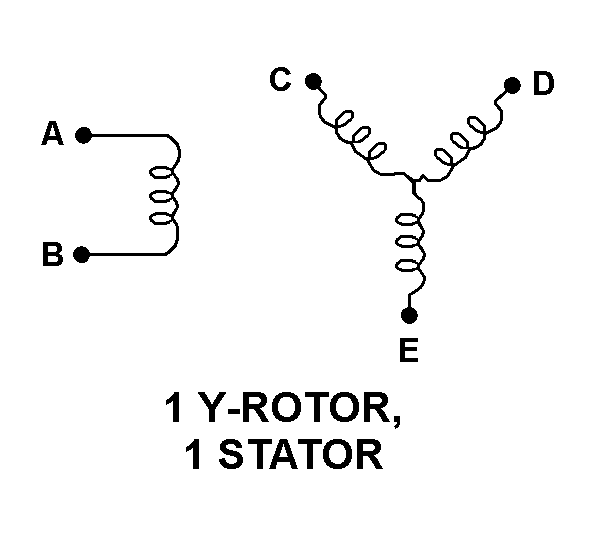

| III SCHEMATIC DIAGRAM DESIGNATOR | E1 ONE Y-ROTOR, ONE STATOR |
| III UNPACKAGED UNIT WEIGHT | 1.130 OUNCES |
| III FRAGILITY FACTOR | MODERATELY RUGGED |
Restrictions/Controls & Freight Information | NSN 5990-00-914-1163
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 062820 | RADIO/TV TRANSMIT/RECEIVE SETS |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | K | Clothing, including clothing equipment (other than arms and chemical supplies) cordage, fabrics and leather, parachutes, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5990-00-914-1163
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
