NSN 5990-00-945-7546 AY110AA40A1, RS9111A, RS911-1A
Product Details | TRANSMITTER SYNCHRO

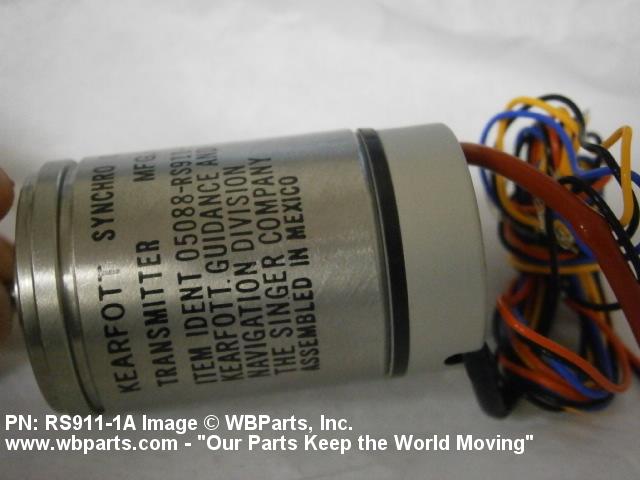

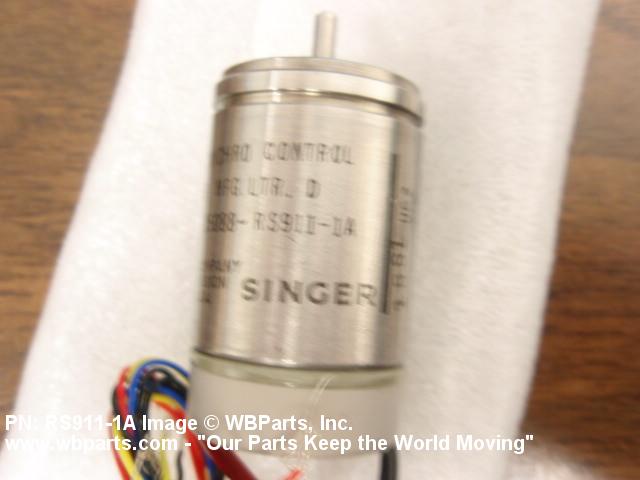

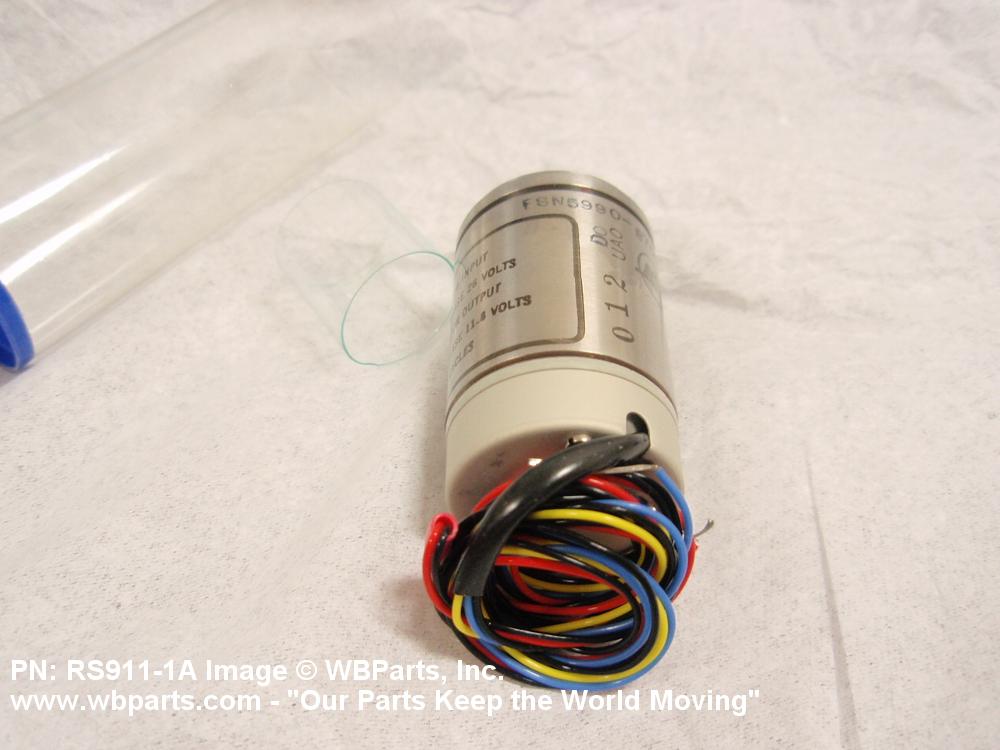

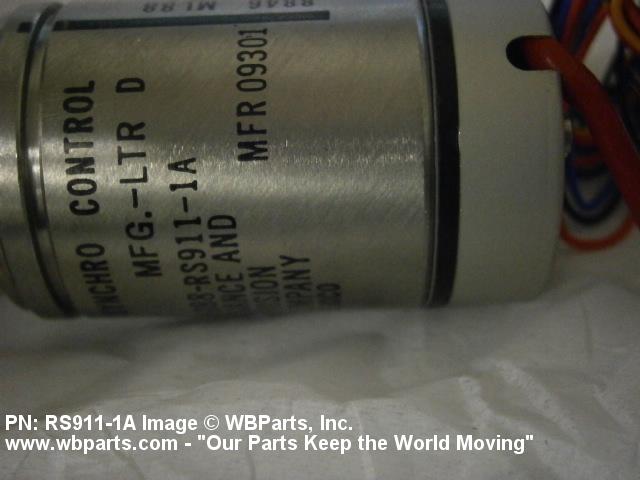

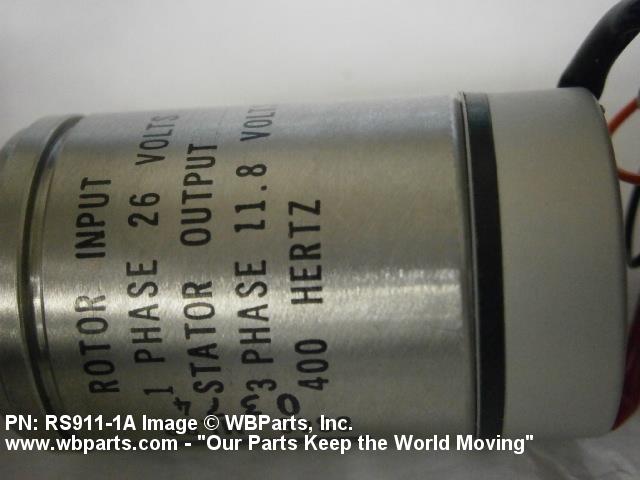

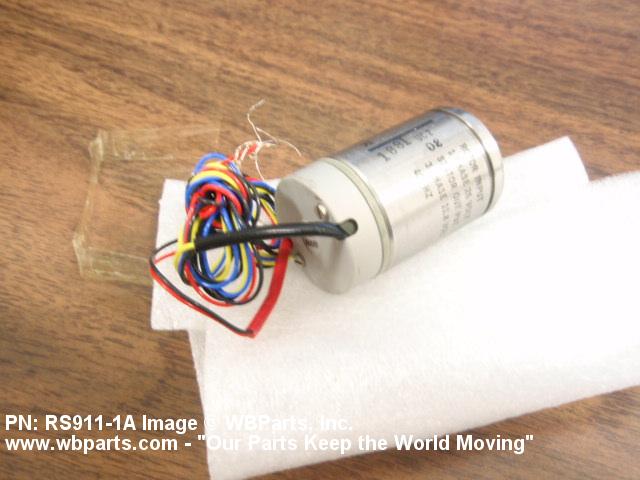

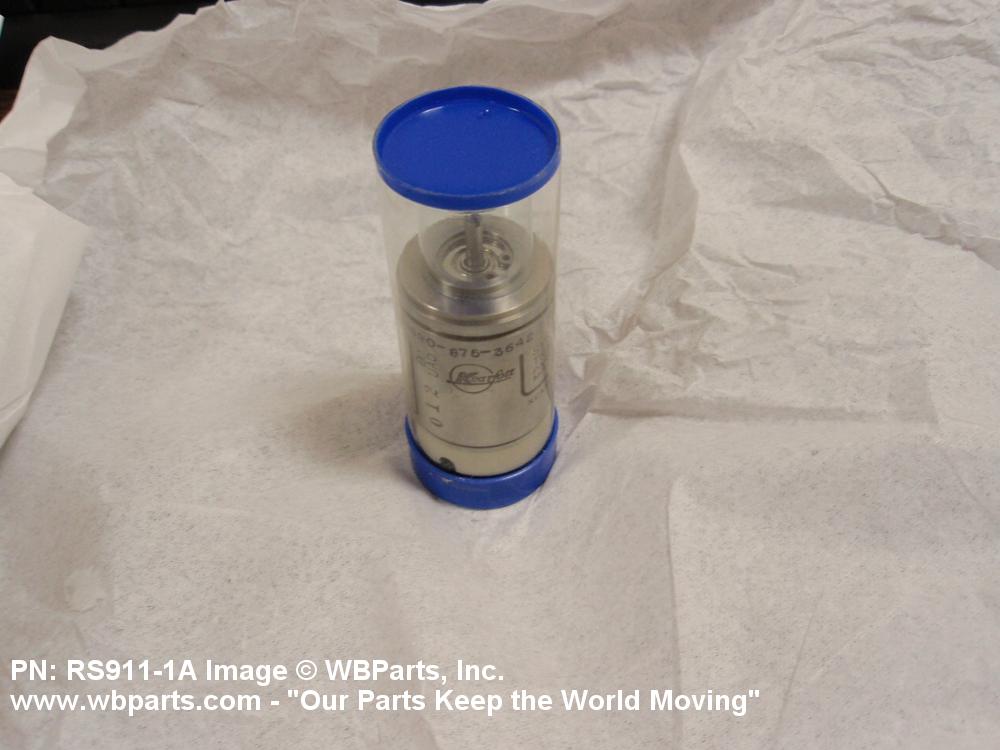

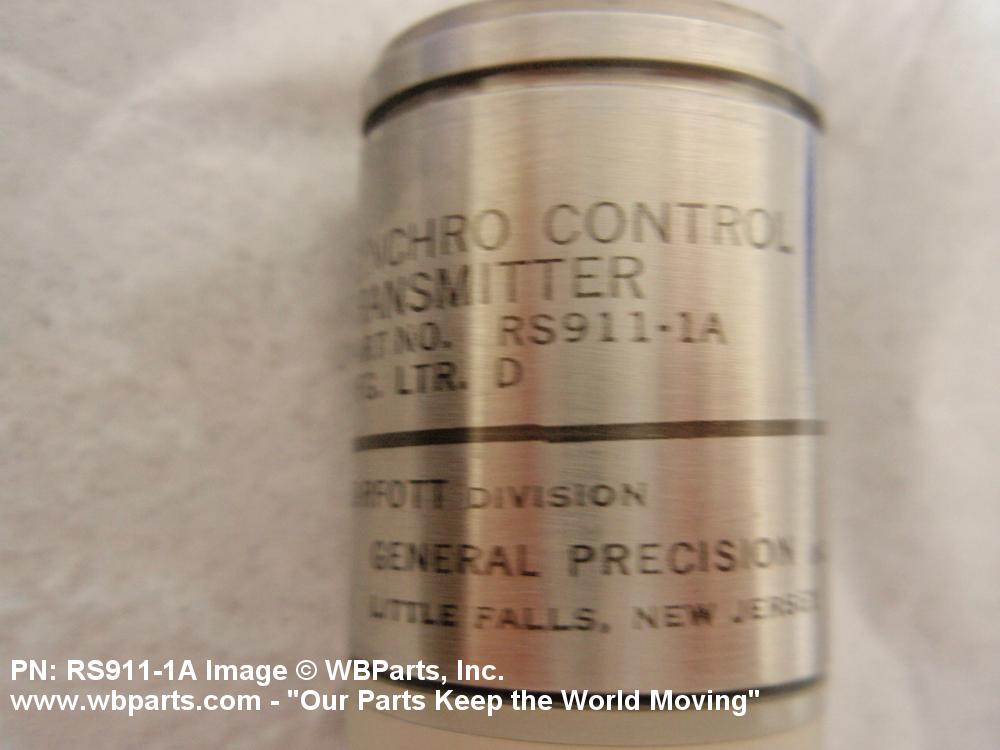

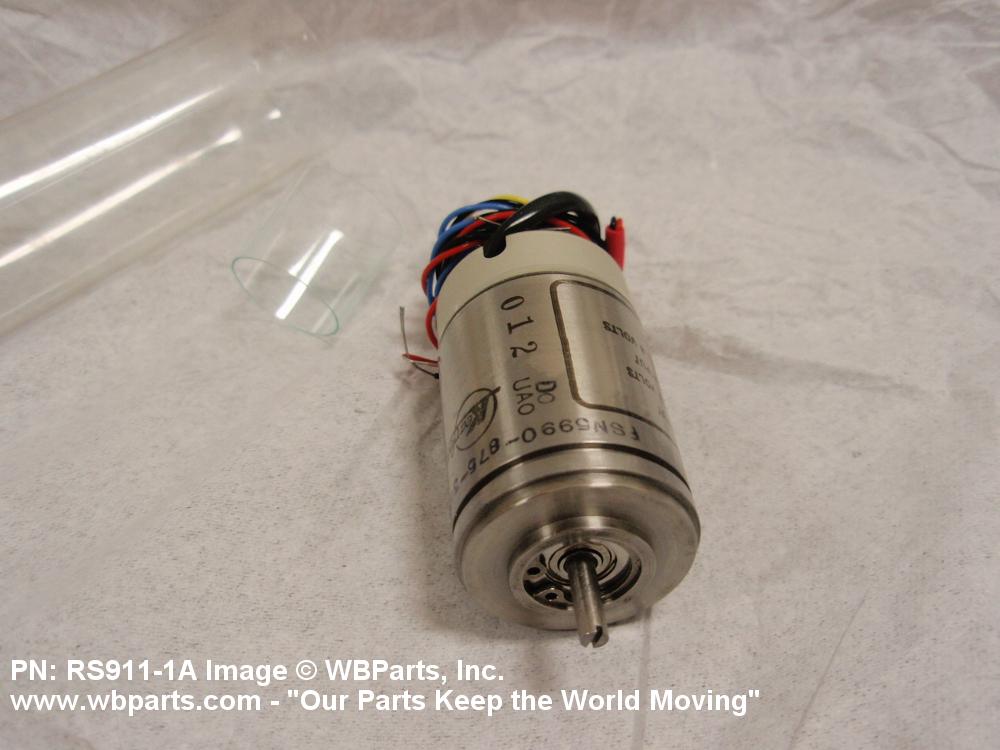

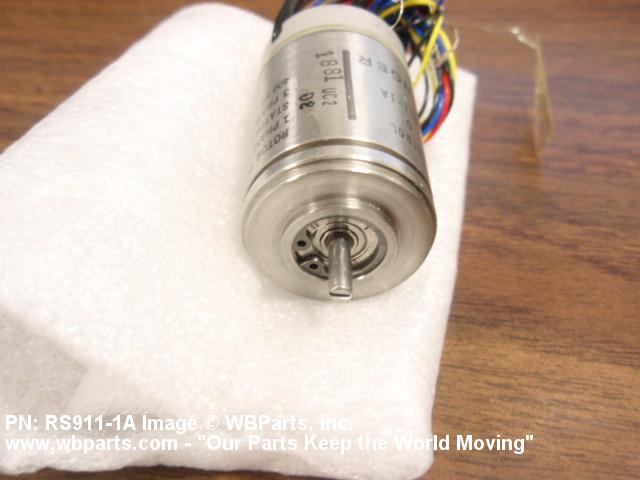

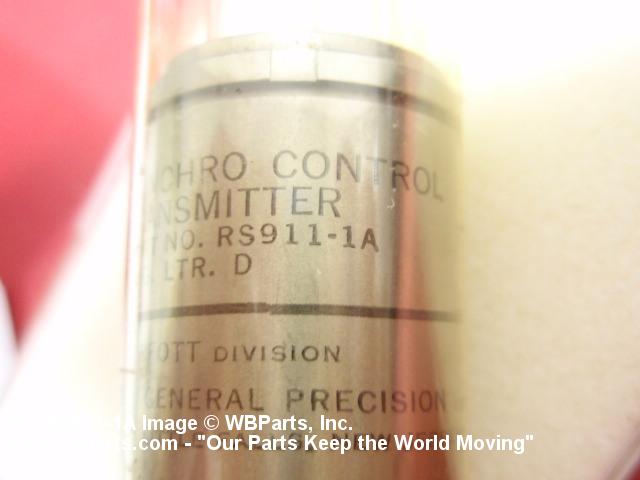

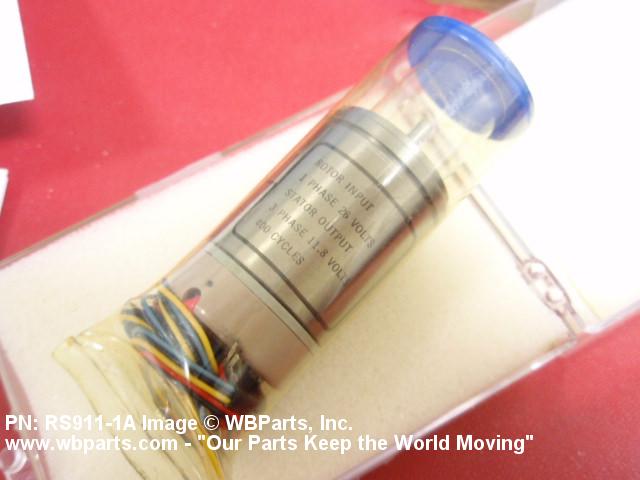

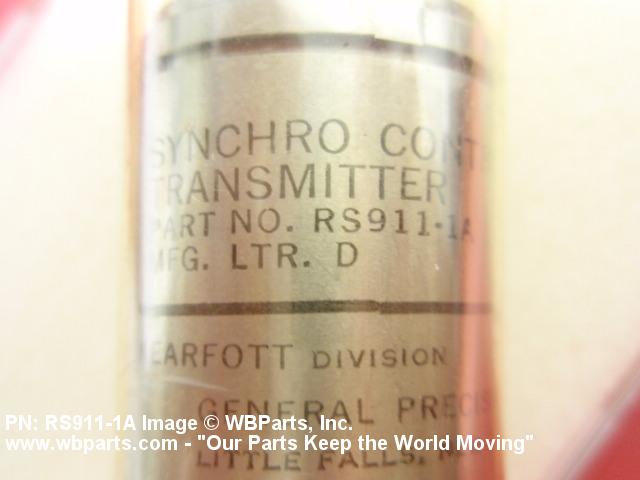

5990-00-945-7546 A synchro consisting of a stator and rotor inductively coupled. The electrical output of the stator into a receiver synchro, a control transformer or differential synchro is dependent upon the position of its rotor. Does not include variable resistors, goniometers, variable transformers, or items with dials.
Part Alternates: AY110AA40A1, RS9111A, RS911-1A, 11412301, 11-4123-01, 20884151, 2088415-1, 412301, 4123-01, 5990-00-945-7546, 00-945-7546, 5990009457546, 009457546
