NSN 5990-01-040-1320 CX316N, 31CX6A, 01-040-1320
Product Details | TRANSMITTER SYNCHRO
5990-01-040-1320 A synchro consisting of a stator and rotor inductively coupled. The electrical output of the stator into a receiver synchro, a control transformer or differential synchro is dependent upon the position of its rotor. Does not include variable resistors, goniometers, variable transformers, or items with dials.
Part Alternates: CX316N, 31CX6A, 5990-01-040-1320, 01-040-1320, 5990010401320, 010401320
Electrical and Electronic Equipment Components | Synchros and Resolvers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 02 MAY 1977 | 01-040-1320 | 02073 ( SYNCHRO, TRANSMITTER ) |

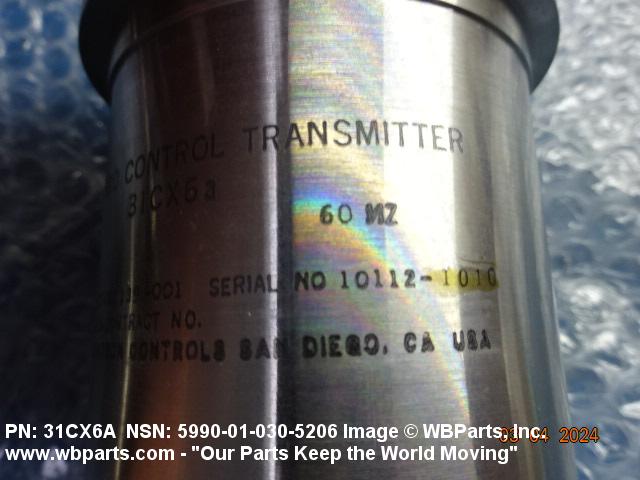

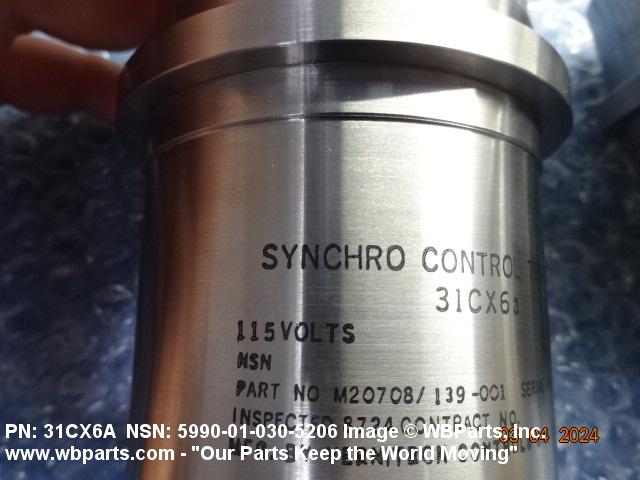

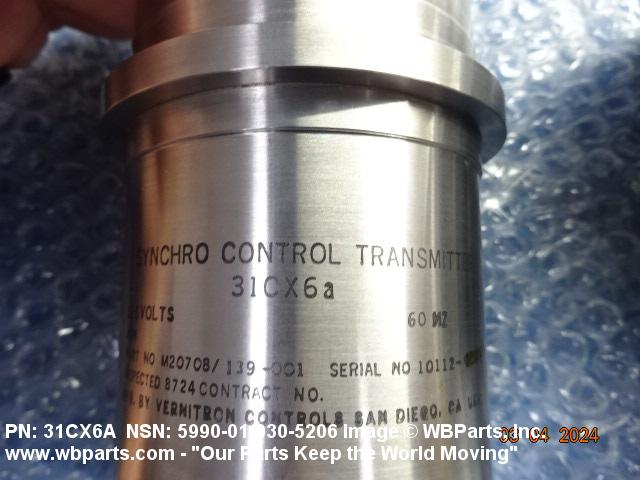

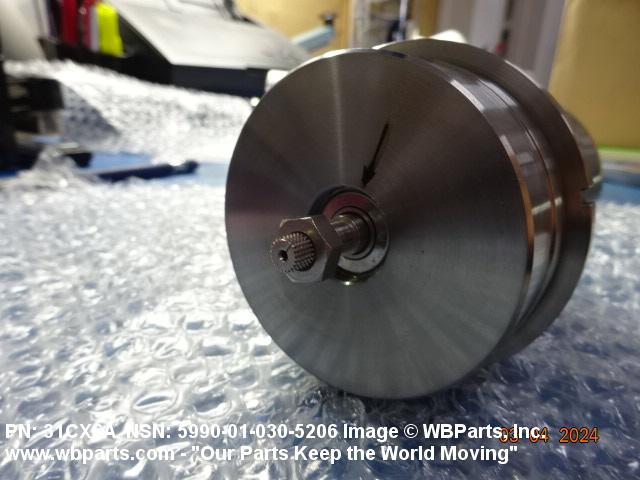

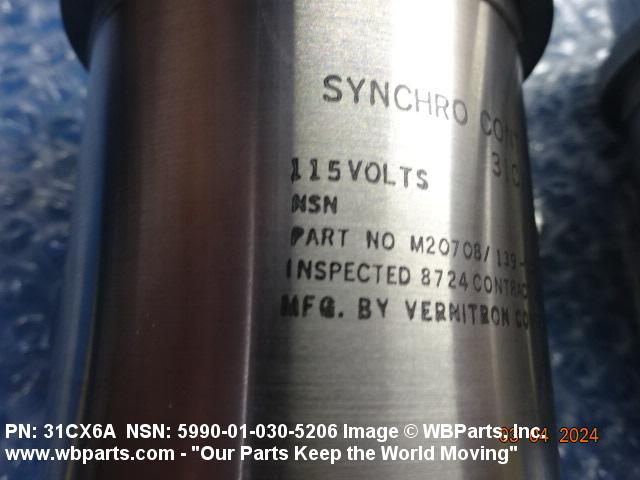

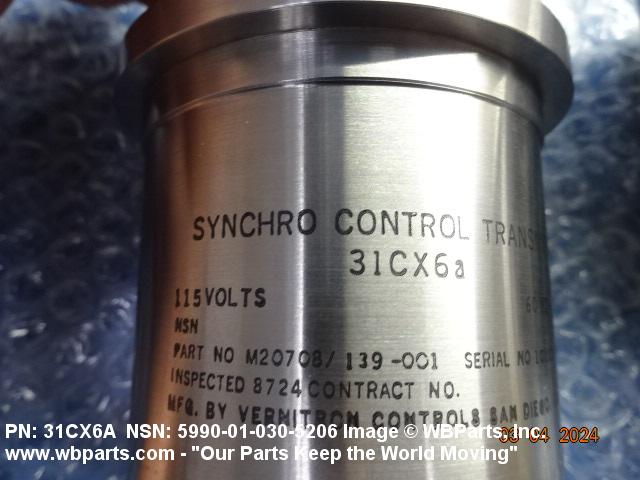

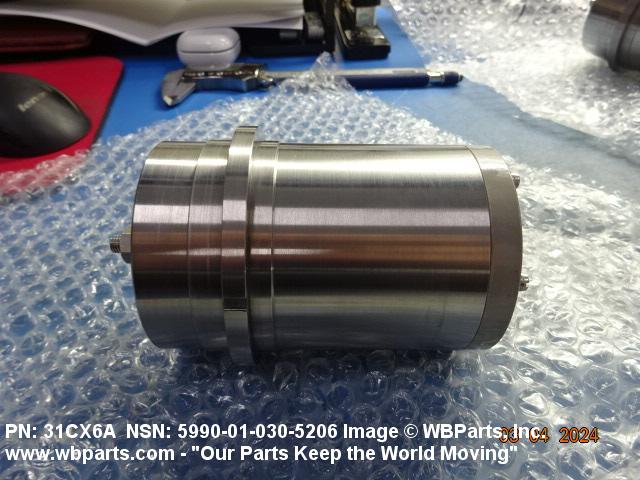

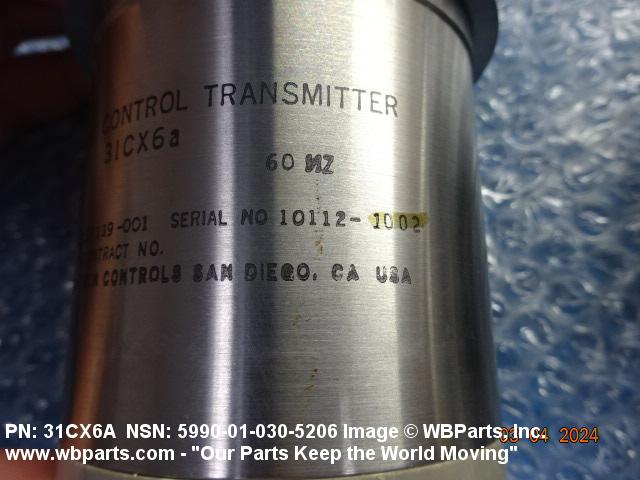

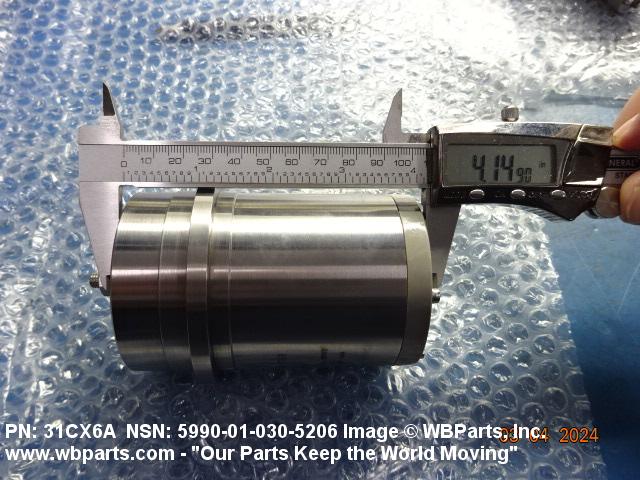

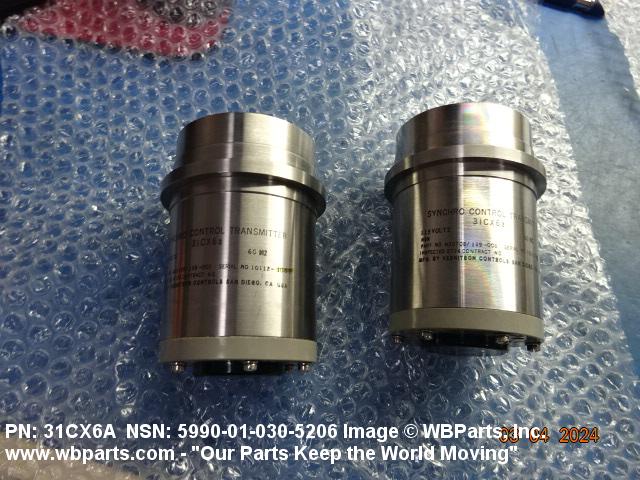

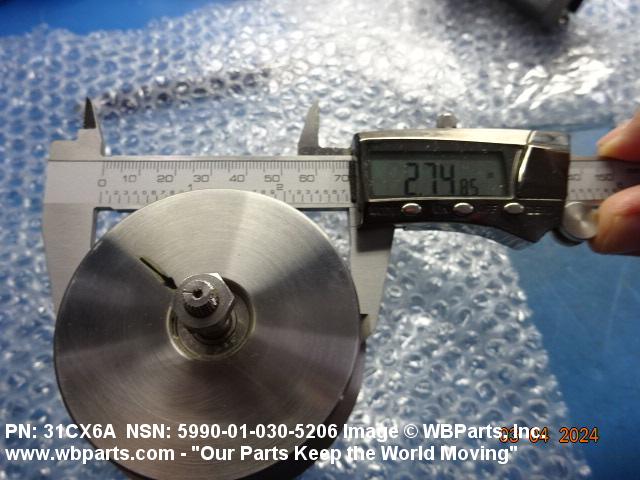

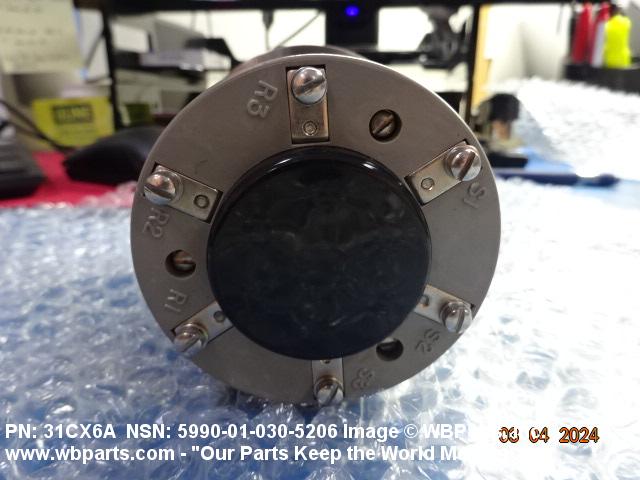

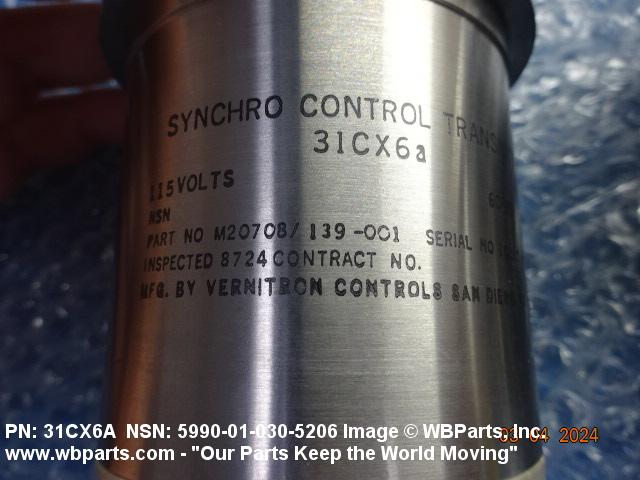

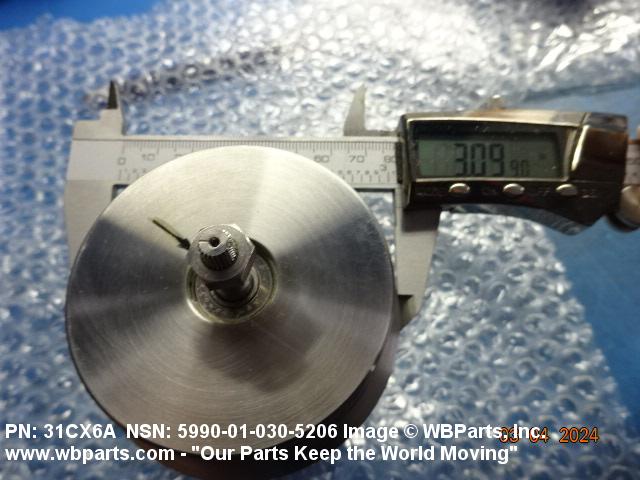

Drawings & Photos | NSN 5990-01-040-1320
Demand History | NSN 5990-01-040-1320
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 31CX6A | 2024-02-53 | 2 | United States |
| 31CX6A | 2023-10-304 | 1 | US |
| CX316N | 2020-12-336 | 6 | DIBBS |
| CX316N | 2020-02-57 | 6 | DIBBS |
| 5990-01-040-1320 | 2013-11-321 | 1 | DIBBS |
| 5990-01-040-1320 | 2011-04-98 | 1 | IL |
| 5990-01-040-1320 | 2010-03-67 | 3 | DIBBS |
| 5990-01-040-1320 | 2008-12-347 | 1 | DIBBS |
| 5990-01-040-1320 | 2008-11-322 | 3 | DIBBS |
| 5990-01-040-1320 | 2008-06-175 | 2 | DIBBS |
| 5990-01-040-1320 | 2007-05-145 | 3 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5990-01-040-1320
Related Products | NSN 5990-01-040-1320
Technical Data | NSN 5990-01-040-1320
| Characteristic | Specifications |
|---|---|
| ROTOR INPUT VOLTAGE RATING IN VOLTS | 115.0 NOMINAL |
| ROTOR INPUT CURRENT RATING | 462.0 MILLIAMPERES NOMINAL |
| ROTOR INPUT ELECTRICAL POWER RATING | 17.0 MILLIWATTS NOMINAL |
| FREQUENCY IN HERTZ | 400.0 NOMINAL |
| ZRO RESISTANCE IN OHMS | 170.00 NOMINAL |
| PLUS J ZRO REACTANCE IN OHMS | 1480.00 NOMINAL |
| ZSO RESISTANCE IN OHMS | 106.00 NOMINAL |
| PLUS J ZSO REACTANCE IN OHMS | 744.00 NOMINAL |
| ZRS RESISTANCE IN OHMS | 225.00 NOMINAL |
| PLUS J ZRS REACTANCE IN OHMS | 121.00 NOMINAL |
| ROTOR DC RESISTANCE IN OHMS | 99.00 NOMINAL |
| STATOR DC RESISTANCE IN OHMS | 92.00 NOMINAL |
| TRANSFORMATION RATIO | 0.783 ROTOR TO STATOR NOMINAL |
| PHASE SHIFT ANGLE IN DEG | 6.500 INPUT TO OUTPUT NOMINAL |
| MAXIMUM FUNDAMENTAL NULL VOLTAGE IN MILLIVOLTS PER VOLT | 35.00 INPUT |
| MAXIMUM TOTAL NULL VOLTAGE OUTPUT IN MILLIVOLTS PER VOLT | 75.00 |
| ELECTRICAL ERROR ANGULAR RANGE IN MINUTES | -7.0 TO 7.0 |
| ACTUATOR FRICTION TORQUE AT MINUS 55 DEG CELSIUS | 16.0 CENTIMETER-GRAMS NOMINAL |
| ACTUATOR FRICTION TORQUE AT PLUS 25 DEG CELSIUS | 6.0 CENTIMETER-GRAMS NOMINAL |
| BODY STYLE | A4 STANDARD ROUND D |
| SHOULDER DIAMETER | 2.7000 INCHES NOMINAL |
| PILOT DIAMETER | 0.8750 INCHES NOMINAL |
| SECOND SHOULDER DIAMETER | 2.7500 INCHES NOMINAL |
| SECOND SHOULDER LENGTH | 0.2500 INCHES NOMINAL |
| OVERALL LENGTH | 5.2000 INCHES MAXIMUM |
| FLANGE DIAMETER | 3.1000 INCHES NOMINAL |
| FLANGE THICKNESS | 0.2500 INCHES NOMINAL |
| BODY DIAMETER | 2.7500 INCHES NOMINAL |
| PILOT LENGTH | 0.0300 INCHES NOMINAL |
| SHOULDER LENGTH | 0.3750 INCHES NOMINAL |
| AFT OF FIRST FLANGE DIAMETER | 2.7000 INCHES NOMINAL |
| MOUNTING SURFACE TO TERMINAL END DISTANCE | 4.5000 INCHES MAXIMUM |
| SHAFT TYPE | ROUND, THREADED SINGLE SHAFT |
| SHAFT DIAMETER | 0.1800 INCHES NOMINAL SINGLE SHAFT |
| SHAFT LENGTH | 0.7000 INCHES NOMINAL SINGLE SHAFT |
| SHAFT THREAD LENGTH | 0.3500 INCHES NOMINAL SINGLE SHAFT |
| SHAFT THREAD SERIES DESIGNATOR | UNF SINGLE SHAFT |
| SHAFT NOMINAL THREAD SIZE | 0.250 INCHES SINGLE SHAFT |
| SHAFT THREAD CLASS | 2A SINGLE SHAFT |
| SHAFT THREAD DIRECTION | RIGHT-HAND SINGLE SHAFT |
| TERMINAL TYPE AND QUANTITY | 5 SCREW |
| TERMINAL LOCATION | REAR |
| BODY MATERIAL | ALUMINUM ALLOY |
Restrictions/Controls & Freight Information | NSN 5990-01-040-1320
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 062820 | RADIO/TV TRANSMIT/RECEIVE SETS |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | K | Clothing, including clothing equipment (other than arms and chemical supplies) cordage, fabrics and leather, parachutes, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5990-01-040-1320
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
