NSN 5995-01-086-5037 6382358001, 638-2358-001, 8872698-70
Product Details | RADIO FREQUENCY CABLE ASSEMBLY
5995-01-086-5037 A definite length of CABLE, RADIO FREQUENCY having one or both ends processed and/or terminated in fittings which provide for connection to other items. Includes multiple cable assemblies in a common jacket or shield. Excludes items having branches or forks and LEAD, TEST. See also CABLE ASSEMBLY, RADIO FREQUENCY, BRANCHED.20211350043Fuzing and Firing Devices, Nuclear Ordnance59950057Cable, Cord, and Wire Assemblies: Communication Equipment
Part Alternates: 6382358001, 638-2358-001, 8872698-70, 5995-01-086-5037, 01-086-5037, 5995010865037, 010865037, 887269870
Electrical and Electronic Equipment Components | Cable, Cord, and Wire Assemblies: Communication Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01-086-5037 | 00886 ( CABLE ASSEMBLY, RADIO FREQUENCY ) |

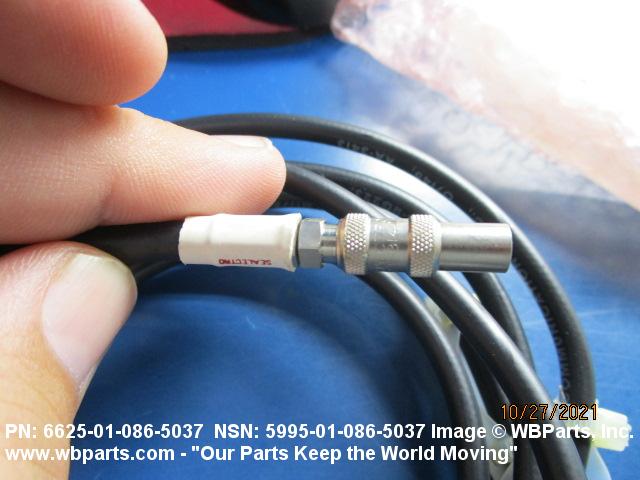

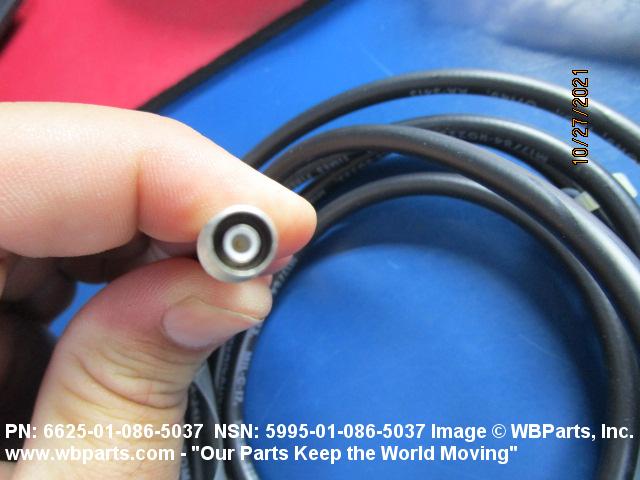

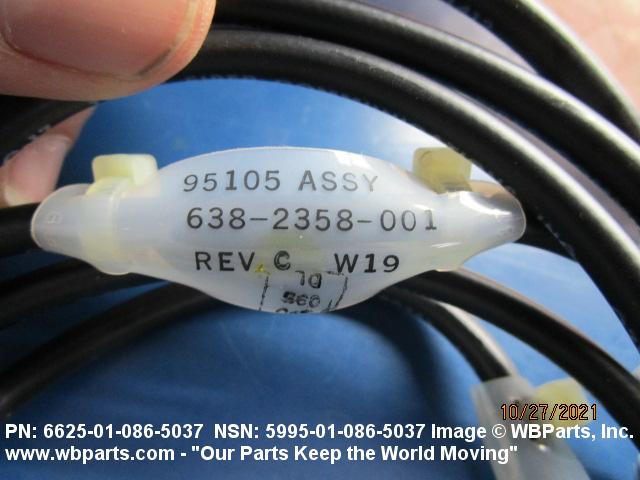

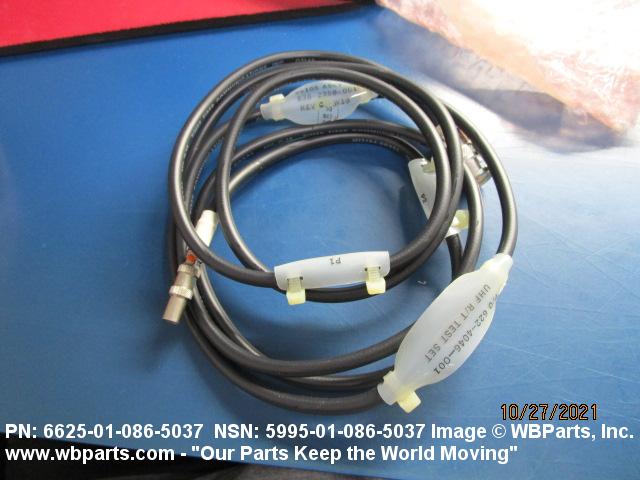

Drawings & Photos | NSN 5995-01-086-5037
Demand History | NSN 5995-01-086-5037
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5995-01-086-5037 | 2024-04-115 | 1 | United States |
| 6382358001 | 2021-10-278 | 1 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5995-01-086-5037
Technical Data | NSN 5995-01-086-5037
| Characteristic | Specifications |
|---|---|
| CONDUCTOR QUANTITY | 1 |
| CONDUCTOR FORM | SOLID SINGLE CONDUCTOR |
| MATERIAL | COPPER ALLOY 1ST POSITION CONDUCTOR SINGLE CONDUCTOR PLASTIC POLYETHYLENE 1ST POSITION PRIMARY INSULATION SINGLE CONDUCTOR PLASTIC POLYVINYL CHLORIDE 1ST POSITION JACKET CABLE SILVER 2ND POSITION CONDUCTOR SINGLE CONDUCTOR |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-C-17 MIL SPEC ALL MATERIAL RESPONSES 1ST POSITION CONDUCTOR SINGLE CONDUCTOR L-P-390,TYPE 2,CLASS L FED SPEC SINGLE MATERIAL RESPONSE 1ST POSITION PRIMARY INSULATION SINGLE CONDUCTOR MIL-I-3930,TYPE JP MIL SPEC SINGLE MATERIAL RESPONSE 1ST POSITION JACKET CABLE |
| SURFACE TREATMENT | SILVER CORE CONDUCTOR SINGLE CONDUCTOR |
| ROUND CONDUCTOR SIZE | 19 AWG SINGLE CONDUCTOR |
| CONDUCTOR ARRANGEMENT AND QUANTITY | 1 COAXIAL |
| ELECTRICAL RESISTANCE | 50.00 OHMS IMPEDANCE |
| STYLE DESIGNATOR | 33 DUAL INTERNAL ANGLE CONNECTOR |
| OVERALL LENGTH | 72.000 INCHES |
| CROSS-SECTIONAL SHAPE STYLE | 6 ROUND |
| CROSS SECTION OUTSIDE DIAMETER | 0.216 INCHES NOMINAL |
| TERMINATION TYPE | CONNECTOR PLUG BOTH ENDS SINGLE CONDUCTOR |
| TERMINAL MANUFACTURER IDENTIFYING REFERENCE NUMBER | 357-7522-010 1ST END ALL CONDUCTORS 357-9292-000 2ND END ALL CONDUCTORS |
| TERMINAL COMMERCIAL AND GOVERNMENT ENTITY CODE | 13499 BOTH ENDS SINGLE CONDUCTOR |
| III FSC APPLICATION DATA | TEST SET,RADIO |
| MANUFACTURERS CODE | 13499 |
| DESIGN CONTROL REFERENCE | 638-2358-001 |
Restrictions/Controls & Freight Information | NSN 5995-01-086-5037
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
