NSN 5995-01-114-7870 TRU55332, TRU-5533-2, 10274066-2
Product Details | RADIO FREQUENCY CABLE ASSEMBLY
5995-01-114-7870 A definite length of CABLE, RADIO FREQUENCY having one or both ends processed and/or terminated in fittings which provide for connection to other items. Includes multiple cable assemblies in a common jacket or shield. Excludes items having branches or forks and LEAD, TEST. See also CABLE ASSEMBLY, RADIO FREQUENCY, BRANCHED.20211350043Fuzing and Firing Devices, Nuclear Ordnance59950057Cable, Cord, and Wire Assemblies: Communication Equipment
Part Alternates: TRU55332, TRU-5533-2, 10274066-2, 5995-01-114-7870, 01-114-7870, 5995011147870, 102740662, 011147870
Electrical and Electronic Equipment Components | Cable, Cord, and Wire Assemblies: Communication Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 23 JUN 1981 | 01-114-7870 | 00886 ( CABLE ASSEMBLY, RADIO FREQUENCY ) |

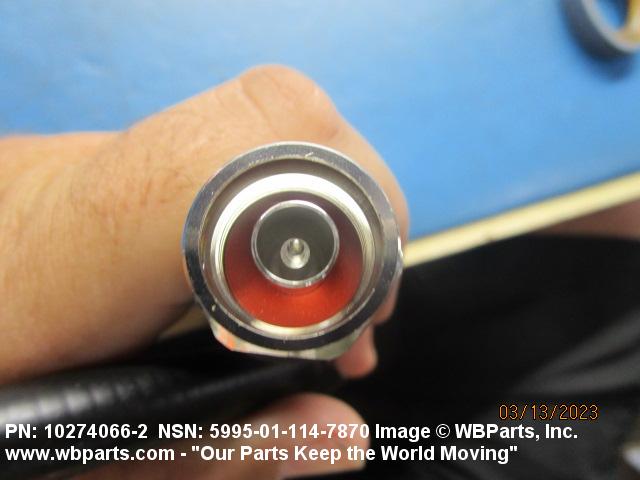

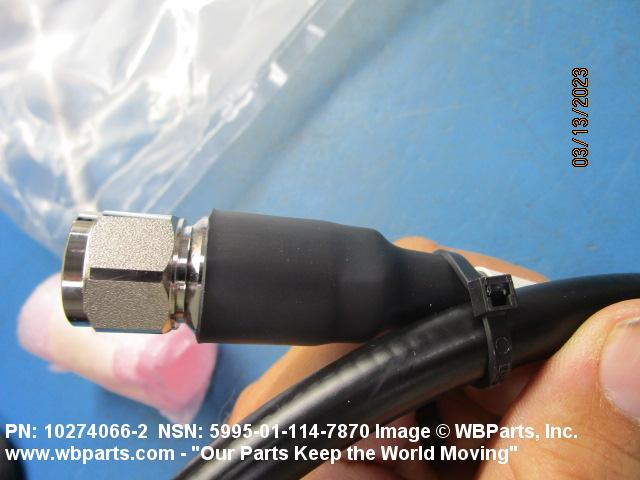

Drawings & Photos | NSN 5995-01-114-7870
Demand History | NSN 5995-01-114-7870
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5995-01-114-7870 | 2023-02-44 | 3 | United States |
| 5995-01-114-7870 | 2022-07-188 | 5 | United States |
| 5995-01-114-7870 | 2022-03-75 | 19 | DIBBS |
| 5995-01-114-7870 | 2021-03-70 | 33 | DIBBS |
| 5995-01-114-7870 | 2018-04-108 | 3 | DIBBS |
| 5995-01-114-7870 | 2014-06-181 | 23 | DIBBS |
| 5995-01-114-7870 | 2013-12-339 | 35 | DIBBS |
| 5995-01-114-7870 | 2013-07-204 | 17 | DIBBS |
| 5995-01-114-7870 | 2012-10-291 | 21 | DIBBS |
Cross Reference | NSN 5995-01-114-7870
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10274066-2 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
| 10274066-2 | 24581 | PRECISION CABLE OF TENNESSEE INC |
| 10274066-2 | 54736 | FEDERAL PRISON INDUSTRIES INC DBA UNICOR |
| 10274066-2 | 56853 | FEDERAL PRISON INDUSTRIES INC DBA UNICOR |
| 10274066-2 | 92180 | TRU CORPORATION DBA TRU-CONNECTOR |
| TRU-5533-2 | 92180 | TRU CORPORATION DBA TRU-CONNECTOR |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5995-01-114-7870
Related Products | NSN 5995-01-114-7870
Technical Data | NSN 5995-01-114-7870
| Characteristic | Specifications |
|---|---|
| CONDUCTOR QUANTITY | 1 |
| CONDUCTOR FORM | SOLID SINGLE CONDUCTOR |
| MATERIAL | ALUMINUM CORE CONDUCTOR SINGLE CONDUCTOR |
| SURFACE TREATMENT | COPPER CORE CONDUCTOR SINGLE CONDUCTOR |
| CONDUCTOR ARRANGEMENT AND QUANTITY | 1 COAXIAL |
| ELECTRICAL RESISTANCE | 50.00 OHMS IMPEDANCE |
| STYLE DESIGNATOR | 59 INTERNAL CONNECTORS |
| OVERALL LENGTH | 46.000 INCHES |
| CROSS-SECTIONAL SHAPE STYLE | 6 ROUND |
| TEMP RATING | -45.6 DEG CELSIUS AND 71.0 DEG CELSIUS |
| TERMINATION TYPE | CONNECTOR INTERNAL STRAIGHT BOTH ENDS SINGLE CONDUCTOR |
| TERMINAL COMMERCIAL AND GOVERNMENT ENTITY CODE | 18876 BOTH ENDS SINGLE CONDUCTOR |
| MANUFACTURERS CODE | 18876 |
| DESIGN CONTROL REFERENCE | 10274066-2 |
Restrictions/Controls & Freight Information | NSN 5995-01-114-7870
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061130 | CABLE ASSEMBLY |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 743 | unknown |
| Originating Activity Code | BD | U.S. Army Aviation and Missile Command Redstone Arsenal, AL 35898-5230 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5995-01-114-7870
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | Q | Electronics Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
