NSN 5995-01-206-5834 13038582001, 13038582-001, 13038582-1
Product Details | RADIO FREQUENCY CABLE ASSEMBLY
5995-01-206-5834 A definite length of CABLE, RADIO FREQUENCY having one or both ends processed and/or terminated in fittings which provide for connection to other items. Includes multiple cable assemblies in a common jacket or shield. Excludes items having branches or forks and LEAD, TEST. See also CABLE ASSEMBLY, RADIO FREQUENCY, BRANCHED.20211350043Fuzing and Firing Devices, Nuclear Ordnance59950057Cable, Cord, and Wire Assemblies: Communication Equipment
Part Alternates: 13038582001, 13038582-001, 13038582-1, 5995-01-206-5834, 01-206-5834, 5995012065834, 012065834, 130385821
Electrical and Electronic Equipment Components | Cable, Cord, and Wire Assemblies: Communication Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 20 APR 1985 | 01-206-5834 | 00886 ( CABLE ASSEMBLY, RADIO FREQUENCY ) |

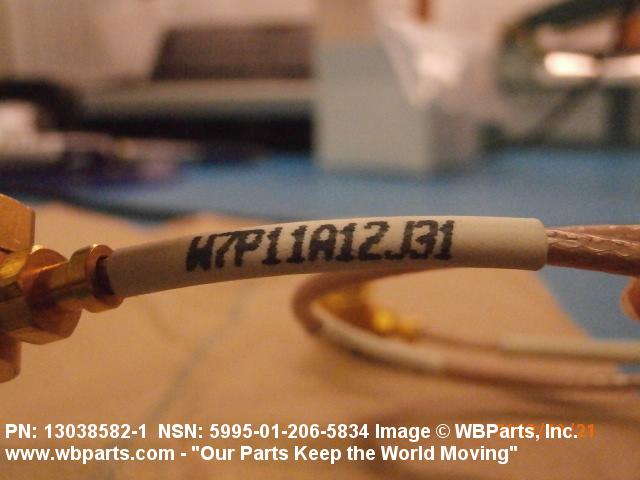

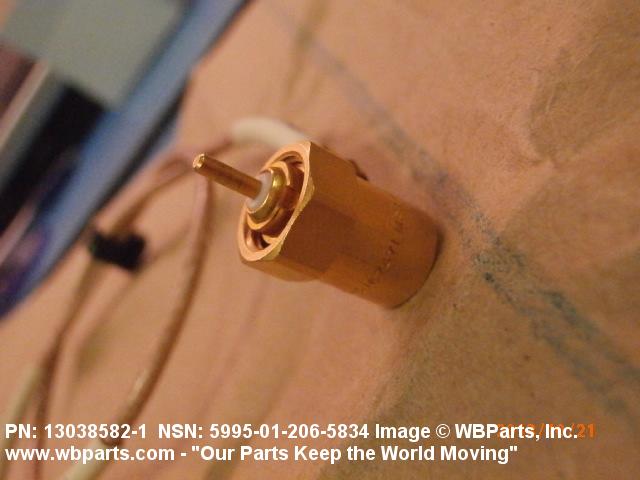

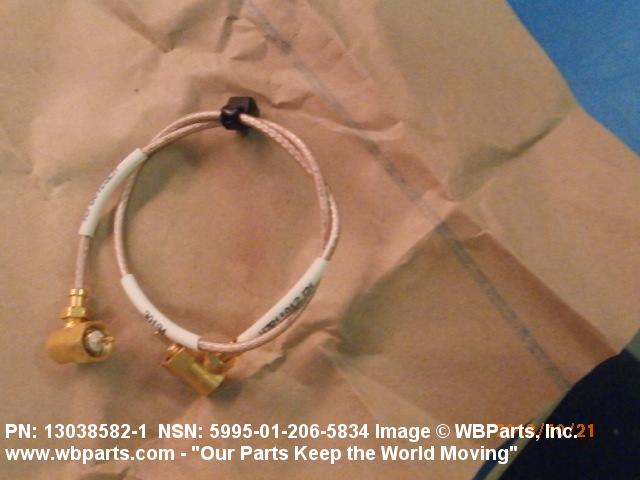

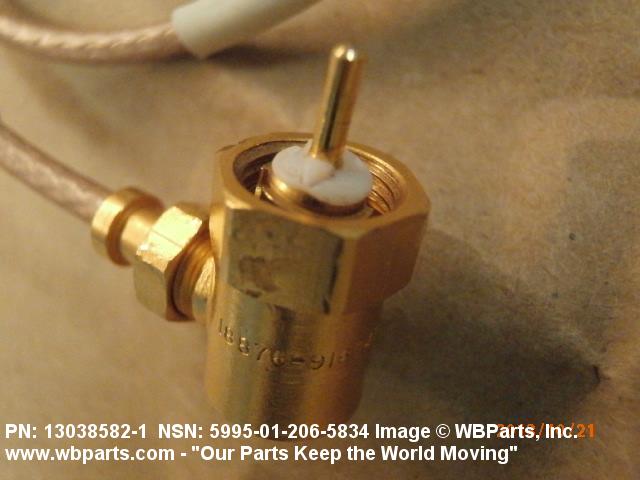

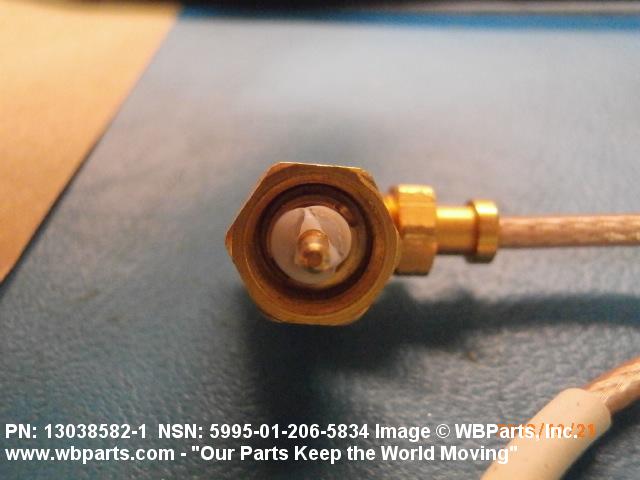

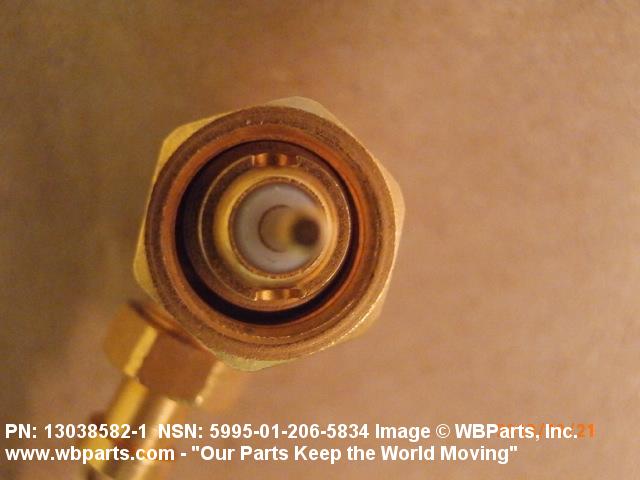

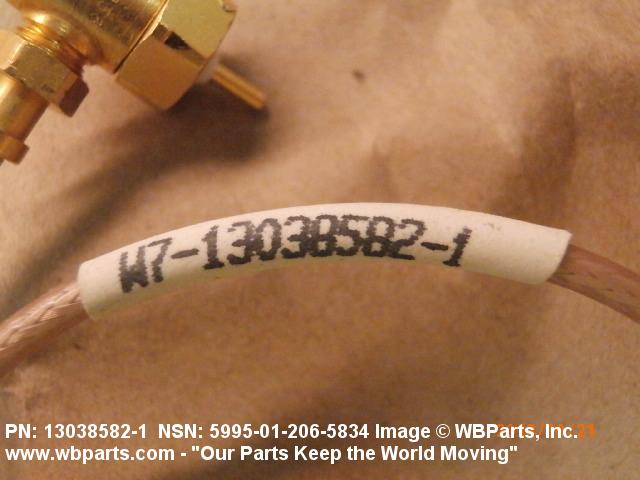

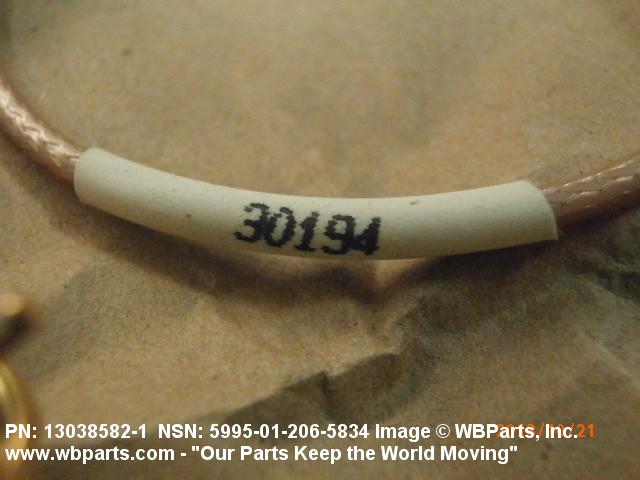

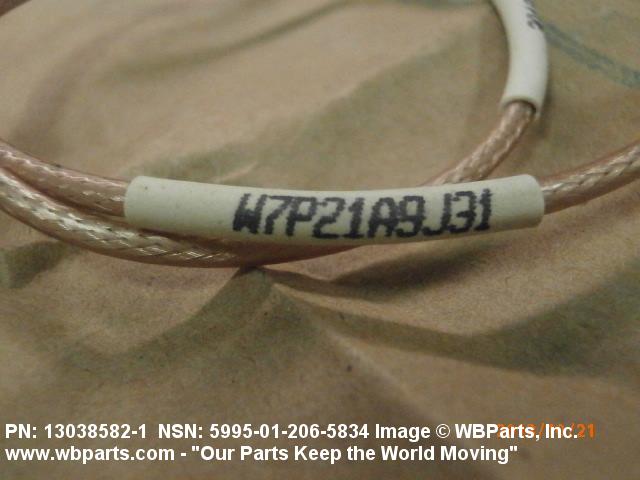

Drawings & Photos | NSN 5995-01-206-5834
Demand History | NSN 5995-01-206-5834
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5995-01-206-5834 | 2013-08-226 | 6 | United States |
| 5995-01-206-5834 | 2013-07-211 | 6 | United States |
| 13038582001 | 2012-03-67 | 2 | TR |
| 5995-01-206-5834 | 2010-08-216 | 3 | US |
| 130385821 | 2008-09-246 | 1 | France |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5995-01-206-5834
Related Products | NSN 5995-01-206-5834
Technical Data | NSN 5995-01-206-5834
| Characteristic | Specifications |
|---|---|
| CONDUCTOR QUANTITY | 6 |
| CONDUCTOR FORM | STRANDED SINGLE CONDUCTOR |
| MATERIAL | STEEL 1ST POSITION CONDUCTOR SINGLE CONDUCTOR PLASTIC POLYTETRAFLUOROETHYLENE 1ST POSITION PRIMARY INSULATION SINGLE CONDUCTOR COPPER 1ST POSITION SHIELD BRAID, METALLIC SINGLE CONDUCTOR COPPER 2ND POSITION CONDUCTOR ALL CONDUCTORS SILVER 2ND POSITION COATING SINGLE CONDUCTOR PLASTIC FLUORINATED ETHYLENE PROPYLENE 3RD POSITION JACKET SINGLE CONDUCTOR |
| SURFACE TREATMENT | SILVER CORE CONDUCTOR SINGLE CONDUCTOR |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | ASTM B298 ASSN STD SINGLE TREATMENT RESPONSE CORE CONDUCTOR SINGLE CONDUCTOR |
| ROUND CONDUCTOR SIZE | 4 AWG SINGLE CONDUCTOR |
| STRAND QUANTITY PER CONDUCTOR | 7 SINGLE CONDUCTOR |
| STRAND AWG SIZE PER CONDUCTOR | 12 SINGLE CONDUCTOR |
| CONDUCTOR ARRANGEMENT AND QUANTITY | 1 COAXIAL |
| COLOR | WHITE 1ST POSITION COVER SINGLE CONDUCTOR |
| ELECTRICAL RESISTANCE | 50.00 OHMS IMPEDANCE |
| STYLE DESIGNATOR | 33 DUAL INTERNAL ANGLE CONNECTOR |
| OVERALL LENGTH | 14.000 INCHES |
| CROSS-SECTIONAL SHAPE STYLE | 6 ROUND |
| CROSS SECTION OUTSIDE DIAMETER | 0.098 INCHES NOMINAL |
| TERMINATION TYPE | CONNECTOR PLUG BOTH ENDS SINGLE CONDUCTOR |
| TERMINAL MANUFACTURER IDENTIFYING REFERENCE NUMBER | 9167471 1ST END SINGLE CONDUCTOR 9167471 2ND END SINGLE CONDUCTOR |
| TERMINAL COMMERCIAL AND GOVERNMENT ENTITY CODE | 18876 BOTH ENDS SINGLE CONDUCTOR |
| MANUFACTURERS CODE | 18876 |
| DESIGN CONTROL REFERENCE | 13038582-001 |
Restrictions/Controls & Freight Information | NSN 5995-01-206-5834
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | S | Item contains silver |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 5995-01-206-5834
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | L | Missiles, Missile Materiel |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | D | Surface to Air Missiles |
| Weapons Systems/End Item or Homogeneous Group | DS | Hawk, Improved |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | B64 | US Army Aviation and Missile Command ATTN: AMSMI-LC-MM-C Redstone Arsenal, AL 35898-5230 |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
