NSN 5995-01-231-7636 G1S01V71011.0, G1S01V710110, G4R01R71011096

Product Details | RADIO FREQUENCY CABLE ASSEMBLY

5995-01-231-7636 A definite length of CABLE, RADIO FREQUENCY having one or both ends processed and/or terminated in fittings which provide for connection to other items. Includes multiple cable assemblies in a common jacket or shield. Excludes items having branches or forks and LEAD, TEST. See also CABLE ASSEMBLY, RADIO FREQUENCY, BRANCHED.20211350043Fuzing and Firing Devices, Nuclear Ordnance59950057Cable, Cord, and Wire Assemblies: Communication Equipment

Part Alternates: G1S01V71011.0, G1S01V710110, G4R01R71011096, G4R01R710110-96 , G4S01R710110.0-SN96 , G4S01R7101100SN96, V201814008, V201814-008, 201814-008, 5995-01-231-7636, 01-231-7636, 5995012317636, 201814008, 012317636

Electrical and Electronic Equipment Components | Cable, Cord, and Wire Assemblies: Communication Equipment

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	03 MAY 1986	01-231-7636	00886 ( CABLE ASSEMBLY, RADIO FREQUENCY )

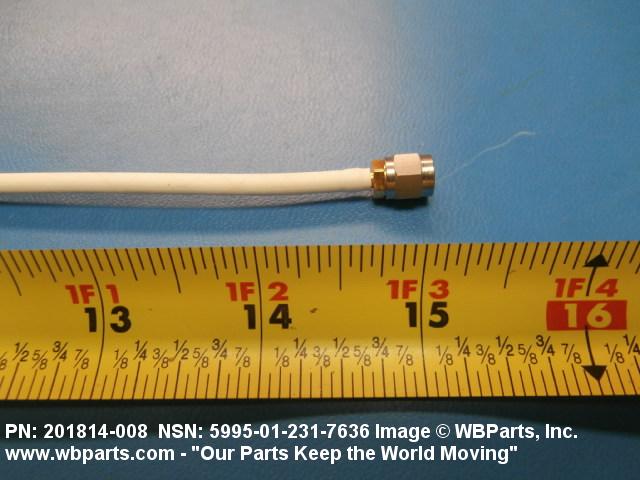

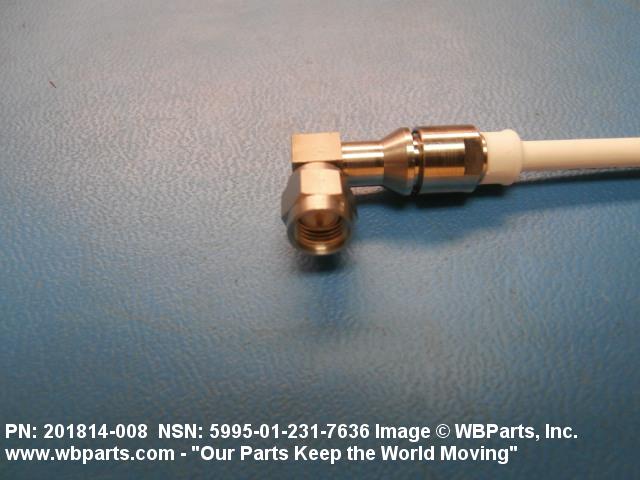

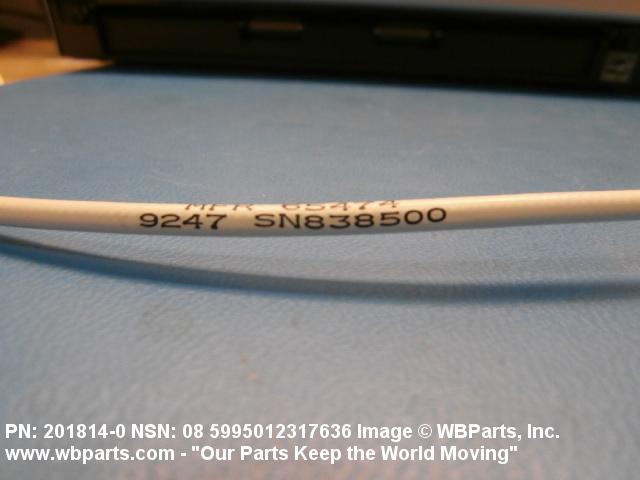

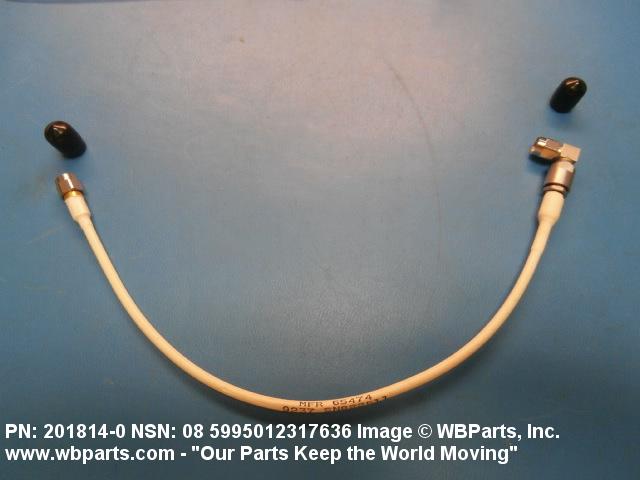

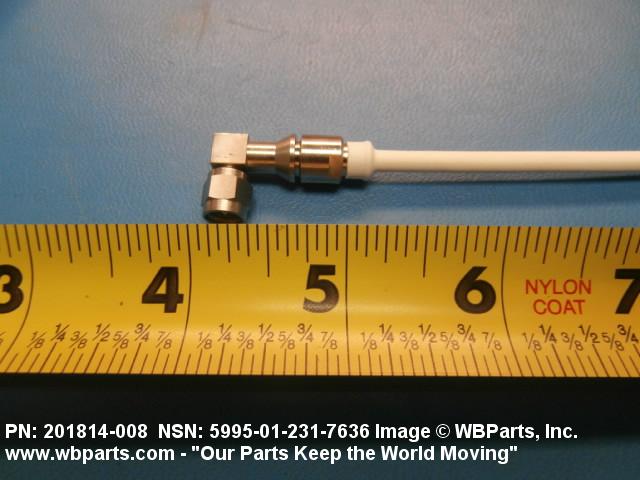

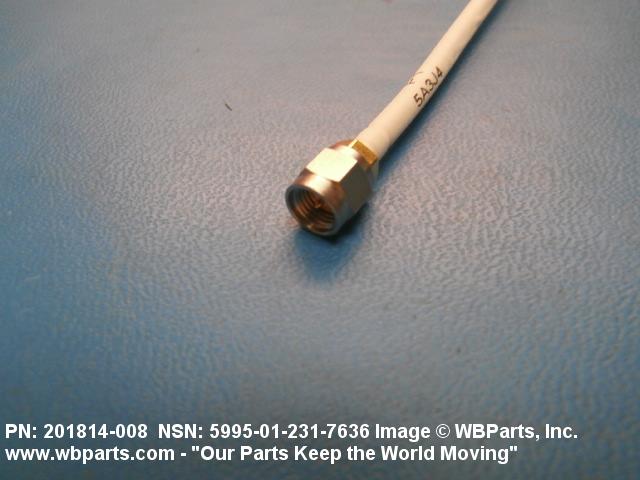

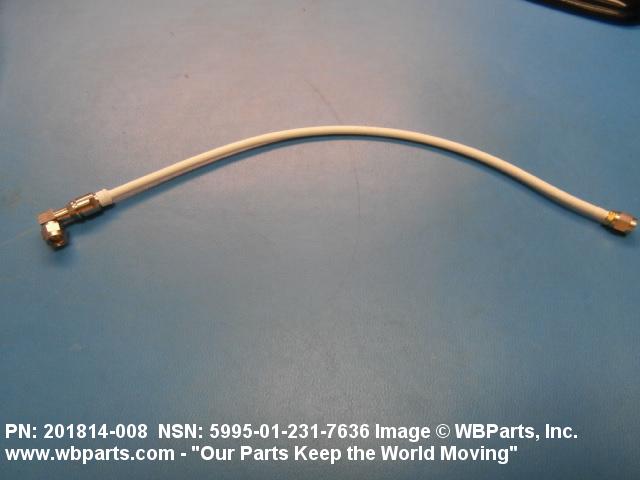

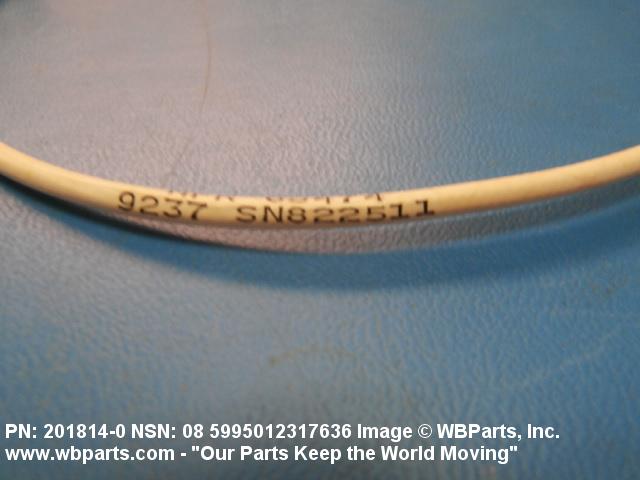

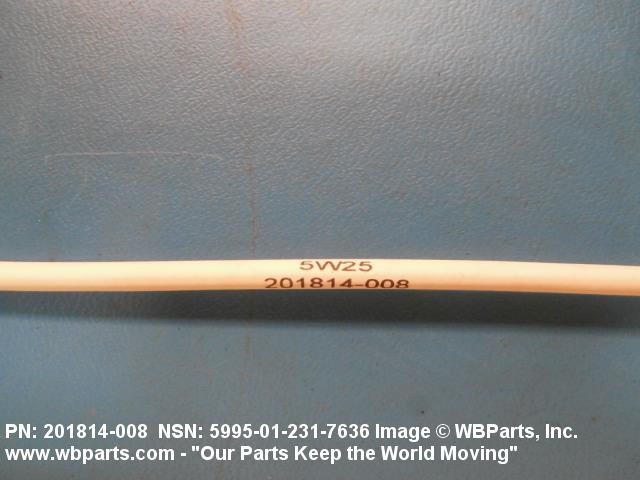

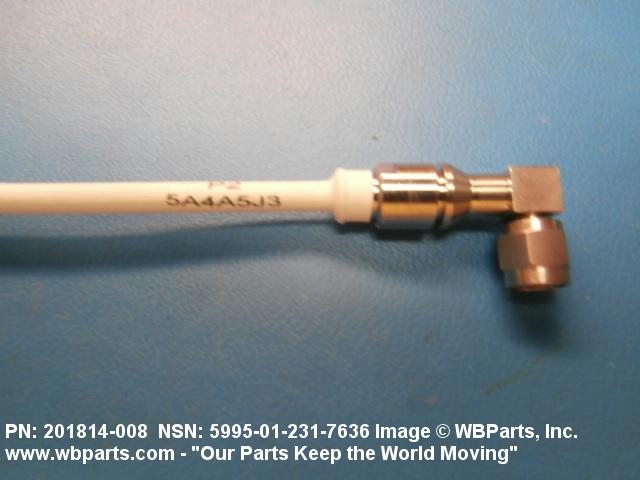

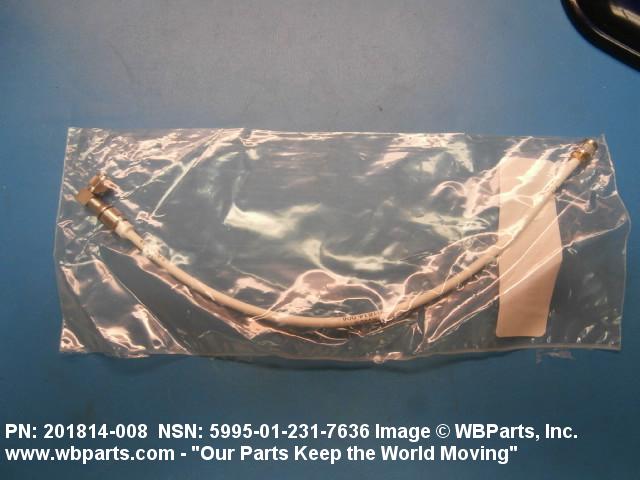

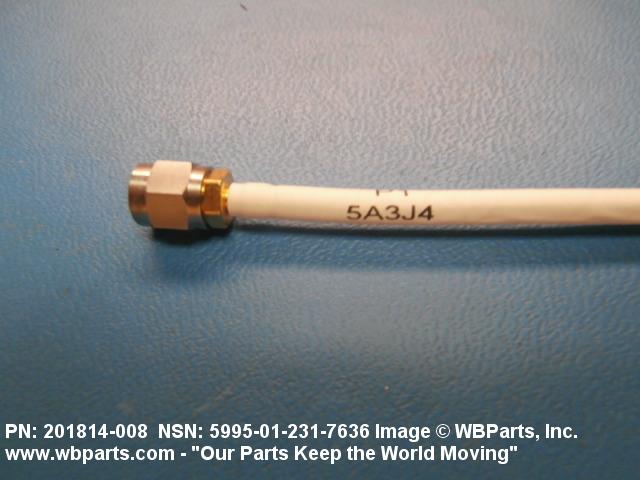

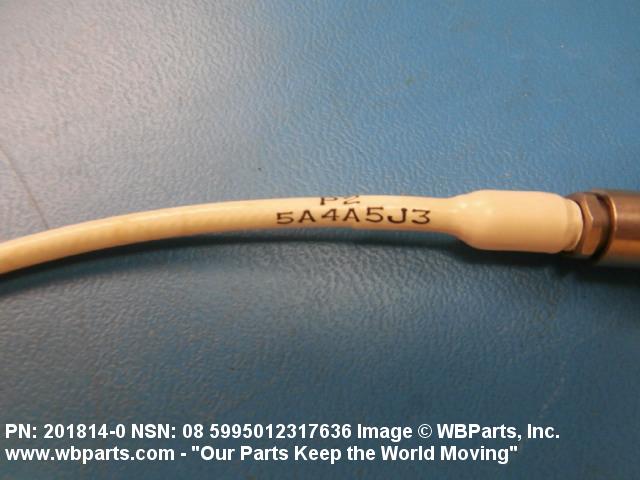

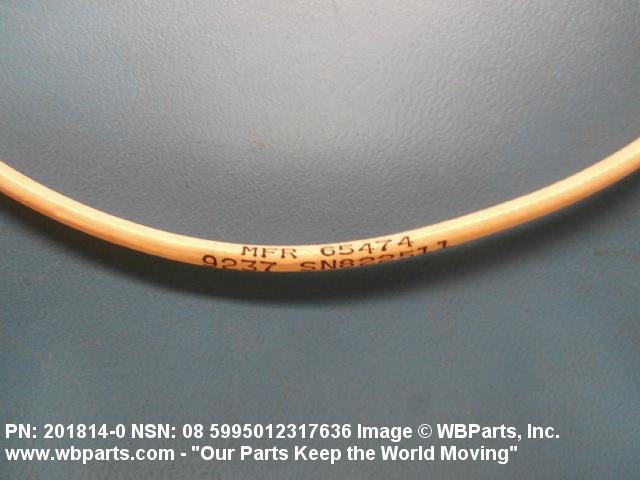

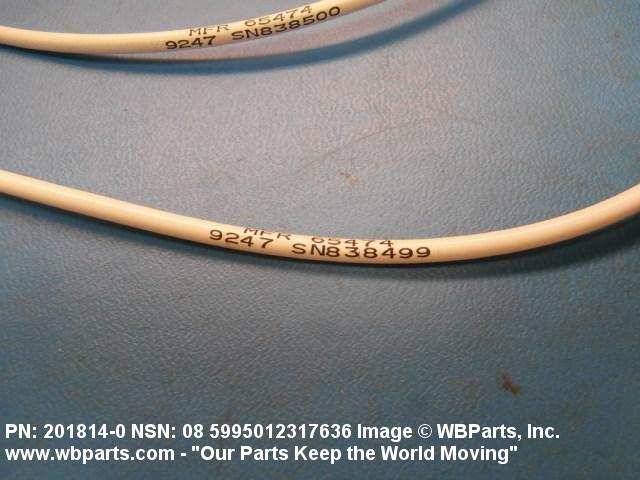

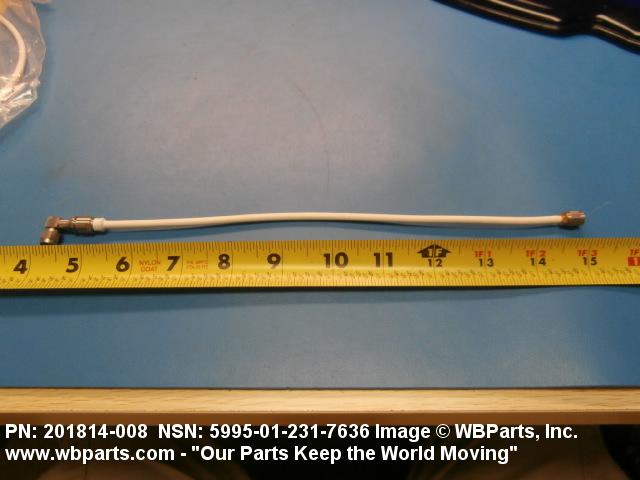

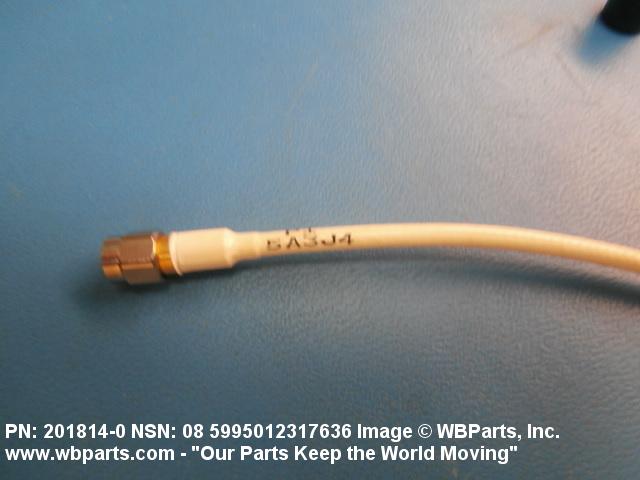

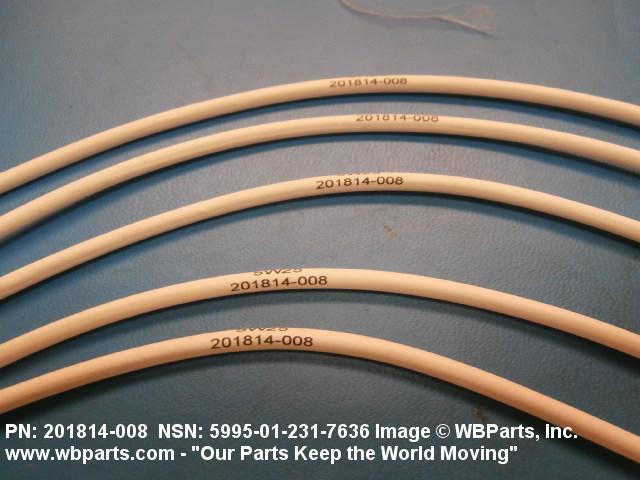

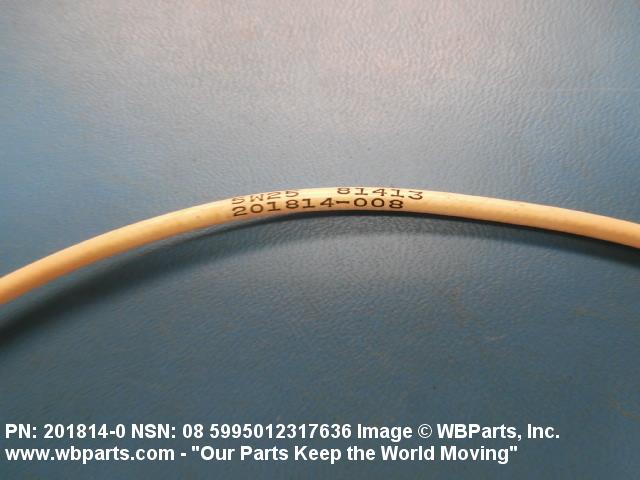

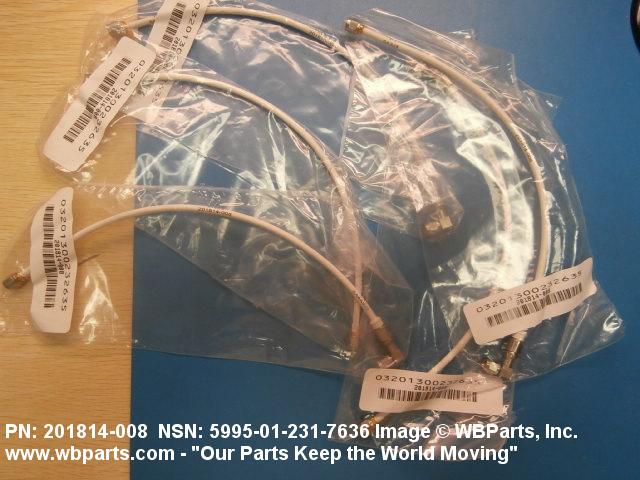

Drawings & Photos | NSN 5995-01-231-7636

Part Number	Request Date	QTY	Origin
201814-008	2025-11-317	4	DIBBS
201814-008	2019-04-118	19	DIBBS
G4S01R710110.0-SN96	2019-04-118	19	DIBBS
5995-01-231-7636	2018-09-249	26	DIBBS
5995-01-231-7636	2018-07-196	21	DIBBS
5995-01-231-7636	2018-05-133	22	DIBBS
5995-01-231-7636	2018-04-107	21	DIBBS
5995-01-231-7636	2016-11-325	46	DIBBS
5995-01-231-7636	2016-04-109	54	DIBBS
5995-01-231-7636	2016-03-83	58	DIBBS
5995-01-231-7636	2016-03-76	18	DIBBS
5995-01-231-7636	2016-01-24	34	DIBBS
5995-01-231-7636	2016-01-07	10	DIBBS
5995-01-231-7636	2015-11-334	12	DIBBS
5995-01-231-7636	2015-06-165	8	DIBBS
5995-01-231-7636	2015-06-162	1	United States
5995-01-231-7636	2015-03-77	16	DIBBS
5995-01-231-7636	2015-01-21	1	United States
5995-01-231-7636	2014-08-232	26	DIBBS
5995-01-231-7636	2014-07-209	25	DIBBS
5995-01-231-7636	2014-05-131	25	DIBBS
5995-01-231-7636	2013-10-293	17	DIBBS

Cross Reference | NSN 5995-01-231-7636

Part Number	Cage Code	Manufacturer
201814-008	541Q2	W. L. GORE & ASSOCIATES, INC. DIV ELECTRONIC PRODUCTS DIVISION
201814-008	65474	GORE W L AND ASSOCIATES INC ELECTRONIC PRODUCTS DIV
201814-008	81413	BAE SYSTEMS INFORMATION AND ELECTRONIC SYSTEMS INTEGRATION I
201814-008	U7676	GORE W L AND ASSOCIATES
G1S01V71011.0	17217	W. L. GORE & ASSOCIATES, INC.
G1S01V71011.0	65474	GORE W L AND ASSOCIATES INC ELECTRONIC PRODUCTS DIV
G4R01R710110-96	0DTU2	B.J.G. ELECTRONICS, INC.
G4S01R710110.0-SN96	541Q2	W. L. GORE & ASSOCIATES, INC. DIV ELECTRONIC PRODUCTS DIVISION
V201814-008	65474	GORE W L AND ASSOCIATES INC ELECTRONIC PRODUCTS DIV
V201814-008	U7676	GORE W L AND ASSOCIATES

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5995-01-231-7636

Compare

Related Products | NSN 5995-01-231-7636

5995-01-231-7930, 5995-01-231-7931, 5995-01-231-8605, 5995-01-231-8607, 5995-01-231-8817

Technical Data | NSN 5995-01-231-7636

Characteristic	Specifications
STRAND AWG SIZE PER CONDUCTOR	34 SINGLE CONDUCTOR
CROSS SECTION OUTSIDE DIAMETER	0.120 INCHES NOMINAL
TERMINAL MANUFACTURER IDENTIFYING REFERENCE NUMBER	SMA-V71 2ND END ALL CONDUCTORS
CONDUCTOR FORM	STRANDED SINGLE CONDUCTOR
CROSS-SECTIONAL SHAPE STYLE	ROUND
STRAND QUANTITY PER CONDUCTOR	19 SINGLE CONDUCTOR
MATERIAL	COPPER CORE CONDUCTOR SINGLE CONDUCTOR
CONDUCTOR ARRANGEMENT AND QUANTITY	1 COAXIAL
TERMINATION TYPE	CONNECTOR INTERNAL ANGLE 2ND END SINGLE CONDUCTOR
SURFACE TREATMENT	SILVER CORE CONDUCTOR SINGLE CONDUCTOR
TERMINAL COMMERCIAL AND GOVERNMENT ENTITY CODE	17217 BOTH ENDS SINGLE CONDUCTOR
ELECTRICAL RESISTANCE	50.00 OHMS IMPEDANCE
MATERIAL	COPPER 3RD POSITION SHIELD BRAID, METALLIC SINGLE CONDUCTOR
TERMINATION TYPE	CONNECTOR INTERNAL STRAIGHT 1ST END SINGLE CONDUCTOR
MATERIAL	COPPER 2ND POSITION SHIELD FOIL SINGLE CONDUCTOR
MATERIAL DOCUMENT AND CLASSIFICATION	ASTM B298 ASSN STD SINGLE MATERIAL RESPONSE CORE CONDUCTOR SINGLE CONDUCTOR
MATERIAL DOCUMENT AND CLASSIFICATION	ASTM B298 ASSN STD SINGLE MATERIAL RESPONSE 3RD POSITION SHIELD BRAID, METALLIC SINGLE CONDUCTOR
STYLE DESIGNATOR	INTERNAL ANGLE AND INTERNAL STRAIGHT CONNECTOR
MATERIAL	PLASTIC POLYTETRAFLUOROETHYLENE 1ST POSITION TAPE SINGLE CONDUCTOR
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	ASTM B298 ASSN STD SINGLE TREATMENT RESPONSE CORE CONDUCTOR SINGLE CONDUCTOR
TERMINAL MANUFACTURER IDENTIFYING REFERENCE NUMBER	SMA-S01 1ST END ALL CONDUCTORS
ROUND CONDUCTOR SIZE	22 AWG SINGLE CONDUCTOR
MATERIAL	PLASTIC FLUORINATED ETHYLENE PROPYLENE 4TH POSITION JACKET SINGLE CONDUCTOR
PRECIOUS MATERIAL AND WEIGHT	0.040 SILVER GRAINS, TROY
CONDUCTOR QUANTITY	1
PRECIOUS MATERIAL	SILVER
TEMP RATING	-200.0 DEG CELSIUS AND 170.0 DEG CELSIUS
PRECIOUS MATERIAL AND LOCATION	CONDUCTOR SILVER
OVERALL LENGTH	11.000 INCHES

Restrictions/Controls & Freight Information | NSN 5995-01-231-7636

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	S	Item contains silver
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	061130	CABLE ASSEMBLY
Less than car load rating
Less than truck load rating	P	77.5
Water commodity Code	743	unknown
Originating Activity Code	CH	Defense Supply Center Richmond Richmond, VA 23297
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5995-01-231-7636

Air Force

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price Validation	E	The current standard price is an estimated price. Estimated Price challenges are allowed, but follow procedures in para 60.b. (3) of section L of this manual. This code will be changed to a P code upon notification of a contract price or this code will be changed to an updated code upon determination of a valid price.
Materiel Management Aggregation Code	EH	SX:ELECTRONIC COMPONENTS
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
