NSN 5995-01-502-9087 MINIBEND13, MINIBEND-13, MINIBENDXX
Product Details | RADIO FREQUENCY CABLE ASSEMBLY
5995-01-502-9087 A definite length of CABLE, RADIO FREQUENCY having one or both ends processed and/or terminated in fittings which provide for connection to other items. Includes multiple cable assemblies in a common jacket or shield. Excludes items having branches or forks and LEAD, TEST. See also CABLE ASSEMBLY, RADIO FREQUENCY, BRANCHED.20211350043Fuzing and Firing Devices, Nuclear Ordnance59950057Cable, Cord, and Wire Assemblies: Communication Equipment
Part Alternates: MINIBEND13, MINIBEND-13, MINIBENDXX, MINIBEND-XX, 1623004, 16-23004, 16-23004-13, 5995-01-502-9087, 01-502-9087, 5995015029087, 015029087, 162300413
Electrical and Electronic Equipment Components | Cable, Cord, and Wire Assemblies: Communication Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 25 NOV 2002 | 01-502-9087 | 00886 ( CABLE ASSEMBLY, RADIO FREQUENCY ) |
Drawings & Photos | NSN 5995-01-502-9087
Demand History | NSN 5995-01-502-9087
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 16-23004-13 | 2022-05-123 | 20 | DIBBS |
| MINIBEND-13 | 2022-05-123 | 20 | DIBBS |
| 16-23004-13 | 2022-04-97 | 2 | DIBBS |
| MINIBEND-13 | 2022-04-97 | 2 | DIBBS |
| 5995-01-502-9087 | 2014-11-316 | 50 | DIBBS |
| 5995-01-502-9087 | 2013-11-312 | 1 | DIBBS |
| 5995-01-502-9087 | 2013-10-304 | 1 | DIBBS |
| 5995-01-502-9087 | 2010-07-208 | 19 | DIBBS |
| 5995-01-502-9087 | 2010-03-84 | 3 | DIBBS |
| 5995-01-502-9087 | 2010-02-36 | 30 | DIBBS |
| 5995-01-502-9087 | 2009-10-278 | 3 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5995-01-502-9087
Technical Data | NSN 5995-01-502-9087
| Characteristic | Specifications |
|---|---|
| CONDUCTOR QUANTITY | 1 |
| CONDUCTOR FORM | SOLID SINGLE CONDUCTOR |
| MATERIAL | COPPER CORE CONDUCTOR SINGLE CONDUCTOR PLASTIC POLYTETRAFLUOROETHYLENE 1ST POSITION PRIMARY INSULATION SINGLE CONDUCTOR COPPER 2ND POSITION SHIELD BRAID, METALLIC SINGLE CONDUCTOR PLASTIC POLYAMIDE 3RD POSITION TAPE SINGLE CONDUCTOR STEEL 4TH POSITION SHIELD BRAID, METALLIC SINGLE CONDUCTOR PLASTIC FLUORINATED ETHYLENE PROPYLENE 5TH POSITION JACKET SINGLE CONDUCTOR |
| SURFACE TREATMENT | SILVER CORE CONDUCTOR SINGLE CONDUCTOR SILVER 2ND POSITION SHIELD BRAID, METALLIC SINGLE CONDUCTOR |
| ELECTRICAL RESISTANCE | 50.0 OHMS IMPEDANCE |

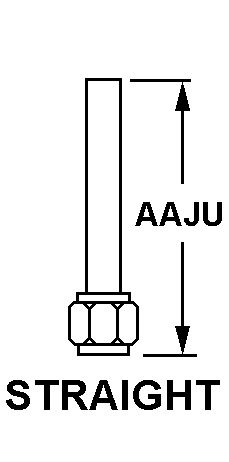

| STYLE DESIGNATOR | 64 STRAIGHT |
| OVERALL LENGTH | 13.000 INCHES |
| CROSS-SECTIONAL SHAPE STYLE | 6 ROUND |
| TERMINATION TYPE | CONNECTOR PLUG BOTH ENDS SINGLE CONDUCTOR |
| TERMINAL MANUFACTURER IDENTIFYING REFERENCE NUMBER | 29094C-32-81 BOTH ENDS SINGLE CONDUCTOR |
| TERMINAL COMMERCIAL AND GOVERNMENT ENTITY CODE | 16301 BOTH ENDS SINGLE CONDUCTOR |
| III PRECIOUS MATERIAL | SILVER |
| III PRECIOUS MATERIAL AND LOCATION | SURFACE SINGLE CONDUCTOR SILVER |
| III END ITEM IDENTIFICATION | AN/SPN-35C |
Restrictions/Controls & Freight Information | NSN 5995-01-502-9087
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | S | Item contains silver |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061130 | CABLE ASSEMBLY |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 743 | unknown |
| Originating Activity Code | CX | Defense Supply Center Richmond Richmond, VA 23297-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5995-01-502-9087
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
