Product Details | ELECTRONIC CONTROL AMPLIFIER
5996-00-660-8461 An electronic device which enables input signals to control a local source of power and deliver output signals of greater amplitude with respect to current and/or voltage. The output signals characteristics are uniformly related to the input signals, and are suitable for controlling or supplying power for exciting electric motors or similar devices. It includes devices commonly referred to as servo amplifiers, torque amplifiers and similar equipment only if these devices do not employ synchros nor incorporate servomechanisms. It does not include items which are properly classified as audio frequency, radio frequency, direct current or video amplifiers. For amplifiers that incorporate servomechanisms and employ synchros, see AMPLIFIER, SYNCHRO SIGNAL.
Part Alternates: 5444847004, 544-4847-004, 5996-00-660-8461, 00-660-8461, 5996006608461, 006608461
Electrical and Electronic Equipment Components | Amplifiers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-660-8461 | 00096 ( AMPLIFIER, ELECTRONIC CONTROL ) |

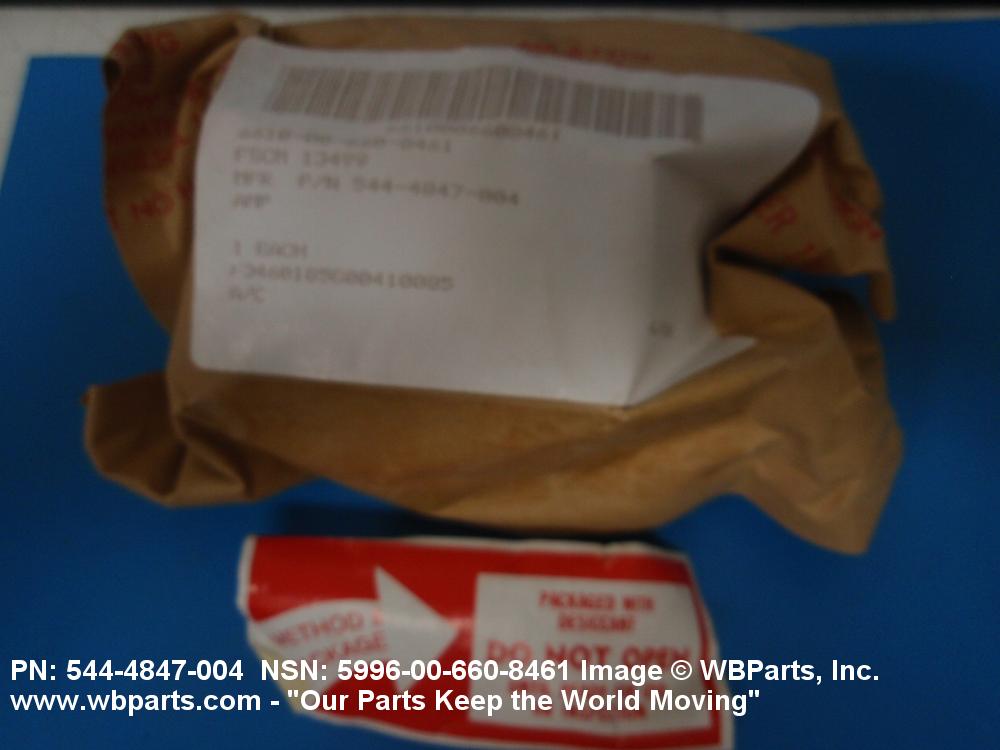

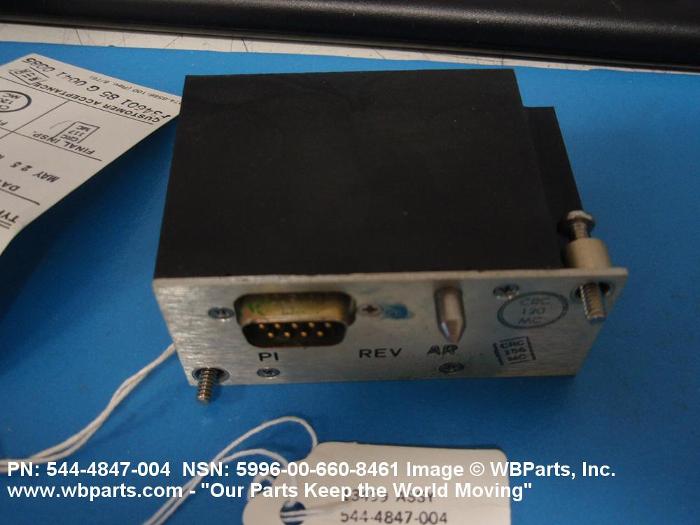

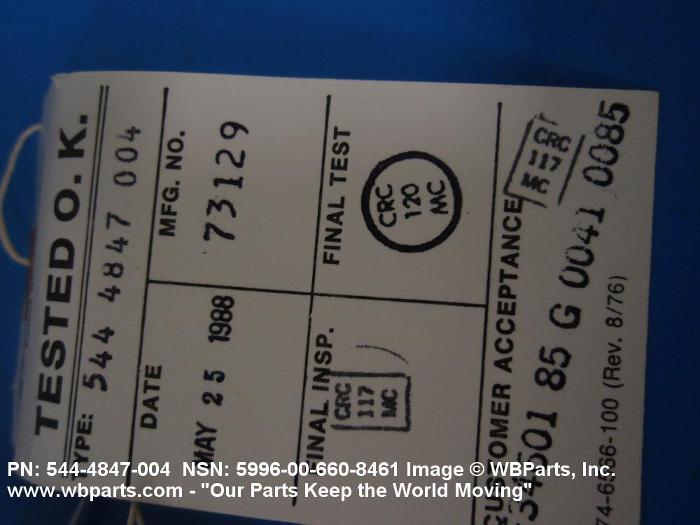

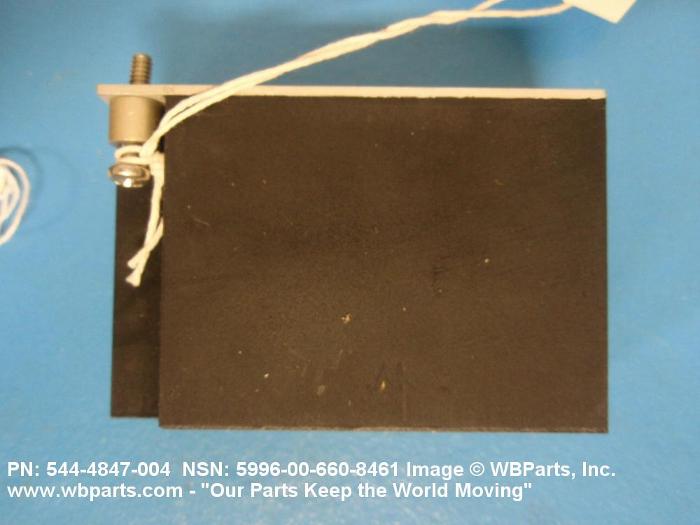

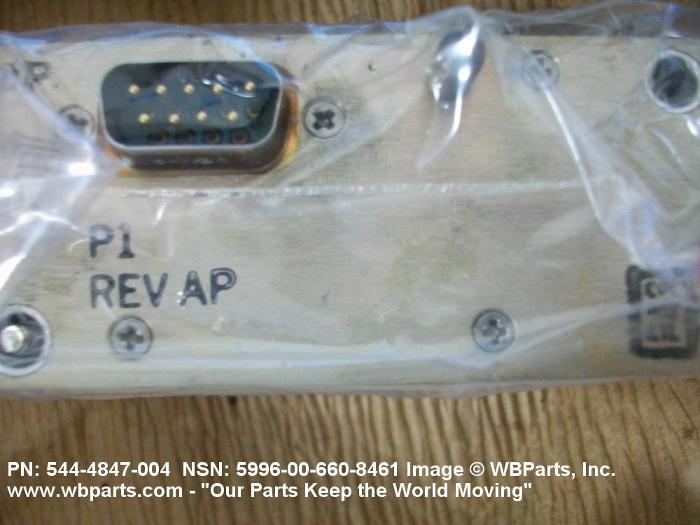

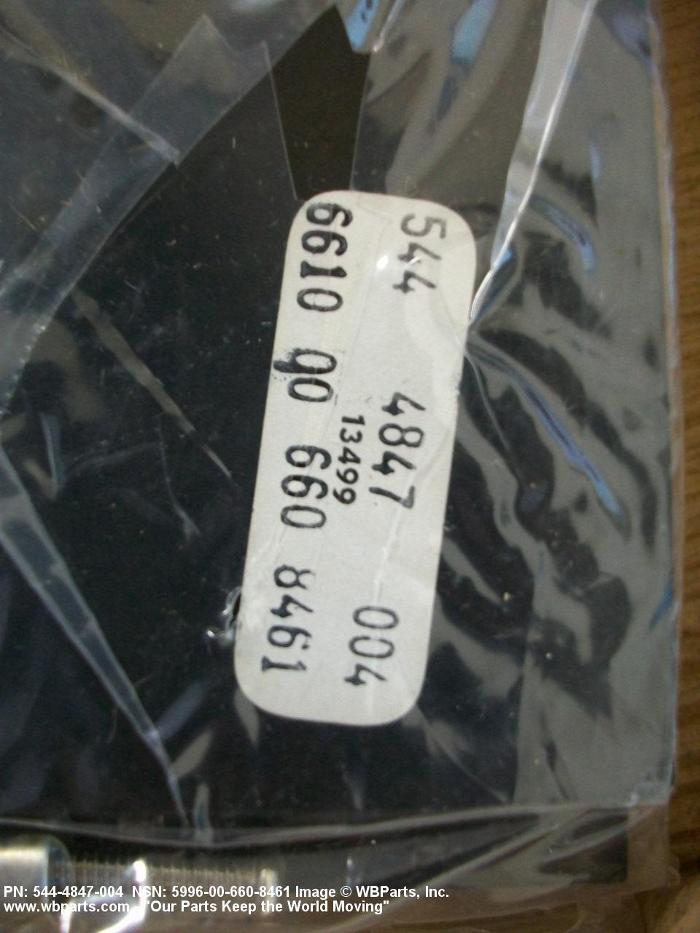

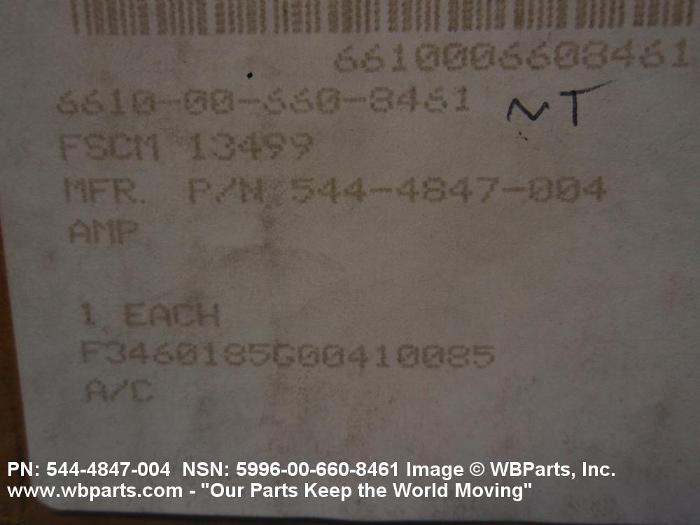

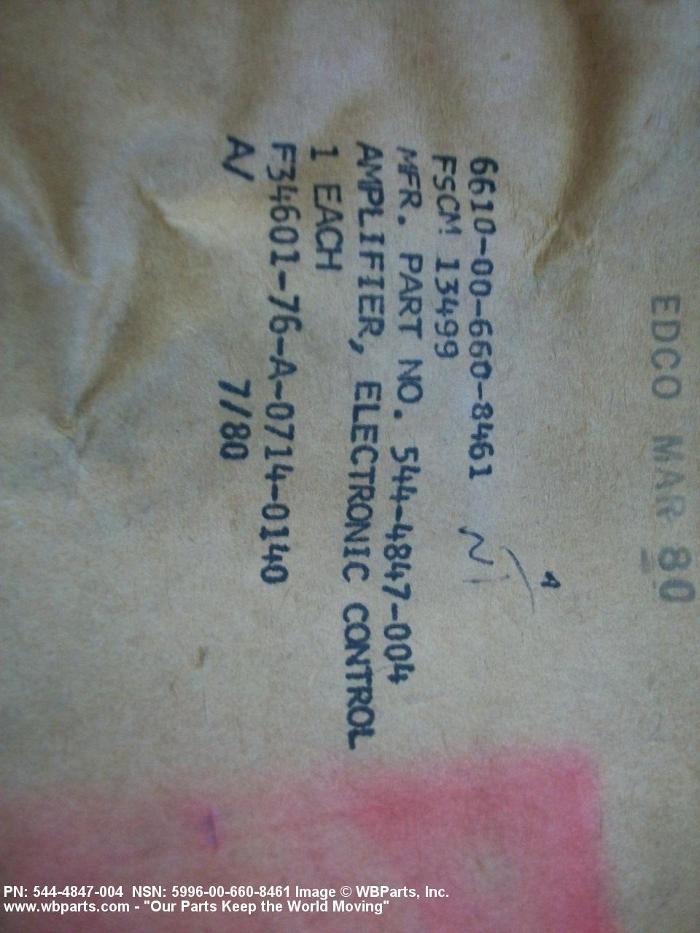

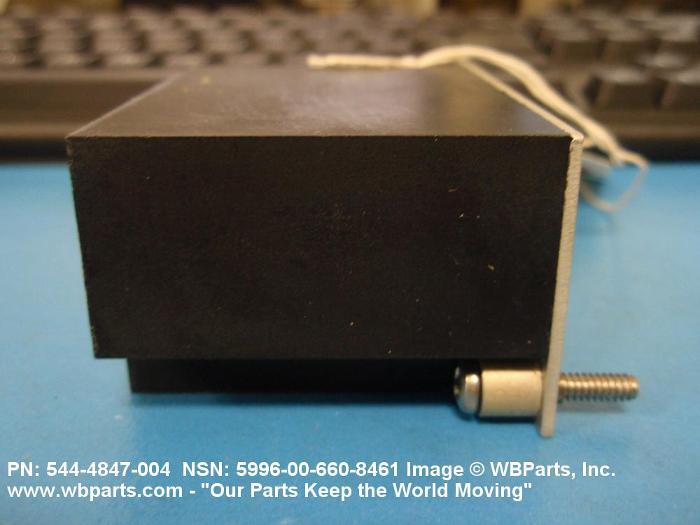

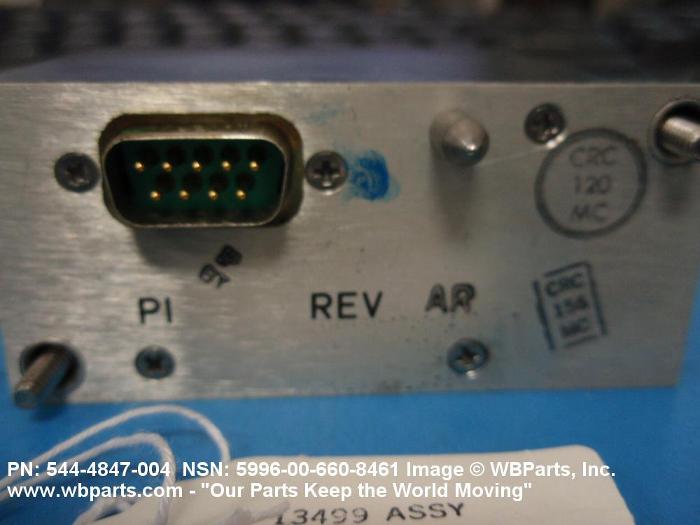

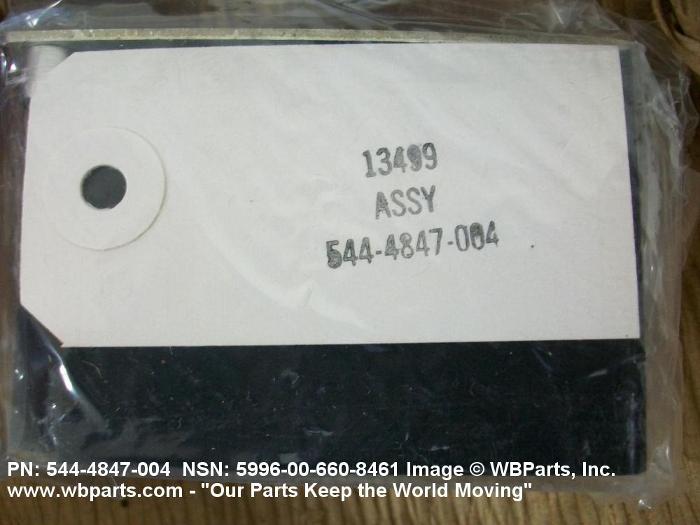

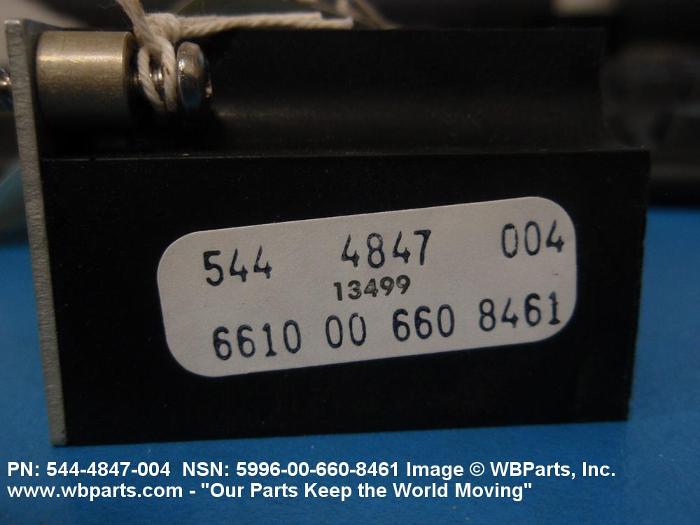

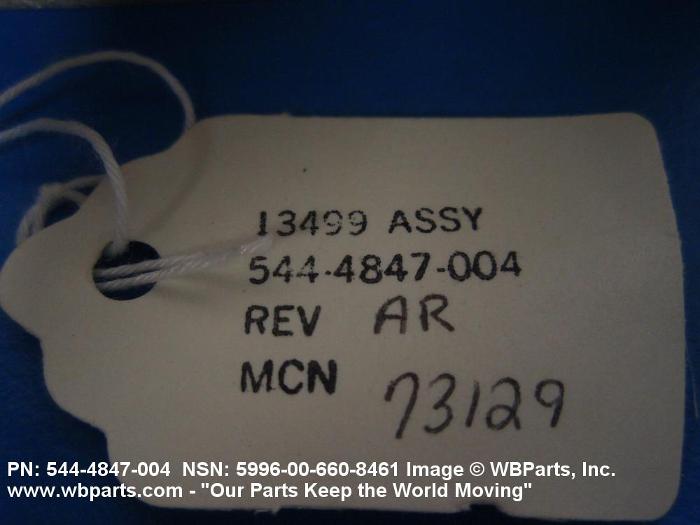

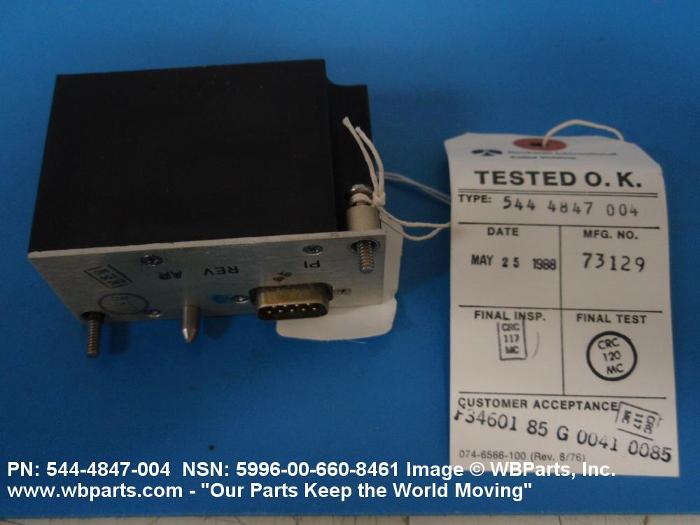

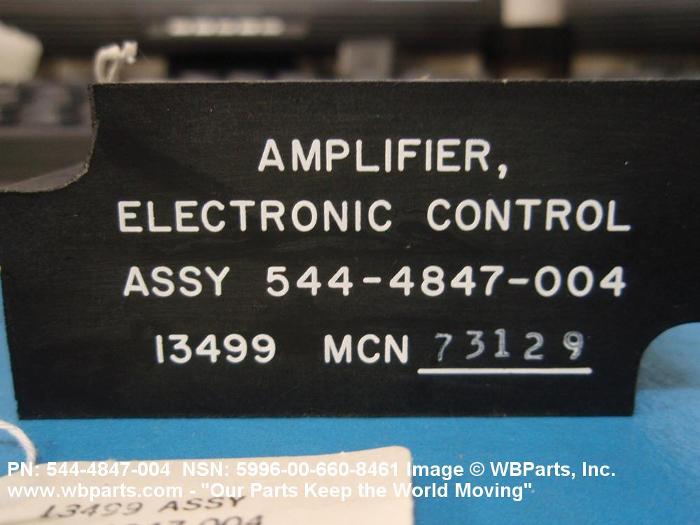

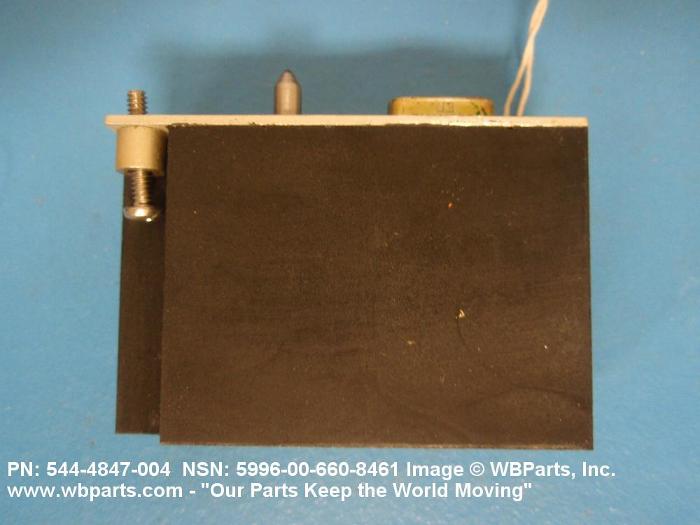

Drawings & Photos | NSN 5996-00-660-8461
Demand History | NSN 5996-00-660-8461
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 544-4847-004 | 2019-05-02 | 14 | DIBBS |
| 5996-00-660-8461 | 2016-10-24 | 5 | DIBBS |
| 5996-00-660-8461 | 2016-10-11 | 5 | DIBBS |
| 5996-00-660-8461 | 2015-12-24 | 5 | DIBBS |
| 5996-00-660-8461 | 2015-12-10 | 5 | DIBBS |
| 5996-00-660-8461 | 2011-07-29 | 1 | United Kingdom |
| 5444847004 | 2011-07-27 | 2 | United Kingdom |
| 5996-00-660-8461 | 2011-07-26 | 1 | United Kingdom |
| 5996-00-660-8461 | 2011-02-28 | 1 | United Kingdom |
| 5996-00-660-8461 | 2011-01-28 | 1 | United Kingdom |
Cross Reference | NSN 5996-00-660-8461
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 544-4847-004 | 13499 | ROCKWELL COLLINS, INC. DBA GOVERNMENT SYSTEMS |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 5996-00-660-8461
Related Products | NSN 5996-00-660-8461
5996-00-660-9991, 5996-00-661-1151, 5996-00-665-0022, 5996-00-665-0023, 5996-00-665-0024
Technical Data | NSN 5996-00-660-8461
| Characteristic | Specifications |
|---|---|
| CIRCUIT CONSTRUCTION TYPE | SOLID STATE |
| AVERAGE POWER RATING PER CHANNEL | 2.0 WATTS OUTPUT |
| IMPEDANCE RATING PER CHANNEL | 10.000 KILOHMS INPUT CHANNEL 200.000 OHMS OUTPUT CHANNEL |
| SIGNAL DATA TYPE PER CHANNEL | INPUT CHANNEL SYNCHRO OUTPUT CHANNEL SERVO |
| EXTERNAL AC OPERATING VOLTAGE IN VOLTS | 100.0 NOMINAL SINGLE VOLTAGE |
| OPERATING AC FREQUENCY IN HERTZ | 400.0 NOMINAL SINGLE VOLTAGE |
| PHASE | SINGLE |
| CONNECTION TYPE AND LOCATION | RECEPTACLE, POWER BOTTOM |
| CONNECTION CONTACT TYPE AND QUANTITY | 9 RECEPTACLE, POWER INTERNAL |
| INCLOSURE TYPE | ENCASED |
| INSTALLATION DESIGN | MECHANICAL |
| BASIC SHAPE STYLE | 1 RECTANGULAR OR SQUARE |
| OVERALL LENGTH | 3.000 INCHES NOMINAL |
| OVERALL HEIGHT | 2.375 INCHES NOMINAL |
| OVERALL WIDTH | 1.375 INCHES NOMINAL |
| SPECIAL FEATURES | ELECTROSTATIC DISCHARGE SENSITIVE |
| CRITICALITY CODE JUSTIFICATION | FEAT |
| III FSC APPLICATION DATA | FLIGHT INSTRUMENT HORIZONTAL SITUATION INDICATOR GROUP |
| MANUFACTURERS CODE | 13499 |
| DESIGN CONTROL REFERENCE | 544-4847-004 |
Restrictions/Controls & Freight Information | NSN 5996-00-660-8461
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | C | Munitions List Item or Commerce Control List Item. Demilitarization required. Remove and/or demilitarize installed key point(s) as prescribed in the Defense Demilitarization Manual, or lethal parts, components and accessories. |
| Controlled Inventory Item Code: | 7 | NON-SENSITIVE (SRC-N/A) - UNCLASSIFIED AA&E: OR ITEMS ASSIGNED A DEMILITARIZATION CODE OTHER THAN A, B, Q, OR P FOR WHICH ANOTHER CIIC IS INAPPROPRIATE. (NOTE: THE LOSS, THEFT, UNLAWFUL DISPOSITION, AND/OR RECOVERY OF AN ITEM WITH CIIC 7 WILL BE INVESTIGATED IN ACCORDANCE WITH DOD-4000-25-2-M AND DOD 7200.14-R, VOLUME 12, CHAPTER 7). |
| Electro-static Discharge Susceptible: | B | ESD sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | Y | The item does not have a nuclear hardened feature but does have other critical feature(s) such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 063035 | SETS RADIO/TV AND RELATED ARTICLES |
| Less than car load rating | ||
| Less than truck load rating | G | 125.0 |
| Water commodity Code | 723 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5996-00-660-8461
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Materiel Management Aggregation Code | NT | SX:AIRCRAFT INSTRUMENTS |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | 7 | NON-SENSITIVE (SRC-N/A) - UNCLASSIFIED AA&E: OR ITEMS ASSIGNED A DEMILITARIZATION CODE OTHER THAN A, B, Q, OR P FOR WHICH ANOTHER CIIC IS INAPPROPRIATE. (NOTE: THE LOSS, THEFT, UNLAWFUL DISPOSITION, AND/OR RECOVERY OF AN ITEM WITH CIIC 7 WILL BE INVESTIGATED IN ACCORDANCE WITH DOD-4000-25-2-M AND DOD 7200.14-R, VOLUME 12, CHAPTER 7). |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | 7 | NON-SENSITIVE (SRC-N/A) - UNCLASSIFIED AA&E: OR ITEMS ASSIGNED A DEMILITARIZATION CODE OTHER THAN A, B, Q, OR P FOR WHICH ANOTHER CIIC IS INAPPROPRIATE. (NOTE: THE LOSS, THEFT, UNLAWFUL DISPOSITION, AND/OR RECOVERY OF AN ITEM WITH CIIC 7 WILL BE INVESTIGATED IN ACCORDANCE WITH DOD-4000-25-2-M AND DOD 7200.14-R, VOLUME 12, CHAPTER 7). |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
