NSN 5996-00-777-0173 M1645104, M1645-1-04, A8143
Product Details | AUDIO FREQUENCY AMPLIFIER
5996-00-777-0173 An electronic device whose audio frequency input signals control power from a source independant of the input signal and delivers audio frequency output signals of greater amplitude with respect to current and/or voltage. The output signals characteristics are uniformly related to the input signals. It operates at frequencies of 20 kilohertzs and below. It may or may not have signal switching capabilities.
Part Alternates: M1645104, M1645-1-04, A8143, A81-43, A8177, A81-77, AM-1964F/AIC, AM1964FAIC, 5996-00-777-0173, 00-777-0173, 5996007770173, 007770173
Electrical and Electronic Equipment Components | Amplifiers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1960 | 00-777-0173 | 00511 ( AMPLIFIER, AUDIO FREQUENCY ) |

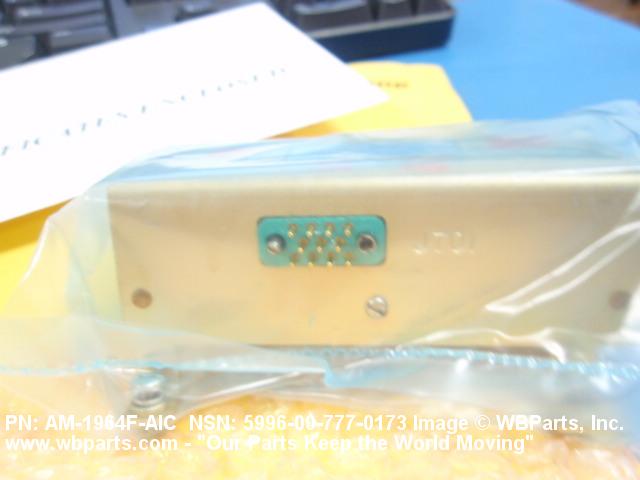

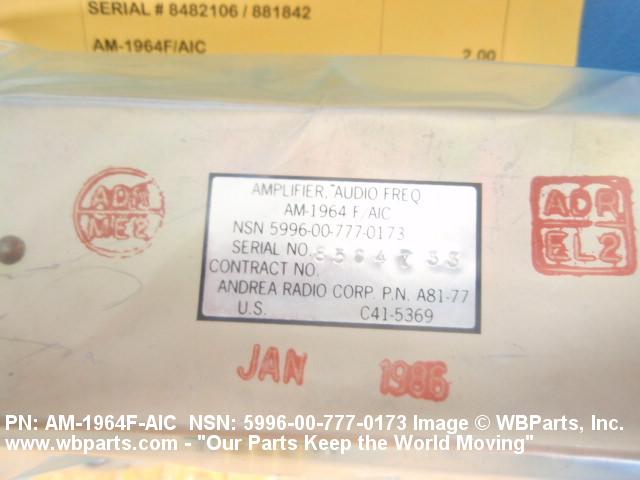

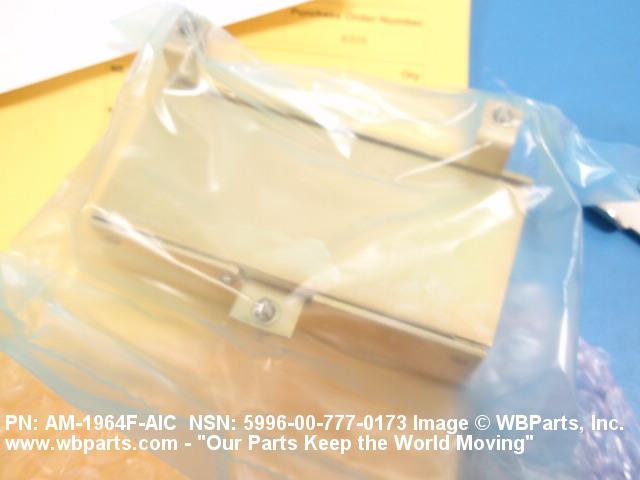

Drawings & Photos | NSN 5996-00-777-0173
Demand History | NSN 5996-00-777-0173
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5996-00-777-0173 | 2022-01-27 | 2 | RO |
| AM1964FAIC | 2020-11-310 | 1 | Malaysia |
| 5996-00-777-0173 | 2019-02-53 | 2 | US |
| 5996-00-777-0173 | 2012-12-351 | 10 | NL |
| 5996-00-777-0173 | 2012-11-318 | 1 | ES |
| 5996-00-777-0173 | 2009-01-15 | 2 | Spain |
Cross Reference | NSN 5996-00-777-0173
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5996-00-777-0173
Technical Data | NSN 5996-00-777-0173
| Characteristic | Specifications |
|---|---|
| FREQUENCY PER CHANNEL | 300.0 HERTZ MINIMUM OPERATING CHANNEL 6.0 KILOHERTZ MAXIMUM OPERATING CHANNEL |
| VARIATION FREQUENCY RATING IN DECIBELS | 6.0 |
| AVERAGE POWER RATING PER CHANNEL | 26.0 MILLIWATTS OUTPUT |
| OVERALL GAIN | NOT RATED |
| IMPEDANCE RATING PER CHANNEL | 15.000 OHMS INPUT CHANNEL 50.000 OHMS OUTPUT CHANNEL |
| EXTERNAL DC OPERATING VOLTAGE IN VOLTS | 17.0 MINIMUM SINGLE VOLTAGE 29.0 MAXIMUM SINGLE VOLTAGE |
| BASIC SHAPE STYLE | 1 RECTANGULAR OR SQUARE |
| OVERALL LENGTH | 3.500 INCHES NOMINAL |
| OVERALL HEIGHT | 1.906 INCHES NOMINAL |
| OVERALL WIDTH | 2.500 INCHES NOMINAL |
| IDENTIFICATION DESIGNATOR | AM-1964F/AIC-80058 |
| MANUFACTURERS CODE | 03487 |
| DESIGN CONTROL REFERENCE | A81-43 |
Restrictions/Controls & Freight Information | NSN 5996-00-777-0173
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | C | Munitions List Item or Commerce Control List Item. Demilitarization required. Remove and/or demilitarize installed key point(s) as prescribed in the Defense Demilitarization Manual, or lethal parts, components and accessories. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 063035 | SETS RADIO/TV AND RELATED ARTICLES |
| Less than car load rating | G | 125 |
| Less than truck load rating | G | 125.0 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5996-00-777-0173
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9F | Navy-owned stocks of material managed by the Air Force within the Warner Robins Air Logistics Center Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | FLZ | Warner Robins Air Logistics Center Robins AFB, GA 31098-5609 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
