Product Details | CIRCUIT CARD ASSEMBLY

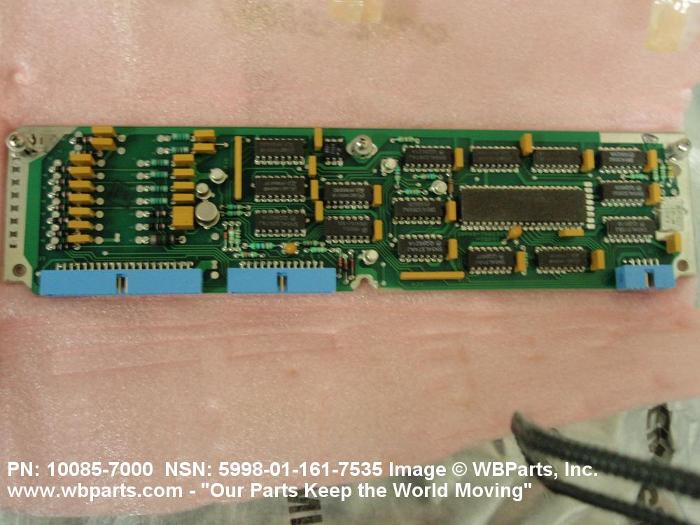

5998-01-161-7535 A grouping of two or more physically connected or related electrical an/or electronic parts capable of dissassemblage. Each component of the assemblage must be capable of functioning in accordance with its own item name. Consists of a single PRINTED CIRCUIT BOARD or TERMINAL BOARD upon which are mounted separately manufactured electronic components such as capacitors, inductors, resistors, and the like. It may also include printed electronic components. The item is generally part of a subassembly and cannot be assigned a more definite item name. For items having a complete individual electrical/electronic function, use applicable item name such as AMPLIFIER (as modified); POWER SUPPLY; or the like. For items not having a complete individual electrical/electronic function, see applicable subassembly name, such as AMPLIFIER SUBASSEMBLY; POWER SUPPLY SUBASSEMBLY; or the like. For an assembly of electrical/electronic components mounted on other than a single PRINTED WIRING BOARD, see ELECTRONIC COMPONENTS ASSEMBLY. Excludes PRINTED CIRCUIT BOAR
Part Alternates: 10085-7000, 5998-01-161-7535, 01-161-7535, 5998011617535, 100857000, 011617535
Electrical and Electronic Equipment Components | Electrical and Electronic assemblies, Boards, Cards, and Associated Hardware
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 09 SEP 1983 | 01-161-7535 | 61638 ( CIRCUIT CARD ASSEMBLY ) |
Drawings & Photos | NSN 5998-01-161-7535
Demand History | NSN 5998-01-161-7535
Cross Reference | NSN 5998-01-161-7535
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10085-7000 | 14304 | HARRIS CORPORATION DBA HARRIS RF COMMUNICATION |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 5998-01-161-7535
Related Products | NSN 5998-01-161-7535
5998-01-161-7536, 5998-01-161-7537, 5998-01-161-7538, 5998-01-161-7539, 5998-01-161-7540
Technical Data | NSN 5998-01-161-7535
| Characteristic | Specifications |
|---|---|
| END ITEM IDENTIFICATION | RT-1446/URC |
| FEATURES PROVIDED | ELECTROSTATIC SENSITIVE |
| SPECIAL FEATURES | PWB 1,CAP 60,DIODE 25,COIL 20,TRANSISTOR 5,RES 20,MICROCIRCUIT 16,CRYSTAL 1;LPA/CPLR INTERFACE;100 WATT TRANSCEIVER |
| CRITICALITY CODE JUSTIFICATION | CBBL |
| MANUFACTURERS CODE | 14304 |
| DESIGN CONTROL REFERENCE | 10085-7000 |
Restrictions/Controls & Freight Information | NSN 5998-01-161-7535
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | D | Munitions List Item or Commerce Control List Item. Demilitarization required. Total destruction of the item and components so as to preclude restoration or repair to a usable condition by melting, cutting, tearing, scratching, crushing, breaking, punching, neutralizing, etc. (As an alternate, burial or deep water dumping may be used when coordinated with the DoD Demilitarization Program Office.) |
| Controlled Inventory Item Code: | 7 | NON-SENSITIVE (SRC-N/A) - UNCLASSIFIED AA&E: OR ITEMS ASSIGNED A DEMILITARIZATION CODE OTHER THAN A, B, Q, OR P FOR WHICH ANOTHER CIIC IS INAPPROPRIATE. (NOTE: THE LOSS, THEFT, UNLAWFUL DISPOSITION, AND/OR RECOVERY OF AN ITEM WITH CIIC 7 WILL BE INVESTIGATED IN ACCORDANCE WITH DOD-4000-25-2-M AND DOD 7200.14-R, VOLUME 12, CHAPTER 7). |
| Electro-static Discharge Susceptible: | B | ESD sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | Y | The item does not have a nuclear hardened feature but does have other critical feature(s) such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061045 | BOARDS PRINTED CIRCUIT ELEC |
| Less than car load rating | J | 100.2 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 738 | unknown |
| Originating Activity Code | TA | Sacramento Air Logistics Center McClellan AFB, CA 95652-5609 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | 3 | Electrostatic Sensitive Device (ESD), subject to damage caused by electrostatic discharge. (See DoD 4500.32-R, Volume 1, Appendix A, Section I for additional information on ESD devices). |
