NSN 5998-01-349-4485 3166143-3-2, 35112553, 35-1125-5-3
Product Details | ELECTRICAL CARD HOLDER
5998-01-349-4485 A device specifically designed to retain CIRCUIT CARD ASSEMBLY or PRINTED CIRCUIT BOARD in their installed position. Excludes, RETAINER-EJECTOR, ELECTRICAL CARD; and HOLDER, PRINTED CIRCUIT BOARD.
Part Alternates: 3166143-3-2, 35112553, 35-1125-5-3, 5998-01-349-4485, 01-349-4485, 5998013494485, 316614332, 013494485
Electrical and Electronic Equipment Components | Electrical and Electronic assemblies, Boards, Cards, and Associated Hardware
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 26 NOV 1991 | 01-349-4485 | 31930 ( HOLDER, ELECTRICAL CARD ) |

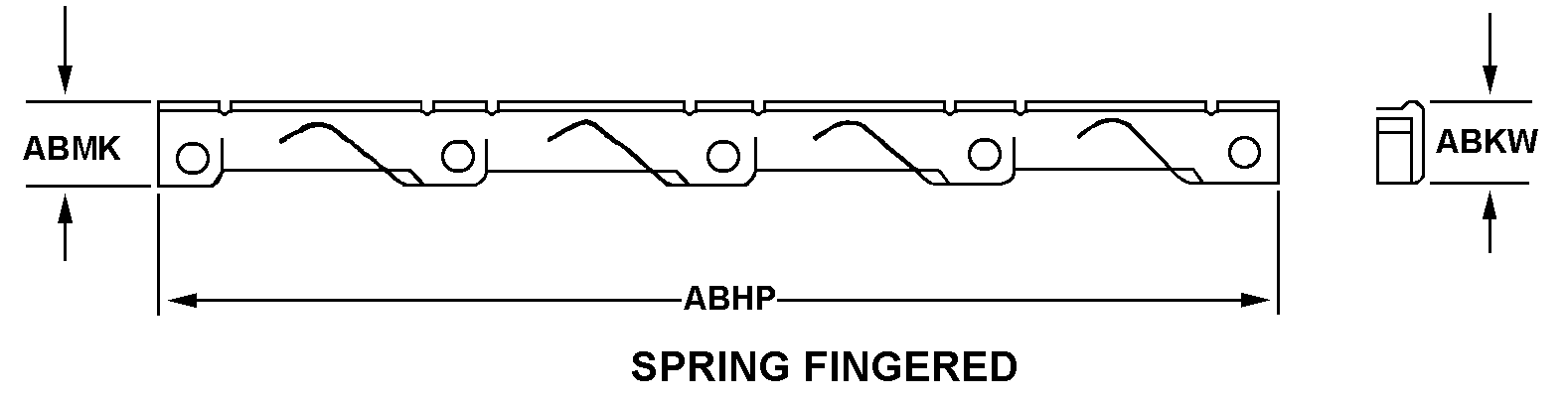

Drawings & Photos | NSN 5998-01-349-4485
Cross Reference | NSN 5998-01-349-4485
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3166143-3-2 | 59364 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
| 3166143-3-2 | 60225 | L-3 COMMUNICATIONS CORPORATION DBA L3 OCEAN SYSTEMS |
| 3166143-3-2 | 77068 | ALLIED-SIGNAL INC DBA ALLIED-SIGNAL AEROSPACE CO |
| 35-1125-5-3 | 18915 | PEP WEST, INC. DBA PENTAIR TECHNICAL PRODUCTS USE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5998-01-349-4485
Related Products | NSN 5998-01-349-4485
Technical Data | NSN 5998-01-349-4485
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 10D SPRING FINGERED |
| OVERALL LENGTH | 3.000 INCHES NOMINAL |
| OVERALL HEIGHT | 0.330 INCHES MAXIMUM |
| OVERALL WIDTH | 0.180 INCHES NOMINAL |
| MATERIAL | BERYLLIUM AND COPPER |
| SURFACE TREATMENT | COPPER |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-C-14550 MIL SPEC ALL TREATMENT RESPONSES |
| SPECIAL FEATURES | TWO 0.067 IN. DIA MGT HOLES SPACED 2.750 IN. C TO C |
| III END ITEM IDENTIFICATION | SH-60F ACFT |
| MANUFACTURERS CODE | 18915 |
| DESIGN CONTROL REFERENCE | 35-1125-5-3 |
Restrictions/Controls & Freight Information | NSN 5998-01-349-4485
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061045 | BOARDS PRINTED CIRCUIT ELEC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | KE | Naval ICP Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5998-01-349-4485
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Special Material ID | HT | HELICOPTERS(SH-60F) |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
