NSN 5998-01-451-3735 S712L, S71-2-L , F109L
Product Details | ELECTRICAL CARD RETAINER-EJECTOR
5998-01-451-3735 A device having the dual function of providing restraint for, and facilitating the removal of CIRCUIT CARD ASSEMBLY; or PRINTED CIRCUIT BOARD. Excludes HOLDER, ELECTRICAL CARD.
Part Alternates: S712L, S71-2-L , F109L , 8419127CA, 84191-27CA, 5998-01-451-3735, 01-451-3735, 5998014513735, 014513735
Electrical and Electronic Equipment Components | Electrical and Electronic assemblies, Boards, Cards, and Associated Hardware
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 15 DEC 1997 | 01-451-3735 | 31931 ( RETAINER-EJECTOR, ELECTRICAL CARD ) |
Drawings & Photos | NSN 5998-01-451-3735
Demand History | NSN 5998-01-451-3735
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5998-01-451-3735 | 2014-01-16 | 1 | DIBBS |
| 5998-01-451-3735 | 2013-12-353 | 1 | DIBBS |
| 5998-01-451-3735 | 2013-10-276 | 1 | DIBBS |
| 5998-01-451-3735 | 2013-03-83 | 1 | DIBBS |
Cross Reference | NSN 5998-01-451-3735
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 84191-27CA | 037Z3 | DLA LAND AND MARITIME OPNS SUPPORT GROUP |
| F109L | 52094 | CALMARK CORPORATION |
| F109L | 61081 | PEP WEST INC. DBA PENTAIR TECHNICAL PRODUCTS DIV |
| S71-2-L | 18915 | PEP WEST, INC. DBA PENTAIR TECHNICAL PRODUCTS USE |
| S71-2-L | 61081 | PEP WEST INC. DBA PENTAIR TECHNICAL PRODUCTS DIV |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5998-01-451-3735
Related Products | NSN 5998-01-451-3735
Technical Data | NSN 5998-01-451-3735
| Characteristic | Specifications |
|---|---|

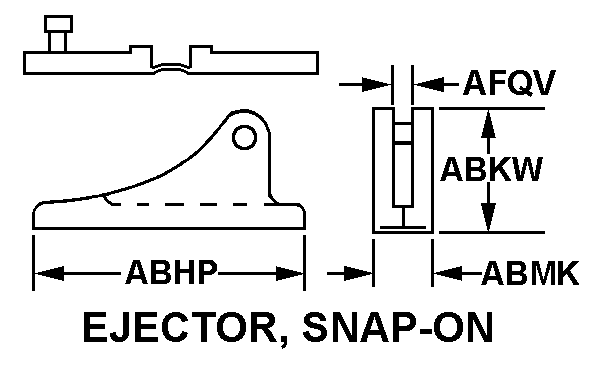

| BODY STYLE | 1C EJECTOR, SNAP-ON |
| OVERALL LENGTH | 1.500 INCHES NOMINAL |
| OVERALL HEIGHT | 0.250 INCHES NOMINAL |
| OVERALL WIDTH | 0.536 INCHES NOMINAL |
| COLOR | GOLD |
| MATERIAL | ALUMINUM ALLOY 5052 |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-B-225/7 FED SPEC 1ST MATERIAL RESPONSE OR QQ-250/8 FED SPEC 2ND MATERIAL RESPONSE |
| SURFACE TREATMENT | CHROMATE |
| MOUNTING FACILITY TYPE AND QUANTITY | 2 UNTHREADED HOLE SINGLE MOUNTING FACILITY |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.093 INCHES NOMINAL SINGLE MOUNTING FACILITY |
| MANUFACTURERS CODE | 037Z3 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | 84191-27CA |
Restrictions/Controls & Freight Information | NSN 5998-01-451-3735
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 116030 | MACHINES ETC DATA PROCESSING |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | TH | Defense Supply Center Columbus Columbus, OH 43215 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5998-01-451-3735
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | BA | TB:C-17 PROGRAM |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
