NSN 5998-01-463-9396 3685589, 01-463-9396, 014639396
Product Details | ELECTRICAL CARD EXTRACTOR
5998-01-463-9396 A device specifically designed to remove CIRCUIT CARD ASSEMBLY; or PRINTED CIRCUIT BOARD from their installed position.
Part Alternates: 3685589, 5998-01-463-9396, 01-463-9396, 5998014639396, 014639396
Electrical and Electronic Equipment Components | Electrical and Electronic assemblies, Boards, Cards, and Associated Hardware
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 09 APR 1999 | 01-463-9396 | 31929 ( EXTRACTOR, ELECTRICAL CARD ) |

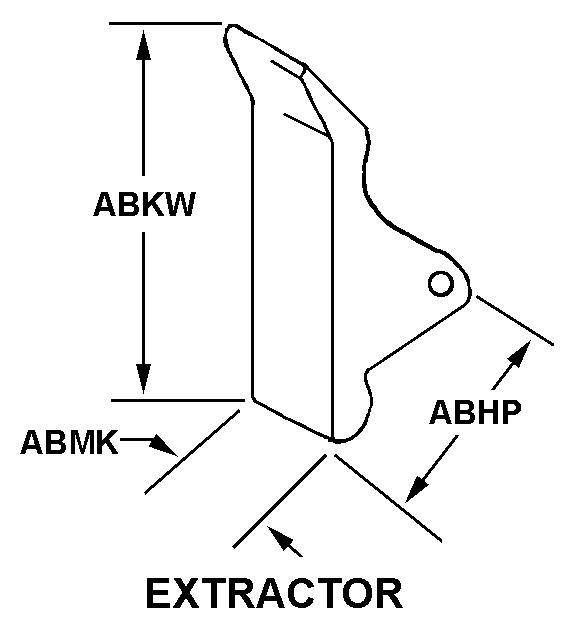

Drawings & Photos | NSN 5998-01-463-9396
Cross Reference | NSN 5998-01-463-9396
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3685589 | 09PJ2 | RITTAL CORP. DIV RITTAL CORPORATION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5998-01-463-9396
Technical Data | NSN 5998-01-463-9396
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 16C EXTRACTOR |
| COLOR | BLACK |
| SPECIAL FEATURES | MANUFACTURER NAME HANDLE TYPE 1 EJECTOR HANDLE FOR ELECTRONIC COMPONENTS; CLASSIC VME 64 15 MM PLUG-IN KITS QUICK EJECTOR HANDLE; FRONT PANEL DESIGN; U-CHANNEL FOR EMC FLAT FOR NON-EMC |
| III END ITEM IDENTIFICATION | RIPAC VME64 SYSTEM SUBTRACKS |
Restrictions/Controls & Freight Information | NSN 5998-01-463-9396
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
