Product Details | ELECTRICAL CONTACT
5999-00-057-2929 An item consisting of an electrically conductive material designed to furnish a surface which will physically and electrically meet another conducting surface for the purpose of transferring electrical energy and/or opening and closing circuits. Includes moving contacts which make and/or slide over stationary contacts or other stationary conductive material to a resulting fixed position. Excludes items which are used in conjunction with continually moving surfaces or which make contact by gripping action of the contact surfaces. See also CLIP, ELECTRICAL; CLAMP, ELECTRICAL; BRUSH, ELECTRICAL CONTACT; PLUG, TIP; and JACK, TIP.
Part Alternates: MS27148, MS271482, MS27148-2, NHT457, A8064813, A806-4813, AA52536, A-A-52536, AA525362, AA52536-2, AYG9990 , BG26977, Q531429171, 6298310, 7591, 7762622, 92495762, 10512662, 11329FX, 1255, 25KP256, 309392, 3M6548, 51358, 5291588, 572929, 5939203, 5999-00-057-2929, 00-057-2929, 5999000572929 , 000572929
Electrical and Electronic Equipment Components | Miscellaneous Electrical and Electronic Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-057-2929 | 00443 ( CONTACT, ELECTRICAL ) |

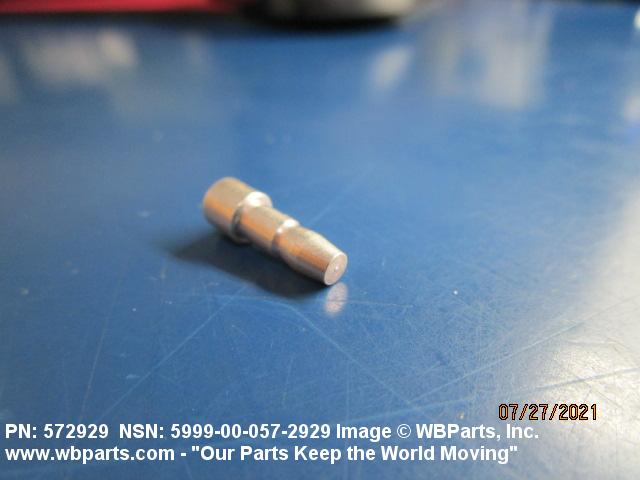

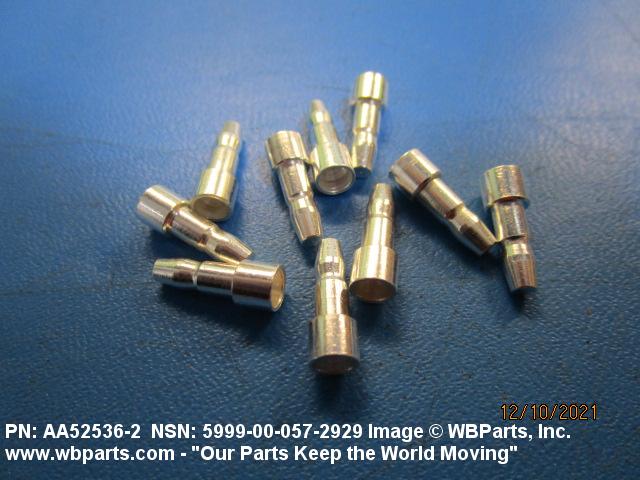

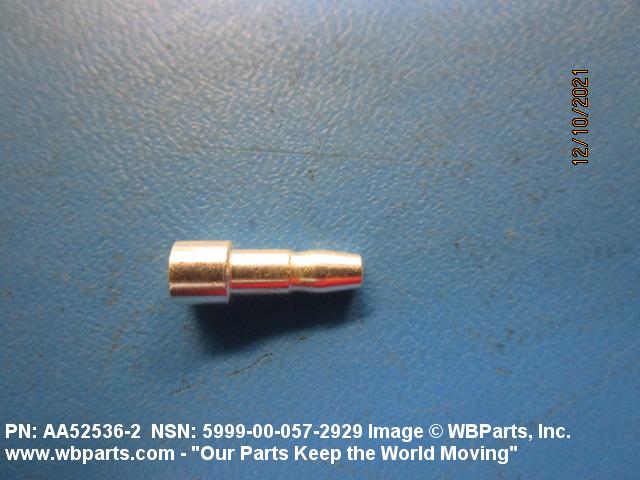

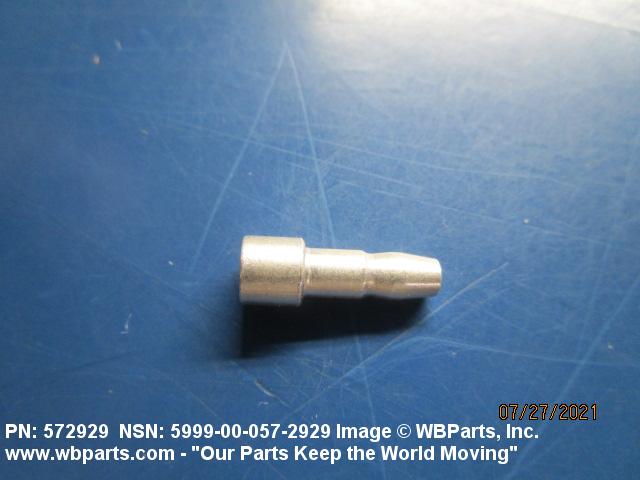

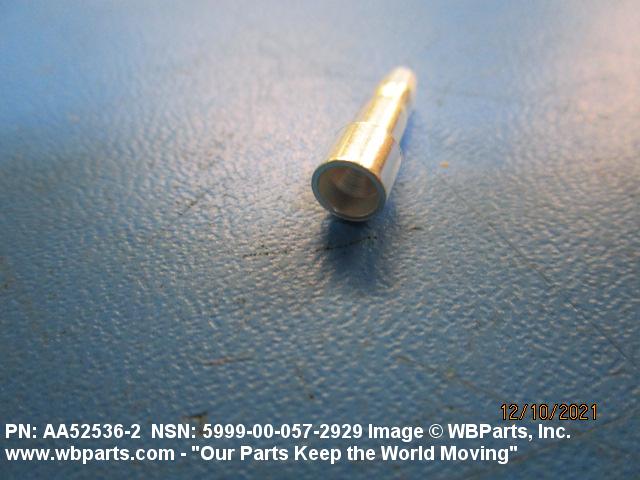

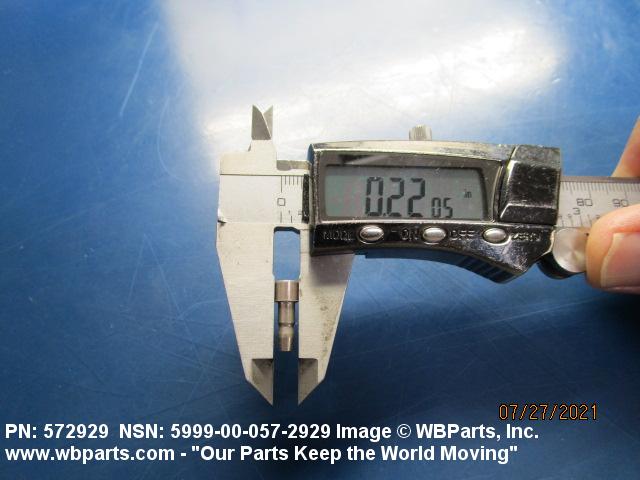

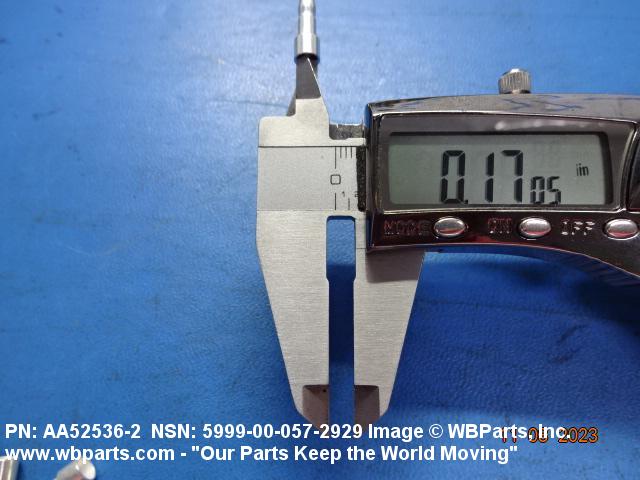

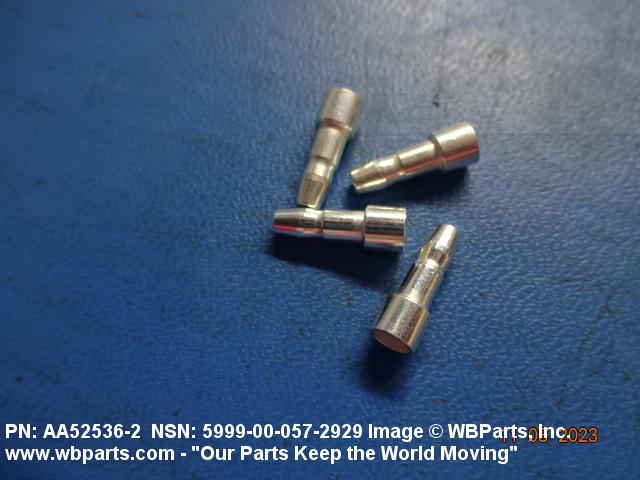

Drawings & Photos | NSN 5999-00-057-2929
Demand History | NSN 5999-00-057-2929
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 572929 | 2023-10-31 | 1 | us |
| 572929 | 2023-10-31 | 1 | us |
| MS271482 | 2023-04-28 | 3 | United States |
| 1255 | 2023-04-04 | 1 | US |
| 5999-00-057-2929 | 2022-02-28 | 252 | US |
| 5999-00-057-2929 | 2021-12-07 | 10 | United States |
| 5999-00-057-2929 | 2021-11-15 | 1 | United States |
| 572929 | 2021-07-20 | 1 | United States |
| 5999000572929 | 2020-10-21 | 8 | US |
| AA525362 | 2020-03-31 | 115 | IN |
| 5999-00-057-2929 | 2019-07-22 | 63959 | DIBBS |
| 5999-00-057-2929 | 2019-07-11 | 63959 | DIBBS |
| MS271482 | 2019-06-14 | 7 | Brazil |
| 5999-00-057-2929 | 2019-05-07 | 100 | United States |
| 5999-00-057-2929 | 2019-03-18 | 946 | US |
| AA525362 | 2019-02-15 | 500 | US |
| MS271482 | 2018-09-12 | 10 | US |
| MS271482 | 2018-09-12 | 15 | US |
| 5999-00-057-2929 | 2015-07-29 | 3 | US |
| 5999-00-057-2929 | 2015-07-29 | 10 | US |
| AA525362 | 2014-03-14 | 150 | us |
| 5999-00-057-2929 | 2014-01-30 | 54560 | DIBBS |
| MS271482 | 2013-11-14 | 20 | United States |
| 5999-00-057-2929 | 2013-05-06 | 23658 | DIBBS |
| MS271482 | 2013-04-11 | 125 | Israel |
| 5999-00-057-2929 | 2013-02-10 | 100 | US |
| 5999-00-057-2929 | 2012-12-17 | 30 | US |
| 5999-00-057-2929 | 2012-04-24 | 7746 | DIBBS |
| 5999-00-057-2929 | 2011-11-07 | 13554 | DIBBS |
| MS27148-2 | 2011-08-17 | 96 | US |
| 5999-00-057-2929 | 2011-04-04 | 15000 | US |
| 5999-00-057-2929 | 2010-05-17 | 38765 | DIBBS |
| 5999-00-057-2929 | 2010-04-30 | 35506 | DIBBS |
| 5999-00-057-2929 | 2010-04-05 | 8408 | DIBBS |
| 5999-00-057-2929 | 2010-03-22 | 785 | DIBBS |
| 5999-00-057-2929 | 2010-03-18 | 8002 | DIBBS |
| 5999-00-057-2929 | 2010-03-18 | 7063 | DIBBS |
| 5999-00-057-2929 | 2010-01-28 | 38597 | DIBBS |
| AA525362 | 2009-10-22 | 1 | us |
| 5999-00-057-2929 | 2009-09-22 | 4323 | DIBBS |
| 5999-00-057-2929 | 2009-09-10 | 17142 | DIBBS |
| 5999-00-057-2929 | 2009-07-06 | 11398 | DIBBS |
| 5999-00-057-2929 | 2009-01-06 | 17494 | DIBBS |
| 5999-00-057-2929 | 2008-08-01 | 162000 | US |
| 5999-00-057-2929 | 2008-05-20 | 24295 | DIBBS |
| 5999-00-057-2929 | 2007-12-24 | 28185 | DIBBS |
Cross Reference | NSN 5999-00-057-2929
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10512662 | 56161 | GENERAL DYNAMICS LAND SYSTEMS - CANADA CORPORATION |
| 11329FX | 45152 | OSHKOSH CORPORATION |
| 11329FX | 75Q65 | OSHKOSH DEFENSE, LLC |
| 1255 | 05783 | WATKINS-JOHNSON CO STEWART DIV |
| 25KP256 | 45152 | OSHKOSH CORPORATION |
| 25KP256 | 75Q65 | OSHKOSH DEFENSE, LLC |
| 309392 | H0001 | DAF TRUCKS N.V. |
| 3M6548 | 11083 | CATERPILLAR INC. DBA CATERPILLAR |
| 51358 | 81263 | UNIVERSAL COMPONENTS CORP |
| 5291588 | 24617 | GENERAL MOTORS CORP |
| 5291588 | 72582 | MTU AMERICA INC. |
| 5291588 | 73331 | GENERAL MOTORS CORP FISHER GUIDE DIV |
| 5291588 | 77060 | GENERAL MOTORS CORP PACKARD ELECTRIC DIV |
| 572929 | 19204 | ARMY UNITED STATES DEPARTMENT OF THE |
| 5939203 | 24617 | GENERAL MOTORS CORP |
| 5939203 | 73331 | GENERAL MOTORS CORP FISHER GUIDE DIV |
| 5999000572929 | SCY13 | E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES |
| 6298310 | 72582 | MTU AMERICA INC. |
| 7591 | 72582 | MTU AMERICA INC. |
| 7762622 | 0FW39 | BAE SYSTEMS TACTICAL VEHICLE SYSTEMS LP |
| 7762622 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
| 7762622 | 1F926 | TIEM ENGINEERING CORPORATION INC |
| 7762622 | 28375 | SPECTRON, INC. |
| 7762622 | 5A910 | ELC INDUSTRIES CORP. DBA AURORA CORD AND CABLE COMPANY |
| 92495762 | 54572 | SL-MONTEVIDEO TECHNOLOGY, INC. |
| A-A-52536 | 58536 | FEDERAL COMMERCIAL ITEM DESCRIPTION PROMULGATED BY GENERAL SERVICES |
| A806-4813 | 46522 | DCM MANUFACTURING INC. |
| AA52536-2 | 58536 | FEDERAL COMMERCIAL ITEM DESCRIPTION PROMULGATED BY GENERAL SERVICES |
| AYG9990 | Z5394 | JAGUAR LAND ROVER AUSTRALIA PTY LTD |
| BG26977 | 18990 | EAGLE CRUSHER CO INC |
| MS27148 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS27148-2 | 8346B | SERVICIOS Y PROYECTOS AVANZADOS S.A |
| MS27148-2 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| NHT457 | H0050 | FABRIEK VOOR AUTO- ENELECTROTECHNISCHE PRODUKTEN 'WHITE |
| Q531429171 | S3092 | RHEINMETALL AIR DEFENCE AG |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 5999-00-057-2929
Related Products | NSN 5999-00-057-2929
5999-00-057-3657, 5999-00-057-3706, 5999-00-057-3707, 5999-00-057-3708, 5999-00-057-3770
Technical Data | NSN 5999-00-057-2929
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | A9 PIN CONTACT |

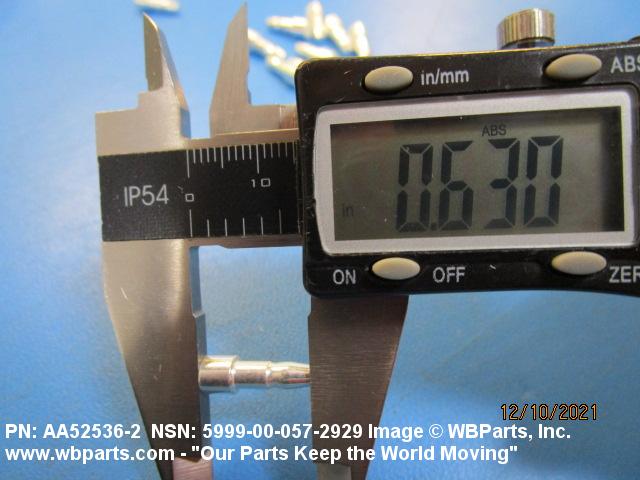

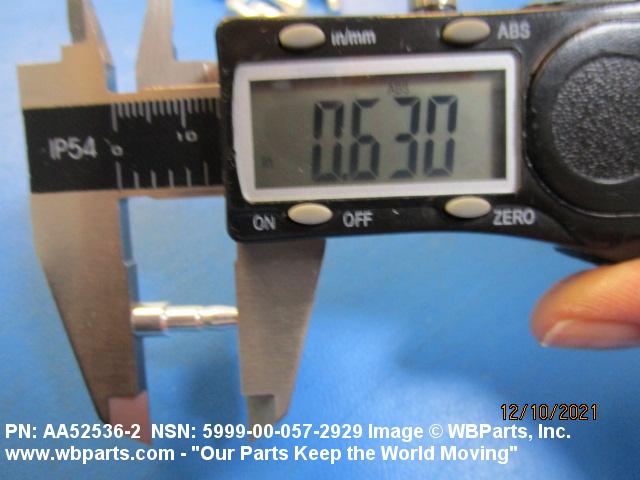

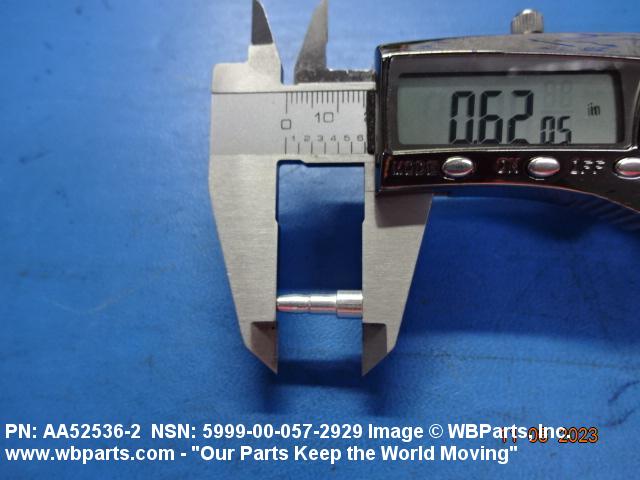

| OVERALL LENGTH | 0.625 INCHES NOMINAL |

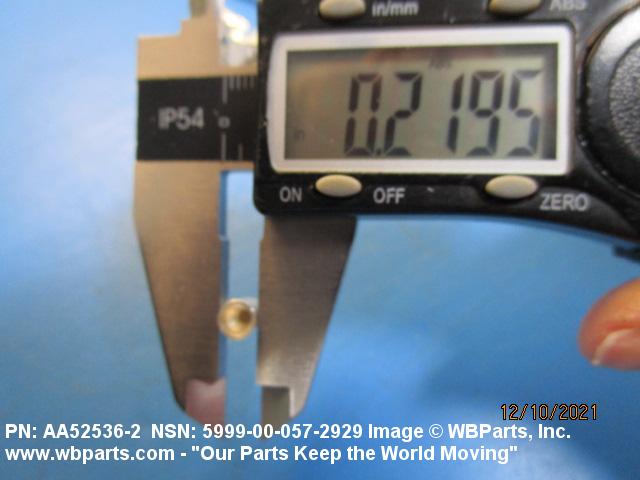

| OVERALL DIAMETER | 0.219 INCHES NOMINAL |
| MATERIAL | COPPER ALLOY BODY AND CONTACT |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-B-626,COMPOSITION 11 OR 22,TEMPER,HALF-HARD FED SPEC SINGLE MATERIAL RESPONSE BODY AND CONTACT |
| SURFACE TREATMENT | SILVER BODY AND CONTACT |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-S-365,TYPE 2 FED SPEC SINGLE TREATMENT RESPONSE BODY AND CONTACT |
| TERMINAL TYPE AND QUANTITY | 1 CRIMP END OPPOSITE CONTACT |
| MOUNTING METHOD | FORCE FIT |
| PIN LENGTH | ANY ACCEPTABLE |
| PIN DIAMETER | 0.116 INCHES MINIMUM AND 0.120 INCHES MAXIMUM |
| CABLE ENTRANCE DIAMETER | 0.084 INCHES MINIMUM AND 0.088 INCHES MAXIMUM |
| SPECIAL FEATURES | WEAPON SYSTEM ESSENTIAL |
| CRITICALITY CODE JUSTIFICATION | FEAT |
| III VOLTAGE RATING IN VOLTS | 110.0 AC AND 110.0 DC |
| III CURRENT RATING IN AMPS | 15.0 |
| III PRECIOUS MATERIAL | SILVER |
| III PRECIOUS MATERIAL AND WEIGHT | 0.005 SILVER GRAINS, TROY |
| III PRECIOUS MATERIAL AND LOCATION | EXTERNAL SURFACE SILVER |
| III END ITEM IDENTIFICATION | 2320-01-097-0248,2320-01-097-0249 ,2320-01-100-7672,2320-01-097-026 0,2320-01-195-7641 HEMTT FAMILY (HEAVY EXPANDED MOBILITY TACTICAL TRUCKS) |
| MANUFACTURERS CODE | 58536 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | A-A-52536/2 |
| MANUFACTURERS CODE | 58536 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | A-C-52536 |
Restrictions/Controls & Freight Information | NSN 5999-00-057-2929
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | S | Item contains silver |
| Criticality Code: | Y | The item does not have a nuclear hardened feature but does have other critical feature(s) such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061300 | CIRCUIT BREAKER/SWITCH NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5999-00-057-2929
Army
Air Force
Navy
Marines| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | Q | Electronics Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | S | Surveillance Target Acquisition and Night Observation (STANO) |
| Weapons Systems/End Item or Homogeneous Group | SF | Battlefield Illum |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
H EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | EH | SX:ELECTRONIC COMPONENTS |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
H EA : Each |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 5 | Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Echelon Identification Code | B | Consumable Repair Parts |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | A | Item requires special handling/or condemnation procedures because of specific reasons (i.e., precious metal content, high dollar value, critical material or hazardous material). Refer to appropriate manuals/directives for specific instructions. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
H EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
H EA : Each |
