NSN 5999-00-090-4745 AN40601, AN4060-1, E1129281
Product Details | ELECTRICAL CAP
5999-00-090-4745 A cap for use with electronic or electrical items. Excludes BOOT, DUST AND MOISTURE SEAL; CAP, IGNITION DISTRIBUTION; and COVER, ELECTRICAL CONNECTOR.
Part Alternates: AN40601, AN4060-1, E1129281, E1129-28-1, 1026042, 10-26042, 116539N1, 21253, 54364, 82325, 5999-00-090-4745, 00-090-4745, 5999000904745, 000904745
Electrical and Electronic Equipment Components | Miscellaneous Electrical and Electronic Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-090-4745 | 16186 ( CAP, ELECTRICAL ) |

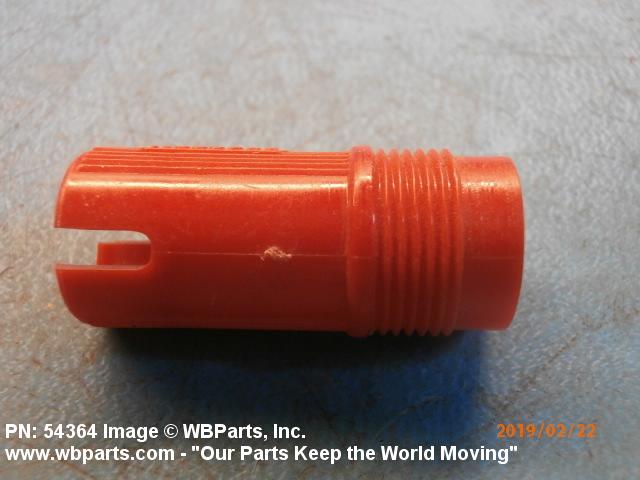

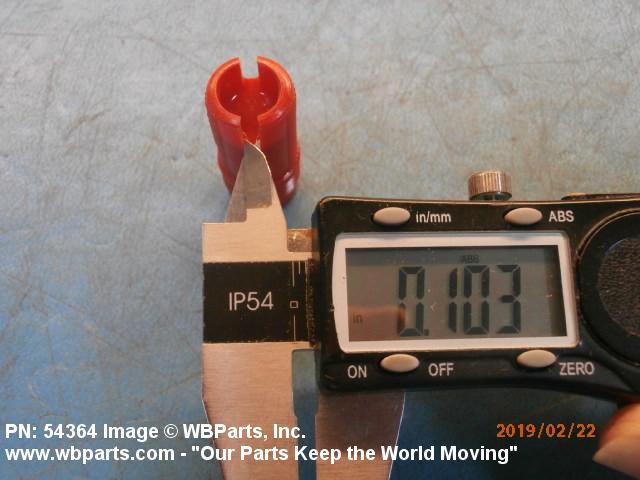

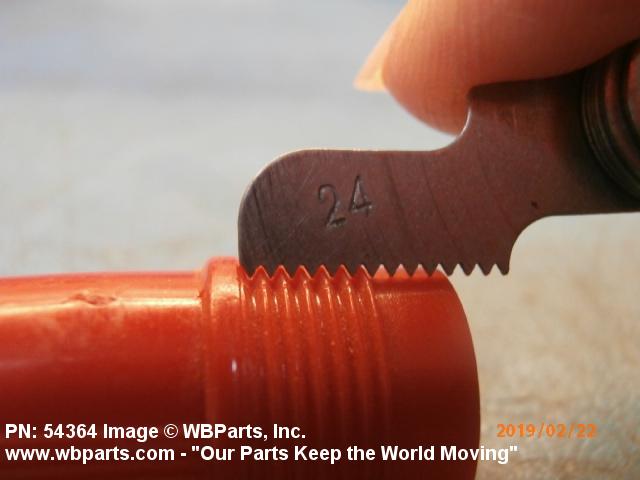

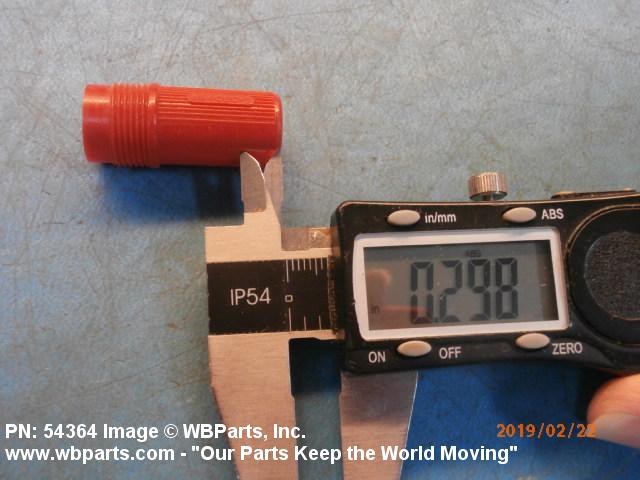

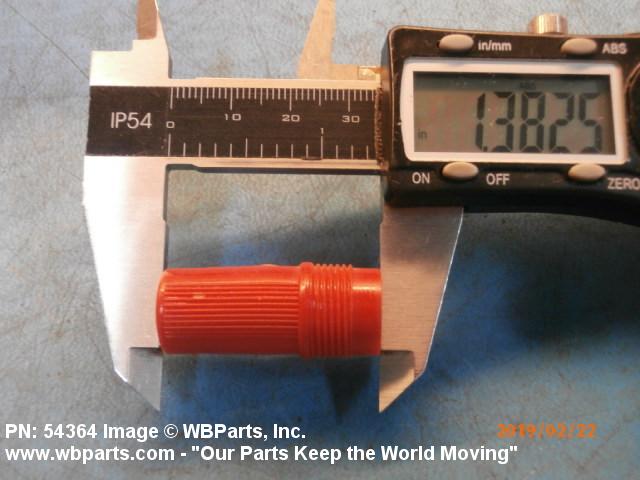

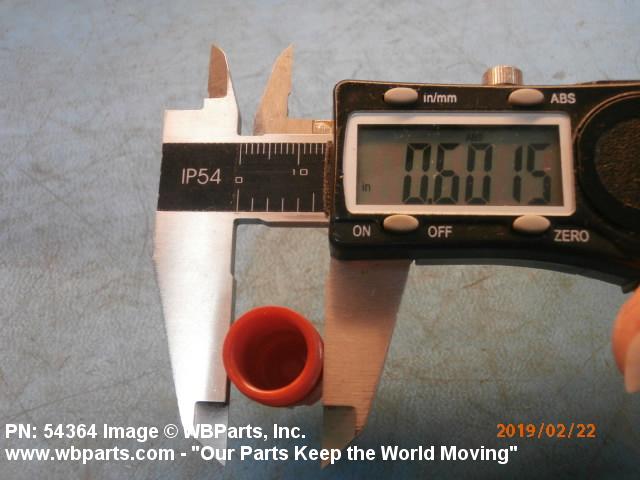

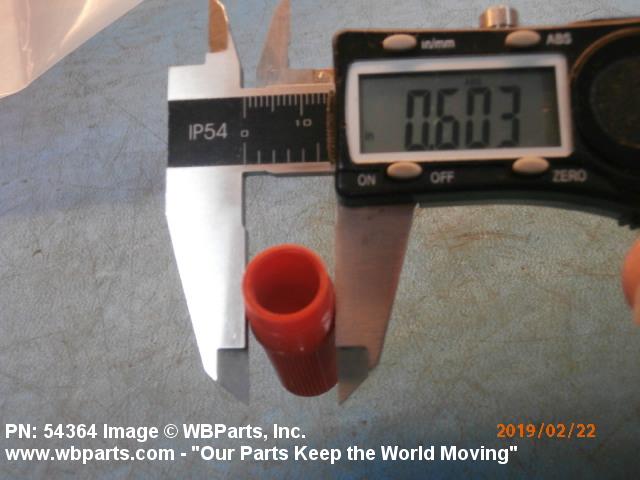

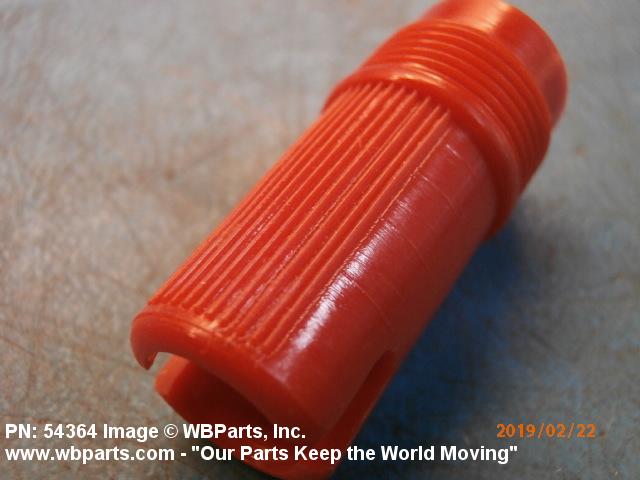

Drawings & Photos | NSN 5999-00-090-4745
Demand History | NSN 5999-00-090-4745
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| AN40601 | 2025-10-280 | 25 | US |
| 21253 | 2025-09-272 | 22 | DIBBS |
| AN4060-1 | 2025-09-272 | 22 | DIBBS |
| 21253 | 2025-09-261 | 22 | DIBBS |
| AN4060-1 | 2025-09-261 | 22 | DIBBS |
| 21253 | 2025-07-188 | 21 | DIBBS |
| AN4060-1 | 2025-07-188 | 21 | DIBBS |
| 21253 | 2025-06-177 | 21 | DIBBS |
| AN4060-1 | 2025-06-177 | 21 | DIBBS |
| 21253 | 2025-06-156 | 20 | DIBBS |
| AN4060-1 | 2025-06-156 | 20 | DIBBS |
| 21253 | 2025-04-111 | 24 | DIBBS |
| AN4060-1 | 2025-04-111 | 24 | DIBBS |
| 21253 | 2025-04-100 | 24 | DIBBS |
| AN4060-1 | 2025-04-100 | 24 | DIBBS |
| 5999-00-090-4745 | 2025-02-38 | 29 | US |
| 5999-00-090-4745 | 2024-08-224 | 20 | US |
| 21253 | 2023-11-332 | 29 | DIBBS |
| 21253 | 2023-08-243 | 22 | DIBBS |
| AN40601 | 2023-06-156 | 6 | US |
| 5999-00-090-4745 | 2021-10-278 | 58 | Norway |
| 21253 | 2021-01-07 | 35 | DIBBS |
| 21253 | 2020-11-321 | 35 | DIBBS |
| 21253 | 2020-11-310 | 35 | DIBBS |
| 21253 | 2020-08-237 | 8 | DIBBS |
| 21253 | 2020-08-229 | 8 | DIBBS |
| 21253 | 2020-08-226 | 8 | DIBBS |
| 21253 | 2020-06-167 | 36 | DIBBS |
| 21253 | 2020-06-156 | 36 | DIBBS |
| AN40601 | 2019-03-71 | 100 | US |
| 5999-00-090-4745 | 2019-01-17 | 20 | FJ |
| 54364 | 2019-01-16 | 20 | United States |
| 5999-00-090-4745 | 2017-03-89 | 28 | DIBBS |
| 21253 | 2013-08-229 | 200 | Canada |
| AN4060-1 | 2013-08-229 | 200 | Canada |
| 5999-00-090-4745 | 2013-07-204 | 2411 | DIBBS |
| 5999-00-090-4745 | 2012-09-268 | 1411 | DIBBS |
| 5999-00-090-4745 | 2011-06-181 | 1426 | DIBBS |
| 5999-00-090-4745 | 2010-10-301 | 1469 | DIBBS |
| 5999-00-090-4745 | 2010-05-125 | 371 | DIBBS |
| 5999-00-090-4745 | 2010-02-53 | 1081 | DIBBS |
| 5999-00-090-4745 | 2009-07-196 | 371 | DIBBS |
| AN40601 | 2008-02-37 | 2300 | United States |
| 5999-00-090-4745 | 2007-10-291 | 1406 | DIBBS |
Cross Reference | NSN 5999-00-090-4745
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10-26042 | 28839 | TELEDYNE INDUSTRIES INC TELEDYNE POWER SYSTEMS DIV |
| 10-26042 | 59501 | UNISON INDUSTRIES, LLC |
| 10-26042 | 77820 | AMPHENOL CORPORATION DBA AMPHENOL AEROSPACE INDUSTRIAL |
| 116539N1 | 0AHP5 | CURTISS-WRIGHT CONTROLS, INC DIV FLIGHT SYSTEMS |
| 21253 | 55176 | AIR PARTS & SUPPLY CO. DBA APSCO AIR PARTS & SUPPLY COMPANY |
| 54364 | 00198 | PRATT & WHITNEY CANADA CIE DIVPRATT & WHITNEY CANADA CORP. |
| 82325 | 00198 | PRATT & WHITNEY CANADA CIE DIVPRATT & WHITNEY CANADA CORP. |
| 82325 | R1120 | SATAIR A/S |
| AN4060-1 | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| E1129-28-1 | 08484 | BREEZE-EASTERN CORPORATION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5999-00-090-4745
Related Products | NSN 5999-00-090-4745
Technical Data | NSN 5999-00-090-4745
| Characteristic | Specifications |
|---|---|
| BODY MATERIAL | PLASTIC OR AMS 3622 |
| INSERT | NOT INCLUDED |
| LENGTH | 1.410 INCHES NOMINAL |
| DIAMETER | 0.625 INCHES NOMINAL |
| FASTENING FACILITY | SERRATIONS |
| CHAIN | NOT INCLUDED |
| MOUNTING METHOD | THREAD |
| THREAD SIZE | 5/8 -24 |
| SPECIAL FEATURES | RED |
| III FSC APPLICATION DATA | ELEC SYSTEM,AIRCRAFT ENGINE |
| MANUFACTURERS CODE | 88044 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | AN4060-1 |
Restrictions/Controls & Freight Information | NSN 5999-00-090-4745
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | B | ESD sensitivity |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061680 | ELEC WIRING PLUGS ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | 3 | Electrostatic Sensitive Device (ESD), subject to damage caused by electrostatic discharge. (See DoD 4500.32-R, Volume 1, Appendix A, Section I for additional information on ESD devices). |
Management | NSN 5999-00-090-4745
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | EH | SX:ELECTRONIC COMPONENTS |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
