NSN 5999-00-172-8253 MS39029/5-115 , MS39029/5-20-20, MS390295115

Product Details | ELECTRICAL CONTACT

5999-00-172-8253 An item consisting of an electrically conductive material designed to furnish a surface which will physically and electrically meet another conducting surface for the purpose of transferring electrical energy and/or opening and closing circuits. Includes moving contacts which make and/or slide over stationary contacts or other stationary conductive material to a resulting fixed position. Excludes items which are used in conjunction with continually moving surfaces or which make contact by gripping action of the contact surfaces. See also CLIP, ELECTRICAL; CLAMP, ELECTRICAL; BRUSH, ELECTRICAL CONTACT; PLUG, TIP; and JACK, TIP.

Part Alternates: MS39029/5-115 , MS39029/5-20-20, MS390295115, MS39029-5-115, MS3902952020, M39029/4-11 , M39029/4-111 , M39029/4-16-16 , M39029/5-115, M39029/5-20-20, M39029411, M390294111, M3902941616, M390295115, M3902952020, M83723/33B16 , M83723/34-B20, M8372333B16, M8372334B20, AS39029/5, AS39029/5-115, AS390295, AS390295115, BA412036LD, BA4120-36LD, BIN115, BIN-115, MIL-C-39029/4E , MIL-C-39029/5, MILC390294E, MILC390295, MILC8372333, MILC83723-33 , REC20W1DJ5, REC20W-1DJ5, 8081581, 808158-1, 8520289, 8520-289, 497407-205, 5100-001-20, 52020, 5-20-20, 0309205007, 030-9205-007 , 0319174004, 031-9174-004, 0319174019, 031-9174-019, 0319174031, 031-9174-031, 100503, 10139368, 10497007203, 10-497007-203, 10497007205, 10-497007-205, 10597805355, 10-597805-355, 107130, 1181261200S03, 118-126-1200S-03, 1181262000S03, 118-126-2000S-03, 1674052, 167-4052, 2245129101, 224-512-9101, 3162020088, 316-2020-088, 3162020088L, 316-2020-088L, 3630301501, 3630-3015-01, 5999-00-172-8253, 00-172-8253, 5999001728253, 001728253, 510000120, 497407205

Electrical and Electronic Equipment Components | Miscellaneous Electrical and Electronic Components

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	26 NOV 1971	00-172-8253	00443 ( CONTACT, ELECTRICAL )

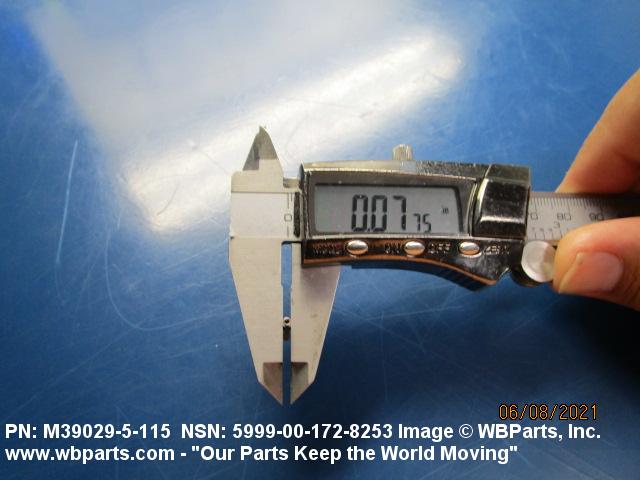

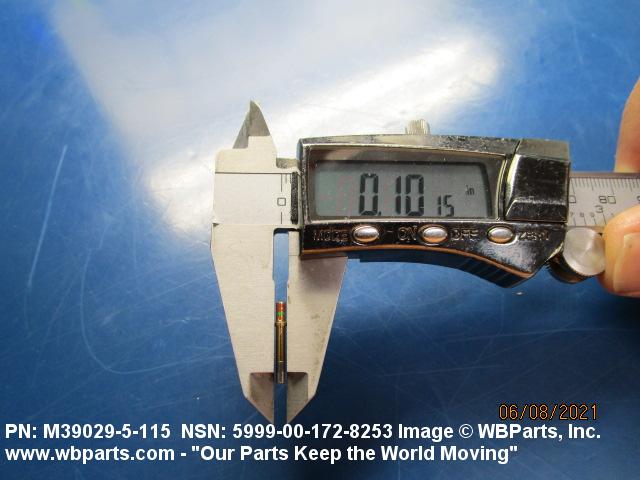

Drawings & Photos | NSN 5999-00-172-8253

Part Number	Request Date	QTY	Origin
M390295115	2025-07-182	30	United States
M390295115	2025-03-90	46	United States
M390295115	2023-10-300	2820	United States
M390294111	2023-10-276	50	Korea
M390294111	2023-08-227	10	Korea
M390294111	2023-07-194	50	Korea
5999-00-172-8253	2022-08-231	3	United States
M390295115	2022-07-186	296	United States
M390295115	2022-05-130	6	US
M390295115	2022-01-19	632	Malaysia
5999-00-172-8253	2021-08-220	42612	DIBBS
5999-00-172-8253	2021-07-185	1	PK
M390294111	2021-05-148	100	United States
M390295115	2021-05-148	100	United States
5999-00-172-8253	2020-05-128	10	us
5999-00-172-8253	2019-12-353	1000	US
5999-00-172-8253	2019-12-346	2	United States
M390295115	2019-10-303	20	United States
M390295115	2019-10-295	15	United States
5999-00-172-8253	2018-12-338	27915	DIBBS
5999-00-172-8253	2018-11-316	500	UAE
M390295115	2018-10-281	111	US
5999-00-172-8253	2018-09-271	1000	United States
5999-00-172-8253	2018-01-17	10168	DIBBS
M390295115	2017-09-270	74	United States
M390295115	2017-09-270	74	United States
5999-00-172-8253	2017-02-40	150000	DIBBS
5999-00-172-8253	2017-01-09	150000	DIBBS
M390294111	2016-05-147	100	Taiwan
M390295115	2016-05-147	100	Taiwan
5999-00-172-8253	2016-03-66	60326	DIBBS
M390295115	2015-12-354	2700	IN
5999-00-172-8253	2015-08-231	33941	DIBBS
M390295115	2015-07-183	6	Malaysia
M39029/5-115	2015-04-91	120	Greece
5999001728253	2015-01-16	100	PL
5999-00-172-8253	2014-12-352	124150	DIBBS
M3902952020	2014-10-302	20	Spain
M390295115	2014-10-297	100	United States
M390295115	2014-08-233	20	IN
MS390295115	2013-09-260	600	United States
5999-00-172-8253	2013-06-154	86	MANUAL
M39029/5-115	2013-06-154	86	United States
M39029/4-111	2013-04-113	5	United States
M39029/5-115	2013-04-113	10	United States
MS390295115	2013-04-91	2	US
M390295115	2012-10-284	1000	NL
M390295115	2012-04-111	225	United States
M39029/4-111	2012-04-110	100	PK
M39029/5-115	2012-04-110	3050	PK
M390295115	2012-02-58	50	United States
5999-00-172-8253	2011-10-284	30	US
MS3902952020	2011-02-57	20	Malaysia
M390295115	2010-09-273	50	US
5999-00-172-8253	2010-09-273	30	us
M390294111	2010-08-224	500	Brazil
M390295115	2010-08-224	500	Brazil
5999-00-172-8253	2010-05-131	1	BH
5999-00-172-8253	2010-02-56	50	Kuwait
5999-00-172-8253	2009-11-327	12	Hungary
5999-00-172-8253	2009-09-264	10	US
M3902952020	2009-03-90	9000	United Kingdom
MS390295115	2008-10-302	60	US
5999-00-172-8253	2008-09-254	370707	DIBBS
5999-00-172-8253	2008-08-232	306760	DIBBS
5999-00-172-8253	2008-04-115	100	United States
M390295115	2008-02-32	20	EC
5999-00-172-8253	2007-10-291	190000	DIBBS
5999-00-172-8253	2007-04-92	23000	DIBBS
5999-00-172-8253	2007-03-68	172000	DIBBS
5999-00-172-8253	2007-02-51	60011	DIBBS
5999-00-172-8253	2007-02-47	11918	DIBBS

Cross Reference | NSN 5999-00-172-8253

Part Number	Cage Code	Manufacturer
031-9174-004	71468	ITT CORPORATION DBA I T T CANNON
031-9174-019	71468	ITT CORPORATION DBA I T T CANNON
031-9174-031	71468	ITT CORPORATION DBA I T T CANNON
10-497007-203	77820	AMPHENOL CORPORATION DBA AMPHENOL AEROSPACE INDUSTRIAL
10-497007-205	77820	AMPHENOL CORPORATION DBA AMPHENOL AEROSPACE INDUSTRIAL
10-597805-355	77820	AMPHENOL CORPORATION DBA AMPHENOL AEROSPACE INDUSTRIAL
100503	11139	DEUTSCH ENGINEERED CONNECTING DEVICES INC
107130	34355	LOCKHEED MARTIN SIPPICAN, INC. DBA SIPPICAN USE CAGE CODE 16848 FOR
118-126-1200S-03	02660	AMPHENOL CORP SPECTRA-STRIP/ITD
118-126-2000S-03	02660	AMPHENOL CORP SPECTRA-STRIP/ITD
167-4052	99747	TELEDYNE REYNOLDS, INC.
224-512-9101	99193	HONEYWELL INTERNATIONAL INC. DBA HONEYWELL
316-2020-088	55104	TRI-STAR ELECTRONICS INTERNATIONAL, INC.
316-2020-088L	55104	TRI-STAR ELECTRONICS INTERNATIONAL, INC.
3630-3015-01	54274	LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN
497407-205	77820	AMPHENOL CORPORATION DBA AMPHENOL AEROSPACE INDUSTRIAL
5-20-20	K0316	ITT INDUSTRIES LIMITED ITT CANNON UK
5100-001-20	14283	AMPHENOL OPTIMIZE MANUFACTURING CO. DIV AMPHENOL AEROSPACE OPERATIONS
808158-1	96214	RAYTHEON COMPANY DBA RAYTHEON
8520-289	59610	SOURIAU INC
AS39029/5	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
AS39029/5-115	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
BA4120-36LD	49367	AMPHENOL CORPORATION DBA AMPHENOL AEROSPACE INDUSTRIAL
BIN-115	16236	DLA LAND AND MARITIME
M39029/5-115	11139	DEUTSCH ENGINEERED CONNECTING DEVICES INC
M39029/5-115	55104	TRI-STAR ELECTRONICS INTERNATIONAL, INC.
M39029/5-115	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
M39029/5-115	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
M39029/5-115	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
M39029/5-20-20	03950	NAVAL INVENTORY CONTROL POINT MECHANICSBURG
M39029/5-20-20	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
M83723/34-B20	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-C-39029/5	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MS39029-5-115	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS39029/5-115	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
MS39029/5-20-20	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
REC20W-1DJ5	09922	SOURIAU USA, INC.

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5999-00-172-8253

Compare

Related Products | NSN 5999-00-172-8253

5999-00-172-8254, 5999-00-172-8257, 5999-00-172-8265, 5999-00-172-8273, 5999-00-172-8278

Technical Data | NSN 5999-00-172-8253

Characteristic	Specifications
STYLE DESIGNATOR	A4 SOCKET CONTACT
OVERALL LENGTH	0.675 INCHES MAXIMUM
OVERALL DIAMETER	0.100 INCHES MINIMUM AND 0.103 INCHES MAXIMUM
MATERIAL	COPPER ALLOY BODY AND CONTACT
SURFACE TREATMENT	GOLD BODY AND CONTACT
IDENTIFICATION CODE COLOR	BROWN AND BROWN AND GREEN
TERMINAL TYPE AND QUANTITY	1 CRIMP AND SOLDER AXIALLY AT ONE END
MOUNTING METHOD	FORCE FIT
PIN ACCOMMODATION LENGTH	0.330 INCHES MINIMUM AND 0.370 INCHES MAXIMUM
PIN ACCOMMODATION DIAMETER	0.042 INCHES MINIMUM AND 0.044 INCHES MAXIMUM
CABLE ENTRANCE DIAMETER	0.048 INCHES MINIMUM AND 0.050 INCHES MAXIMUM
SPECIAL FEATURES	BASIC ITEM IDENTIFICATION NUMBER BIN-115
TEST DATA DOCUMENT	81349-MIL-C-39029 SPECIFICATION
III PRECIOUS MATERIAL	GOLD
III PRECIOUS MATERIAL AND WEIGHT	0.005 GOLD GRAINS, TROY
III PRECIOUS MATERIAL AND LOCATION	EXTERNAL SURFACES GOLD
III CRIMPING TOOL IDENTIFYING NUMBER	M22520/2-01
MANUFACTURERS CODE	81349
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MIL-C-39029/5
MANUFACTURERS CODE	81349
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	M39029/5-115

Restrictions/Controls & Freight Information | NSN 5999-00-172-8253

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Electro-static Discharge Susceptible:	A	No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity
Precious Metals Indicator Code:	G	Item contains gold
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	061300	CIRCUIT BREAKER/SWITCH NOI
Less than car load rating
Less than truck load rating	P	77.5
Water commodity Code	72D	unknown
Originating Activity Code	TX	Defense Supply Center Columbus Columbus, OH 43218
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5999-00-172-8253

Category	Code	Description
Materiel Category and Inventory Manager	Q	Electronics Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	A EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation Code	EH	SX:ELECTRONIC COMPONENTS
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	A EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Echelon Identification Code	B	Consumable Repair Parts
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	A EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Special Material Content	9	Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	A EA : Each
