NSN 5999-00-224-5431 1853787, 00-224-5431, 002245431
Product Details | ELECTRICAL CLIP
5999-00-224-5431 A clip designed to electrically connect items and components. Its primary function is to make a quick and/or temporary electrical connection. Includes alligator and crocodile test clips, battery clips, contact clips, electron tube clips, resistor clips, or the like. For electron tube grid and plate cap clips with wire leads attached, see LEAD, ELECTRICAL. Excludes CLAMP, ELECTRICAL; CLIP, SPRING TENSION; and FUSEHOLDER (as modified).
Part Alternates: 1853787, 5999-00-224-5431, 00-224-5431, 5999002245431, 002245431
Electrical and Electronic Equipment Components | Miscellaneous Electrical and Electronic Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 17 DEC 1971 | 00-224-5431 | 00739 ( CLIP, ELECTRICAL ) |
Drawings & Photos | NSN 5999-00-224-5431
Cross Reference | NSN 5999-00-224-5431
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1853787 | 21877 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NAVAL AND MARINE SYSTEMS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5999-00-224-5431
Technical Data | NSN 5999-00-224-5431
| Characteristic | Specifications |
|---|---|

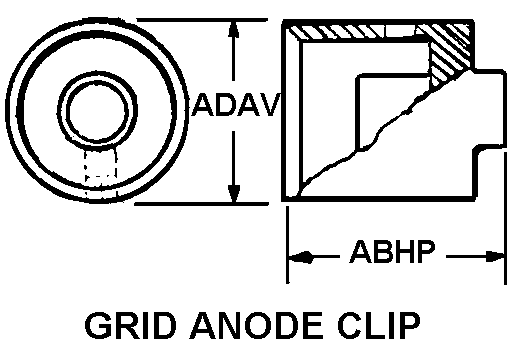

| STYLE DESIGNATOR | A86 GRID ANODE CLIP |
| OVERALL LENGTH | 0.906 INCHES NOMINAL |
| OVERALL DIAMETER | 0.980 INCHES NOMINAL |
| MATERIAL | BERYLLIUM BODY |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-C-530,CONDITION H FED SPEC SINGLE MATERIAL RESPONSE BODY |
| SURFACE TREATMENT | SILVER AND RHODIUM BODY |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-S-365 FED SPEC 1ST TREATMENT RESPONSE AND MIL-R-46085 MIL SPEC 2ND TREATMENT RESPONSE BODY |
| MOUNTING METHOD | UNTHREADED HOLE |
| MOUNTING FACILITY QUANTITY | 6 |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.138 INCHES MINIMUM AND 0.146 INCHES MAXIMUM AND 0.188 INCHES NOMINAL |
| III PRECIOUS MATERIAL | SILVER AND RHODIUM |
| III PRECIOUS MATERIAL AND WEIGHT | 0.005 SILVER GRAINS, TROY AND 0.005 RHODIUM GRAINS, TROY |
| III PRECIOUS MATERIAL AND LOCATION | BODY SURFACE SILVER AND BODY SURFACE RHODIUM |
Restrictions/Controls & Freight Information | NSN 5999-00-224-5431
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | S | Item contains silver |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093490 | BOLT/NUT/SCREW/CLIPS/FASTENER/ETC |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | HH | Navy ICP Mechanicsburg, PA 17055-0788 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5999-00-224-5431
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
