NSN 5999-00-258-2174 BDE1S6100835SH4ITEM12, BDE1S6100-835SH4ITEM12, BDE1S6100838PC4
Product Details | ELECTRICAL CLAMP
5999-00-258-2174 A clamp specifically designed to carry electric current. See also CLIP, ELECTRICAL; SPLICE, CONDUCTOR; TERMINAL, LUG; and RETAINER (as modified). Excludes BRACKET, PIPE.
Part Alternates: BDE1S6100835SH4ITEM12, BDE1S6100-835SH4ITEM12, BDE1S6100838PC4, BDE1S6100-838PC4, S1312958, S459990, DE339S6100279015SH4ITEM5, DE339S6100-279015SH4ITEM5, 35J727PC43, 35J965SH4ITEM12, 37J740SH4ITEM5, 5999-00-258-2174, 00-258-2174, 5999002582174, 002582174
Electrical and Electronic Equipment Components | Miscellaneous Electrical and Electronic Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-258-2174 | 00865 ( CLAMP, ELECTRICAL ) |

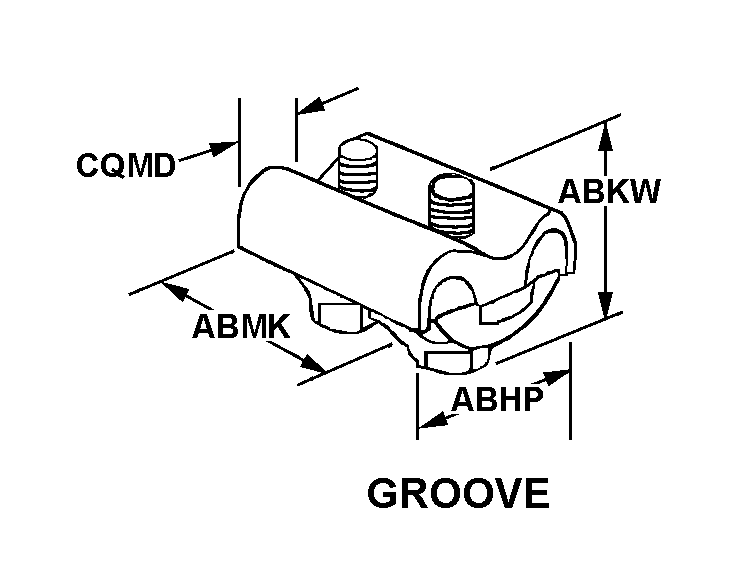

Drawings & Photos | NSN 5999-00-258-2174
Cross Reference | NSN 5999-00-258-2174
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 35J727PC43 | 11660 | WESTINGHOUSE ELECTRIC CORP CONTROL BUSINESS UNIT |
| 35J727PC43 | 79500 | WESTINGHOUSE ELECTRIC CORP |
| 35J965SH4ITEM12 | 11660 | WESTINGHOUSE ELECTRIC CORP CONTROL BUSINESS UNIT |
| 35J965SH4ITEM12 | 79500 | WESTINGHOUSE ELECTRIC CORP |
| 37J740SH4ITEM5 | 11660 | WESTINGHOUSE ELECTRIC CORP CONTROL BUSINESS UNIT |
| 37J740SH4ITEM5 | 79500 | WESTINGHOUSE ELECTRIC CORP |
| BDE1S6100-835SH4ITEM12 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
| BDE1S6100-838PC4 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
| DE339S6100-279015SH4ITEM5 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
| S1312958 | 11660 | WESTINGHOUSE ELECTRIC CORP CONTROL BUSINESS UNIT |
| S1312958 | 79500 | WESTINGHOUSE ELECTRIC CORP |
| S459990 | 11660 | WESTINGHOUSE ELECTRIC CORP CONTROL BUSINESS UNIT |
| S459990 | 79500 | WESTINGHOUSE ELECTRIC CORP |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5999-00-258-2174
Related Products | NSN 5999-00-258-2174
Technical Data | NSN 5999-00-258-2174
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | E4 GROOVE |
| OVERALL LENGTH | 0.475 INCHES NOMINAL |
| OVERALL HEIGHT | 0.634 INCHES NOMINAL |
| OVERALL WIDTH | 0.370 INCHES NOMINAL |
| ACCOMMODATION HOLE WIDTH | 0.500 INCHES NOMINAL |
| MATERIAL | STEEL BODY |
| SURFACE TREATMENT | CADMIUM BODY |
| MOUNTING METHOD | SCREW |
| MOUNTING DEVICE QUANTITY | 1 |
| CONDUCTOR ACCOMMODATION QUANTITY | 2 |
| SPECIAL FEATURES | W/TWO SCREW TYPE TERM |
Restrictions/Controls & Freight Information | NSN 5999-00-258-2174
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061680 | ELEC WIRING PLUGS ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5999-00-258-2174
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | X | SEMIACTIVE ITEM-NO REPLACEMENT (NON-STOCKED ITEMS) A potentially inactive NSN which must be retained in the supply system as an item of supply because (1) stocks of the item are on hand or in use below the wholesale level and (2) the NSN is cited in equipment authorization documents TO & E, TA, TM, etc., or in-use assets are being reported. 1. Items are authorized for central procurement but not authorized for stockage at wholesale level. 2. Requisitions for in-use replacement will be authorized in accordance with individual Military Service directives. 3. Requisitions may be submitted as requirements generate. Repetitive demands may dictate an AAC change to permit wholesale stockage. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
