NSN 5999-00-323-8514 P204587003, P204587-003, 0319174006
Product Details | ELECTRICAL CONTACT
5999-00-323-8514 An item consisting of an electrically conductive material designed to furnish a surface which will physically and electrically meet another conducting surface for the purpose of transferring electrical energy and/or opening and closing circuits. Includes moving contacts which make and/or slide over stationary contacts or other stationary conductive material to a resulting fixed position. Excludes items which are used in conjunction with continually moving surfaces or which make contact by gripping action of the contact surfaces. See also CLIP, ELECTRICAL; CLAMP, ELECTRICAL; BRUSH, ELECTRICAL CONTACT; PLUG, TIP; and JACK, TIP.
Part Alternates: P204587003, P204587-003, 0319174006, 031-9174-006, 10604031, 106040-31, 84773140031, 8477-314003-1, 5999-00-323-8514, 00-323-8514, 5999003238514, 003238514
Electrical and Electronic Equipment Components | Miscellaneous Electrical and Electronic Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 03 DEC 1973 | 00-323-8514 | 00443 ( CONTACT, ELECTRICAL ) |

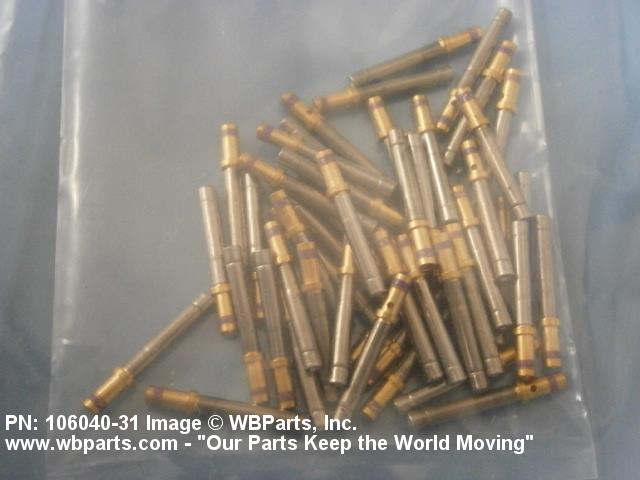

Drawings & Photos | NSN 5999-00-323-8514
Cross Reference | NSN 5999-00-323-8514
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 031-9174-006 | 71468 | ITT CORPORATION DBA I T T CANNON |
| 106040-31 | 11139 | DEUTSCH ENGINEERED CONNECTING DEVICES INC |
| 8477-314003-1 | 04614 | TEXTRON SYSTEMS CORPORATION DBA TEXTRON DEFENSE SYSTEMS |
| 8477-314003-1 | 80070 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN |
| P204587-003 | 49367 | AMPHENOL CORPORATION DBA AMPHENOL AEROSPACE INDUSTRIAL |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5999-00-323-8514
Technical Data | NSN 5999-00-323-8514
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY CONTACT COPPER ALLOY BODY |
| SURFACE TREATMENT | GOLD CONTACT GOLD BODY |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-G-45204 MIL SPEC SINGLE TREATMENT RESPONSE CONTACT MIL-G-45204 MIL SPEC SINGLE TREATMENT RESPONSE BODY |
| TERMINAL TYPE AND QUANTITY | 1 CRIMP AXIALLY AT ONE END |
| MANUFACTURERS CODE | 04614 |
| MFR SOURCE CONTROLLING REFERENCE | 8477-314003-1 |
Restrictions/Controls & Freight Information | NSN 5999-00-323-8514
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | G | Item contains gold |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061300 | CIRCUIT BREAKER/SWITCH NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | TA | Sacramento Air Logistics Center McClellan AFB, CA 95652-5609 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5999-00-323-8514
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9I | Navy-owned stocks of consumable material managed by the Air Force within the Odgen Air Logistics Center Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | FGZ | Ogden Air Logistics Center Hill AFB, UT 84056-5609 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
