NSN 5999-00-420-7175 BACC47CM1A, BACC47CM1B, GC835ET1

Product Details | ELECTRICAL CONTACT

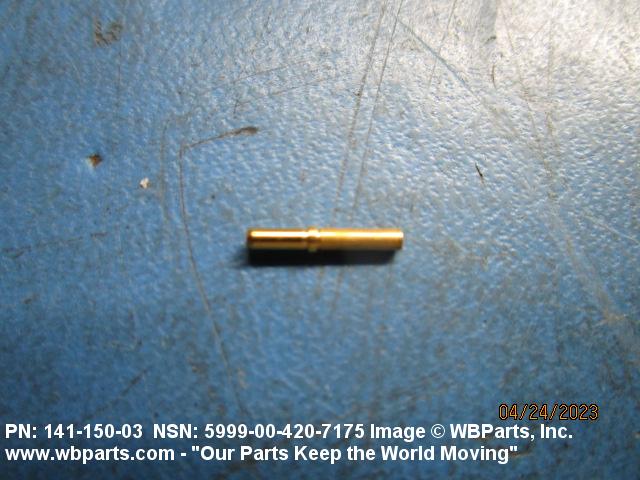

5999-00-420-7175 An item consisting of an electrically conductive material designed to furnish a surface which will physically and electrically meet another conducting surface for the purpose of transferring electrical energy and/or opening and closing circuits. Includes moving contacts which make and/or slide over stationary contacts or other stationary conductive material to a resulting fixed position. Excludes items which are used in conjunction with continually moving surfaces or which make contact by gripping action of the contact surfaces. See also CLIP, ELECTRICAL; CLAMP, ELECTRICAL; BRUSH, ELECTRICAL CONTACT; PLUG, TIP; and JACK, TIP.

Part Alternates: BACC47CM1A, BACC47CM1B, GC835ET1, GC835ET3, 200082-001, 14115603, 141-156-03, 200082-004, 21012902, 210129-02, 3102222336, 310-2222-336, 7213088991, 72-1308899-1, 96522F12, 965-22F-12, 96522F15, 965-22F-15, 96S22F12, 96S-22F12, 5999-00-420-7175, 00-420-7175, 5999004207175, 004207175, 200082001, 200082004

Electrical and Electronic Equipment Components | Miscellaneous Electrical and Electronic Components

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	07 MAR 1969	00-420-7175	00443 ( CONTACT, ELECTRICAL )

Drawings & Photos | NSN 5999-00-420-7175

Part Number	Request Date	QTY	Origin
5999-00-420-7175	2023-03-86	1	United States
5999-00-420-7175	2023-03-86	65	United States
200082-001	2021-02-56	188	DIBBS
200082-004	2021-02-56	188	DIBBS
310-2222-336	2021-02-56	188	DIBBS
BACC47CM1B	2021-02-56	188	DIBBS
GC835ET1	2021-02-56	188	DIBBS
200082-001	2021-02-48	188	DIBBS
200082-004	2021-02-48	188	DIBBS
310-2222-336	2021-02-48	188	DIBBS
BACC47CM1B	2021-02-48	188	DIBBS
GC835ET1	2021-02-48	188	DIBBS
200082-001	2019-06-178	521	DIBBS
200082-004	2019-06-178	521	DIBBS
310-2222-336	2019-06-178	521	DIBBS
BACC47CM1B	2019-06-178	521	DIBBS
GC835ET1	2019-06-178	521	DIBBS
200082-001	2019-03-90	1374	DIBBS
200082-004	2019-03-90	1374	DIBBS
310-2222-336	2019-03-90	1374	DIBBS
BACC47CM1B	2019-03-90	1374	DIBBS
GC835ET1	2019-03-90	1374	DIBBS
200082-001	2019-01-29	355	DIBBS
200082-004	2019-01-29	355	DIBBS
310-2222-336	2019-01-29	355	DIBBS
BACC47CM1B	2019-01-29	355	DIBBS
GC835ET1	2019-01-29	355	DIBBS
5999-00-420-7175	2011-11-322	1260	US
5999-00-420-7175	2011-05-130	340	US
5999-00-420-7175	2008-07-185	7290	DIBBS
5999-00-420-7175	2008-05-143	6097	DIBBS
5999-00-420-7175	2008-02-60	5525	DIBBS
5999-00-420-7175	2008-01-31	2647	DIBBS

Cross Reference | NSN 5999-00-420-7175

Part Number	Cage Code	Manufacturer
141-156-03	26742	METHODE ELECTRONICS INC
200082-001	03877	GILBERT ENGINEERING CO INC/INCON SUB OF TRANSITRON ELECTRONIC CORP
200082-001	82316	CORNING OPTICAL COMMUNICATIONS RF LLC
200082-004	03877	GILBERT ENGINEERING CO INC/INCON SUB OF TRANSITRON ELECTRONIC CORP
210129-02	16512	ABELCONN LLC
210129-02	66886	ABELCONN, LLC
310-2222-336	55104	TRI-STAR ELECTRONICS INTERNATIONAL, INC.
72-1308899-1	04655	GENERAL DYNAMICS C4 SYSTEMS, INC.
965-22F-12	03877	GILBERT ENGINEERING CO INC/INCON SUB OF TRANSITRON ELECTRONIC CORP
965-22F-15	03877	GILBERT ENGINEERING CO INC/INCON SUB OF TRANSITRON ELECTRONIC CORP
96S-22F12	03877	GILBERT ENGINEERING CO INC/INCON SUB OF TRANSITRON ELECTRONIC CORP
BACC47CM1A	81205	THE BOEING COMPANY DBA BOEING
BACC47CM1B	81205	THE BOEING COMPANY DBA BOEING
GC835ET1	26512	NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE
GC835ET3	26512	NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5999-00-420-7175

Compare

Related Products | NSN 5999-00-420-7175

5999-00-420-7393, 5999-00-420-7409, 5999-00-420-7621, 5999-00-420-7735, 5999-00-420-8284

Technical Data | NSN 5999-00-420-7175

Characteristic	Specifications
STYLE DESIGNATOR	A4 SOCKET CONTACT

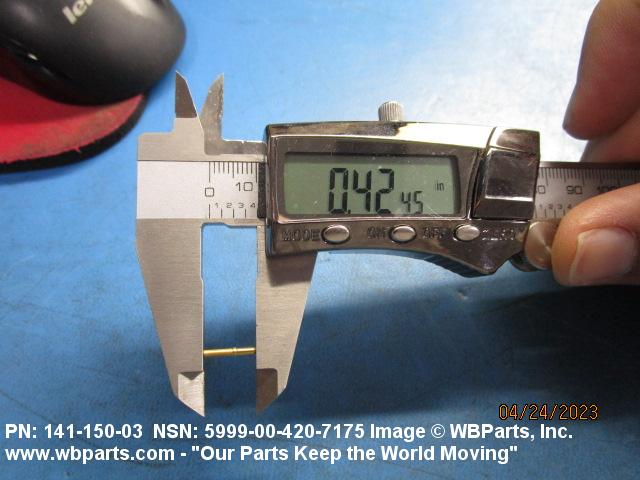

OVERALL LENGTH	0.420 INCHES NOMINAL
OVERALL DIAMETER	0.071 INCHES MINIMUM AND 0.075 INCHES MAXIMUM
MATERIAL	COPPER ALLOY CONTACT COPPER ALLOY BODY
MATERIAL DOCUMENT AND CLASSIFICATION	QQ-W-321 FED SPEC SINGLE MATERIAL RESPONSE BODY AND CONTACT
SURFACE TREATMENT	GOLD AND COPPER CONTACT GOLD AND COPPER BODY
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	MIL-G-45204 MIL SPEC SINGLE TREATMENT RESPONSE BODY AND CONTACT
TERMINAL TYPE AND QUANTITY	1 CRIMP AXIALLY AT ONE END
MOUNTING METHOD	FORCE FIT
PIN ACCOMMODATION LENGTH	0.164 INCHES MINIMUM AND 0.196 INCHES MAXIMUM
PIN ACCOMMODATION DIAMETER	0.059 INCHES MINIMUM AND 0.065 INCHES MAXIMUM
PIN DIAMETER	0.034 INCHES MINIMUM AND 0.036 INCHES MAXIMUM
CABLE ENTRANCE DIAMETER	0.034 INCHES MINIMUM AND 0.039 INCHES MAXIMUM
TEST DATA DOCUMENT	11293-72-1308899-1 DRAWING
III CURRENT RATING IN AMPS	5.0
III PRECIOUS MATERIAL	GOLD
III PRECIOUS MATERIAL AND WEIGHT	0.005 GOLD GRAINS, TROY
III PRECIOUS MATERIAL AND LOCATION	EXTERNAL SURFACES GOLD

Restrictions/Controls & Freight Information | NSN 5999-00-420-7175

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Electro-static Discharge Susceptible:	A	No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity
Precious Metals Indicator Code:	G	Item contains gold
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
