NSN 5999-00-462-8677 21033037034, 21-033037-034, 21-33037-34
Product Details | ELECTRICAL CONTACT
5999-00-462-8677 An item consisting of an electrically conductive material designed to furnish a surface which will physically and electrically meet another conducting surface for the purpose of transferring electrical energy and/or opening and closing circuits. Includes moving contacts which make and/or slide over stationary contacts or other stationary conductive material to a resulting fixed position. Excludes items which are used in conjunction with continually moving surfaces or which make contact by gripping action of the contact surfaces. See also CLIP, ELECTRICAL; CLAMP, ELECTRICAL; BRUSH, ELECTRICAL CONTACT; PLUG, TIP; and JACK, TIP.
Part Alternates: 21033037034, 21-033037-034, 21-33037-34, 9240428, 924042-8, 5999-00-462-8677, 00-462-8677, 5999004628677, 004628677, 213303734
Electrical and Electronic Equipment Components | Miscellaneous Electrical and Electronic Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 MAR 1972 | 00-462-8677 | 00443 ( CONTACT, ELECTRICAL ) |

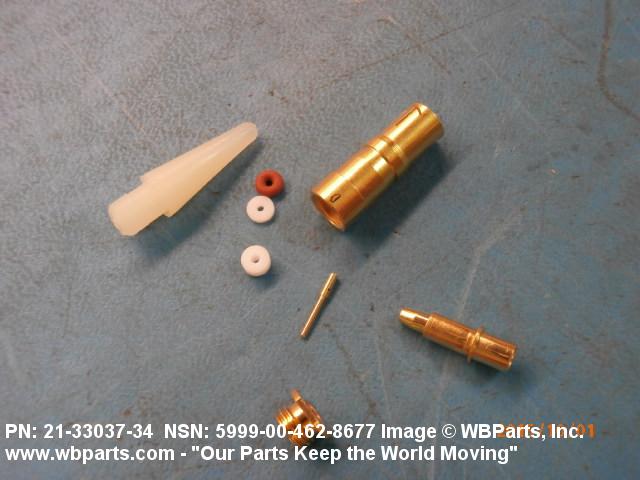

Drawings & Photos | NSN 5999-00-462-8677
Demand History | NSN 5999-00-462-8677
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5999-00-462-8677 | 2015-09-266 | 20 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5999-00-462-8677
Technical Data | NSN 5999-00-462-8677
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | A3 PIN CENTER CONTACT |

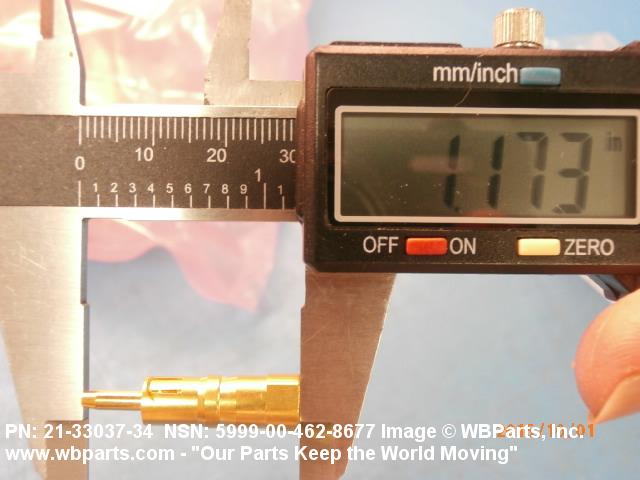

| OVERALL LENGTH | 1.144 INCHES NOMINAL |

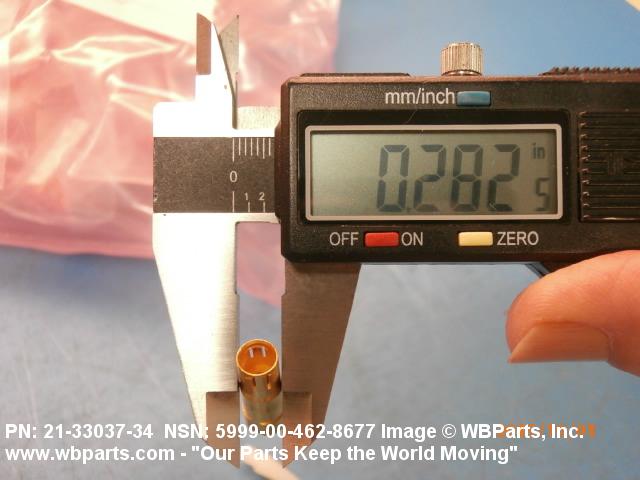

| OVERALL DIAMETER | 0.280 INCHES NOMINAL |
| MATERIAL | COPPER ALLOY CONTACT COPPER ALLOY BODY PLASTIC POLYTETRAFLUOROETHYLENE BODY INSULATION |
| SURFACE TREATMENT | GOLD AND COPPER CONTACT GOLD AND COPPER BODY |
| TERMINAL TYPE AND QUANTITY | 1 CRIMP AXIALLY AT ONE END |
| MOUNTING METHOD | FORCE FIT |
| PIN LENGTH | ANY ACCEPTABLE |
| PIN ACCOMMODATION LENGTH | 0.322 INCHES NOMINAL |
| PIN ACCOMMODATION DIAMETER | 0.218 INCHES NOMINAL |

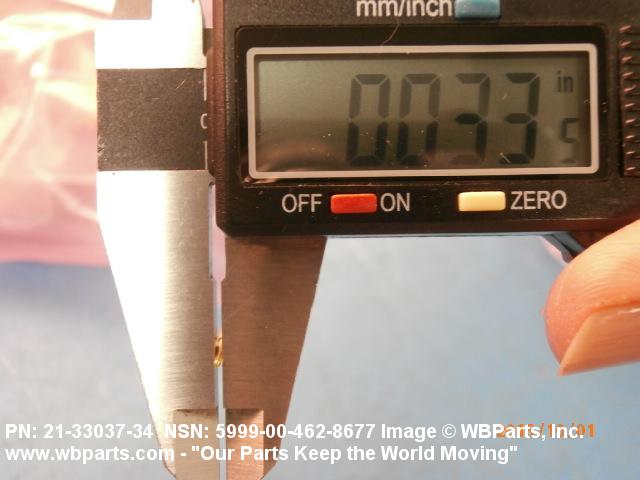

| PIN DIAMETER | 0.035 INCHES NOMINAL |
| CABLE ENTRANCE DIAMETER | 0.025 INCHES NOMINAL |
| RETENTION GROOVE DIAMETER | ANY ACCEPTABLE |
| III VOLTAGE RATING IN VOLTS | 2000.0 AC |
| III PRECIOUS MATERIAL | GOLD |
| III PRECIOUS MATERIAL AND LOCATION | EXTERNAL SURFACE GOLD |
Restrictions/Controls & Freight Information | NSN 5999-00-462-8677
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | G | Item contains gold |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061300 | CIRCUIT BREAKER/SWITCH NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5999-00-462-8677
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
