NSN 5999-00-473-3551 MS2749322D, MS27493-22D, MS39029/58-360

Product Details | ELECTRICAL CONTACT

5999-00-473-3551 An item consisting of an electrically conductive material designed to furnish a surface which will physically and electrically meet another conducting surface for the purpose of transferring electrical energy and/or opening and closing circuits. Includes moving contacts which make and/or slide over stationary contacts or other stationary conductive material to a resulting fixed position. Excludes items which are used in conjunction with continually moving surfaces or which make contact by gripping action of the contact surfaces. See also CLIP, ELECTRICAL; CLAMP, ELECTRICAL; BRUSH, ELECTRICAL CONTACT; PLUG, TIP; and JACK, TIP.

Part Alternates: MS2749322D, MS27493-22D, MS39029/58-360, MS3902958360, M24308/13-1, M24308131, M39029/55-360, M39029/57-364, M39029/58-360, M39029/58-3609, M3902955360, M3902957364, M3902958360, M39029583609, MC8522D, A03535, AS39029/58, AS3902958, B64542, BIN360, BIN-360, BS9522 F0039, BS9522F0039, C334Z52C276, C334-Z52-C276, CN09710220, CN0971-0220, FE1900005001N, FE190-0005-001N, MILC39029, MIL-C-39029, PC01000220D, PC-0100-0220D, T3402236LD, T3-4022-36LD, TM22Y2DJ5, VG96912P22D, W41256U6003K15, 5M.4593.221.49, 5M.4594.220.49, 5M459322149, 5M459422049, 78898103, 7889-8103, 85990902, 8599-0902, 8759150001, 875915-0001, 99142298, 0302042000, 030-2042-000, 10251415, 10-251415, 10251415725, 10-251415-725, 1025141572522D, 10-251415-725-22D, 1025141572G, 10-251415-72G, 2043701, 204370-1, 2043702, 204370-2, 23492196002, 234-92196-002, 2543111901, 25431-11901, 3152222103, 315-2222-103, 352250020843, 3894122, 38941-22, 39 587-001, 39587001, 39587-001, 4007689222, 4007689-222, 4180300001, 418-0300-001, 4181002200P02, 418-100-2200P-02, 42329983003, 42329-983-00-3, 5000068022, 5000-068-022, 503424000220, 5034-2400-0220, 5353401, 535340-1, 55077001, 5933125, 0008003225, 000-8003-225, 5999-00-473-3551, 00-473-3551, 5999004733551, 004733551

Electrical and Electronic Equipment Components | Miscellaneous Electrical and Electronic Components

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	10 JUN 1971	00-473-3551	00443 ( CONTACT, ELECTRICAL )

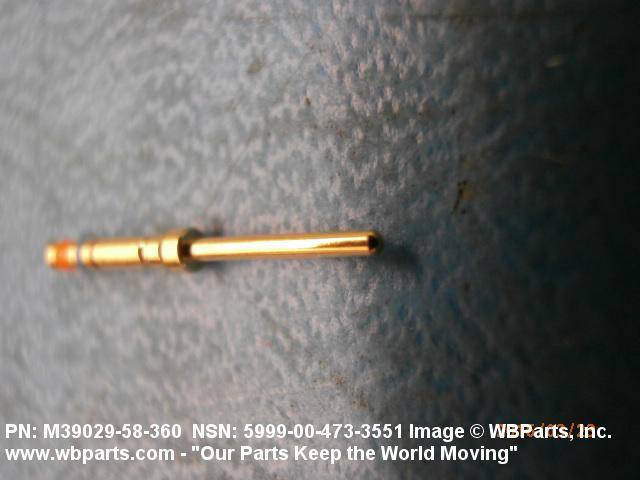

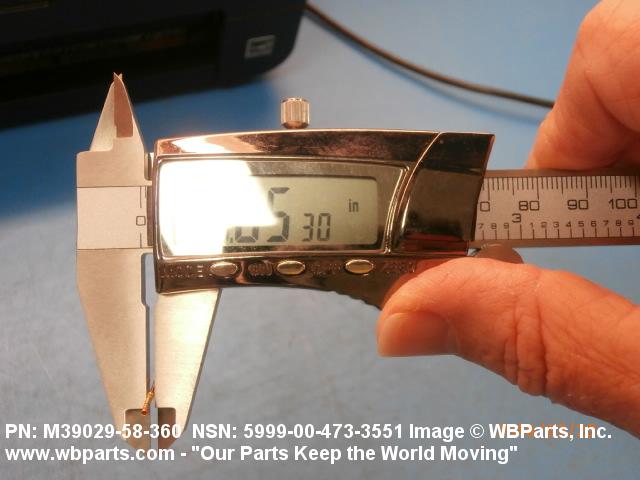

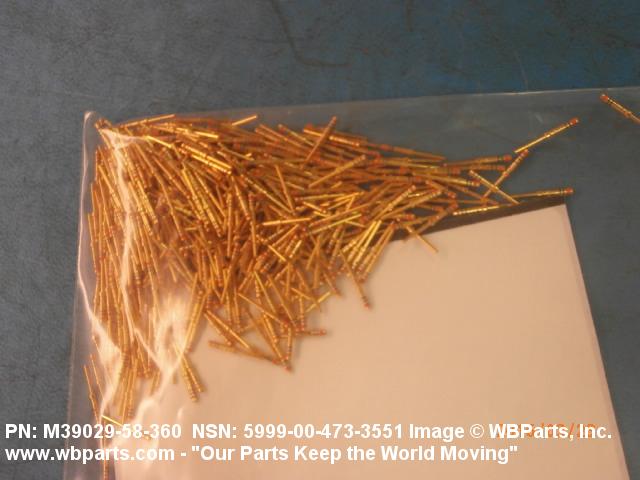

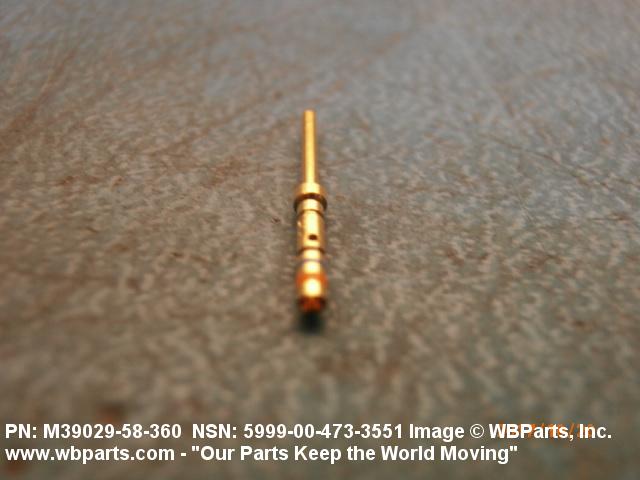

Drawings & Photos | NSN 5999-00-473-3551

Part Number	Request Date	QTY	Origin
5999-00-473-3551	2025-12-338	149233	DIBBS
5999-00-473-3551	2025-11-309	62710	DIBBS
M3902958360	2025-10-301	1000	United States
5999-00-473-3551	2025-10-296	128972	DIBBS
M3902958360	2025-10-295	1000	United States
M3902958360	2025-09-272	84	CN
M3902958360	2025-03-90	5	United States
M3902958360	2025-02-57	100	United States
M3902958360	2024-10-276	1	US
5999-00-473-3551	2024-07-213	200000	DIBBS
M3902958360	2024-03-86	4	LT
5999-00-473-3551	2024-03-64	121611	DIBBS
5999-00-473-3551	2024-02-53	121611	DIBBS
5999-00-473-3551	2023-10-303	64241	DIBBS
M3902958360	2023-10-277	120	United States
M3902958360	2023-07-207	150	us
MS2749322D	2023-01-03	100	United States
5999-00-473-3551	2022-01-06	2203	United States
5999-00-473-3551	2021-04-117	5	US
MS3902958360	2021-03-71	10	Japan
5999-00-473-3551	2021-02-41	4	United States
5999-00-473-3551	2021-02-40	4	United States
5999-00-473-3551	2020-09-264	9846	DIBBS
5999-00-473-3551	2020-07-210	11348	DIBBS
M39029/58-360	2019-12-347	35	US
M39029/58-360	2019-12-347	4	US
M39029/58-360	2019-12-347	2	US
M39029/58-360	2019-12-347	4	US
M39029/58-360	2019-12-347	4	US
M39029/58-360	2019-12-347	1	US
M39029/58-360	2019-12-347	1	US
M39029/58-360	2019-12-347	2	US
M39029/58-360	2019-12-347	2	US
5999-00-473-3551	2019-12-346	2	United States
M3902958360	2019-10-303	100	United States
M3902958360	2019-09-266	1400	United States
5999-00-473-3551	2019-09-261	1	DIBBS-RFPs
5999-00-473-3551	2019-07-193	40	United States
5999-00-473-3551	2019-06-165	229	United States
5999-00-473-3551	2019-06-156	100	ES
5999-00-473-3551	2019-04-115	205000	DIBBS
5999-00-473-3551	2018-08-234	91000	DIBBS
5999-00-473-3551	2018-04-118	200	PH
M3902958360	2017-10-286	1000	United States
M3902958360	2017-10-278	1000	United States
M3902958360	2017-09-270	156	United States
M39029/58-360	2017-06-171	71	United States
M3902958360	2016-03-76	500	us
M3902957364	2016-03-63	25	DE
M3902958360	2015-07-212	500	United States
M39029/58-360	2015-04-91	785	Greece
5999-00-473-3551	2014-09-267	1	DIBBS-RFPs
5999-00-473-3551	2014-09-261	349000	DIBBS
5999-00-473-3551	2014-08-233	72500	DIBBS
5999-00-473-3551	2014-07-201	44358	DIBBS
5999-00-473-3551	2014-02-49	15	IN
5999-00-473-3551	2013-09-248	2250	DIBBS
M39029/58-360	2013-08-225	1000	Hong Kong
M3902958360	2013-07-192	400	FR
5999-00-473-3551	2012-12-363	0	DIBBS
M3902958360	2012-11-324	50	Italy
5999-00-473-3551	2012-08-240	71160	DIBBS
5999-00-473-3551	2012-08-235	1000	DIBBS
5999-00-473-3551	2012-08-233	14044	DIBBS
5999-00-473-3551	2012-07-202	27242	DIBBS
M39029/58-360	2012-04-110	400	PK
5999-00-473-3551	2011-10-291	34210	DIBBS
M3902958360	2011-10-278	210	us
5999-00-473-3551	2011-09-245	28472	DIBBS
5999-00-473-3551	2011-08-216	36342	DIBBS
5999-00-473-3551	2011-05-146	22200	DIBBS
5999-00-473-3551	2011-04-109	26264	DIBBS
5999-00-473-3551	2011-02-38	22329	DIBBS
5999-00-473-3551	2010-12-361	21302	DIBBS
5999-00-473-3551	2010-11-308	22279	DIBBS
5999-00-473-3551	2010-10-291	2	US
5999-00-473-3551	2010-08-221	30000	DIBBS
5999-00-473-3551	2010-05-121	31546	DIBBS
5999-00-473-3551	2010-03-60	8250	US
5999-00-473-3551	2010-02-53	14591	DIBBS
MILC39029	2008-10-276	500	India
5999-00-473-3551	2008-08-238	43150	DIBBS
5999-00-473-3551	2008-05-136	500	US
5999-00-473-3551	2008-04-115	100	United States
5999-00-473-3551	2007-05-149	200000	DIBBS
5999-00-473-3551	2007-05-136	90215	DIBBS
5999-00-473-3551	2007-05-135	56823	DIBBS

Cross Reference | NSN 5999-00-473-3551

Part Number	Cage Code	Manufacturer
000-8003-225	94756	BOEING COMPANY, THE DBA BOEING
030-2042-000	71468	ITT CORPORATION DBA I T T CANNON
030-2042-000	D1371	ITT CANNON GMBH
10-251415	77820	AMPHENOL CORPORATION DBA AMPHENOL AEROSPACE INDUSTRIAL
10-251415-725	77820	AMPHENOL CORPORATION DBA AMPHENOL AEROSPACE INDUSTRIAL
10-251415-725	C7057	AMPHENOL-AIRLB GMBH
10-251415-725	D8311	AMPHENOL-TUCHEL ELECTRONICS GMBH
10-251415-725	D9853	ROCKWELL COLLINS DEUTSCHLAND SERVICES GMBH
10-251415-725-22D	77820	AMPHENOL CORPORATION DBA AMPHENOL AEROSPACE INDUSTRIAL
10-251415-72G	77820	AMPHENOL CORPORATION DBA AMPHENOL AEROSPACE INDUSTRIAL
204370-1	00779	TYCO ELECTRONICS CORPORATION
204370-2	00779	TYCO ELECTRONICS CORPORATION
234-92196-002	96182	EATON CORPORATION DBA AEROSPACE & COMMERCIAL DIVISION
25431-11901	K0662	SELEX ES LTD
315-2222-103	55104	TRI-STAR ELECTRONICS INTERNATIONAL, INC.
352250020843	H0203	THALES NEDERLAND B.V. DBA THALES LAND & JOINT SYSTEMS
38941-22	11139	DEUTSCH ENGINEERED CONNECTING DEVICES INC
39 587-001	D8311	AMPHENOL-TUCHEL ELECTRONICS GMBH
39587-001	D9853	ROCKWELL COLLINS DEUTSCHLAND SERVICES GMBH
4007689-222	07187	HONEYWELL INTERNATIONAL INC. DBA HONEYWELL
418-0300-001	94756	BOEING COMPANY, THE DBA BOEING
418-100-2200P-02	02660	AMPHENOL CORP SPECTRA-STRIP/ITD
42329-983-00-3	K4556	BRITISH AEROSPACE DEFENCE SYSTEMS LTD T/A BAE SYSTEMS
42329-983-00-3	KC1M9	BAE SYSTEMS MARITIME SERVICESLIMITED
430-8584-110	D1371	ITT CANNON GMBH
5000-068-022	14283	AMPHENOL OPTIMIZE MANUFACTURING CO. DIV AMPHENOL AEROSPACE OPERATIONS
5034-2400-0220	99447	COOPER INTERCONNECT, INC. DIV INTERCONNECT
5034-2400-0220	C7407	IV-ELECTRONIC KLAUS VESPERMANN KG
523/4/18219/000	K2323	AB CONNECTORS LTD
535340-1	96214	RAYTHEON COMPANY DBA RAYTHEON
55077001	64572	TECHNOLOGY DYNAMICS, INC.
5933125	S0522	TADIRAN LTD
5M.4593.221.49	D1901	AIRBUS DEFENCE AND SPACE GMBH DIV SEPS
5M.4594.220.49	D1901	AIRBUS DEFENCE AND SPACE GMBH DIV SEPS
7889-8103	U6441	UTC AEROSPACE SYSTEMS LIMITED DBA GOODRICH SENSORS AND INTEGRATED
8599-0902	59610	SOURIAU INC
875915-0001	65597	THALES DEFENSE & SECURITY, INC.
99142298	F8224	THALES AIR SYSTEMS SA
A03535	K0967	MBDA UK LTD
AS39029/58	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
B64542	K0967	MBDA UK LTD
BIN-360	16236	DLA LAND AND MARITIME
BS9522 F0039	K7766	BRITISH STANDARDS INSTITUTION
C334-Z52-C276	S3120	SIEMENS SCHWEIZ AG DBA SIEMENS SWITZERLAND LTD.
CN0971-0220	13556	LABINAL COMPONENTS AND SYSTEMS INC CINCH MILITARY AEROSPACE DIV
FE190-0005-001N	K3902	BAE SYSTEMS MARITIME SERVICES
M24308/13-1	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
M39029/55-360	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
M39029/57-364	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
M39029/58-360	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
M39029/58-360	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
M39029/58-3609	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MC8522D	28198	POSITRONIC INDUSTRIES, INC.
MIL-C-39029	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MS27493-22D	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS39029/58-360	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MS39029/58-360	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
PC-0100-0220D	60197	GBENJO LAW GROUP THE
T3-4022-36LD	49367	AMPHENOL CORPORATION DBA AMPHENOL AEROSPACE INDUSTRIAL
TM22Y2DJ5	07722	DIVERSIFIED PRODUCTS CORP
VG96912P22D	D9477	BUNDESAMT FUER AUSRUESTUNG,
W41256U6003K15	C0426	AIRBUS DEFENCE AND SPACE GMBHELECTRONICS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5999-00-473-3551

Compare

Related Products | NSN 5999-00-473-3551

5999-00-473-3620, 5999-00-473-3629, 5999-00-473-3671, 5999-00-473-3682, 5999-00-473-3684

Technical Data | NSN 5999-00-473-3551

Characteristic	Specifications
STYLE DESIGNATOR	A9 PIN CONTACT

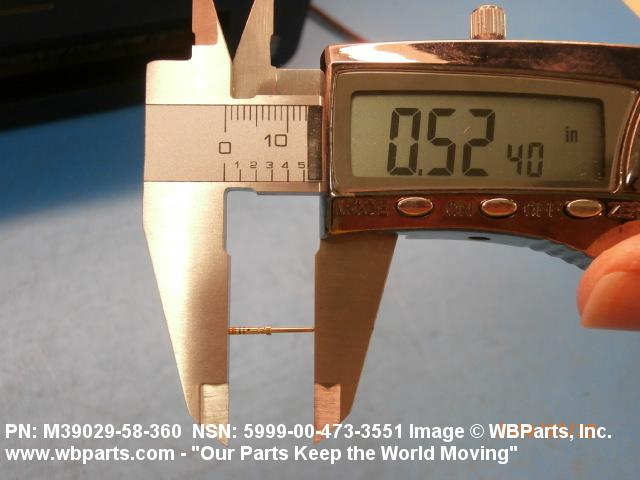

OVERALL LENGTH	0.531 INCHES NOMINAL
OVERALL DIAMETER	0.060 INCHES MINIMUM AND 0.062 INCHES MAXIMUM
MATERIAL	COPPER ALLOY CONTACT COPPER ALLOY BODY
SURFACE TREATMENT	GOLD BODY AND CONTACT
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	MIL-G-45204 MIL SPEC SINGLE TREATMENT RESPONSE BODY AND CONTACT

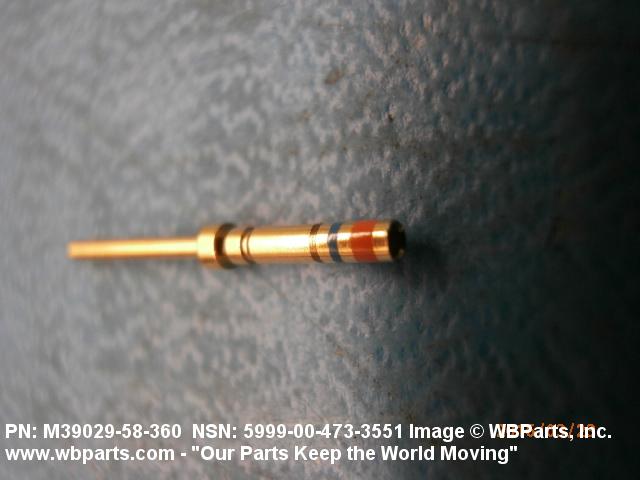

IDENTIFICATION CODE COLOR	ORANGE AND BLUE AND BLACK
TERMINAL TYPE AND QUANTITY	1 CRIMP AXIALLY AT ONE END
MOUNTING METHOD	ANY ACCEPTABLE
PIN LENGTH	0.266 INCHES MINIMUM AND 0.267 INCHES MAXIMUM
PIN DIAMETER	0.030 INCHES MINIMUM AND 0.305 INCHES MAXIMUM
CABLE ENTRANCE DIAMETER	0.034 INCHES MINIMUM AND 0.036 INCHES MAXIMUM
SPECIAL FEATURES	BASIC ITEM IDENTIFICATION NUMBER BIN-360
TEST DATA DOCUMENT	81349-MIL-C-39029/58 SPECIFICATION
SPECIFICATION/STANDARD DATA	81349-MIL-C-39029/58 GOVERNMENT SPECIFICATION
III PRECIOUS MATERIAL	GOLD
III PRECIOUS MATERIAL AND WEIGHT	0.005 GOLD GRAINS, TROY
III PRECIOUS MATERIAL AND LOCATION	BODY AND CONTACT SURFACES GOLD
III CRIMPING TOOL IDENTIFYING NUMBER	M22520/2-01
MANUFACTURERS CODE	81349
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MIL-C-39029
MANUFACTURERS CODE	81349
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	M39029/58-360

Restrictions/Controls & Freight Information | NSN 5999-00-473-3551

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Electro-static Discharge Susceptible:	A	No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity
Precious Metals Indicator Code:	G	Item contains gold
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	061700	ELEC APPLIANCES/INSTRUMENTS NOI
Less than car load rating	P	77.5
Less than truck load rating	W	Rating Variable
Water commodity Code	72D	unknown
Originating Activity Code	TX	Defense Supply Center Columbus Columbus, OH 43218
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	3	Electrostatic Sensitive Device (ESD), subject to damage caused by electrostatic discharge. (See DoD 4500.32-R, Volume 1, Appendix A, Section I for additional information on ESD devices).

Management | NSN 5999-00-473-3551

Air Force
Navy

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation Code	EH	SX:ELECTRONIC COMPONENTS
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	V	TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	V	TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
