NSN 5999-00-549-8629 005498629
Product Details | ELECTRICAL SHIELD RETAINER
5999-00-549-8629 An item specifically designed to position and restrain the movement of an electrical shield in relation to another item. Retainer must not be an integral part of the shield.
Part Alternates: 005498629
Electrical and Electronic Equipment Components | Electron Tubes and Associated Hardware
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 00-549-8629 | 16130 ( RETAINER, ELECTRICAL SHIELD ) |

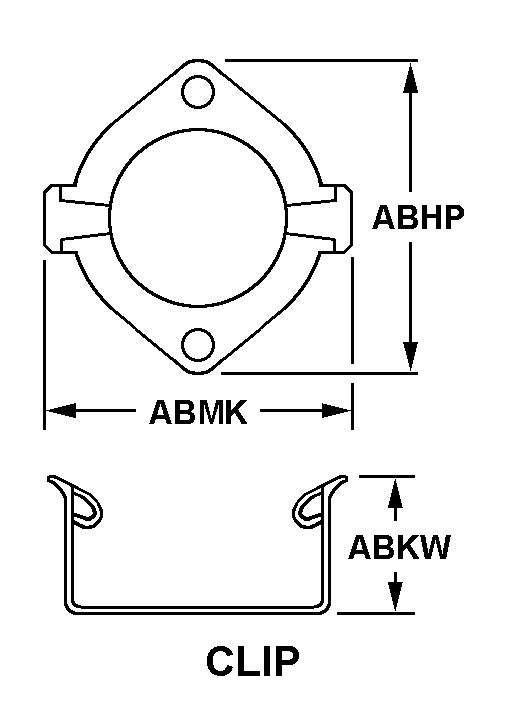

Drawings & Photos | NSN 5960-00-549-8629
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5999-00-549-8629
Technical Data | NSN 5999-00-549-8629
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY |
| SURFACE TREATMENT | NICKEL |
| STYLE DESIGNATOR | 32B CLIP |
| OVERALL LENGTH | 1.125 INCHES NOMINAL |
| OVERALL HEIGHT | 0.625 INCHES NOMINAL |
| OVERALL WIDTH | 0.770 INCHES NOMINAL |
| ACCOMMODATED ITEM SECURING DEVICE TYPE | SPRING CLIP |
| MOUNTING FACILITY TYPE AND QUANTITY | 2 UNTHREADED HOLE SINGLE MOUNTING FACILITY |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.125 INCHES NOMINAL SINGLE MOUNTING FACILITY |
| DISTANCE BETWEEN MOUNTING FACILITY CENTERS | 0.875 INCHES NOMINAL SINGLE MOUNTING FACILITY SINGLE CENTER GROUP |
Restrictions/Controls & Freight Information | NSN 5999-00-549-8629
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
