NSN 5999-00-769-0783 3481005047S02, 348-100-5047S02, 7902484-05
Product Details | ELECTRICAL CONTACT
5999-00-769-0783 An item consisting of an electrically conductive material designed to furnish a surface which will physically and electrically meet another conducting surface for the purpose of transferring electrical energy and/or opening and closing circuits. Includes moving contacts which make and/or slide over stationary contacts or other stationary conductive material to a resulting fixed position. Excludes items which are used in conjunction with continually moving surfaces or which make contact by gripping action of the contact surfaces. See also CLIP, ELECTRICAL; CLAMP, ELECTRICAL; BRUSH, ELECTRICAL CONTACT; PLUG, TIP; and JACK, TIP.
Part Alternates: 3481005047S02, 348-100-5047S02, 7902484-05, 5999-00-769-0783, 00-769-0783, 5999007690783, 007690783, 790248405
Electrical and Electronic Equipment Components | Miscellaneous Electrical and Electronic Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 09 APR 1972 | 00-769-0783 | 00443 ( CONTACT, ELECTRICAL ) |

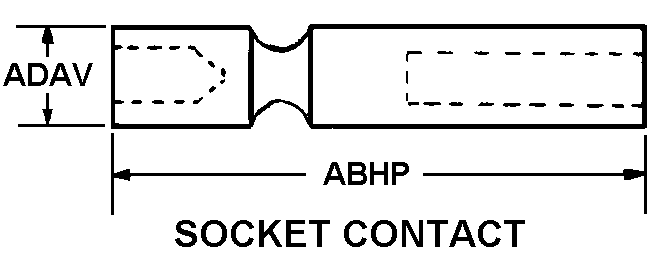

Drawings & Photos | NSN 5999-00-769-0783
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5999-00-769-0783
Technical Data | NSN 5999-00-769-0783
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | A2 SOCKET CONTACT |
| OVERALL LENGTH | 0.725 INCHES NOMINAL |
| OVERALL DIAMETER | 0.0480 INCHES MINIMUM AND 0.0495 INCHES MAXIMUM |
| MATERIAL | COPPER ALLOY BODY |
| SURFACE TREATMENT | GOLD BODY |
| PIN ACCOMMODATION LENGTH | 0.170 INCHES MINIMUM AND 0.220 INCHES MAXIMUM |
| PIN ACCOMMODATION DIAMETER | 0.029 INCHES MINIMUM AND 0.030 INCHES MAXIMUM |
| CABLE ENTRANCE DIAMETER | 0.029 INCHES MINIMUM AND 0.032 INCHES MAXIMUM |
| RETENTION GROOVE DIAMETER | 0.036 INCHES MINIMUM AND 0.039 INCHES MAXIMUM |
| III CURRENT RATING IN AMPS | 5.0 |
| MANUFACTURERS CODE | 90536 |
| MFR SOURCE CONTROLLING REFERENCE | 7902484-05 |
Restrictions/Controls & Freight Information | NSN 5999-00-769-0783
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | G | Item contains gold |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061300 | CIRCUIT BREAKER/SWITCH NOI |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | KE | Naval ICP Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5999-00-769-0783
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Special Material ID | BP | PATROLAIRCRAFT(P3) |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
A EA : Each |
