NSN 5999-00-891-2560 MS16Y16C300, MS16Y20C300, W41257F6602D1
Product Details | ELECTRICAL CONTACT
5999-00-891-2560 An item consisting of an electrically conductive material designed to furnish a surface which will physically and electrically meet another conducting surface for the purpose of transferring electrical energy and/or opening and closing circuits. Includes moving contacts which make and/or slide over stationary contacts or other stationary conductive material to a resulting fixed position. Excludes items which are used in conjunction with continually moving surfaces or which make contact by gripping action of the contact surfaces. See also CLIP, ELECTRICAL; CLAMP, ELECTRICAL; BRUSH, ELECTRICAL CONTACT; PLUG, TIP; and JACK, TIP.
Part Alternates: MS16Y16C300, MS16Y20C300, W41257F6602D1, W41257-F6602-D1, 0712110123, 0712110-123, 5800583097603003, 5800583-097603-003, 9970115, 997011-5, 5999-00-891-2560, 00-891-2560, 5999008912560, 008912560
Electrical and Electronic Equipment Components | Miscellaneous Electrical and Electronic Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 13 JAN 1967 | 00-891-2560 | 00443 ( CONTACT, ELECTRICAL ) |

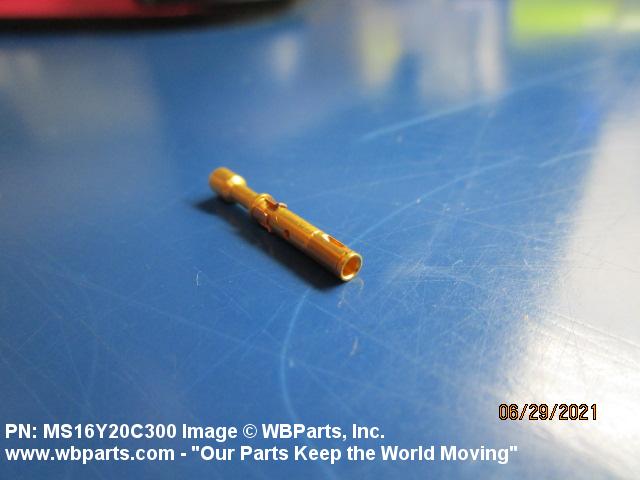

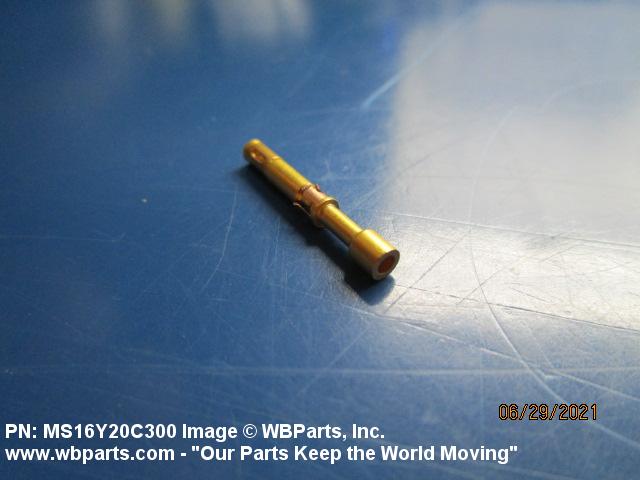

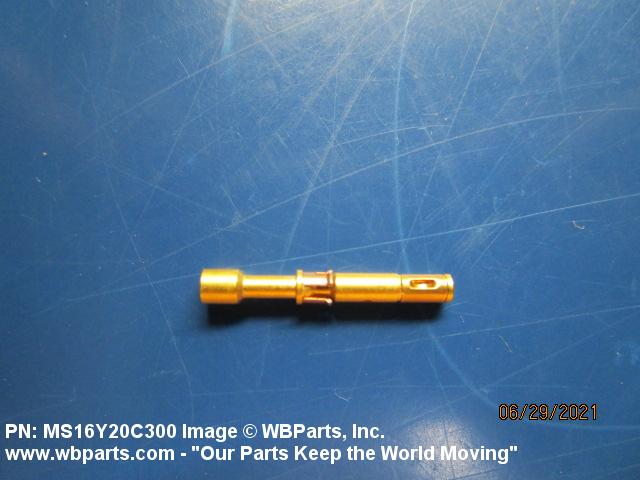

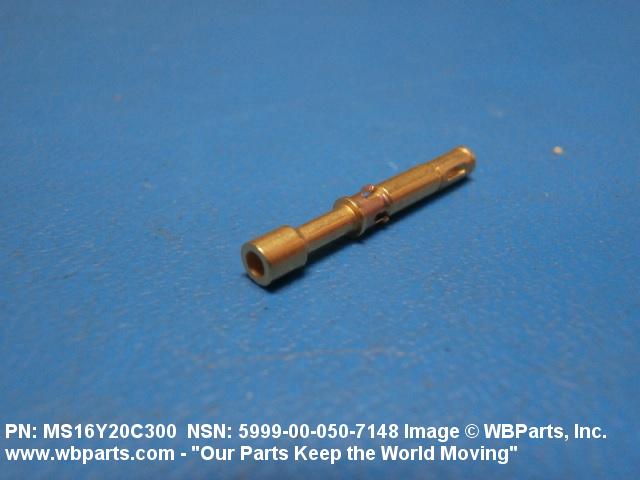

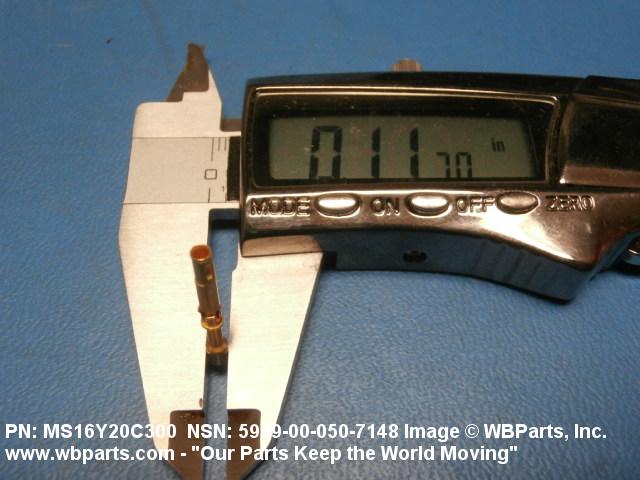

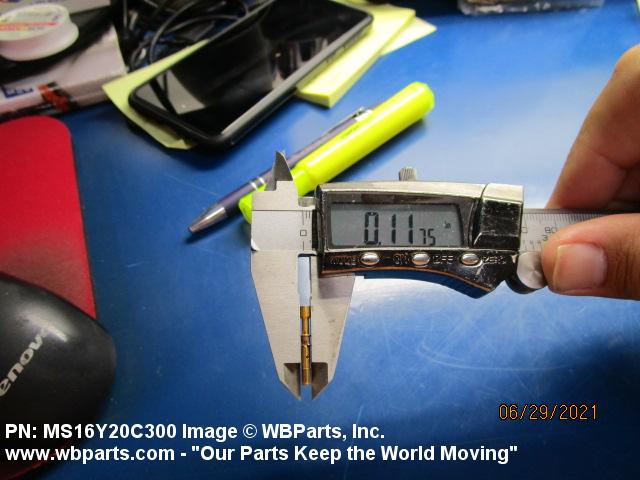

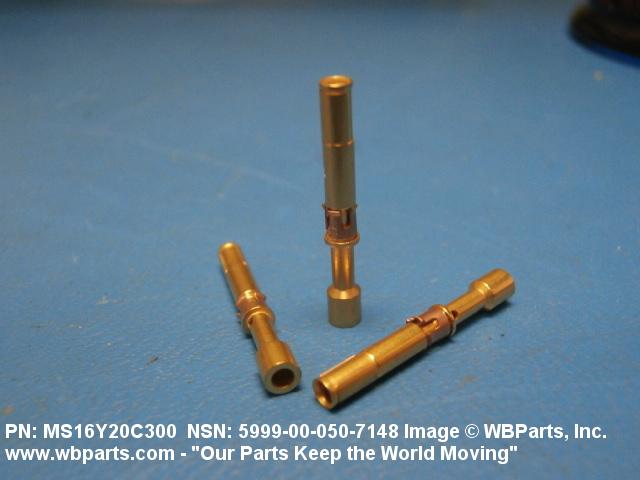

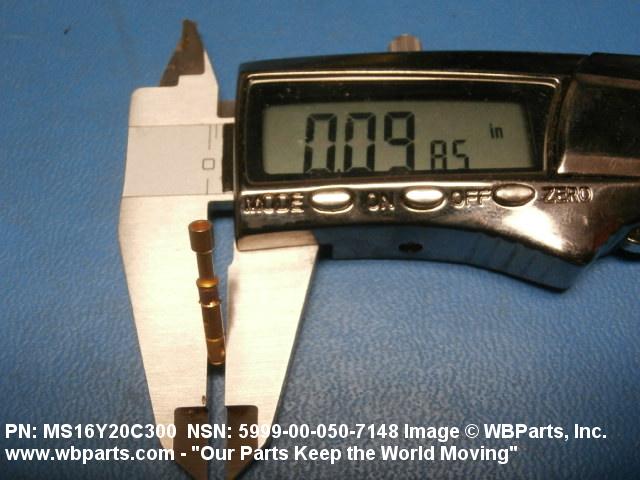

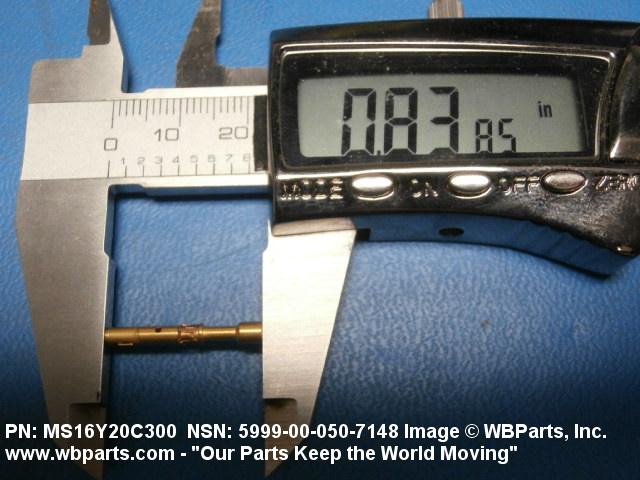

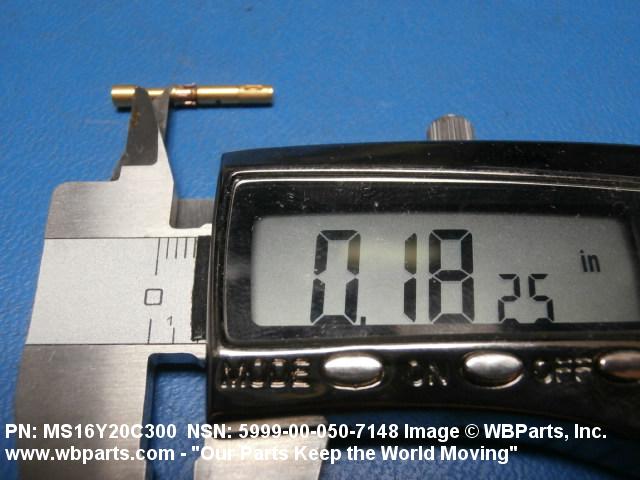

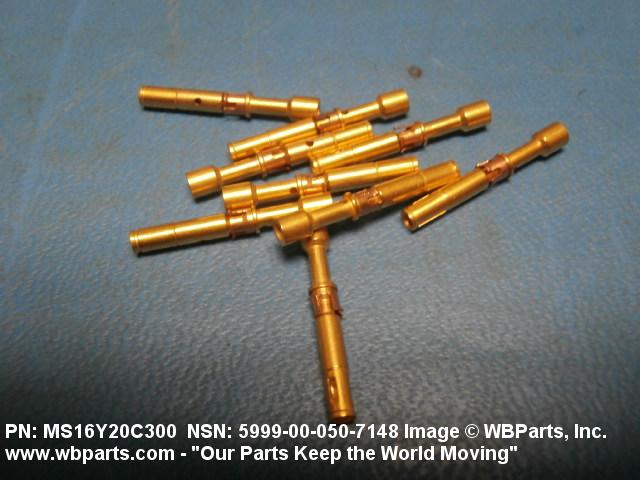

Drawings & Photos | NSN 5999-00-891-2560
Demand History | NSN 5999-00-891-2560
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS16Y20C300 | 2021-06-160 | 50 | United States |
Cross Reference | NSN 5999-00-891-2560
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 0712110-123 | 05869 | RAYTHEON COMPANY DBA RAYTHEON |
| 5800583-097603-003 | C0426 | AIRBUS DEFENCE AND SPACE GMBHELECTRONICS |
| 997011-5 | 82577 | RAYTHEON COMPANY DBA RAYTHEON |
| MS16Y16C300 | K5533 | RAYTHEON SYSTEMS LTD |
| MS16Y16C300 | U3650 | PACKARD HUGHES INTERCONNECT DELPHI A TOMOTIVE SYSTEMS |
| MS16Y20C300 | 73293 | L-3 COMMUNICATIONS ELECTRON TECHNOLOGIES, INC. |
| W41257-F6602-D1 | C0426 | AIRBUS DEFENCE AND SPACE GMBHELECTRONICS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5999-00-891-2560
Technical Data | NSN 5999-00-891-2560
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | A4 SOCKET CONTACT |

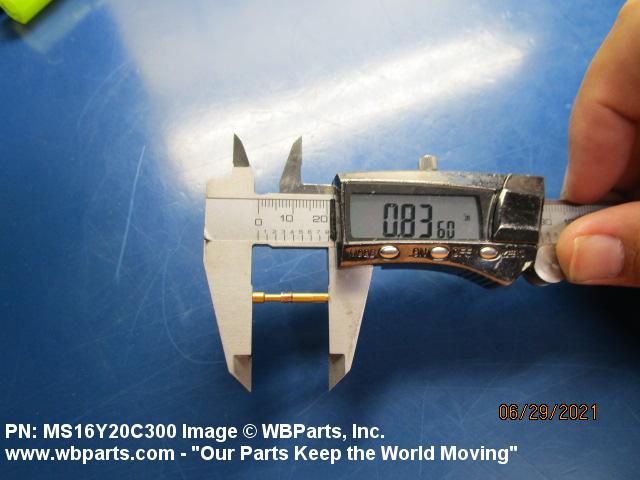

| OVERALL LENGTH | 0.835 INCHES NOMINAL |

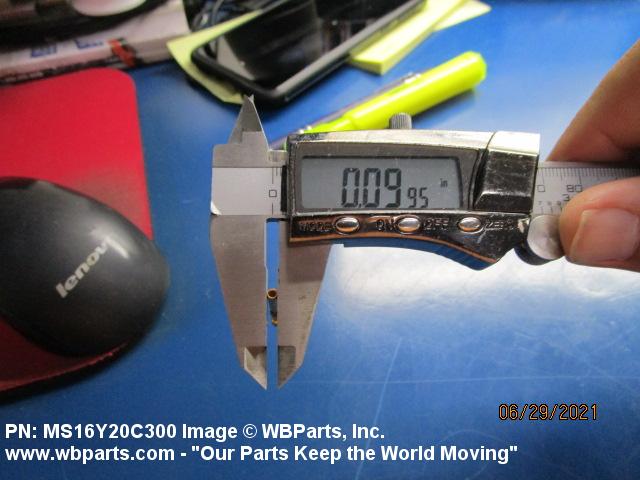

| OVERALL DIAMETER | 0.120 INCHES MAXIMUM |
| MATERIAL | COPPER ALLOY 360 BODY AND CONTACT |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-B-626,COMPOSITION 22 FED SPEC SINGLE MATERIAL RESPONSE BODY AND CONTACT |
| SURFACE TREATMENT | GOLD AND COPPER BODY AND CONTACT |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-G-45204,TYPE 2,CLASS 1 MIL SPEC 1ST TREATMENT RESPONSE BODY AND CONTACT |
| IDENTIFICATION CODE COLOR | RED |
| TERMINAL TYPE AND QUANTITY | 1 CRIMP AND SOLDER END OPPOSITE CONTACT |
| MOUNTING METHOD | FORCE FIT |
| PIN ACCOMMODATION LENGTH | 0.312 INCHES NOMINAL |

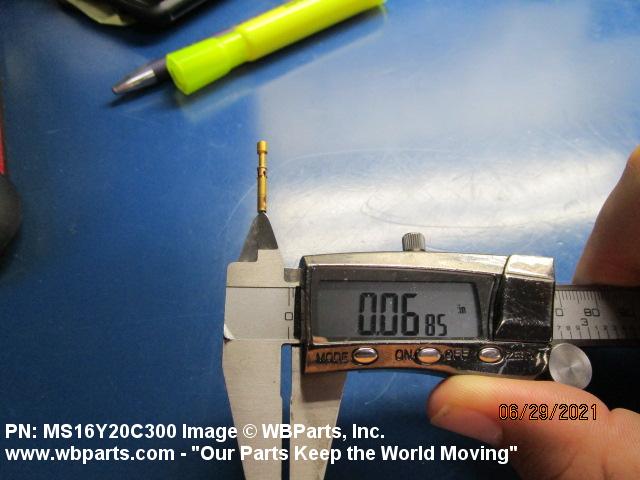

| PIN ACCOMMODATION DIAMETER | 0.065 INCHES NOMINAL |
| CABLE ENTRANCE DIAMETER | 0.069 INCHES NOMINAL |
| III CURRENT RATING IN AMPS | 13.0 |
| III PRECIOUS MATERIAL | GOLD |
| III PRECIOUS MATERIAL AND WEIGHT | 0.005 GOLD GRAINS, TROY |
| III PRECIOUS MATERIAL AND LOCATION | BODY AND CONTACT SURFACES GOLD |
Restrictions/Controls & Freight Information | NSN 5999-00-891-2560
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | G | Item contains gold |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061300 | CIRCUIT BREAKER/SWITCH NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5999-00-891-2560
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9N | Navy-owned stocks of defense electronic material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9E | Defense Supply Center Columbus Columbus, OH 43218 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
