NSN 5999-00-931-5939 S2020SHE21, S2020SH-E21, S2020SHE210319

Product Details | ELECTRICAL CONTACT

5999-00-931-5939 An item consisting of an electrically conductive material designed to furnish a surface which will physically and electrically meet another conducting surface for the purpose of transferring electrical energy and/or opening and closing circuits. Includes moving contacts which make and/or slide over stationary contacts or other stationary conductive material to a resulting fixed position. Excludes items which are used in conjunction with continually moving surfaces or which make contact by gripping action of the contact surfaces. See also CLIP, ELECTRICAL; CLAMP, ELECTRICAL; BRUSH, ELECTRICAL CONTACT; PLUG, TIP; and JACK, TIP.

Part Alternates: S2020SHE21, S2020SH-E21, S2020SHE210319, S2020SHE21-031-9, GC835AH2, PM0762020M12119, PM076-2020-M12-119, 0319134001, 031-9134-001, 110A326P2, 1823041, 24419236, 2441923-6, 5999-00-931-5939, 00-931-5939, 5999009315939, 009315939

Electrical and Electronic Equipment Components | Miscellaneous Electrical and Electronic Components

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	21 SEP 1966	00-931-5939	00443 ( CONTACT, ELECTRICAL )

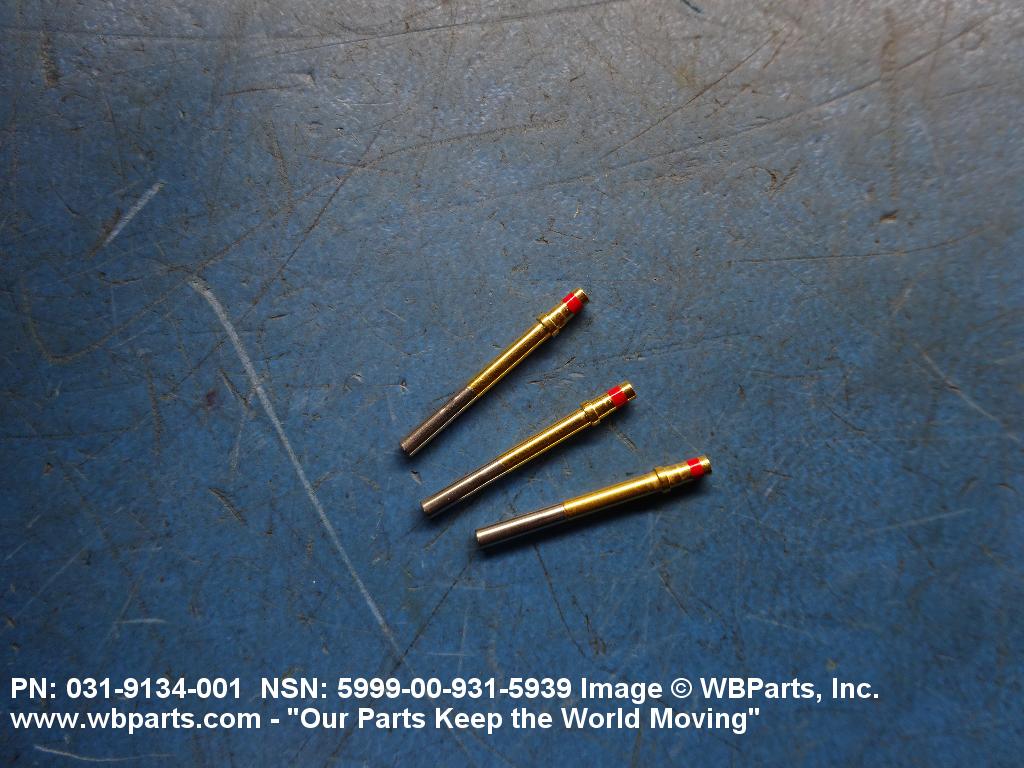

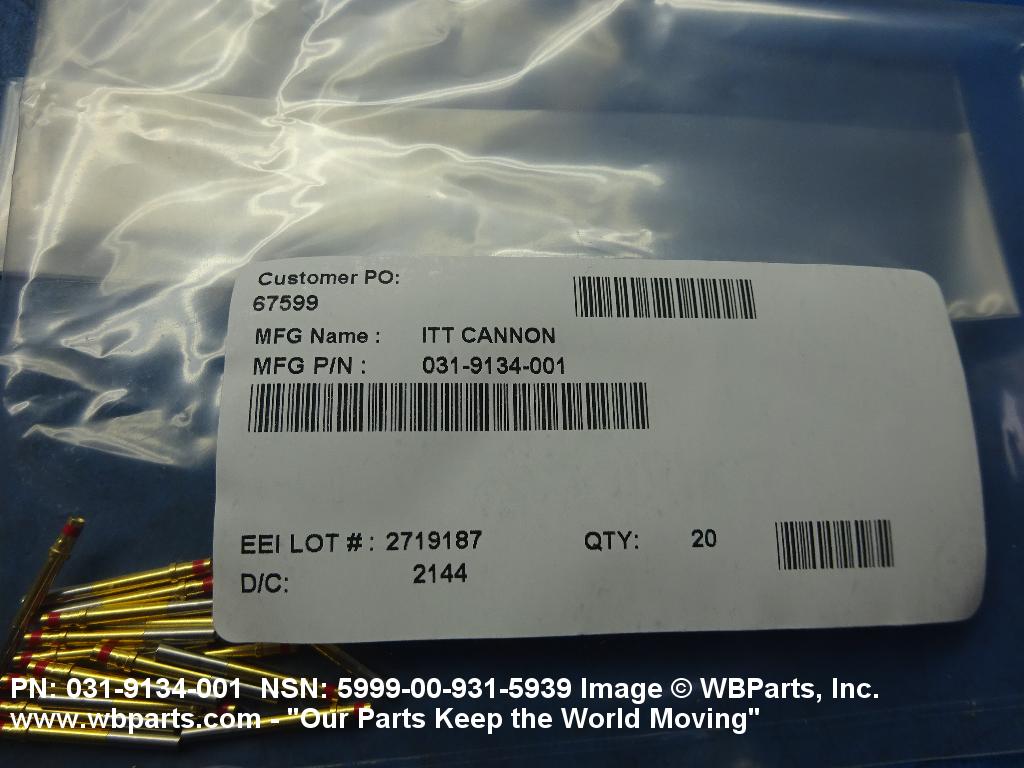

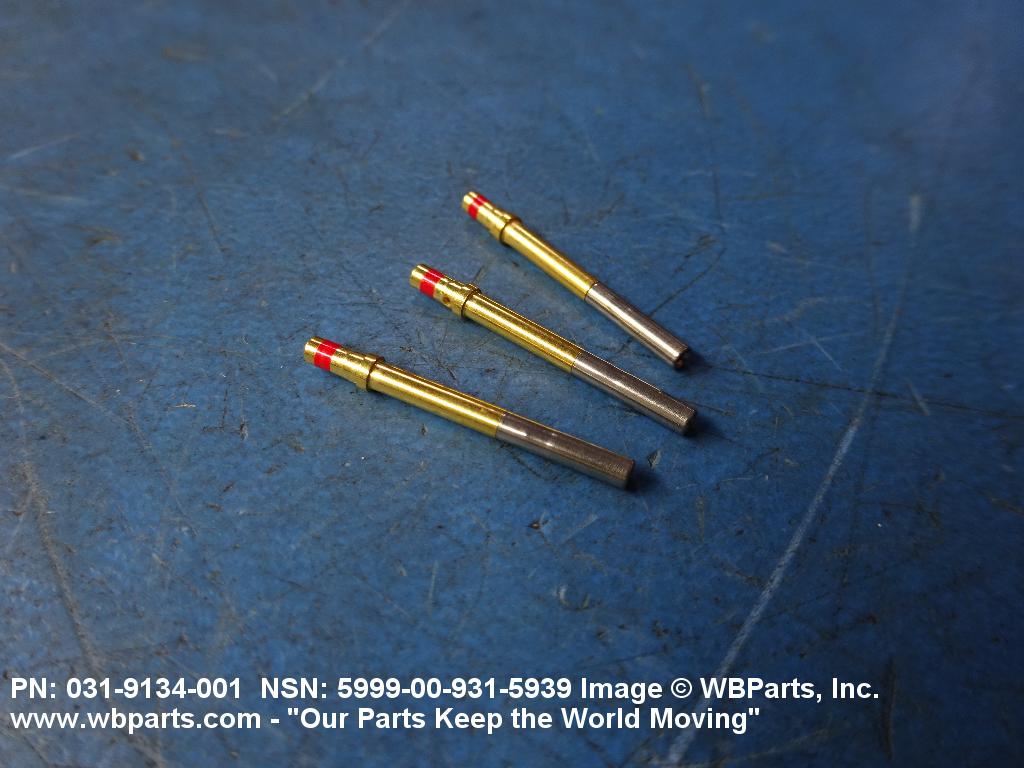

Drawings & Photos | NSN 5999-00-931-5939

Part Number	Request Date	QTY	Origin
0319134001	2024-03-66	10	United States
0319134001	2023-10-303	91	United States
5999-00-931-5939	2022-07-207	20	United States
5999-00-931-5939	2021-04-104	100	United States
5999-00-931-5939	2016-03-87	1103	DIBBS
5999-00-931-5939	2016-03-75	2471	DIBBS
5999-00-931-5939	2015-01-12	1296	DIBBS
5999-00-931-5939	2015-01-01	1296	DIBBS
5999-00-931-5939	2013-08-240	3418	DIBBS
5999-00-931-5939	2010-09-264	1359	DIBBS
5999-00-931-5939	2008-10-303	733	DIBBS

Cross Reference | NSN 5999-00-931-5939

Part Number	Cage Code	Manufacturer
031-9134-001	0YDA6	ARROW ELECTRONICS, INC. DBA ARROW ZEUS ELECTRONICS
031-9134-001	71468	ITT CORPORATION DBA I T T CANNON
110A326P2	24039	VARO LLC
1823041	55972	HONEYWELL INTL INC DEFENSE AVIONICS SYSTEMS
2441923-6	10001	NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT
GC835AH2	26512	NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE
PM076-2020-M12-119	0BA72	PRECISION TECHNOLOGY AND MANUFACTURING INC
S2020SH-E21	71468	ITT CORPORATION DBA I T T CANNON
S2020SHE21-031-9	71468	ITT CORPORATION DBA I T T CANNON

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5999-00-931-5939

Compare

Related Products | NSN 5999-00-931-5939

5999-00-931-5978, 5999-00-931-6049, 5999-00-931-6238, 5999-00-931-6359, 5999-00-931-6360

Technical Data | NSN 5999-00-931-5939

Characteristic	Specifications
STYLE DESIGNATOR	A2 SOCKET CONTACT

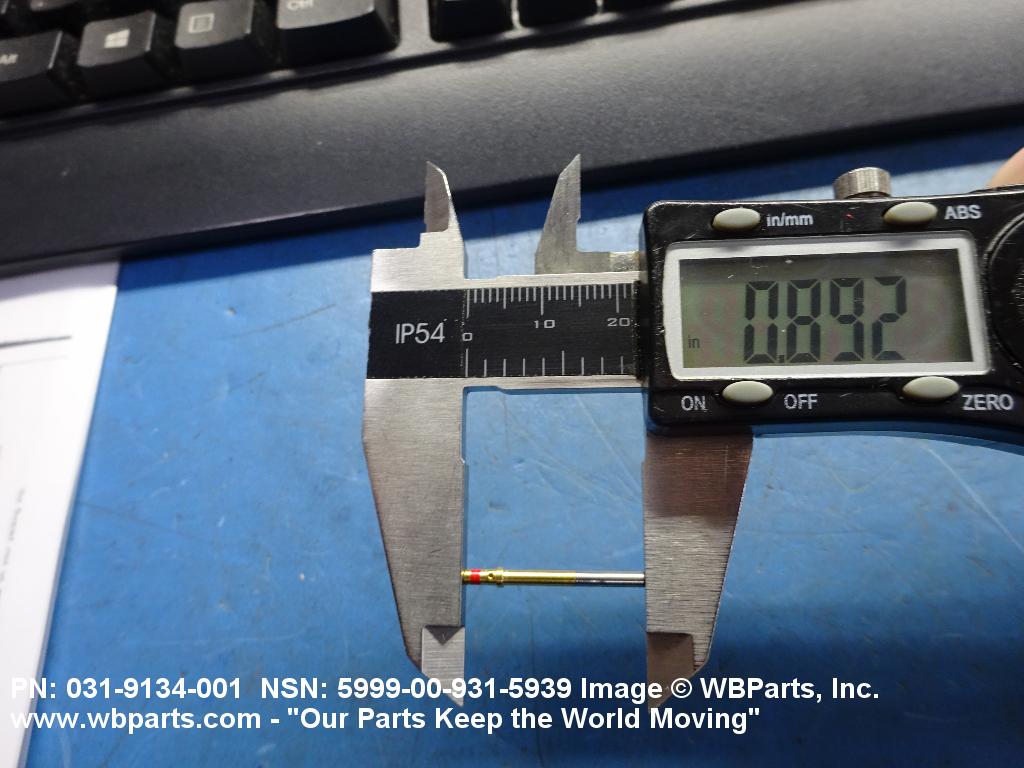

OVERALL LENGTH	0.882 INCHES MINIMUM AND 0.922 INCHES MAXIMUM

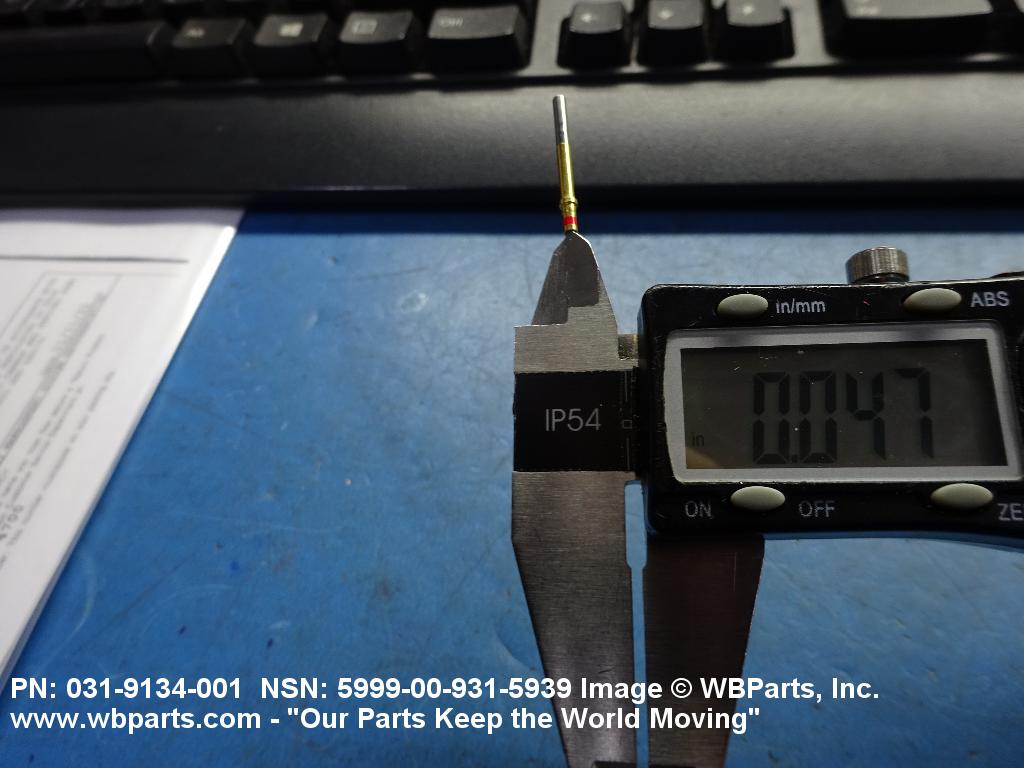

OVERALL DIAMETER	0.100 INCHES NOMINAL
MATERIAL	COPPER ALLOY BODY AND CONTACT
SURFACE TREATMENT	GOLD AND NICKEL BODY AND CONTACT
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	MIL-G-45204 MIL SPEC 1ST TREATMENT RESPONSE AND QQ-N-290 FED SPEC 2ND TREATMENT RESPONSE BODY AND CONTACT
IDENTIFICATION CODE COLOR	RED
TERMINAL TYPE AND QUANTITY	1 SOLDER WELL AXIALLY AT ONE END
MOUNTING METHOD	FORCE FIT
PIN DIAMETER	0.041 INCHES NOMINAL
CABLE ENTRANCE DIAMETER	0.020 INCHES MINIMUM AND 0.031 INCHES MAXIMUM
III CURRENT RATING IN AMPS	5.0
III PRECIOUS MATERIAL	GOLD
III PRECIOUS MATERIAL AND WEIGHT	0.005 GOLD GRAINS, TROY
III PRECIOUS MATERIAL AND LOCATION	BODY AND CONTACT SURFACES GOLD
III CRIMPING TOOL IDENTIFYING NUMBER	M22520/2-01

Restrictions/Controls & Freight Information | NSN 5999-00-931-5939

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Electro-static Discharge Susceptible:	A	No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity
Precious Metals Indicator Code:	G	Item contains gold
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	061680	ELEC WIRING PLUGS ETC
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	72D	unknown
Originating Activity Code	TX	Defense Supply Center Columbus Columbus, OH 43218
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5999-00-931-5939

Air Force
Navy

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation Code	EH	SX:ELECTRONIC COMPONENTS
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	5 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	5 EA : Each
