NSN 5999-00-982-2840 XP3LB7S2GT621, XP3LB7S2GT62-1, 00-982-2840
Product Details | LIGHT-SWITCH ASSEMBLY
5999-00-982-2840 An electrical device consisting of a Switch (1) and two or more lights, or two or more switches and two or more lights, mounted on a common mounting. The lights are not intended for illumination but are present for the purpose of indication. Each item may be separable and capable of functioning individually, or the items may be fabricated into a common inseparable body, incapable of functioning individually. It may include wall plate or box cover and it may be complete with box. Excludes push, pull, push-pull, and toggle switches with a lamp mounted integrally in the actuator.
Part Alternates: XP3LB7S2GT621, XP3LB7S2GT62-1, 5999-00-982-2840, 00-982-2840, 5999009822840, 009822840
Electrical and Electronic Equipment Components | Miscellaneous Electrical and Electronic Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1962 | 00-982-2840 | 17647 ( LIGHT-SWITCH ASSEMBLY ) |
Drawings & Photos | NSN 5999-00-982-2840
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5999-00-982-2840
Technical Data | NSN 5999-00-982-2840
| Characteristic | Specifications |
|---|---|
| COMPONENT TYPE AND QUANTITY | 2 SWITCH AND 1 LIGHT |

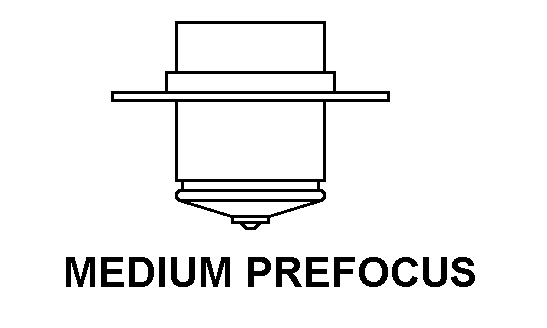

| LAMP BASE STYLE | 23A MEDIUM PREFOCUS |
| LAMP BULB SIZE DESIGNATOR | S-6 |
| LENS COLOR | GREEN |
| SWITCH TYPE | PUSH |
| VOLTAGE RATING | 220.0 VOLTS NOMINAL |
| CURRENT RATING | 2.0 AMPERES NOMINAL |
| SURFACE TREATMENT | ANODIZE |
| ENVIRONMENTAL PROTECTION | EXPLOSION PROOF |
| FEATURES PROVIDED | TRANSFORMER AND BOX COVER AND THREADED ENTRANCE |
| SPECIAL FEATURES | ASSY O/A H:7.500 IN. NOM; SWITCH CURRENT TYPE:AC; LAMP:INCLUDED; ASSY O/A W:3.500 IN. NOM; ASSY O/A L:7.250 IN. NOM; MNTG CONFIG:PANEL MTD BY THREE 1 INCH THD. BUSHINGS SPACED 1.750 IN. C TO C IN LINE; PRIMARY VOLTAGE RATING:220 V NOM; SECONDARY VOLTAGE RATING:110 V NOM; LUMINOUS ACTUATOR:NOT INCLUDED; THREADED ENTRANCE QTY:1; THREAD LOCATION:INTERNAL; CONTACT ARRANGEMENT:TWO-ST,DOUBLE BREAK,NORMALLY OPEN,REF DWG GROUP 217; FACE COVER TYPE:BOX COVER; OPENING THREAD SIZE:1-11-1/2; MATERIAL:ALUMINUM CAST |
| MANUFACTURERS CODE | 78011 |
| DESIGN CONTROL REFERENCE | XP3LB7S2GT62-1 |
Restrictions/Controls & Freight Information | NSN 5999-00-982-2840
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061300 | CIRCUIT BREAKER/SWITCH NOI |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
