NSN 5999-01-011-1269 MS2749122, MS27491-22, MS2749222
Product Details | ELECTRICAL CONTACT
5999-01-011-1269 An item consisting of an electrically conductive material designed to furnish a surface which will physically and electrically meet another conducting surface for the purpose of transferring electrical energy and/or opening and closing circuits. Includes moving contacts which make and/or slide over stationary contacts or other stationary conductive material to a resulting fixed position. Excludes items which are used in conjunction with continually moving surfaces or which make contact by gripping action of the contact surfaces. See also CLIP, ELECTRICAL; CLAMP, ELECTRICAL; BRUSH, ELECTRICAL CONTACT; PLUG, TIP; and JACK, TIP.
Part Alternates: MS2749122, MS27491-22, MS2749222, MS27492-22, M39029/57-356, M3902957356, AS39029/57-356, AS3902957356, BIN 356, BIN356, MILC38999, MIL-C-38999, MIL-C-39029/57, MILC3902957, TC22Y1DE5, TC22Y1F63, 903105-0004-000 , 0311125022, 031-1125-022, 10193766, 10251416222, 10-251416-222 , 10251416225, 10-251416-225, 5999-01-011-1269, 01-011-1269, 9031050004000, 5999010111269, 010111269
Electrical and Electronic Equipment Components | Miscellaneous Electrical and Electronic Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 15 OCT 1975 | 01-011-1269 | 00443 ( CONTACT, ELECTRICAL ) |

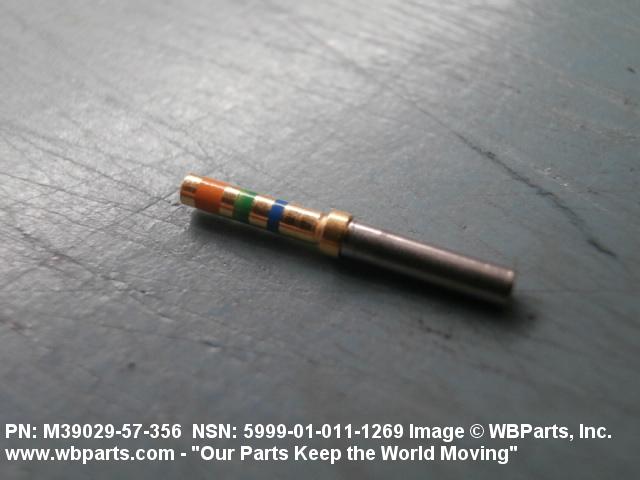

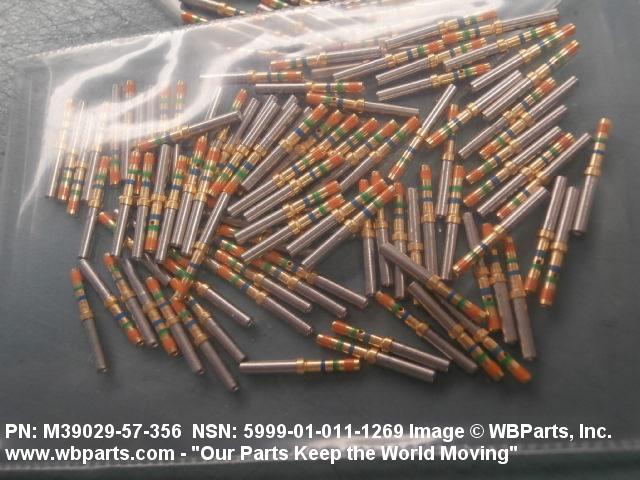

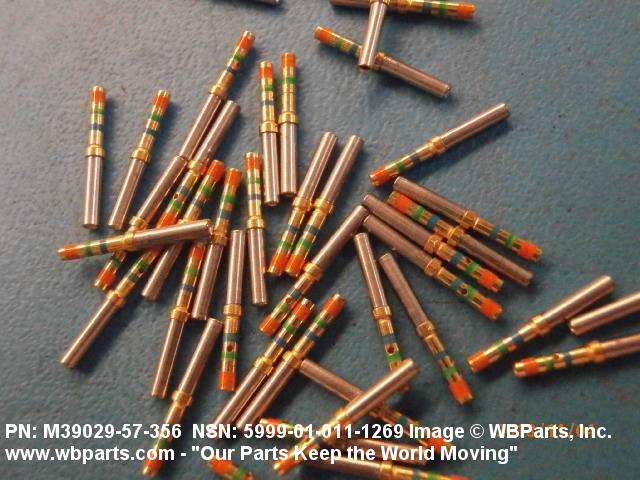

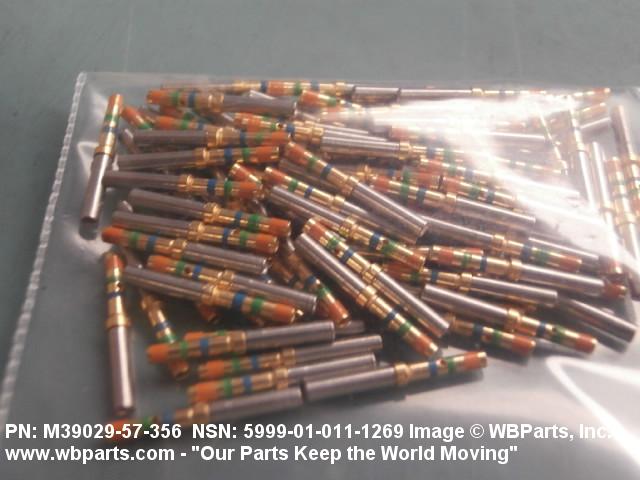

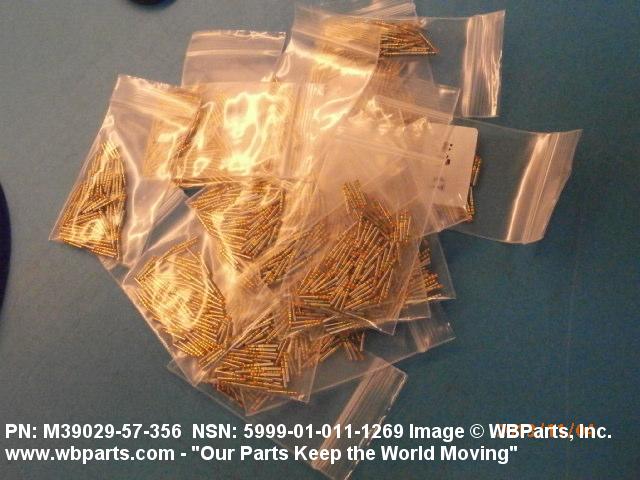

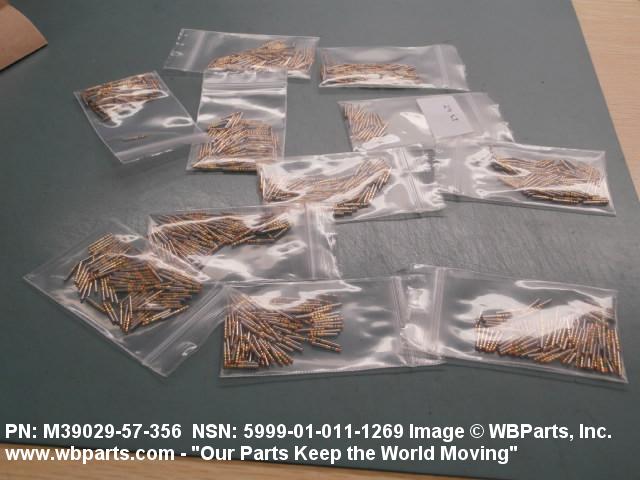

Drawings & Photos | NSN 5999-01-011-1269
Demand History | NSN 5999-01-011-1269
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5999-01-011-1269 | 2025-08-219 | 610 | DIBBS |
| 5999-01-011-1269 | 2025-04-98 | 8390 | DIBBS |
| 5999-01-011-1269 | 2024-02-39 | 8390 | DIBBS |
| 5999-01-011-1269 | 2023-12-339 | 4730 | DIBBS |
| 5999-01-011-1269 | 2020-12-351 | 200 | US |
| 5999-01-011-1269 | 2016-06-178 | 834 | DIBBS |
| 5999-01-011-1269 | 2014-03-70 | 1024 | United States |
| 5999-01-011-1269 | 2013-10-297 | 2048 | United States |
| 5999-01-011-1269 | 2013-01-16 | 2048 | US |
| 5999-01-011-1269 | 2013-01-03 | 3669 | DIBBS |
| M39029/57-356 | 2012-04-110 | 100 | PK |
| MILC38999 | 2011-12-340 | 50 | China |
| 5999-01-011-1269 | 2011-11-307 | 3504 | DIBBS |
| 5999-01-011-1269 | 2010-12-362 | 128 | US |
| 5999-01-011-1269 | 2010-12-337 | 7127 | DIBBS |
| 5999-01-011-1269 | 2010-09-266 | 3776 | DIBBS |
| MILC38999 | 2010-03-69 | 10 | United States |
| MILC38999 | 2010-03-68 | 13 | United States |
| 5999-01-011-1269 | 2009-01-08 | 4945 | DIBBS |
| 5999-01-011-1269 | 2008-11-318 | 8302 | DIBBS |
| 5999-01-011-1269 | 2008-10-283 | 9215 | DIBBS |
| 5999-01-011-1269 | 2007-10-298 | 7602 | DIBBS |
Cross Reference | NSN 5999-01-011-1269
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 031-1125-022 | 71468 | ITT CORPORATION DBA I T T CANNON |
| 10-251416-222 | 77820 | AMPHENOL CORPORATION DBA AMPHENOL AEROSPACE INDUSTRIAL |
| 10-251416-225 | D8311 | AMPHENOL-TUCHEL ELECTRONICS GMBH |
| 903105-0004-000 | 06481 | NORTHROP GRUMMAN SYSTEMS CORPORATION |
| AS39029/57-356 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| BIN 356 | 16236 | DLA LAND AND MARITIME |
| M39029/57-356 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| M39029/57-356 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-C-38999 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-C-39029/57 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MS27491-22 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS27492-22 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| TC22Y1DE5 | 09922 | SOURIAU USA, INC. |
| TC22Y1F63 | 09922 | SOURIAU USA, INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5999-01-011-1269
Related Products | NSN 5999-01-011-1269
Technical Data | NSN 5999-01-011-1269
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | A4 SOCKET CONTACT |

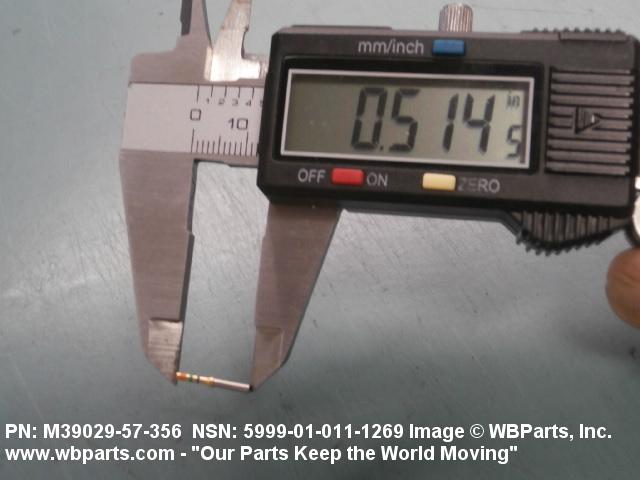

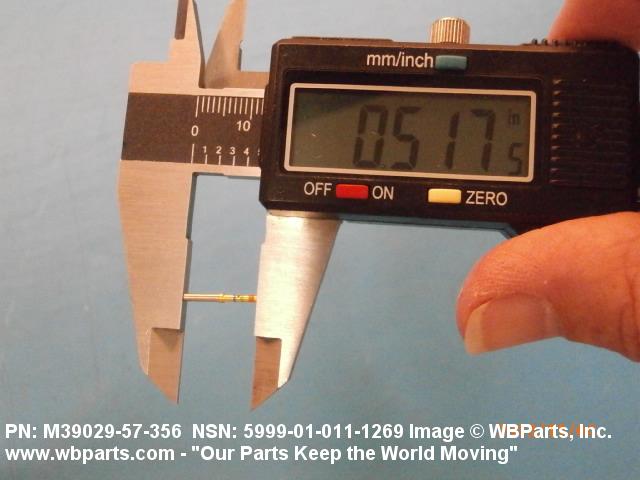

| OVERALL LENGTH | 0.518 INCHES NOMINAL |

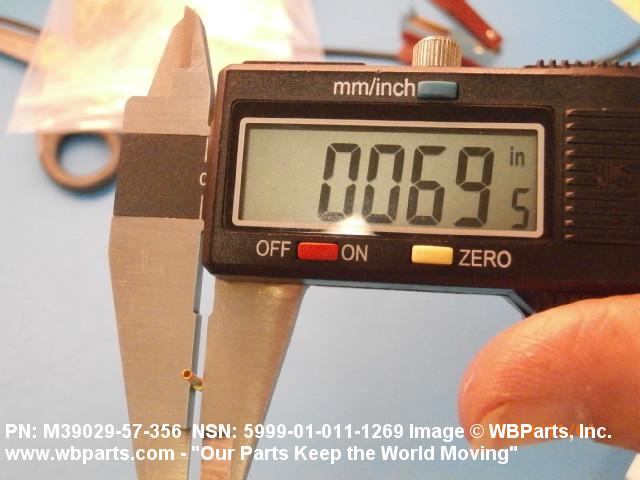

| OVERALL DIAMETER | 0.069 INCHES MINIMUM AND 0.071 INCHES MAXIMUM |
| MATERIAL | COPPER ALLOY CONTACT COPPER ALLOY BODY |
| SURFACE TREATMENT | GOLD CONTACT GOLD BODY |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-G-45204,TY 2,CL 2 MIL SPEC SINGLE TREATMENT RESPONSE CONTACT MIL-G-45204,TY 2,CL 2 MIL SPEC SINGLE TREATMENT RESPONSE BODY |
| IDENTIFICATION CODE COLOR | ORANGE AND GREEN AND BLUE |
| TERMINAL TYPE AND QUANTITY | 1 CRIMP END OPPOSITE CONTACT |
| MOUNTING METHOD | FORCE FIT |
| PIN ACCOMMODATION LENGTH | 0.141 INCHES MINIMUM AND 0.157 INCHES MAXIMUM |
| PIN ACCOMMODATION DIAMETER | 0.036 INCHES MINIMUM AND 0.038 INCHES MAXIMUM |
| CABLE ENTRANCE DIAMETER | 0.034 INCHES MINIMUM AND 0.035 INCHES MAXIMUM |
| SPECIAL FEATURES | BASIC ITEM IDENTIFICATION NUMBER BIN-356 |
| TEST DATA DOCUMENT | 96906-MS27492 STANDARD |
| SPECIFICATION/STANDARD DATA | 81349-MIL-C-39029/57 GOVERNMENT SPECIFICATION |
| III PRECIOUS MATERIAL | GOLD |
| III PRECIOUS MATERIAL AND WEIGHT | 0.005 GOLD GRAINS, TROY |
| III PRECIOUS MATERIAL AND LOCATION | BODY AND CONTACT SURFACES GOLD |
| III CRIMPING TOOL IDENTIFYING NUMBER | M22520/2-01 |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-C-39029/57 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M39029/57-356 |
Restrictions/Controls & Freight Information | NSN 5999-01-011-1269
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | G | Item contains gold |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061300 | CIRCUIT BREAKER/SWITCH NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5999-01-011-1269
Army
Air Force
Navy
Marines| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | Q | Electronics Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | A | Item requires special handling or condemnation procedures for specific reasons, such as precious metal content, high dollar value, critical material, or hazardous materiel. Refer to appropriate manuals or directives for specific instructions. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
M EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | EH | SX:ELECTRONIC COMPONENTS |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
M EA : Each |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 5 | Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Physical Category Code | 1 | Bin |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
M EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
M EA : Each |
