NSN 5999-01-021-5436 BA103, BA174BA104, 30000351
Product Details | ELECTRICAL CONTACT
5999-01-021-5436 An item consisting of an electrically conductive material designed to furnish a surface which will physically and electrically meet another conducting surface for the purpose of transferring electrical energy and/or opening and closing circuits. Includes moving contacts which make and/or slide over stationary contacts or other stationary conductive material to a resulting fixed position. Excludes items which are used in conjunction with continually moving surfaces or which make contact by gripping action of the contact surfaces. See also CLIP, ELECTRICAL; CLAMP, ELECTRICAL; BRUSH, ELECTRICAL CONTACT; PLUG, TIP; and JACK, TIP.
Part Alternates: BA103, BA174BA104, 30000351, 3000-0351, 5999-01-021-5436, 01-021-5436, 5999010215436, 010215436
Electrical and Electronic Equipment Components | Miscellaneous Electrical and Electronic Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 17 MAY 1976 | 01-021-5436 | 00443 ( CONTACT, ELECTRICAL ) |
Drawings & Photos | NSN 5999-01-021-5436
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5999-01-021-5436
Technical Data | NSN 5999-01-021-5436
| Characteristic | Specifications |
|---|---|

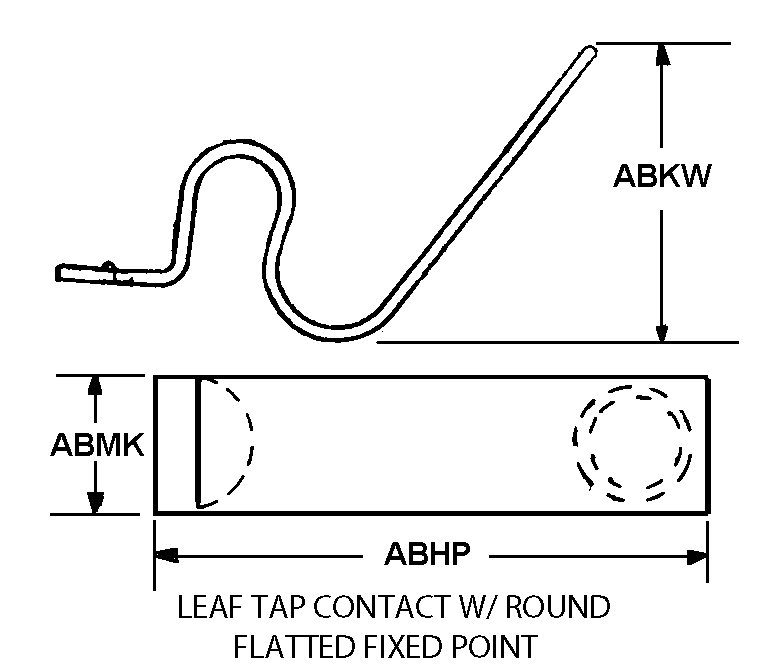

| STYLE DESIGNATOR | A26B LEAF TAP CONTACT W/ROUND FLATTED FIXED POINT |
| OVERALL LENGTH | 1.000 INCHES NOMINAL |
| OVERALL HEIGHT | 1.062 INCHES NOMINAL |
| OVERALL WIDTH | 0.375 INCHES NOMINAL |
| POINT DIAMETER | 0.375 INCHES NOMINAL |
| POINT HEIGHT | 0.125 INCHES NOMINAL |
| MATERIAL | COPPER CONTACT STEEL BODY |
| SURFACE TREATMENT | SILVER CONTACT CADMIUM BODY |
| MOUNTING METHOD | UNTHREADED HOLE |
| MOUNTING FACILITY QUANTITY | 2 |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.219 INCHES NOMINAL |
| DISTANCE BETWEEN MOUNTING FACILITY CENTERS | 0.375 INCHES NOMINAL |
| III VOLTAGE RATING IN VOLTS | 240.0 AC |
| III CURRENT RATING IN AMPS | 15.0 |
| MANUFACTURERS CODE | 19006 |
| DESIGN CONTROL REFERENCE | 3000-0351 |
Restrictions/Controls & Freight Information | NSN 5999-01-021-5436
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | S | Item contains silver |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 062800 | RADIO/TV RECEIVING SET CHASSIS ETC |
| Less than car load rating | ||
| Less than truck load rating | M | 85.0 |
| Water commodity Code | 723 | unknown |
| Originating Activity Code | 48 | Federal Aviation Administration Oklahoma City, OK 73125 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
