Product Details | DELAY LINE
5999-01-078-9603 An item which provides a predetermined delay to an electrical pulse, while maintaining substantially the same waveform. The delay is obtained by means of a real or artificial transmission line or equivalent device. The equivalent device may be acoustic, distributive, lumped constant, magnetic solid state, or surface acoustical wave type. See also ATTENUATOR, (as modified); TRANSFORMER, (as modified); and OSCILLATOR, PULSE DELAY.
Part Alternates: 0404095201, 0404-0952-01, 14103, 5999-01-078-9603, 01-078-9603, 5999010789603, 010789603
Electrical and Electronic Equipment Components | Miscellaneous Electrical and Electronic Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 22 JUN 1979 | 01-078-9603 | 06373 ( DELAY LINE ) |
Drawings & Photos | NSN 5999-01-078-9603
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 5999-01-078-9603
5999-01-078-9629, 5999-01-078-9633, 5999-01-078-9635, 5999-01-078-9636, 5999-01-078-9917
Technical Data | NSN 5999-01-078-9603
| Characteristic | Specifications |
|---|---|
| SIGNAL DELAY METHOD | ELECTROMECHANICAL |
| DELAY TIME VARIATION METHOD | TAPPED |
| INDIVIDUAL SECTION QUANTITY | 1 |
| SECTION DELAY TIME | 30.000 NANOSECONDS NOMINAL SINGLE SECTION |
| SEGMENT QUANTITY PER SECTION | 10 SINGLE SECTION |
| SEGMENT DELAY TIME | 3.000 NANOSECONDS NOMINAL SINGLE SECTION ALL SEGMENTS |
| OPERATING TEMP RANGE | NOT RATED |
| DELAY TIME VARIATION PER DEG CELSIUS | NOT RATED |
| INPUT IMPEDANCE RATING | 100.000 OHMS |
| OUTPUT IMPEDANCE RATING | 100.000 OHMS |
| ATTENUATION IN DECIBELS | NOT RATED |
| VOLTAGE RATING | 50.000 VOLTS NOMINAL |
| PULSE RISE TIME RATING | 3.0 NANOSECONDS |
| FREQUENCY RATING | NOT RATED |
| FREQUENCY BANDWIDTH | NOT RATED |

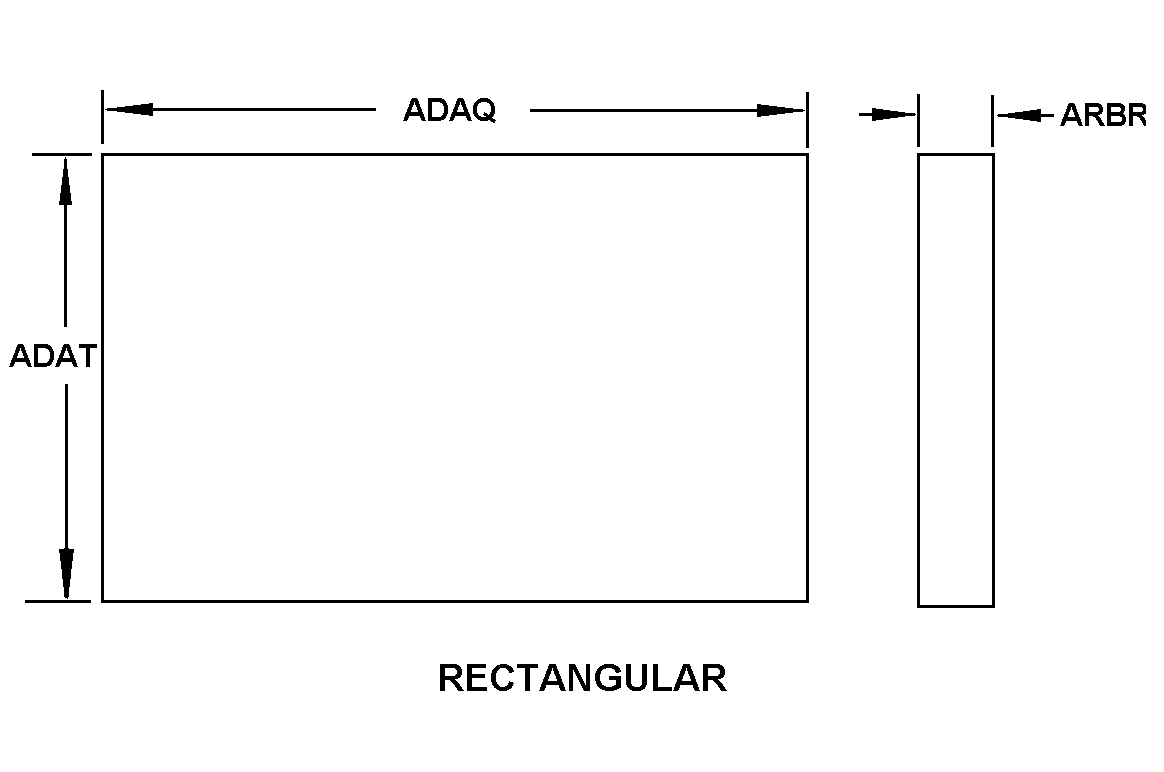

| BODY STYLE | 1 RECTANGULAR |
| BODY LENGTH | 0.880 INCHES MAXIMUM |
| BODY WIDTH | 0.310 INCHES MAXIMUM |
| BODY DEPTH | 0.280 INCHES MAXIMUM |
| MATERIAL AND LOCATION | PLASTIC, EPOXY RESIN BODY |
| TERMINAL TYPE AND QUANTITY | 14 PIN |
| MOUNTING FACILITY | TERMINAL |
| MOUNTING FACILITY QUANTITY | 14 |

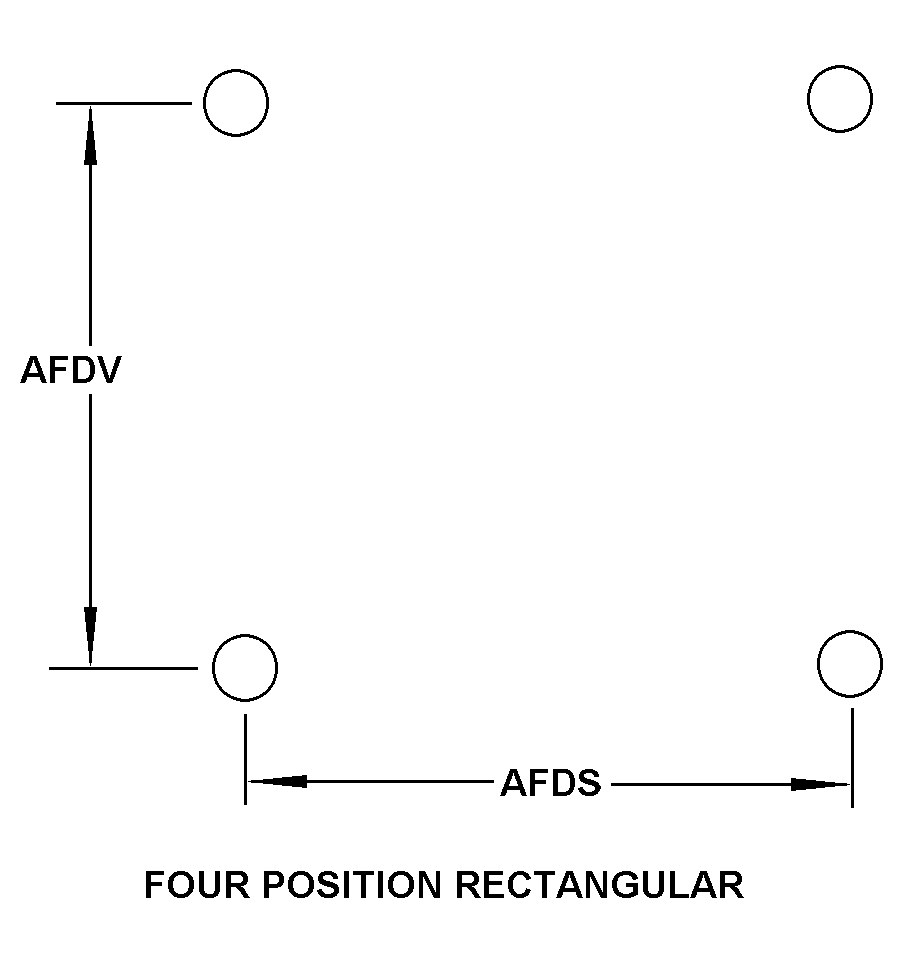

| MOUNTING PROVISION ARRANGEMENT STYLE | 2 FOUR POSITION RECTANGULAR |
| LONGEST HORIZONTAL DISTANCE BETWEEN MOUNTING CENTERS | 0.600 INCHES NOMINAL |
| LONGEST VERTICAL DISTANCE BETWEEN MOUNTING CENTERS | ANY ACCEPTABLE |
Restrictions/Controls & Freight Information | NSN 5999-01-078-9603
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | D | Munitions List Item or Commerce Control List Item. Demilitarization required. Total destruction of the item and components so as to preclude restoration or repair to a usable condition by melting, cutting, tearing, scratching, crushing, breaking, punching, neutralizing, etc. (As an alternate, burial or deep water dumping may be used when coordinated with the DoD Demilitarization Program Office.) |
| Controlled Inventory Item Code: | 7 | NON-SENSITIVE (SRC-N/A) - UNCLASSIFIED AA&E: OR ITEMS ASSIGNED A DEMILITARIZATION CODE OTHER THAN A, B, Q, OR P FOR WHICH ANOTHER CIIC IS INAPPROPRIATE. (NOTE: THE LOSS, THEFT, UNLAWFUL DISPOSITION, AND/OR RECOVERY OF AN ITEM WITH CIIC 7 WILL BE INVESTIGATED IN ACCORDANCE WITH DOD-4000-25-2-M AND DOD 7200.14-R, VOLUME 12, CHAPTER 7). |
| Electro-static Discharge Susceptible: | B | ESD sensitivity |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061300 | CIRCUIT BREAKER/SWITCH NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | 3 | Electrostatic Sensitive Device (ESD), subject to damage caused by electrostatic discharge. (See DoD 4500.32-R, Volume 1, Appendix A, Section I for additional information on ESD devices). |
