NSN 5999-01-190-7720 29116671, 2911667-1, 718140
Product Details | ELECTRONIC SHIELDING GASKET
5999-01-190-7720 A shaped metallic item designed to increase the effectiveness of radio frequency/electromagnetic interference, or a nonmetallic item containing a wire mesh, metal, or other electrically conductive particles designed to provide environmental sealing and radio frequency/electromagnetic interference shielding. For bulk items see WIRE MESH, KNITTED or GASKETING MATERIAL, CONDUCTIVE.
Part Alternates: 29116671, 2911667-1, 718140, 5999-01-190-7720, 01-190-7720, 5999011907720, 011907720
Electrical and Electronic Equipment Components | Miscellaneous Electrical and Electronic Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 OCT 1984 | 01-190-7720 | 20281 ( SHIELDING GASKET, ELECTRONIC ) |

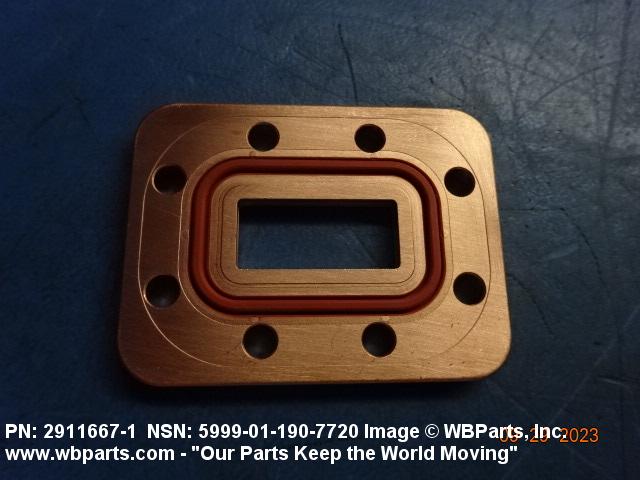

Drawings & Photos | NSN 5999-01-190-7720
Demand History | NSN 5999-01-190-7720
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5999-01-190-7720 | 2025-11-329 | 25 | United States |
| 718140 | 2025-11-317 | 61 | DIBBS |
| 5999-01-190-7720 | 2025-11-314 | 2 | United States |
| 5999-01-190-7720 | 2025-10-303 | 2 | United States |
| 5999-01-190-7720 | 2025-08-234 | 2 | United States |
| 718140 | 2025-03-62 | 78 | DIBBS |
| 718140 | 2025-02-51 | 78 | DIBBS |
| 5999-01-190-7720 | 2025-01-06 | 5 | United States |
| 5999-01-190-7720 | 2024-10-288 | 2 | United States |
| 5999-01-190-7720 | 2024-10-288 | 2 | United States |
| 5999-01-190-7720 | 2024-06-165 | 68 | US |
| 718140 | 2024-05-151 | 56 | DIBBS |
| 718140 | 2024-05-140 | 56 | DIBBS |
| 718140 | 2024-03-64 | 44 | DIBBS |
| 718140 | 2024-02-52 | 44 | DIBBS |
| 5999-01-190-7720 | 2023-08-243 | 1 | United States |
| 718140 | 2023-07-197 | 97 | DIBBS |
| 11907720 | 2023-04-110 | 6 | DIBBS |
| 718140 | 2023-04-106 | 105 | DIBBS |
| 718140 | 2022-10-300 | 69 | DIBBS |
| 718140 | 2022-10-289 | 69 | DIBBS |
| 29116671 | 2021-04-106 | 9 | US |
| 5999-01-190-7720 | 2020-10-286 | 2 | United States |
| 718140 | 2020-10-281 | 216 | DIBBS |
| 718140 | 2020-05-127 | 170 | DIBBS |
| 718140 | 2019-04-107 | 123 | DIBBS |
| 29116671 | 2018-10-275 | 20 | US |
| 5999-01-190-7720 | 2018-08-221 | 4 | US |
| 5999-01-190-7720 | 2018-03-87 | 273 | DIBBS |
| 5999-01-190-7720 | 2018-03-74 | 141 | DIBBS |
| 5999-01-190-7720 | 2017-11-316 | 131 | DIBBS |
| 5999-01-190-7720 | 2016-07-213 | 200 | DIBBS |
| 5999-01-190-7720 | 2016-04-119 | 169 | DIBBS |
| 5999-01-190-7720 | 2016-04-94 | 98 | DIBBS |
| 5999-01-190-7720 | 2016-02-56 | 78 | DIBBS |
| 5999-01-190-7720 | 2015-05-148 | 125 | DIBBS |
| 5999-01-190-7720 | 2014-10-282 | 120 | DIBBS |
| 5999-01-190-7720 | 2012-08-230 | 77 | DIBBS |
| 5999-01-190-7720 | 2012-06-181 | 109 | DIBBS |
| 5999-01-190-7720 | 2012-04-93 | 8 | US |
| 5999-01-190-7720 | 2012-02-39 | 173 | DIBBS |
| 5999-01-190-7720 | 2011-11-307 | 58 | DIBBS |
| 5999-01-190-7720 | 2011-07-211 | 42 | DIBBS |
| 5999-01-190-7720 | 2011-07-196 | 77 | DIBBS |
| 5999-01-190-7720 | 2010-07-183 | 129 | DIBBS |
| 5999-01-190-7720 | 2009-02-49 | 102 | DIBBS |
| 5999-01-190-7720 | 2008-12-353 | 54 | DIBBS |
| 5999-01-190-7720 | 2008-11-316 | 102 | DIBBS |
| 5999-01-190-7720 | 2008-10-281 | 96 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5999-01-190-7720
Related Products | NSN 5999-01-190-7720
Technical Data | NSN 5999-01-190-7720
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER EMI/RFI CONDUCTOR RUBBER SILICONE CLASS Q ENVIRONMENTAL SEAL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-C-576 FED SPEC SINGLE MATERIAL RESPONSE EMI/RFI CONDUCTOR AMS 3303 FED SPEC SINGLE MATERIAL RESPONSE ENVIRONMENTAL SEAL |
| ENVIRONMENTAL PROTECTION MATERIAL LOCATION | ON BOTH SIDES OF BEARING SURFACE |
| CROSS-SECTIONAL SHAPE STYLE | F69 EMI |

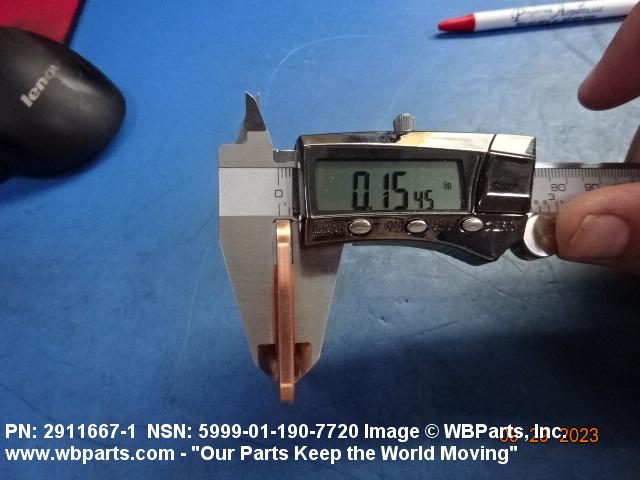

| CROSS-SECTIONAL HEIGHT | 0.120 INCHES MINIMUM AND 0.130 INCHES MAXIMUM |
| STYLE DESIGNATOR | B12F NON-CIRCULAR |

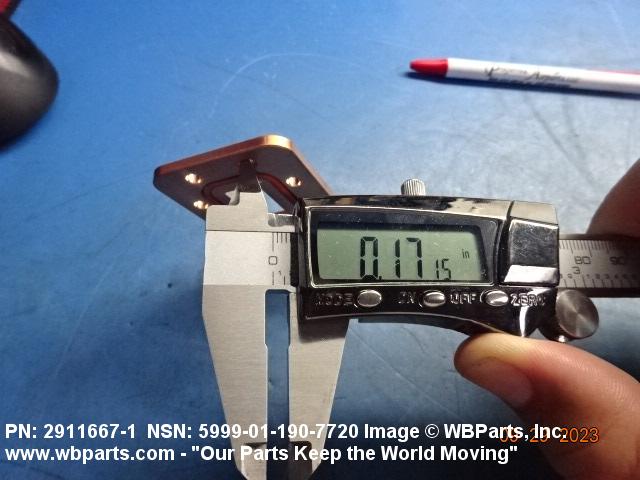

| HOLE DIAMETER | 0.169 INCHES MINIMUM AND 0.172 INCHES MAXIMUM |

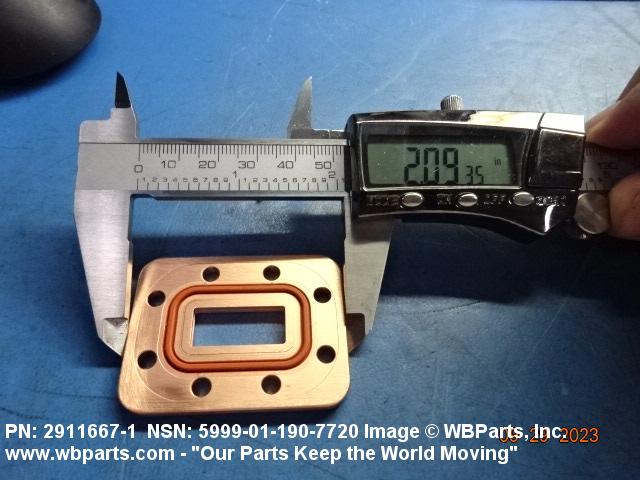

| OVERALL LENGTH | 2.090 INCHES NOMINAL |

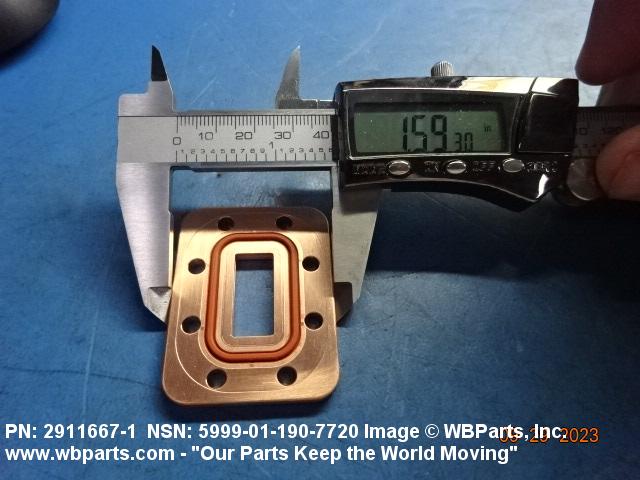

| OVERALL WIDTH | 1.590 INCHES NOMINAL |
| INSIDE CORNER RADIUS | 0.030 INCHES NOMINAL |
| OUTSIDE CORNER RADIUS | 0.250 INCHES NOMINAL |

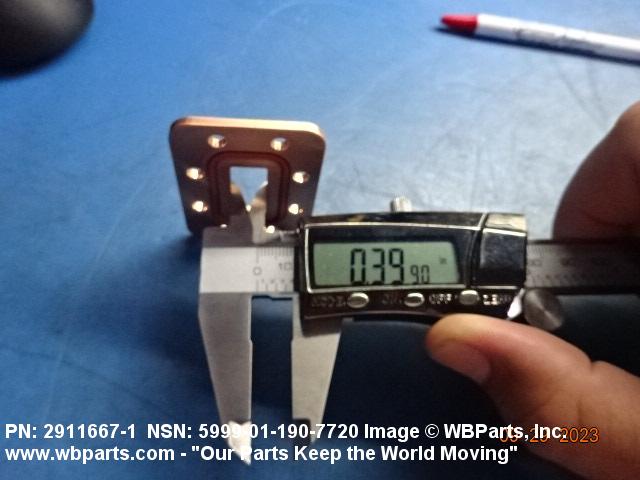

| APERTURE WIDTH | 0.400 INCHES NOMINAL |

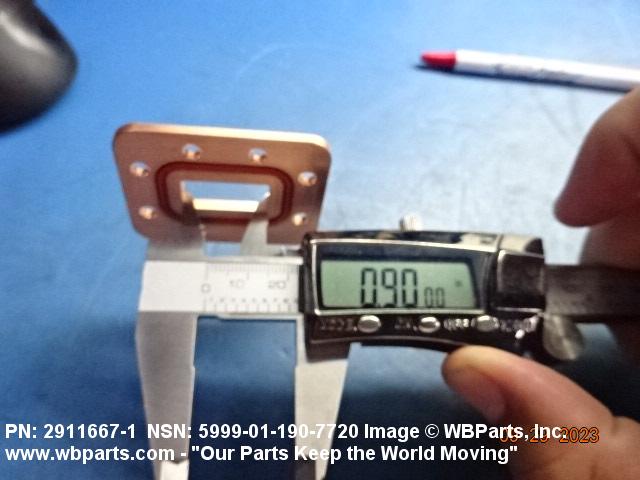

| APERTURE LENGTH | 0.900 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN BOLT HOLES ALONG WIDTH | 0.624 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN BOLT HOLES ALONG LENGTH | 0.626 INCHES NOMINAL |
| OUTSIDE EDGE TO BOLT HOLE CENTER DISTANCE ALONG WIDTH | 0.217 INCHES NOMINAL |
| OUTSIDE EDGE TO BOLT HOLE CENTER DISTANCE ALONG LENGTH | 0.217 INCHES NOMINAL |
| BOLT HOLE QUANTITY | 8 |
Restrictions/Controls & Freight Information | NSN 5999-01-190-7720
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 062800 | RADIO/TV RECEIVING SET CHASSIS ETC |
| Less than car load rating | ||
| Less than truck load rating | M | 85.0 |
| Water commodity Code | 723 | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5999-01-190-7720
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
