NSN 5999-01-198-2211 6981ED174171, 6981ED174-171, 01-198-2211
Product Details | LIGHT-SWITCH ASSEMBLY
5999-01-198-2211 An electrical device consisting of a Switch (1) and two or more lights, or two or more switches and two or more lights, mounted on a common mounting. The lights are not intended for illumination but are present for the purpose of indication. Each item may be separable and capable of functioning individually, or the items may be fabricated into a common inseparable body, incapable of functioning individually. It may include wall plate or box cover and it may be complete with box. Excludes push, pull, push-pull, and toggle switches with a lamp mounted integrally in the actuator.
Part Alternates: 6981ED174171, 6981ED174-171, 5999-01-198-2211, 01-198-2211, 5999011982211, 011982211
Electrical and Electronic Equipment Components | Miscellaneous Electrical and Electronic Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 05 JAN 1985 | 01-198-2211 | 17647 ( LIGHT-SWITCH ASSEMBLY ) |

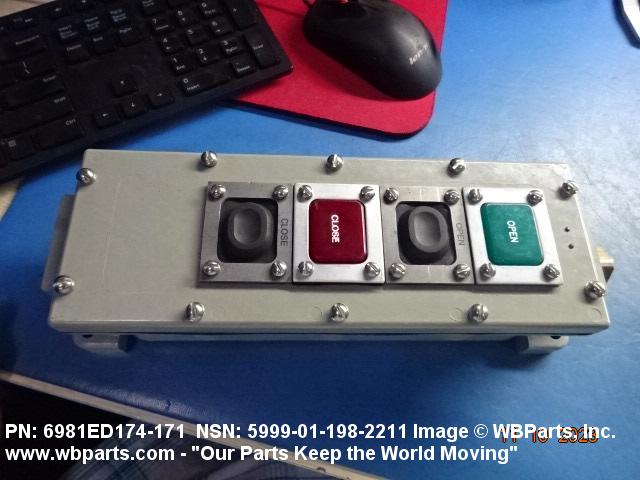

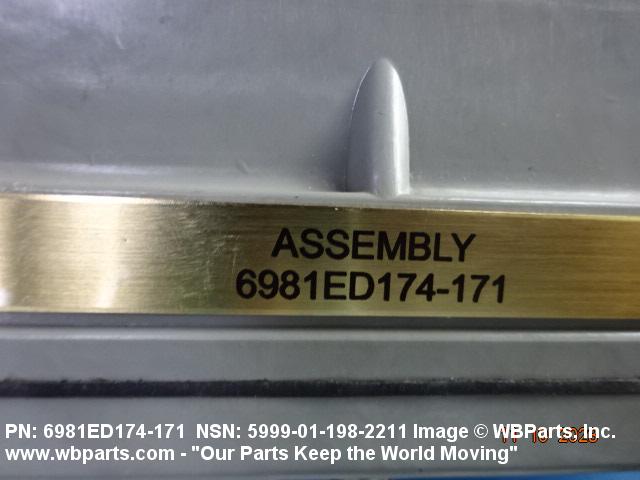

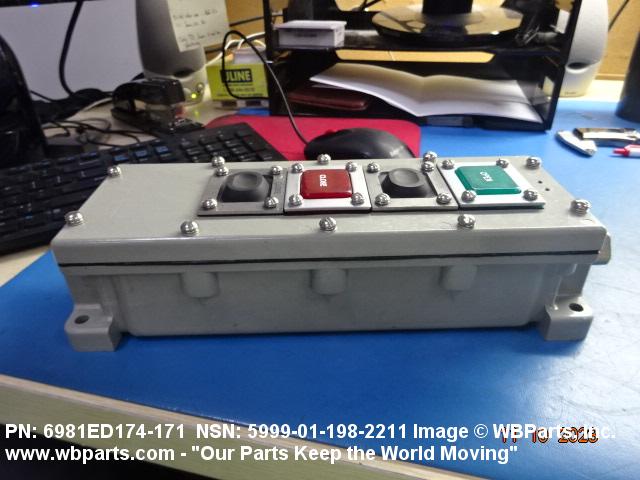

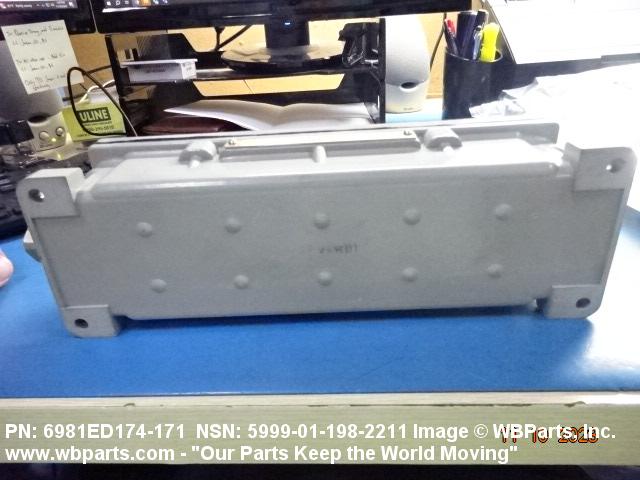

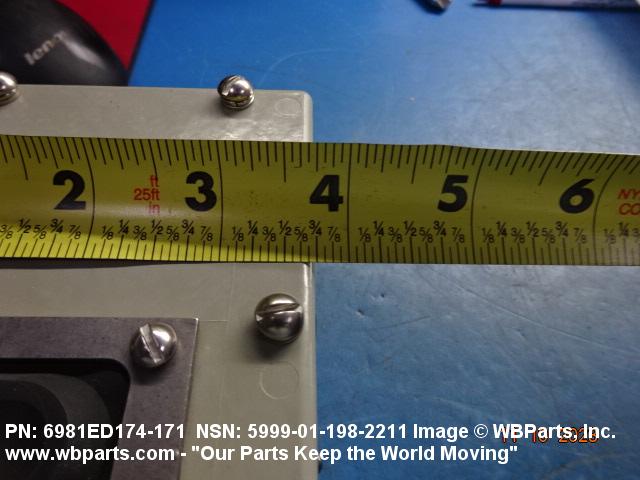

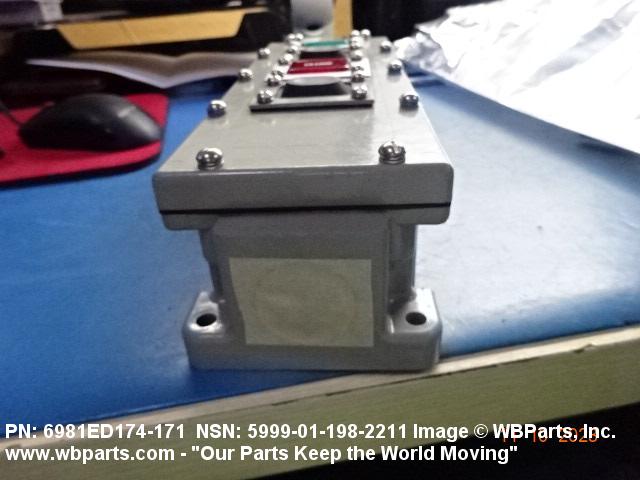

Drawings & Photos | NSN 5999-01-198-2211
Demand History | NSN 5999-01-198-2211
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6981ED174-171 | 2023-11-332 | 5 | DIBBS |
| 5999-01-198-2211 | 2023-09-265 | 3 | United States |
| 6981ED174-171 | 2021-06-178 | 15 | DIBBS |
| 6981ED174-171 | 2021-01-07 | 4 | DIBBS |
| 6981ED174-171 | 2020-10-294 | 3 | DIBBS |
| 5999-01-198-2211 | 2018-01-15 | 1 | United States |
| 5999-01-198-2211 | 2015-01-19 | 2 | DIBBS |
| 5999-01-198-2211 | 2010-10-288 | 4 | DIBBS |
Cross Reference | NSN 5999-01-198-2211
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 6981ED174-171 | 27192 | DRS POWER & CONTROL TECHNOLOGIES, INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5999-01-198-2211
Technical Data | NSN 5999-01-198-2211
| Characteristic | Specifications |
|---|---|
| COMPONENT TYPE AND QUANTITY | 2 LIGHT AND 2 SWITCH |

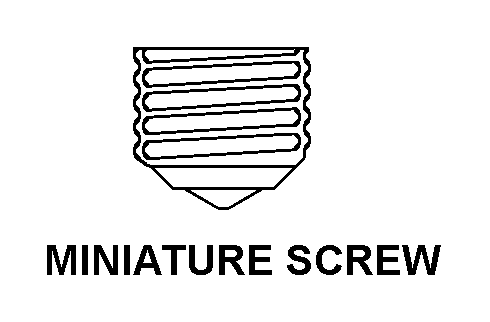

| LAMP BASE STYLE | 22A MINIATURE SCREW |
| LAMP BULB SIZE DESIGNATOR | T-21 |
| LENS COLOR | GREEN AND RED |
| SWITCH TYPE | PUSH |
| VOLTAGE RATING | 115.0 VOLTS MINIMUM AND 440.0 VOLTS MAXIMUM |
| CURRENT RATING | 60.0 AMPERES MAXIMUM |
| CONTACT ARRANGEMENT | TWO CIRCUIT, DOUBLE BREAK, DOUBLE MAKE, BOTH POSITIONS MAINTAINED |
| MATERIAL | PLASTIC |
| ENVIRONMENTAL PROTECTION | WATERTIGHT |
| MOUNTING METHOD | UNTHREADED HOLE |
| FEATURES PROVIDED | THREADED ENTRANCE AND TRANSFORMER |
| SHAPE | RECTANGULAR |

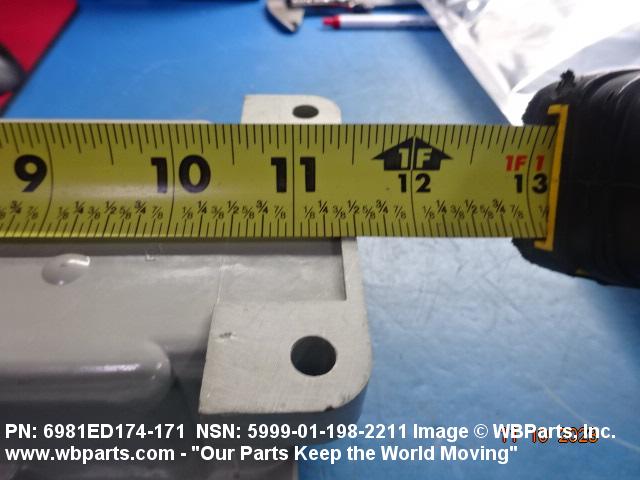

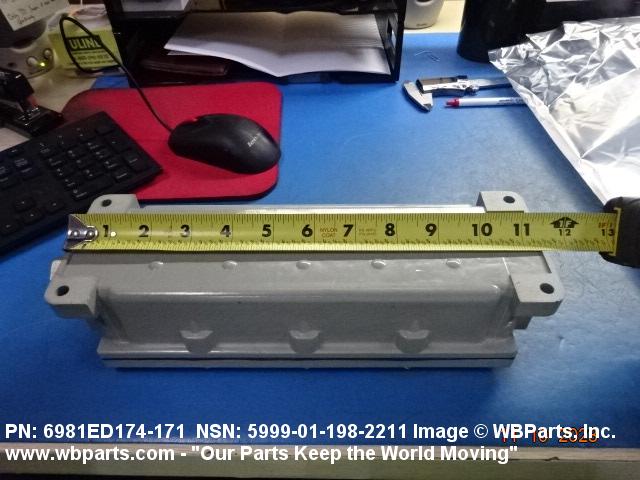

| OVERALL LENGTH | 11.500 INCHES NOMINAL |

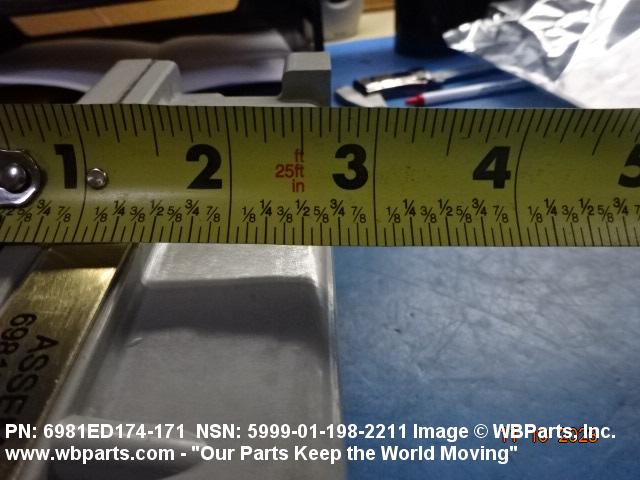

| OVERALL WIDTH | 3.750 INCHES NOMINAL |
| OVERALL HEIGHT | 3.680 INCHES MAXIMUM |

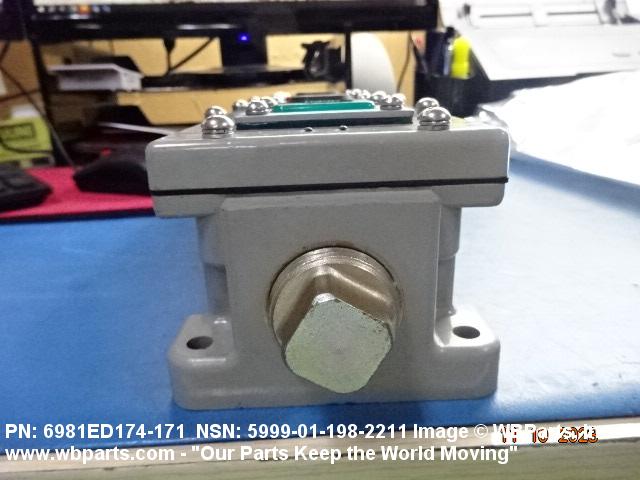

| SPECIAL FEATURES | 1 IN. PIPE THD ENTRANCE |
Restrictions/Controls & Freight Information | NSN 5999-01-198-2211
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061300 | CIRCUIT BREAKER/SWITCH NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5999-01-198-2211
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 3B | Navy-owned stocks of field level repairable DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Reparability | D | Field Level Reparables |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
