NSN 5999-01-344-5567 HAMP400X, HAMP-400X, HDR41200002B
Product Details | ELECTRONIC SHIELDING GASKET
5999-01-344-5567 A shaped metallic item designed to increase the effectiveness of radio frequency/electromagnetic interference, or a nonmetallic item containing a wire mesh, metal, or other electrically conductive particles designed to provide environmental sealing and radio frequency/electromagnetic interference shielding. For bulk items see WIRE MESH, KNITTED or GASKETING MATERIAL, CONDUCTIVE.
Part Alternates: HAMP400X, HAMP-400X, HDR41200002B, 251050-004, 10139110101, 10139110-101, 5999-01-344-5567, 01-344-5567, 5999013445567, 013445567, 251050004
Electrical and Electronic Equipment Components | Miscellaneous Electrical and Electronic Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 31 AUG 1991 | 01-344-5567 | 20281 ( SHIELDING GASKET, ELECTRONIC ) |
Drawings & Photos | NSN 5999-01-344-5567
Demand History | NSN 5999-01-344-5567
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5999-01-344-5567 | 2016-11-308 | 5 | United States |
| 5999-01-344-5567 | 2016-11-308 | 10 | United States |
| 5999-01-344-5567 | 2016-11-308 | 12 | United States |
| 5999-01-344-5567 | 2016-11-308 | 50 | United States |
| 5999-01-344-5567 | 2016-11-308 | 100 | United States |
| 5999-01-344-5567 | 2015-12-342 | 4 | United States |
| 5999-01-344-5567 | 2015-10-288 | 9 | United States |
| 5999-01-344-5567 | 2015-10-288 | 10 | United States |
| 5999-01-344-5567 | 2014-08-241 | 25 | KR |
| 5999-01-344-5567 | 2014-01-07 | 4 | United States |
| 5999-01-344-5567 | 2013-05-149 | 5 | DIBBS |
Cross Reference | NSN 5999-01-344-5567
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10139110-101 | 4X560 | TERN TECHNOLOGY INC. |
| 251050-004 | 14482 | WATKINS-JOHNSON CO |
| 251050-004 | 1BWN1 | COBHAM ELECTRONIC SYSTEMS INC. DBA COBHAM DEFENSE ELECTRONICS |
| HAMP-400X | 50434 | AVAGO TECHNOLOGIES U.S. INC. DIV AVAGO TECHNOLOGIES |
| HDR41200002B | 60979 | SPECTRUM MICROWAVE, INC DIV API TECHNOLOGIES-SPECTRUM |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5999-01-344-5567
Related Products | NSN 5999-01-344-5567
Technical Data | NSN 5999-01-344-5567
| Characteristic | Specifications |
|---|---|
| CROSS-SECTIONAL SHAPE STYLE | F69 EMI |
| CROSS-SECTIONAL HEIGHT | 0.018 INCHES MINIMUM AND 0.022 INCHES MAXIMUM |
| STYLE DESIGNATOR | B22G NON-CIRCULAR |
| HOLE DIAMETER | 0.078 INCHES NOMINAL |

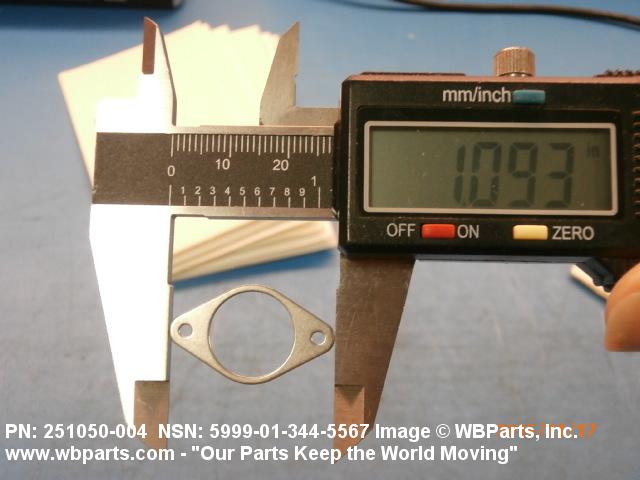

| OVERALL LENGTH | 1.095 INCHES NOMINAL |
| END RADIUS | 0.330 INCHES NOMINAL |
| APERTURE DIAMETER | 0.557 INCHES NOMINAL |

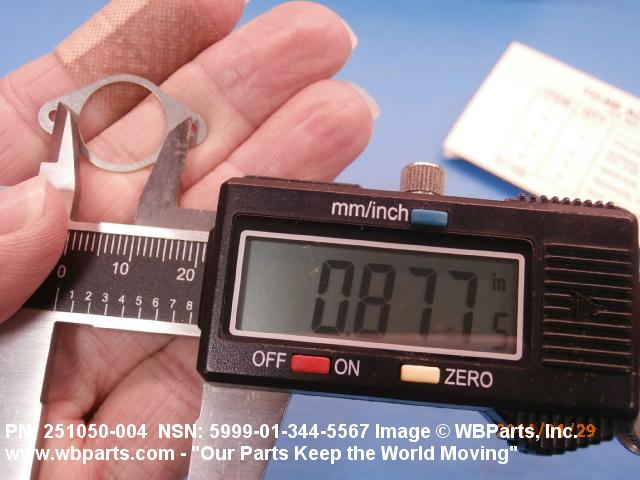

| CENTER TO CENTER DISTANCE BETWEEN BOLT HOLES ALONG LENGTH | 0.875 INCHES NOMINAL |
| SIDE RADIUS | 0.110 INCHES NOMINAL |
| III TEMP RATING | -54.0 DEG CELSIUS AND 60.0 DEG CELSIUS |
| III STORAGE TEMP RANGE | -65.0 TO 85.0 DEG CELSIUS |
Restrictions/Controls & Freight Information | NSN 5999-01-344-5567
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 062800 | RADIO/TV RECEIVING SET CHASSIS ETC |
| Less than car load rating | ||
| Less than truck load rating | M | 85.0 |
| Water commodity Code | 723 | unknown |
| Originating Activity Code | TH | Defense Supply Center Columbus Columbus, OH 43215 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
