NSN 5999-01-406-1331 M39029/87-470, M3902987470, MIL-C-39029/87
Product Details | ELECTRICAL CONTACT
5999-01-406-1331 An item consisting of an electrically conductive material designed to furnish a surface which will physically and electrically meet another conducting surface for the purpose of transferring electrical energy and/or opening and closing circuits. Includes moving contacts which make and/or slide over stationary contacts or other stationary conductive material to a resulting fixed position. Excludes items which are used in conjunction with continually moving surfaces or which make contact by gripping action of the contact surfaces. See also CLIP, ELECTRICAL; CLAMP, ELECTRICAL; BRUSH, ELECTRICAL CONTACT; PLUG, TIP; and JACK, TIP.
Part Alternates: M39029/87-470, M3902987470, MIL-C-39029/87, MILC3902987, 5999-01-406-1331, 01-406-1331, 5999014061331, 014061331
Electrical and Electronic Equipment Components | Miscellaneous Electrical and Electronic Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 21 DEC 1994 | 01-406-1331 | 00443 ( CONTACT, ELECTRICAL ) |

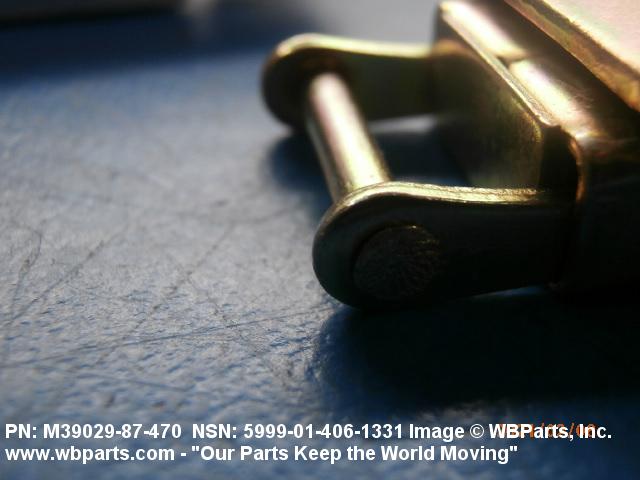

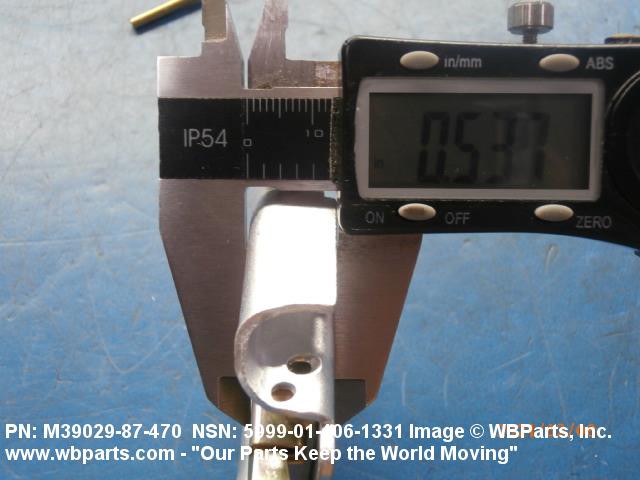

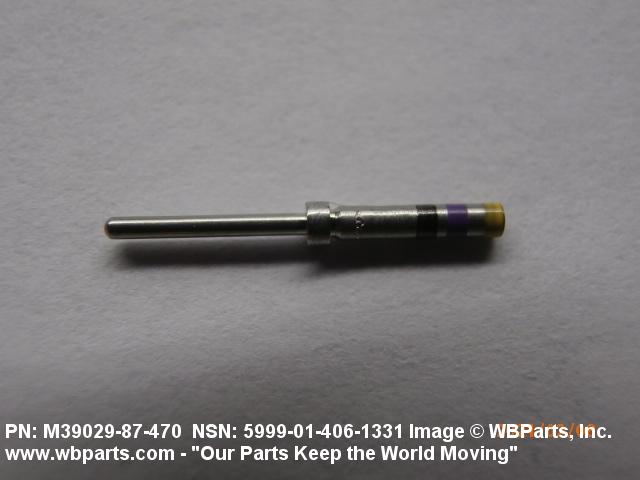

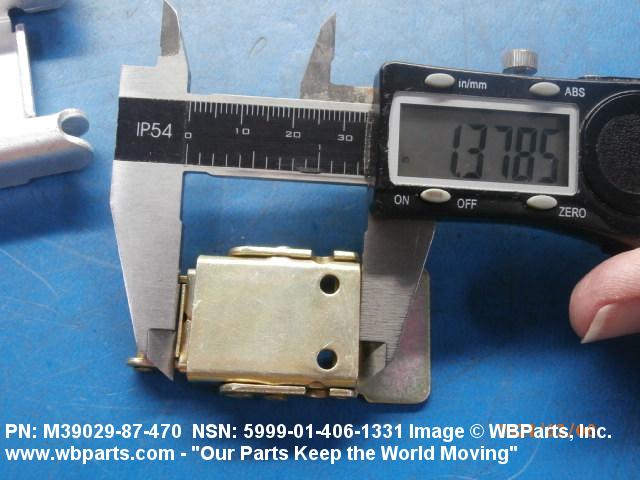

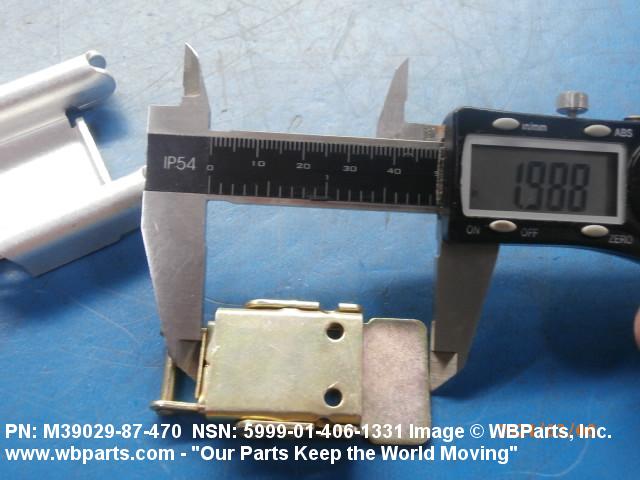

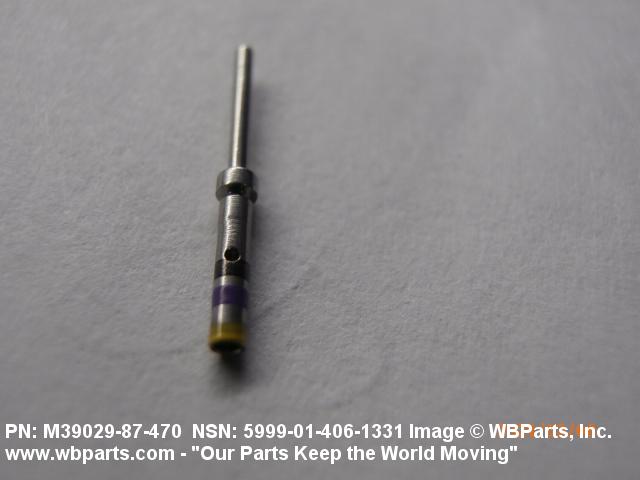

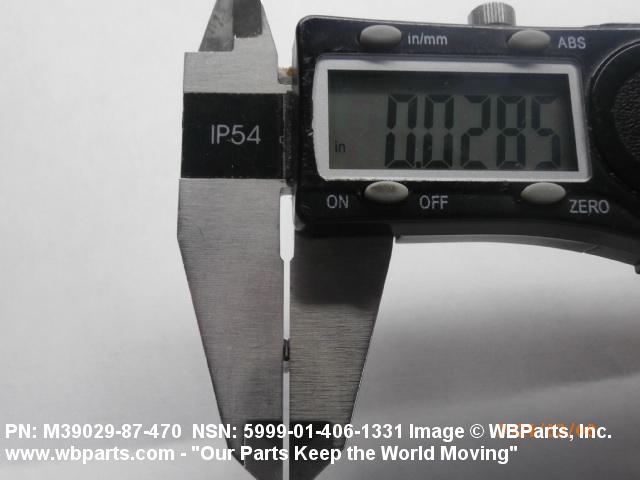

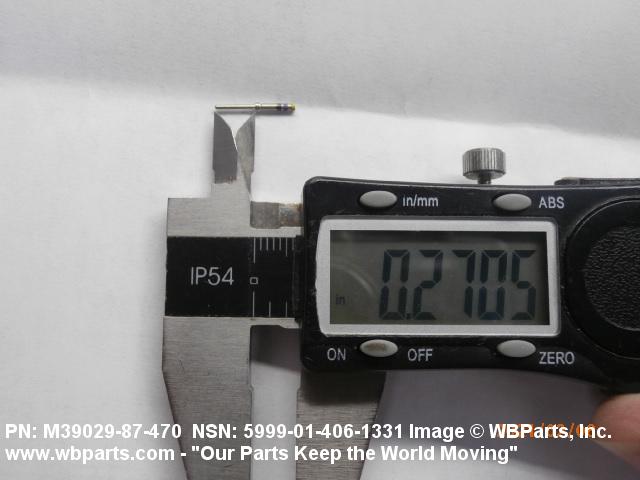

Drawings & Photos | NSN 5999-01-406-1331
Demand History | NSN 5999-01-406-1331
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| M3902987470 | 2021-02-32 | 1 | United States |
| 5999-01-406-1331 | 2011-06-166 | 64 | US |
| M3902987470 | 2010-05-144 | 1000 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5999-01-406-1331
Technical Data | NSN 5999-01-406-1331
| Characteristic | Specifications |
|---|---|

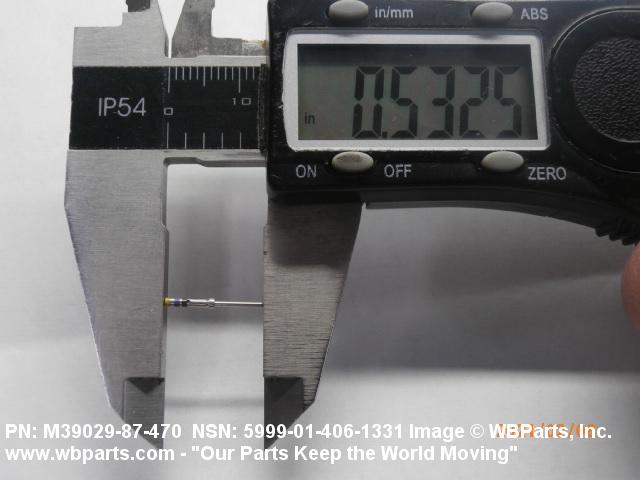

| OVERALL LENGTH | 0.531 INCHES NOMINAL |

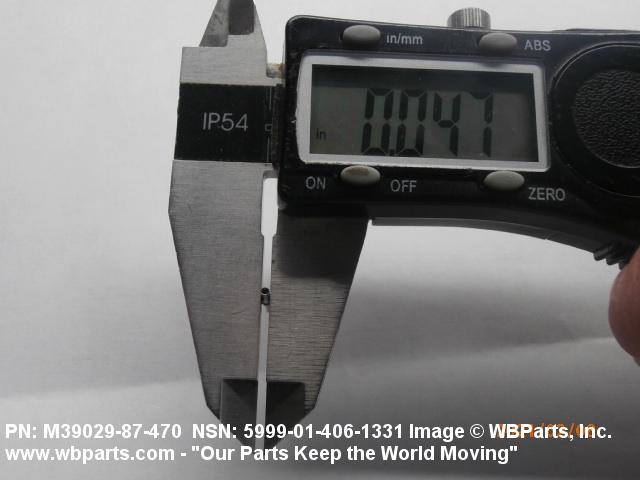

| OVERALL DIAMETER | 0.046 INCHES MINIMUM AND 0.048 INCHES MAXIMUM |
| MATERIAL | CONSTANTAN BODY AND CONTACT |

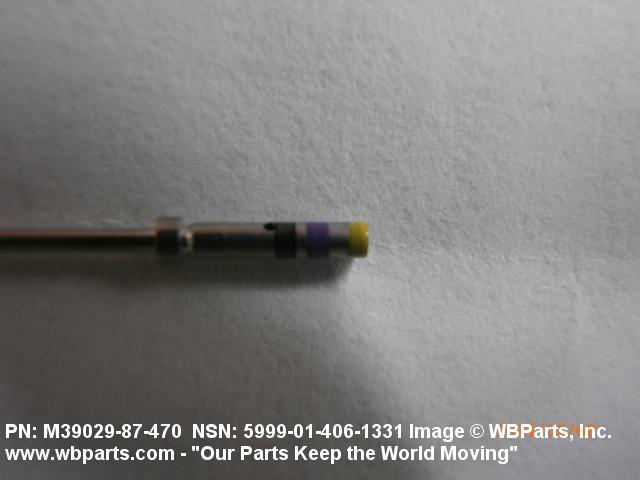

| IDENTIFICATION CODE COLOR | YELLOW AND VIOLET AND BLACK |
| TERMINAL TYPE AND QUANTITY | 1 CRIMP END OPPOSITE CONTACT |
| PIN LENGTH | 0.267 INCHES NOMINAL |
| PIN DIAMETER | 0.030 INCHES MAXIMUM |
| TEST DATA DOCUMENT | 81349-MIL-C-39029 SPECIFICATION |
| SPECIFICATION/STANDARD DATA | 81349-MIL-C-39029/87 GOVERNMENT SPECIFICATION |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-C-39029/87 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M39029/87-470 |
Restrictions/Controls & Freight Information | NSN 5999-01-406-1331
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061300 | CIRCUIT BREAKER/SWITCH NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | EI | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
