NSN 5999-01-414-2572 ALR912741, ALR-91-274-1, 94022826
Product Details | ELECTRICAL SHIELD PLATE
5999-01-414-2572 A metallic or metallic coated item which is rigid or semirigid, flat, and generally smooth. Its thickness is small in comparison to both its length and width, and is designed to prevent or reduce stray electro-magnetic and/or electrostatic fields between components or items. It may be used as a mechanical guard. Excludes PLATE (as otherwise modified); SHIELD (as modified); and SPACER, PLATE.
Part Alternates: ALR912741, ALR-91-274-1, 94022826, 940-22826, 5999-01-414-2572, 01-414-2572, 5999014142572, 014142572
Electrical and Electronic Equipment Components | Miscellaneous Electrical and Electronic Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 03 JUN 1995 | 01-414-2572 | 02463 ( PLATE, ELECTRICAL SHIELD ) |
Drawings & Photos | NSN 5999-01-414-2572
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5999-01-414-2572
Technical Data | NSN 5999-01-414-2572
| Characteristic | Specifications |
|---|---|

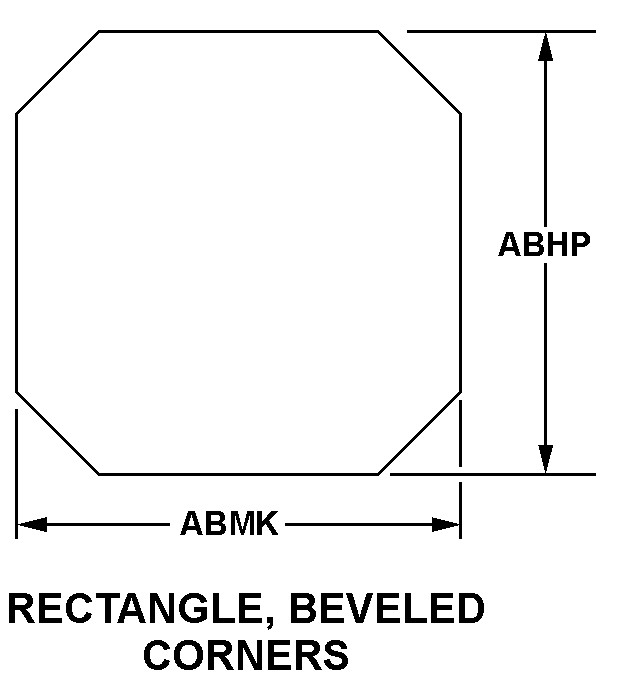

| BODY STYLE | 3F RECTANGLE, BEVELED CORNERS |
| OVERALL LENGTH | 2.970 INCHES MINIMUM AND 3.030 INCHES MAXIMUM |
| OVERALL WIDTH | 0.970 INCHES MINIMUM AND 1.030 INCHES MAXIMUM |
| MATERIAL | PLASTIC POLYCARBONATE AND ALUMINUM AND RUBBER SILICONE CLASS Q |
| III PRECIOUS MATERIAL | SILVER |
| III PRECIOUS MATERIAL AND LOCATION | THE EMI SHIELDING GASKET, P/N 20-2525-1285 SILVER |
| MANUFACTURERS CODE | 04801 |
| MFR SOURCE CONTROLLING REFERENCE | 940-22826 |
Restrictions/Controls & Freight Information | NSN 5999-01-414-2572
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | S | Item contains silver |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 106140 | PLATE/SHEET NOI I/S GALVANIZED ETC |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5999-01-414-2572
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
