NSN 5999-01-429-0149 3482941, 348294-1, 8400450F
Product Details | ELECTRONIC SHIELDING GASKET
5999-01-429-0149 A shaped metallic item designed to increase the effectiveness of radio frequency/electromagnetic interference, or a nonmetallic item containing a wire mesh, metal, or other electrically conductive particles designed to provide environmental sealing and radio frequency/electromagnetic interference shielding. For bulk items see WIRE MESH, KNITTED or GASKETING MATERIAL, CONDUCTIVE.
Part Alternates: 3482941, 348294-1, 8400450F, 84-00450F, 5999-01-429-0149, 01-429-0149, 5999014290149, 014290149
Electrical and Electronic Equipment Components | Miscellaneous Electrical and Electronic Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 04 APR 1996 | 01-429-0149 | 20281 ( SHIELDING GASKET, ELECTRONIC ) |
Drawings & Photos | NSN 5999-01-429-0149
Demand History | NSN 5999-01-429-0149
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5999-01-429-0149 | 2021-08-232 | 14 | Malaysia |
| 5999-01-429-0149 | 2018-12-339 | 1 | DIBBS |
| 5999-01-429-0149 | 2018-10-281 | 2 | DIBBS |
| 5999-01-429-0149 | 2018-10-275 | 2 | DIBBS |
| 5999-01-429-0149 | 2013-04-112 | 3 | DIBBS |
| 5999-01-429-0149 | 2013-03-64 | 3 | DIBBS |
Cross Reference | NSN 5999-01-429-0149
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 348294-1 | 07700 | TECHNICAL WIRE PRODUCTS LLC DBA TWP |
| 348294-1 | 18565 | PARKER-HANNIFIN, CORPORATION DBA PARKER CHOMERICS DIV |
| 348294-1 | 37695 | RAYTHEON COMPANY DBA RAYTHEON |
| 84-00450F | 07700 | TECHNICAL WIRE PRODUCTS LLC DBA TWP |
| 84-00450F | 53TQ8 | PARKER-HANNIFIN, CORPORATION DBA TECKNIT |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5999-01-429-0149
Related Products | NSN 5999-01-429-0149
Technical Data | NSN 5999-01-429-0149
| Characteristic | Specifications |
|---|---|
| MATERIAL | SILVER EMI/RFI CONDUCTOR RUBBER SILICONE CLASS Q ENVIRONMENTAL SEAL |
| MATERIAL DOCUMENT AND CLASSIFICATION | CS7-4 MFR REF 1ST MATERIAL RESPONSE OR 470 MFR REF 1ST MATERIAL RESPONSE EMI/RFI CONDUCTOR ZZ-R-765 CLASS 2B, GRADE 50 FED SPEC 1ST MATERIAL RESPONSE ENVIRONMENTAL SEAL |
| ENVIRONMENTAL PROTECTION MATERIAL LOCATION | THROUGHOUT SEALING GASKET |
| CROSS-SECTIONAL SHAPE STYLE | F72 EMI |
| CROSS SECTION OUTSIDE DIAMETER | 0.088 INCHES MINIMUM AND 0.098 INCHES MAXIMUM |

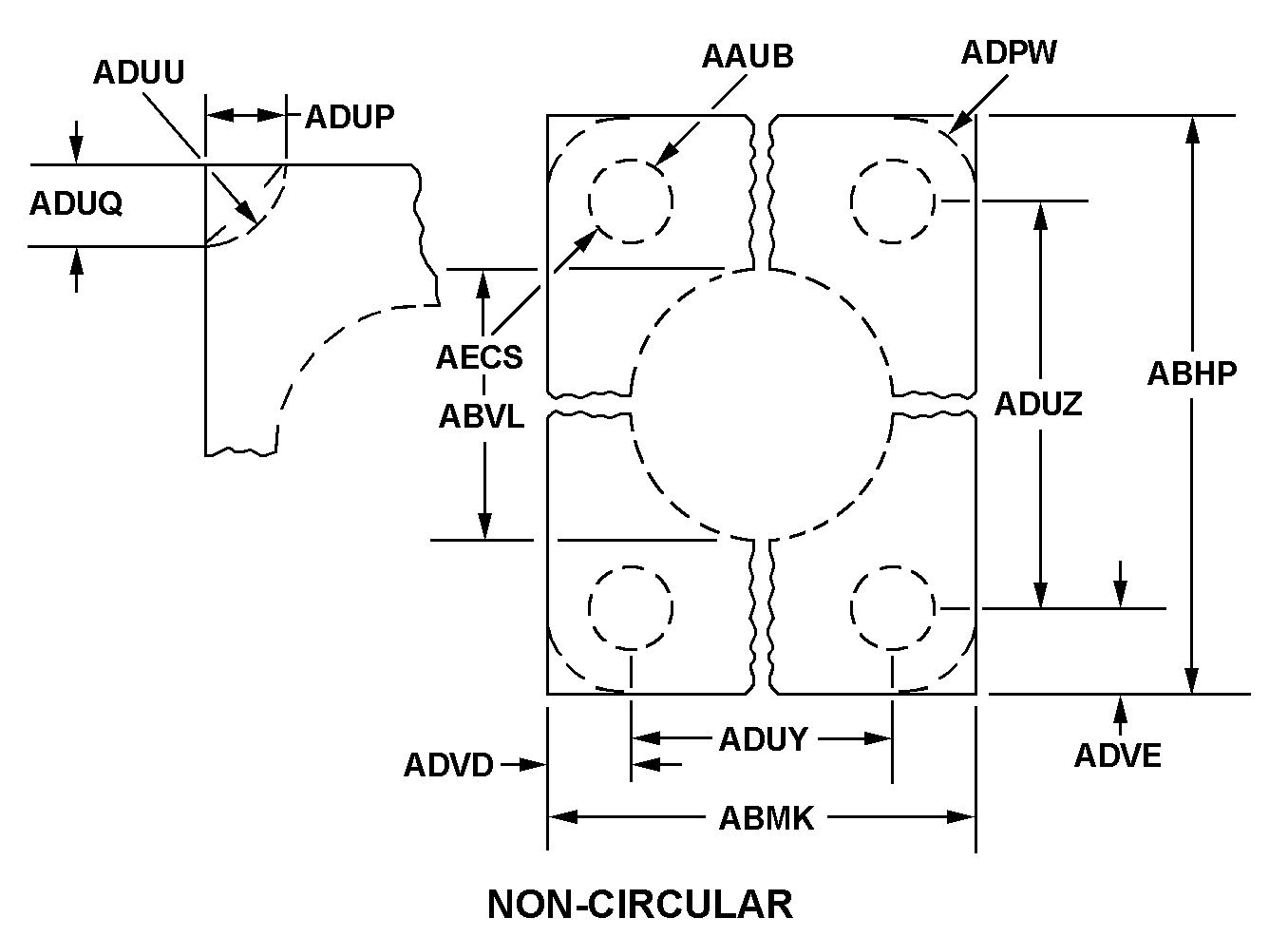

| STYLE DESIGNATOR | B18P NON-CIRCULAR |
| OVERALL LENGTH | 7.570 INCHES MINIMUM AND 7.790 INCHES MAXIMUM |
| OVERALL WIDTH | 7.360 INCHES MINIMUM AND 7.380 INCHES MAXIMUM |
| OUTSIDE CORNER INVERTED RADIUS | 0.150 INCHES MINIMUM AND 0.170 INCHES MAXIMUM |
| III END ITEM IDENTIFICATION | AN/GRC-206(V) |
Restrictions/Controls & Freight Information | NSN 5999-01-429-0149
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | S | Item contains silver |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 062800 | RADIO/TV RECEIVING SET CHASSIS ETC |
| Less than car load rating | ||
| Less than truck load rating | M | 85.0 |
| Water commodity Code | 723 | unknown |
| Originating Activity Code | TH | Defense Supply Center Columbus Columbus, OH 43215 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5999-01-429-0149
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | EH | SX:ELECTRONIC COMPONENTS |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
