NSN 5999-01-501-1160 TA71000666, 01-501-1160, 015011160
Product Details | ELECTRONIC SHIELDING GASKET
5999-01-501-1160 A shaped metallic item designed to increase the effectiveness of radio frequency/electromagnetic interference, or a nonmetallic item containing a wire mesh, metal, or other electrically conductive particles designed to provide environmental sealing and radio frequency/electromagnetic interference shielding. For bulk items see WIRE MESH, KNITTED or GASKETING MATERIAL, CONDUCTIVE.
Part Alternates: TA71000666, 5999-01-501-1160, 01-501-1160, 5999015011160, 015011160
Electrical and Electronic Equipment Components | Miscellaneous Electrical and Electronic Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01-501-1160 | 20281 ( SHIELDING GASKET, ELECTRONIC ) |

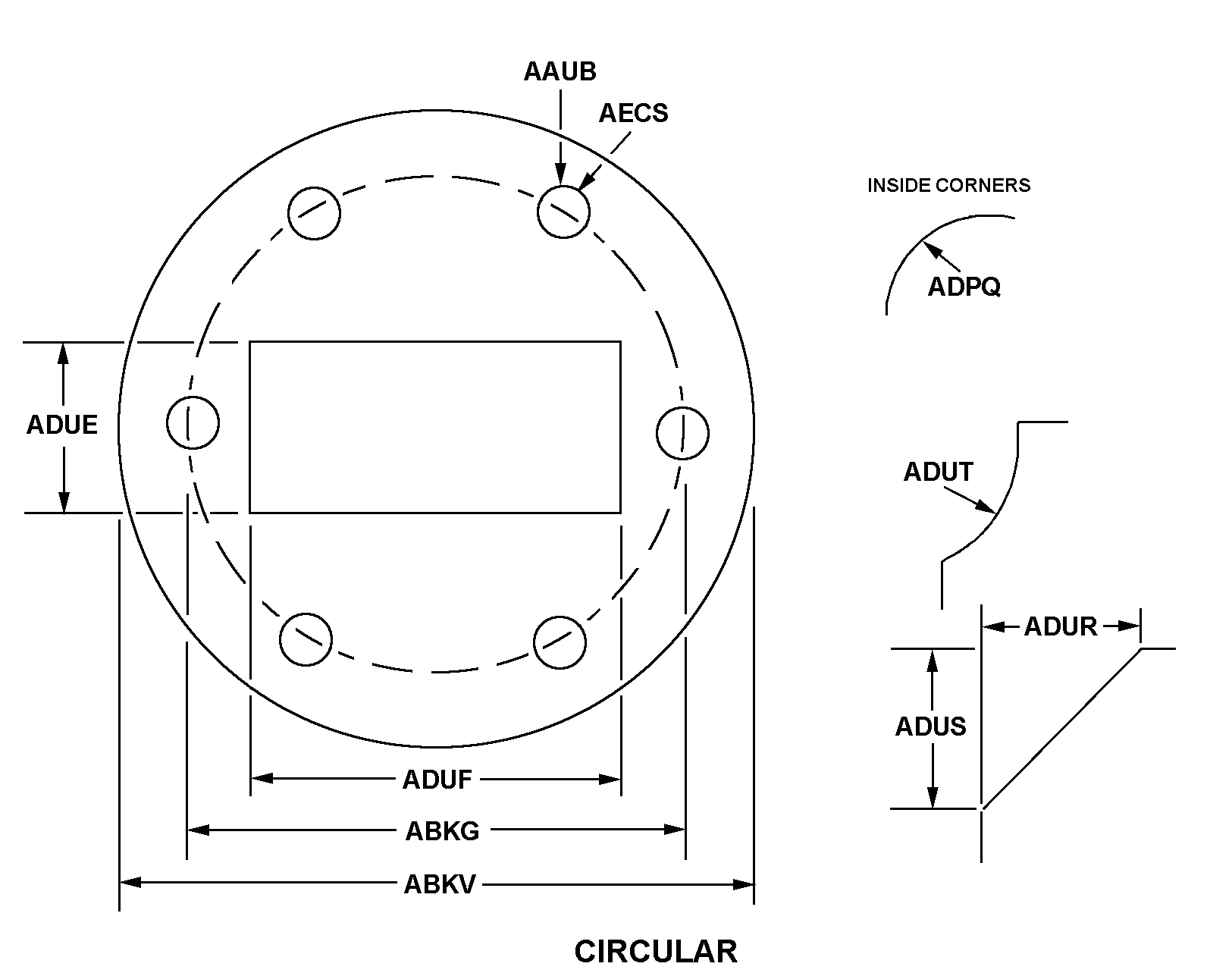

Drawings & Photos | NSN 5999-01-501-1160
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5999-01-501-1160
Technical Data | NSN 5999-01-501-1160
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | B51A CIRCULAR SQUARE |
| HOLE DIAMETER | 0.250 INCHES NOMINAL |
| BOLT CIRCLE DIAMETER | 2.500 INCHES NOMINAL |
| OUTSIDE DIAMETER | 3.000 INCHES NOMINAL |
| APERTURE WIDTH | 0.800 INCHES NOMINAL |
| APERTURE LENGTH | 0.800 INCHES NOMINAL |
| BOLT HOLE QUANTITY | 6 |
Restrictions/Controls & Freight Information | NSN 5999-01-501-1160
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
