Product Details | ELECTRICAL-ELECTRONIC COMPONENT HEAT SINK
5999-01-501-3437 An item which is specifically designed to absorb, conduct or dissipate heat generated by an electrical and/or electronic component or an external source in order to prevent damage to the component. Do not use if a more specific name applies.
Part Alternates: 8504847, 5999-01-501-3437, 01-501-3437, 5999015013437, 015013437
Electrical and Electronic Equipment Components | Miscellaneous Electrical and Electronic Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 OCT 2002 | 01-501-3437 | 61433 ( HEAT SINK, ELECTRICAL-ELECTRONIC COMPONENT ) |
Drawings & Photos | NSN 5999-01-501-3437
Cross Reference | NSN 5999-01-501-3437
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 8504847 | 07187 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5999-01-501-3437
Related Products | NSN 5999-01-501-3437
Technical Data | NSN 5999-01-501-3437
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 25A RECTANGULAR |
| OVERALL LENGTH | 0.730 INCHES NOMINAL |
| OVERALL HEIGHT | 0.280 INCHES NOMINAL |
| OVERALL WIDTH | 0.680 INCHES NOMINAL |
| MATERIAL | ALUMINUM ALLOY 6061 |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-250/11, 6061 T651 FED SPEC SINGLE MATERIAL RESPONSE |
| SURFACE TREATMENT | ANODIZE |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-A-8625, TYPE III, CLASS I (M692441) MIL SPEC SINGLE TREATMENT RESPONSE |

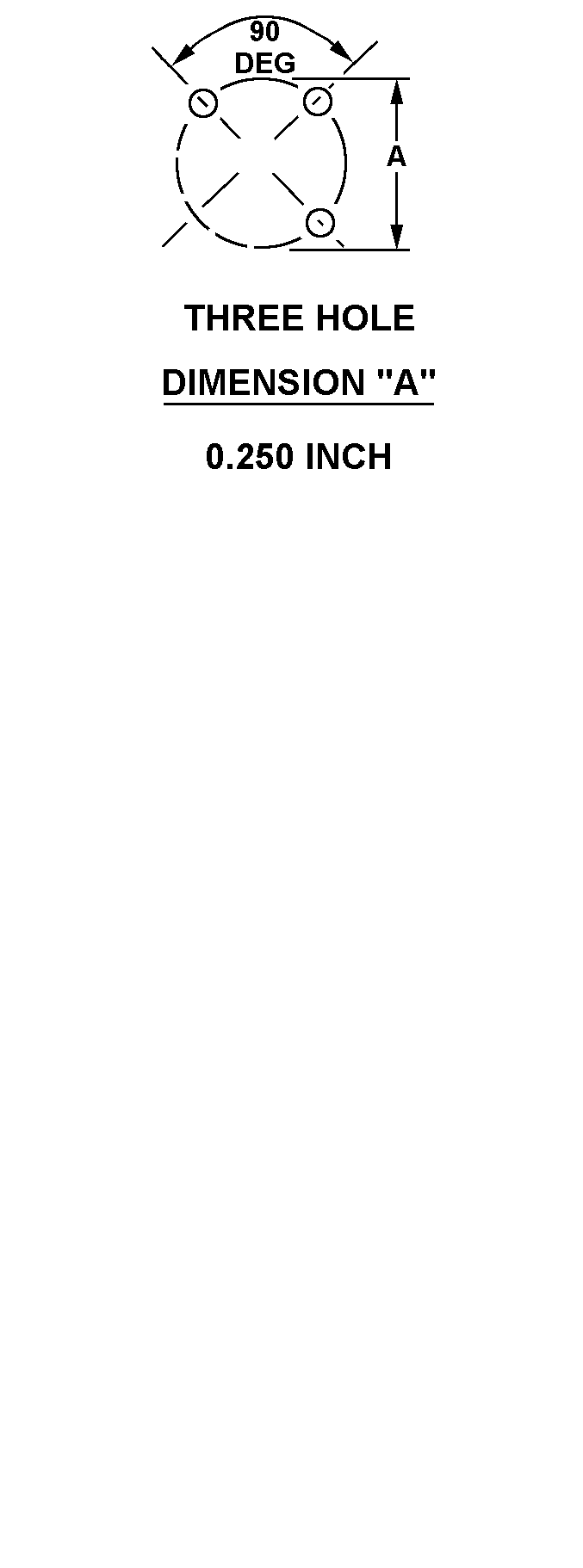

| ACCOMMODATED DEVICE MOUNTING HOLE PATTERN STYLE | 305B THREE HOLE - 0.250 INCH |
| ACCOMMODATED DEVICE MOUNTING HOLE QUANTITY | 3 |
| MOUNTING FACILITY TYPE AND QUANTITY | 3 THREADED HOLE ALL MOUNTING FACILITIES |
| THREAD SERIES DESIGNATOR | UNC FIRST MOUNTING FACILITY UNF SECOND MOUNTING FACILITY UNC THIRD MOUNTING FACILITY |
| NOMINAL THREAD SIZE | 0.112 INCHES FIRST MOUNTING FACILITY 0.190 INCHES SECOND MOUNTING FACILITY 0.112 INCHES THIRD MOUNTING FACILITY |
| THREAD CLASS | 2B FIRST MOUNTING FACILITY 2B SECOND MOUNTING FACILITY 2B THIRD MOUNTING FACILITY |
| III END ITEM IDENTIFICATION | AIRCRAFT, EAGLE F-15 |
