NSN 5999-01-517-7841 0611023984, 06-1102-3984, 11460401-5
Product Details | ELECTRONIC COMPONENTS SHIELD
5999-01-517-7841 An item specifically designed to be placed around a group of components in order to prevent or reduce electromagnetic, electrostatic or radio frequency interference. It may be of various materials and of any shape except flat. For flat items, see PLATE, ELECTRICAL SHIELD. Excludes COVER (as modified), CAP (as modified, and shields designed for single components.
Part Alternates: 0611023984, 06-1102-3984, 11460401-5, 5999-01-517-7841, 01-517-7841, 5999015177841, 015177841, 114604015
Electrical and Electronic Equipment Components | Miscellaneous Electrical and Electronic Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 19 FEB 2004 | 01-517-7841 | 38988 ( SHIELD, ELECTRONIC COMPONENTS ) |
Drawings & Photos | NSN 5999-01-517-7841
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5999-01-517-7841
Technical Data | NSN 5999-01-517-7841
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 6063 |
| SURFACE TREATMENT | CHROMATE |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-C-5541, CLASS 1A MIL SPEC SINGLE TREATMENT RESPONSE |

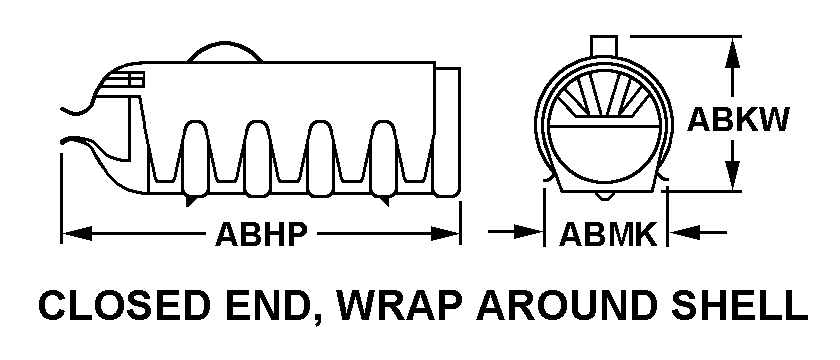

| STYLE DESIGNATOR | 4A CLOSED END, WRAP AROUND SHELL |
| OVERALL LENGTH | 5.750 INCHES NOMINAL |
| OVERALL WIDTH | 2.500 INCHES NOMINAL |
| MOUNTING FACILITY TYPE AND QUANTITY | 1 SCREW SINGLE MOUNTING FACILITY |
| THREAD SERIES DESIGNATOR | UNC SINGLE MOUNTING FACILITY |
| NOMINAL THREAD SIZE | 0.112 INCHES SINGLE MOUNTING FACILITY |
| THREAD CLASS | 3B SINGLE MOUNTING FACILITY |
| SPECIAL FEATURES | NEXT HIGHER ASSEMBLY PART NUMBER 11456665 |
| III END ITEM IDENTIFICATION | PATRIOT |
Restrictions/Controls & Freight Information | NSN 5999-01-517-7841
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
