NSN 5999-01-559-8849 7385944, 01-559-8849, 015598849
Product Details | ELECTRICAL-ELECTRONIC COMPONENT HEAT SINK
5999-01-559-8849 An item which is specifically designed to absorb, conduct or dissipate heat generated by an electrical and/or electronic component or an external source in order to prevent damage to the component. Do not use if a more specific name applies.
Part Alternates: 7385944, 5999-01-559-8849, 01-559-8849, 5999015598849, 015598849
Electrical and Electronic Equipment Components | Miscellaneous Electrical and Electronic Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 09 JAN 2008 | 01-559-8849 | 61433 ( HEAT SINK, ELECTRICAL-ELECTRONIC COMPONENT ) |
Drawings & Photos | NSN 5999-01-559-8849
Cross Reference | NSN 5999-01-559-8849
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 7385944 | 53711 | NAVAL SEA SYSTEMS COMMAND |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5999-01-559-8849
Related Products | NSN 5999-01-559-8849
Technical Data | NSN 5999-01-559-8849
| Characteristic | Specifications |
|---|---|

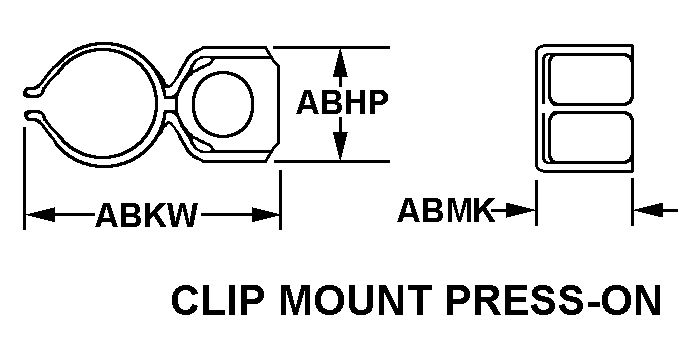

| BODY STYLE | 21A CLIP MOUNT PRESS-ON |
| OVERALL LENGTH | 9.000 INCHES NOMINAL |
| OVERALL HEIGHT | 0.060 INCHES MAXIMUM |
| OVERALL WIDTH | 7.800 INCHES NOMINAL |
| MATERIAL | PLASTIC SILICONE AND RUBBER |
| MOUNTING FACILITY TYPE AND QUANTITY | 1 BASE ALL MOUNTING FACILITIES |
| SPECIAL FEATURES | MATERIAL SOURCE IS CAGE: 55285, NAMED: GAP PAD VO SOFT, AT 0.060 INCHES THICK; COLOR: MAUVE/PINK |
| III END ITEM IDENTIFICATION | 7386082(53711), FES NOSE ASSEMBLY |
| PART NAME ASSIGNED BY CONTROLLING AGENCY | HEATSINK, THICK, LARGE |
Restrictions/Controls & Freight Information | NSN 5999-01-559-8849
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 063085 | SINKS HEAT |
| Less than car load rating | ||
| Less than truck load rating | M | 85.0 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | HD | Naval Inventory Control Point Mechanicsburg, PA 17055-0788 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5999-01-559-8849
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
